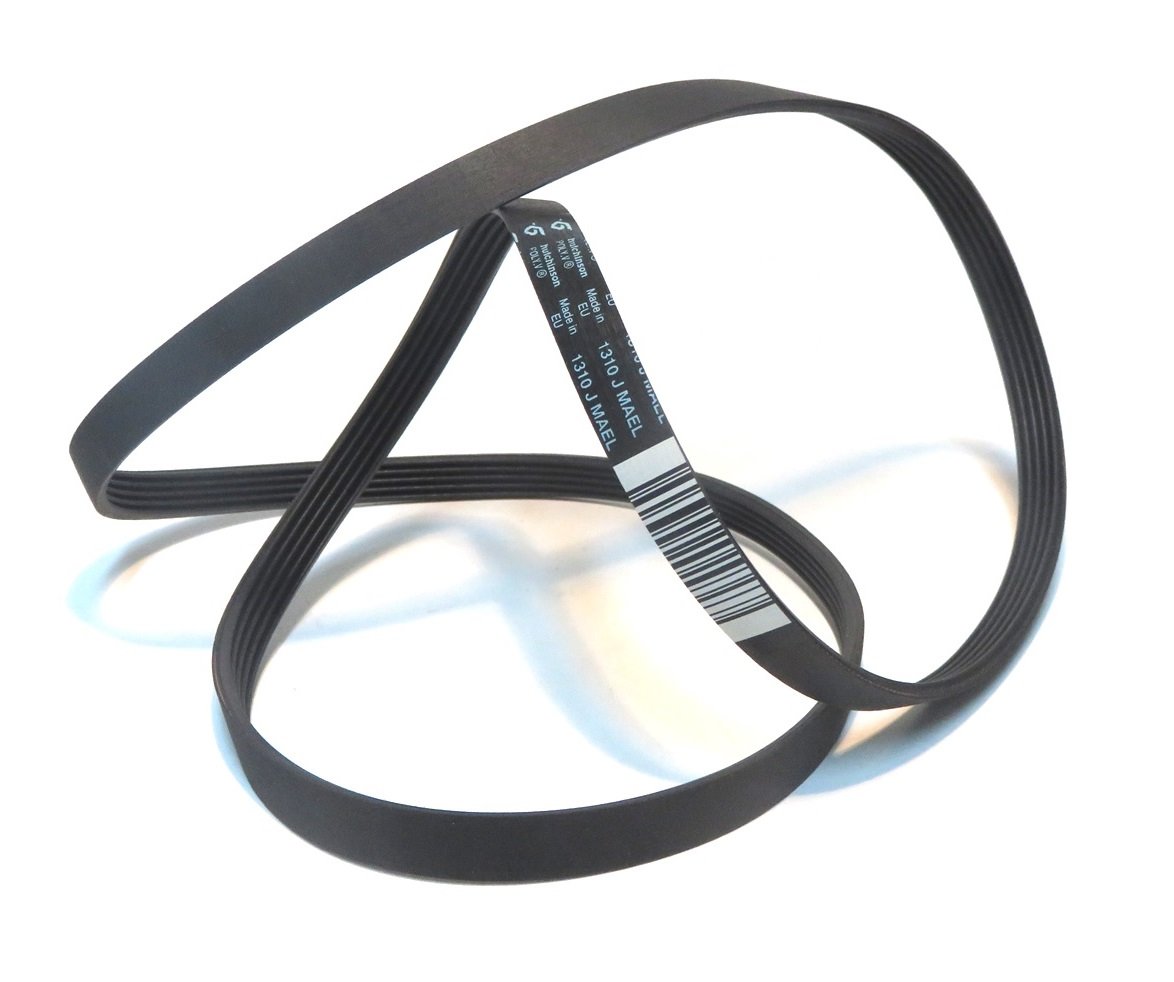

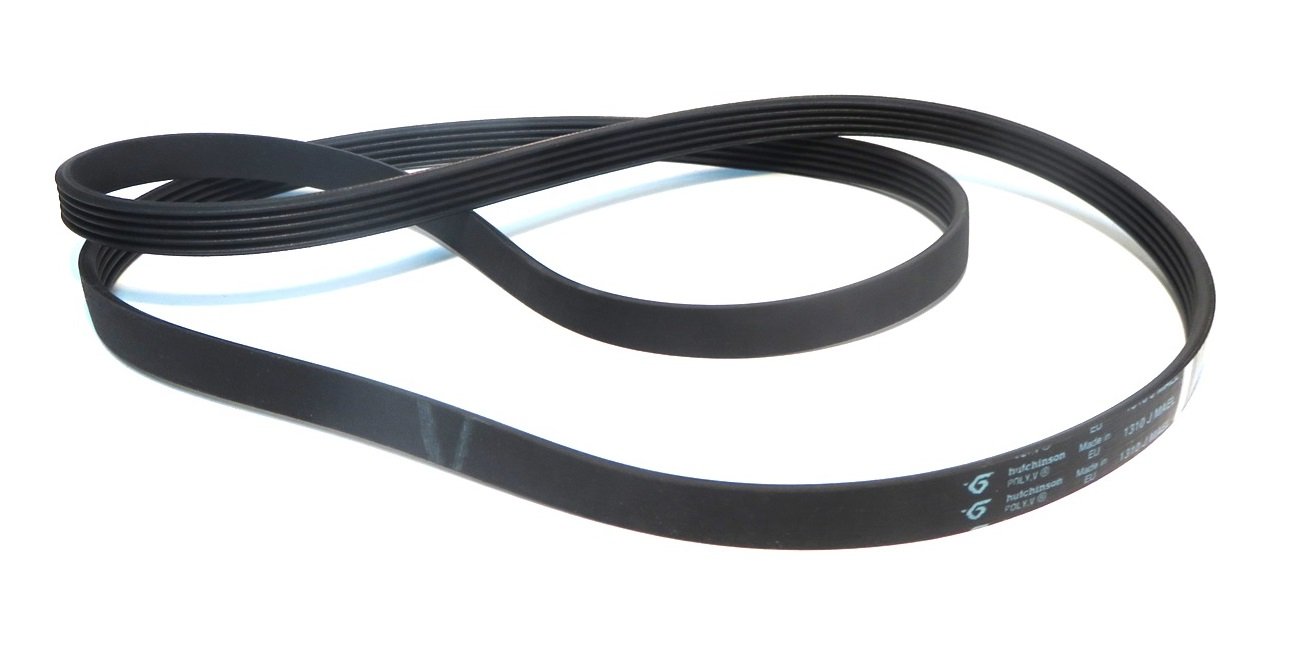

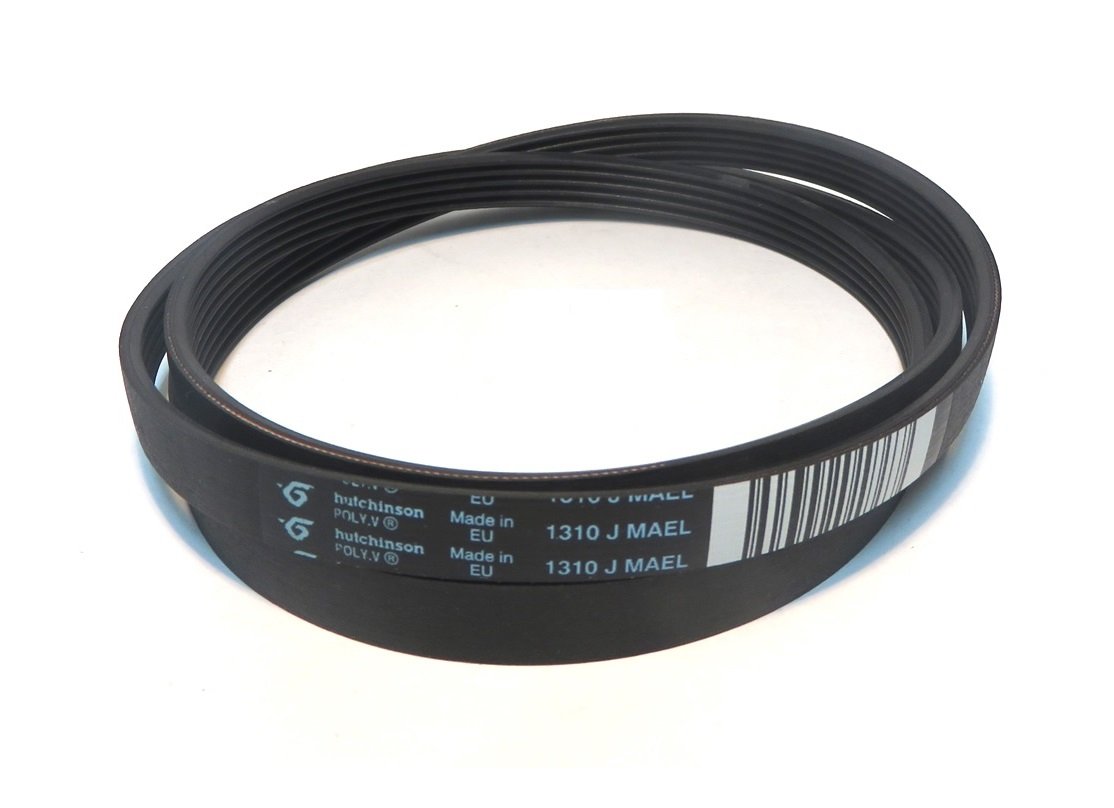

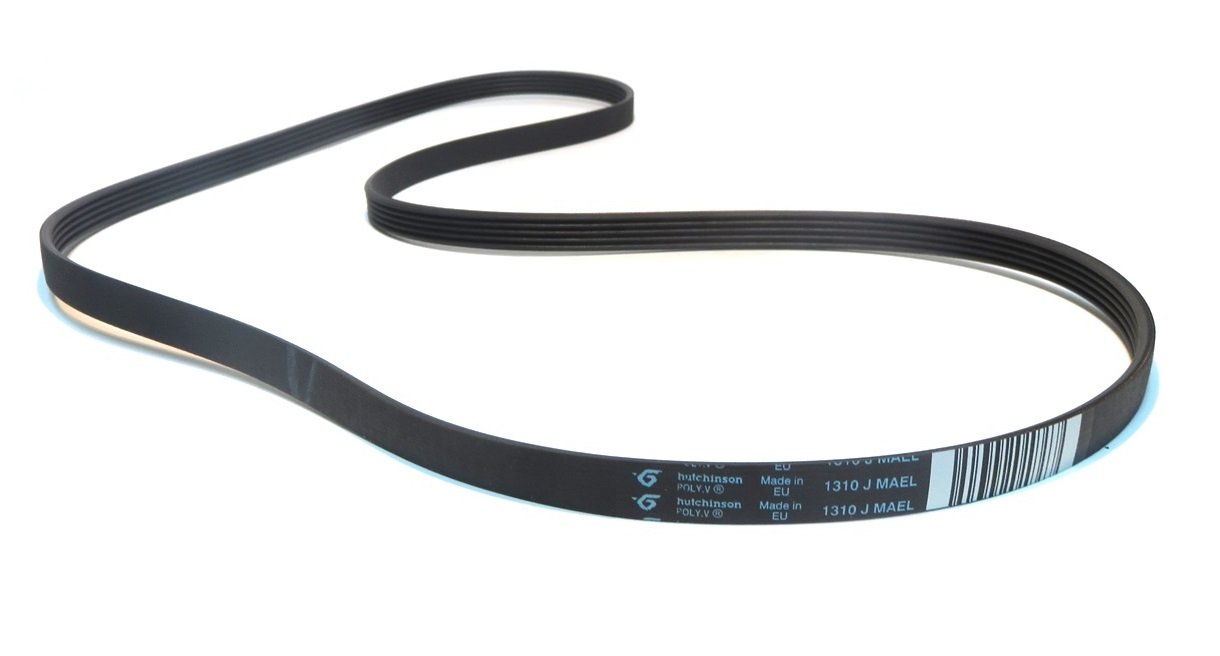

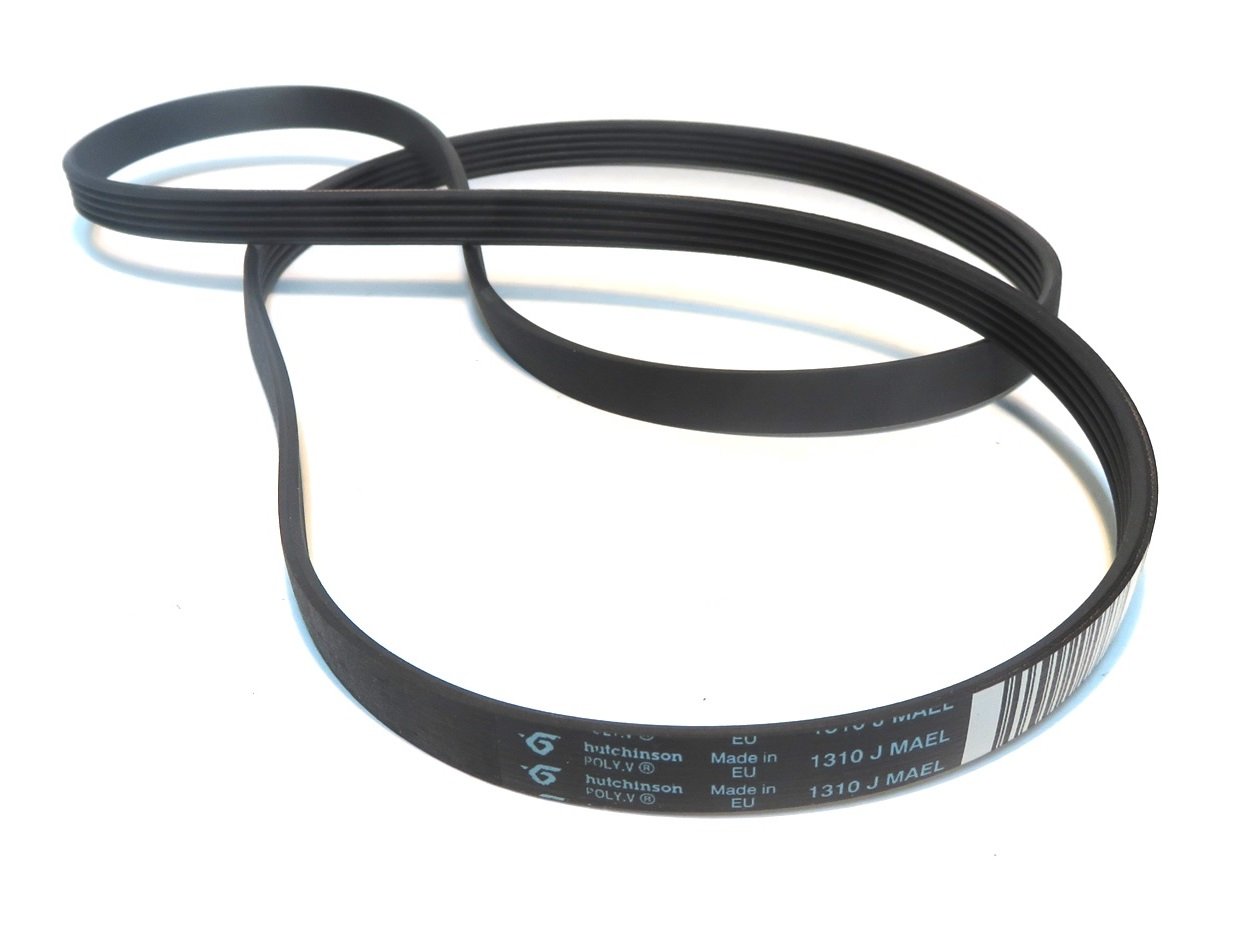

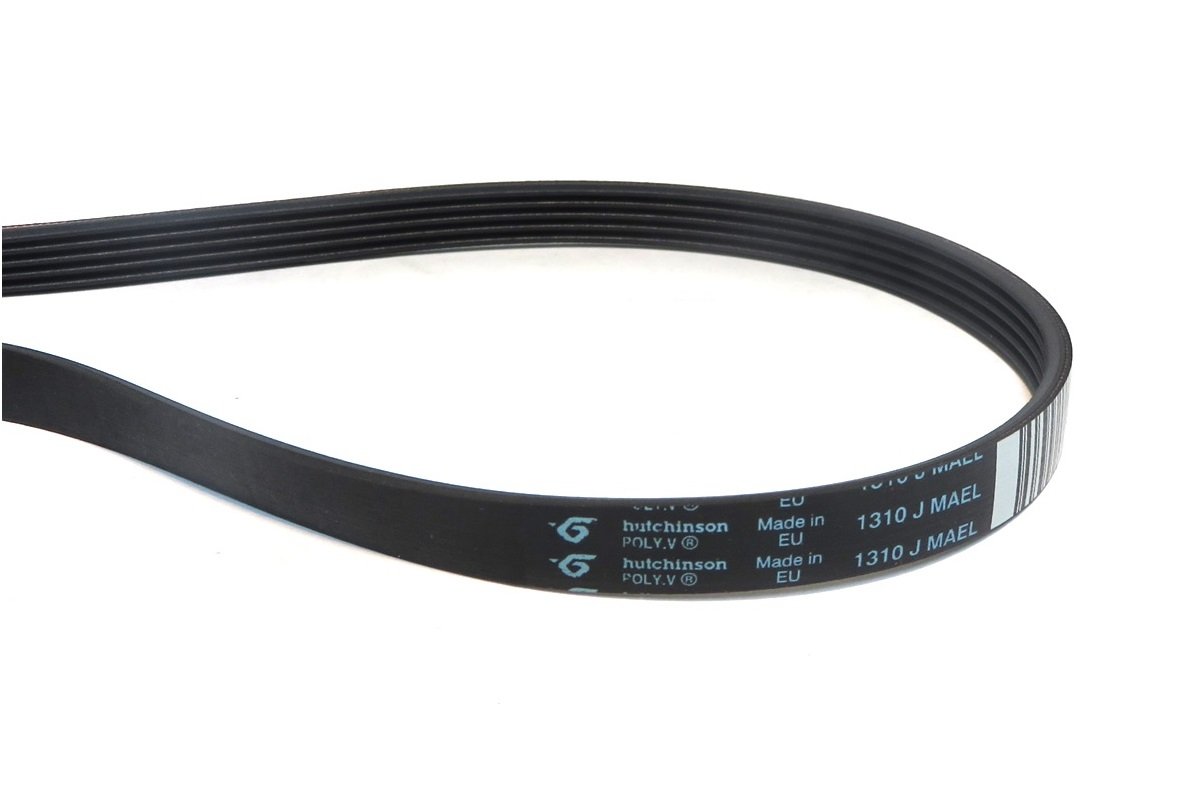

Hutchinson - Washing machine drive belt 1310 J MAEL

• 1310mm Drive Belt
• Charged with transmitting the motor movement to the washing machine drum
• Length: 1310 mm / Slot: Type J / Elasticity: MAEL / Strap POLY.V.
• Compatibility: Perfectly replace the 1310 J, PJ 1310, EL 1310 J5, 1310 J5 MAEL, EPJ 1310 straps
• Includes assembly instructions

1310 mm transmission belt, responsible for transmitting the movement of the engine to the drum of the washing machine. It is mounted on washing machines from Ariston, Bauknecht, Brandt, Ignis, Indesit, Whirlpool, Thomson, Laden, Radiola, Philips, Vedette, Blomberg, Sauter, De Dietrich, Ardem, Beko and many other brands. Slot: J Type / Elasticity: MAEL / POLY.V Strap / Teeth Height: 3.30 mm / Dist. Channels: 2.34mm / Manufacturer: Hutchinson <br><br>INSTRUCTIONS FOR ASSEMBLY <br>Once you have accessed the back of the washing machine: <br>1. Pass the belt through the motor pulley <br>2. Then drive the strap to the large pulley (the basket of the cart) <br>3. And start spinning slowly and forcefully. The strap will be placed as the elasticity is given. That is, it mounts like a bicycle chain. <br>(See photo) <br><br>WHY BREAK THE BELTS? <br>Most washing machine straps break for the same cause: because they burn. You will know that your washing machine strap has burned because the ends of the strap have been slightly curved inward and the inner groove has been lowered. To prevent the strap from breaking due to this cause, it is advisable not to overload the washing machine or wash shoes or sneakers. This will prevent the pump from being locked while the motor pulley rotates and the belt burns.
