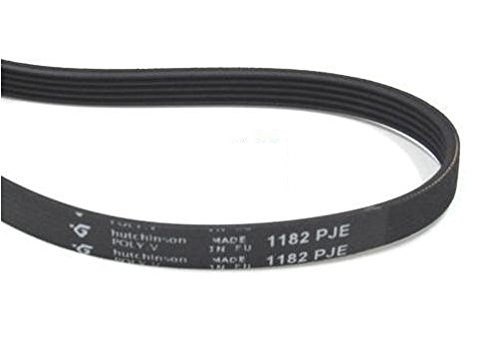

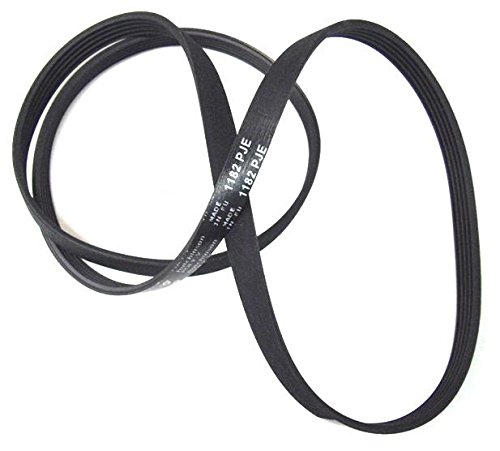

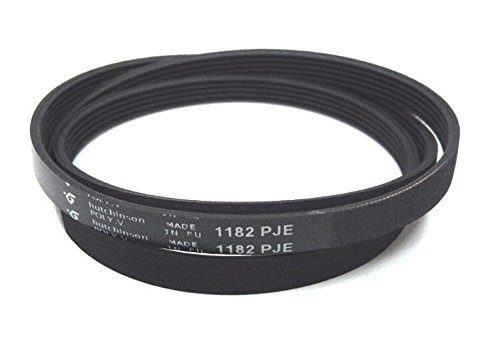

Hutchinson - Washing machine drive belt 1182 PJE

• Ribbed drive belt, 1182 mm in stretch
• Contracts the movement of the engine to the drum of the washing machine
• Length: 1182 mm. Slotted: Type J / Elasticity: PJE / V-belt Poly.V
• Compatibility: Perfect for the V-belt 5PJE 1182
• Please find installation instructions included (English language not ). not in English)

Ribbed drive belt 1182mm in stretch. Transmits the movement of the motor to the drum of the washing machine. Suitable for LG, Indesit, Ariston, Hotpoint, Creda, Bluesky, Taurus and many other brands washing machines. Length: 1182 mm / Slotted: Type J / Elasticity: PJE / V-belt Poly.V / Height of teeth: 3.30 mm. Channel width: 2.34 mm. Code: 4400FR3116D / Manufacturer: Hutchinson Installation Instructions: Once you have access to the inside of the washing machine: 1. Tighten the belt into the pulley of the engine. 2. Guide the belt to the large pulley. It is important that you do not try to tighten the belt over the upper part of the pulley. You need to push the belt into a corner of the pulley. 3. And start turning slowly, but powerfully. The strap attaches by increasing elasticity (fits like a bicycle chain). (see photo).
