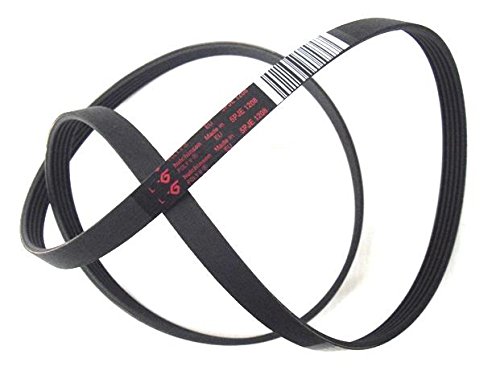

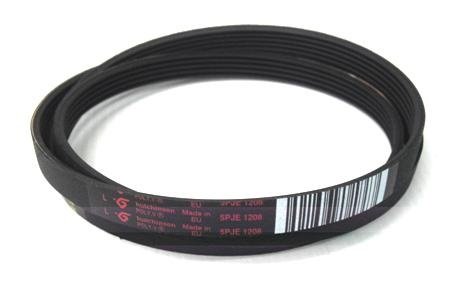

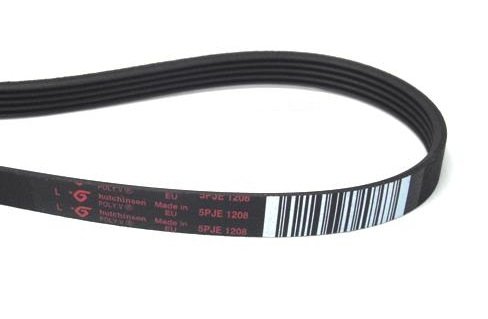

Hutchinson – Washing Machine Belt 5PJE 1208

• Transmission belt with 1208 mm of development.
• Transmits the movement of the motor to the washing machine drum.
• Slot: Type J / Teeth: 5 / Channels: 4 / Elasticity: PJE.
• Compatibilities: Perfectly replaces the 1208 J6, 5PJ 1208 straps.
• Includes assembly instructions (may not be in English).

1208mm transmission development strap, responsible for transmitting the motor's movement to the washing machine drum. It is mounted in the following washing machines brands Ocean, Sangiorgio, Ariston, Indesit, Hotpoint, Scholtes, Creda, Thomson, Brandt, Haier, Fagor, Vedette (Cabaret), among many other brands. Slot: Type J / Teeth: 5 / Elasticity: PJE / Slot: Type J / Teeth height: 3.30mm / Dist. Channels: 2.34mm. Assembly instructions. Once you have opened the back of the machine: 1. Pass the strap by the pulley motor. 2. Lead the strap to the large pole (with the basket). 3. Rotate slowly and with force. The strap will arrange itself to provide elasticity to measure. It goes on like a bicycle chain. (See photo). Why do the belts break? The majority of washing machine straps break due to burning. If the washing machine strap has been burnt, the the extremes of the strap will curve slightly inwards and the internal groove has been lowered. To avoid the strap breaking for this reason, avoid overcharging the washing machine or washing shoes / sports shoes. This avoids the drum from blocking whilst the motor pole rotates and the strap burns.
