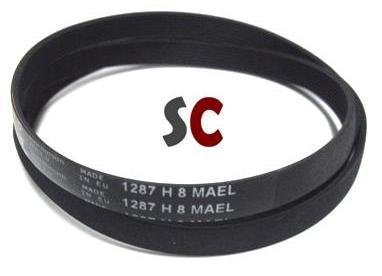

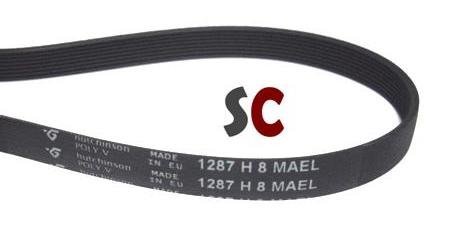

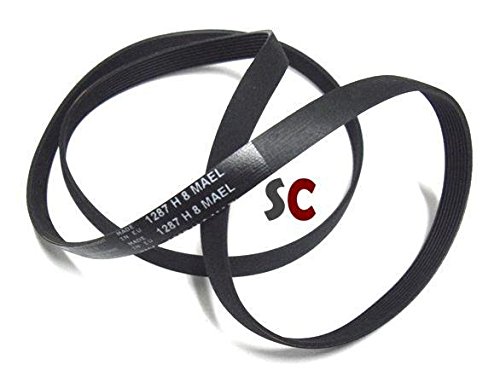

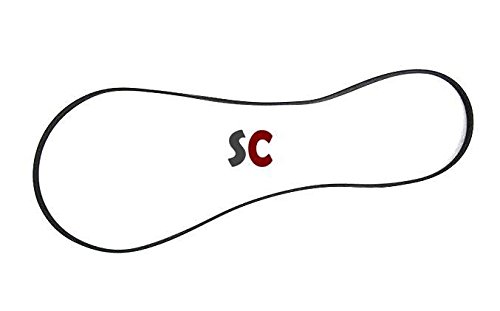

Hutchinson-1287 H8 MAEL

• Ribbed transmission belt, of 1287 milemeter development
• Its function is to transmit the movement of the engine to the washing machine drum
• Teeth: 8 / Channels: 7 / Elasticity: MAEL / Slots: type H
• Compatibility: perfectly replaces 1287 H8, 1287 H MAEL belts.
• Please find attached placement instructions

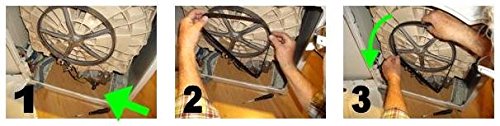

Ribbed transmission belt, 1287 development milemeters, which has the function of transmitting the movement of the motor to the drum of the washing machine. It is installed in washing machines from AEG, Corberó, Electrolux, Zanussi, Arthur Martin, Faure, among many other brands. Length: 1287 mm / Elasticity: MAEL / Slots: type H / Tooth height: 2.5 mm / Channel width: 1.60 mm / Teeth: 8 / Channels: 7 / Manufacturer: Hutchinson / Reference: 302.93.75 PLACEMENT INSTRUCTIONS Once you have accessed the inside of the washing machine: 1. Drive the belt through the engine pulley 2. Then drive the belt to the large pulley. It is important not to try to fit the belt by the higher part of the pulley. What to do is press the belt in a corner of the pulley 3. And start spinning slowly and forcefully. The belt will be worn as it gives elasticity (it mounts like a bike chain). (See the photo)
