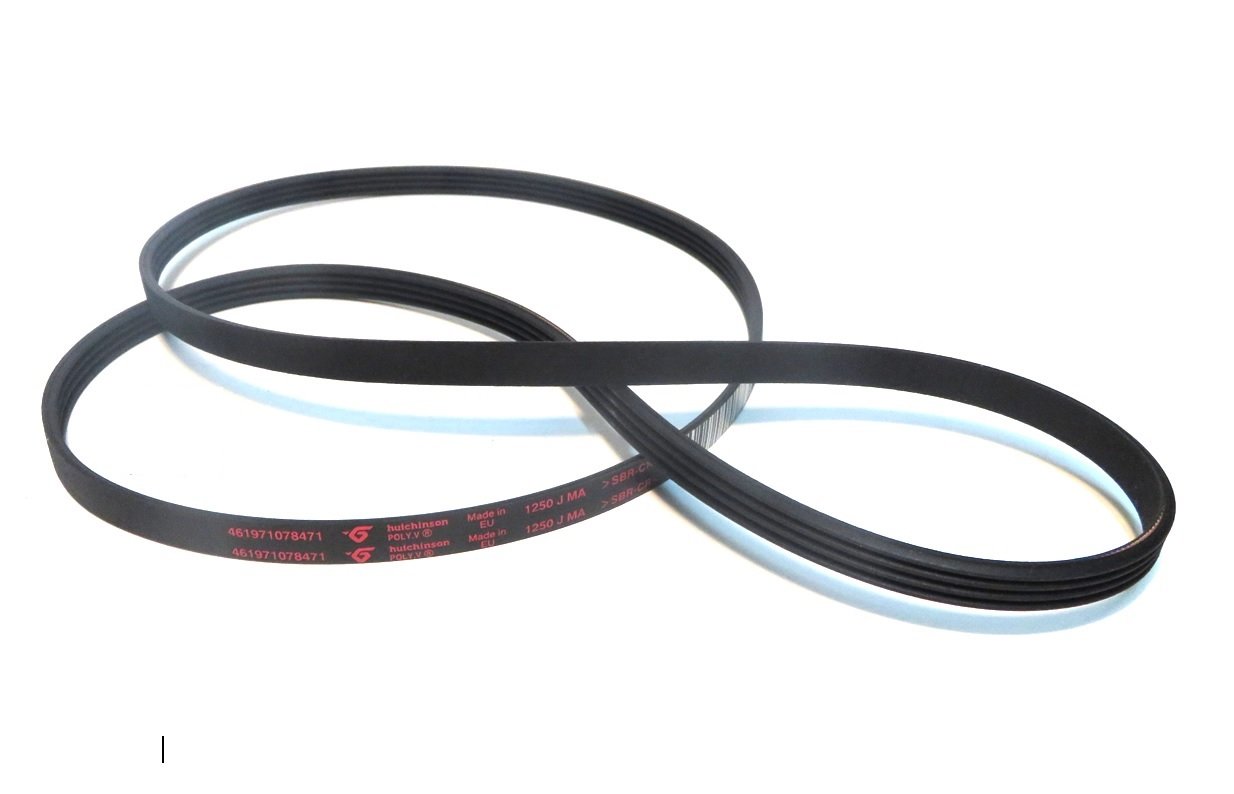

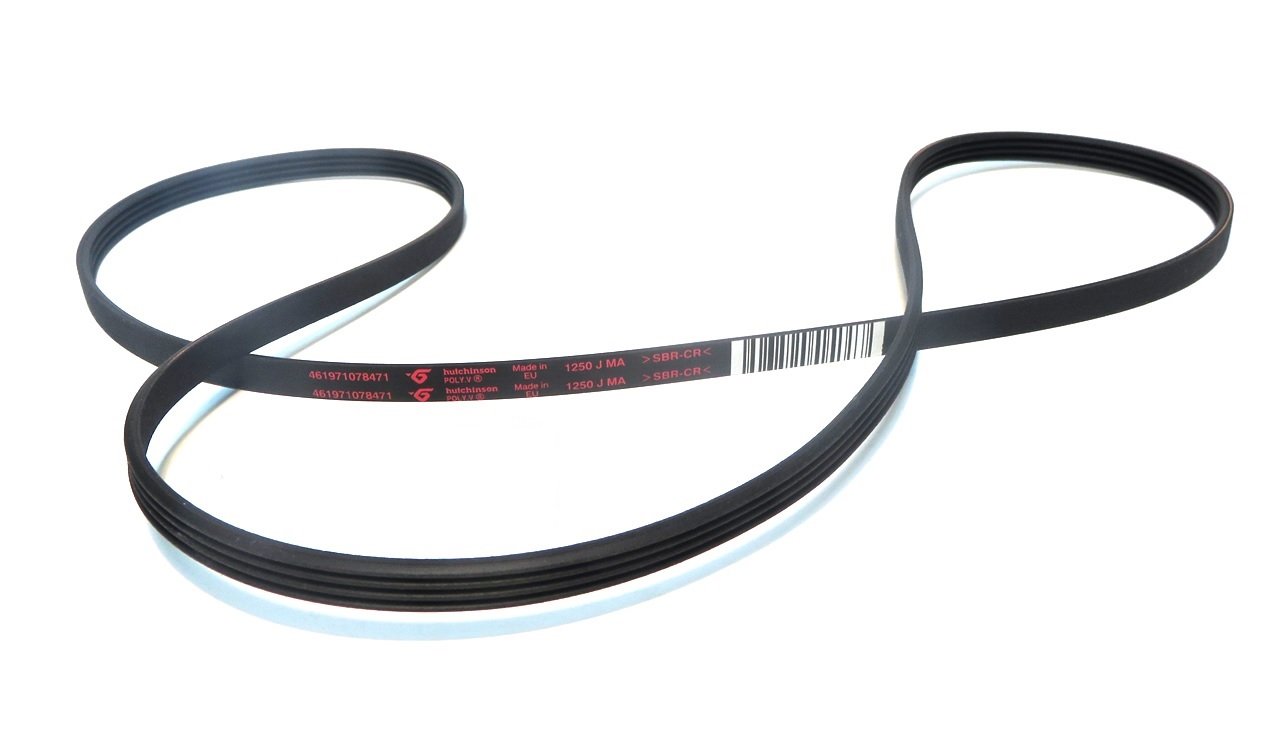

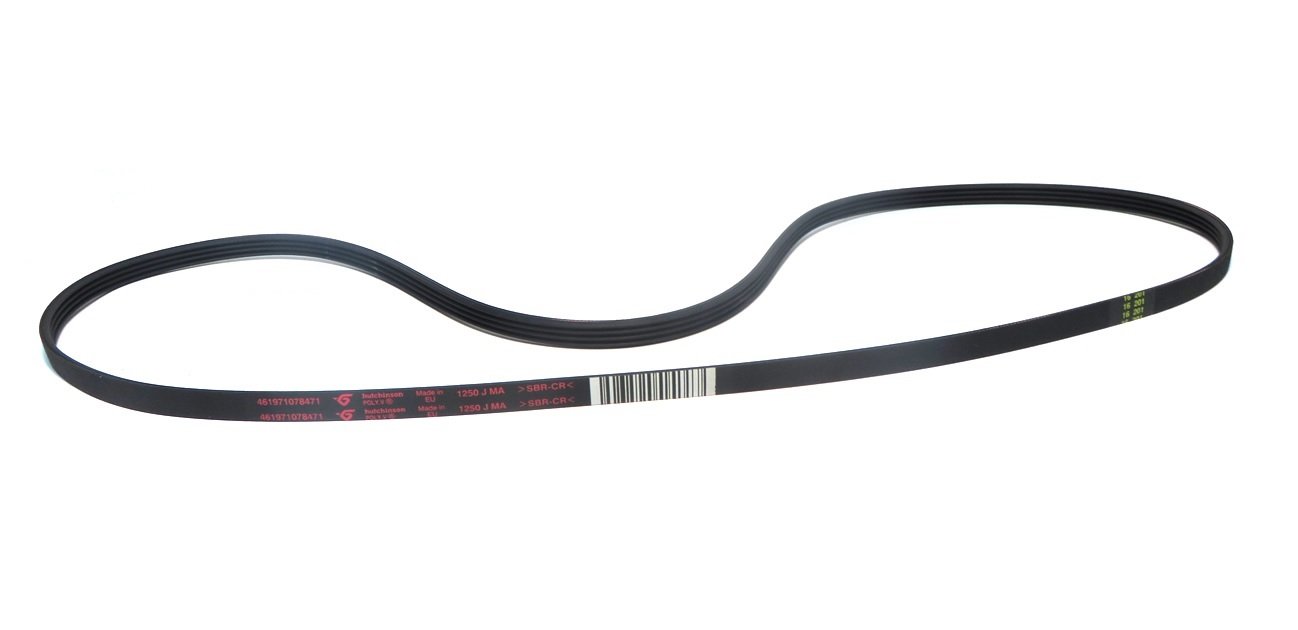

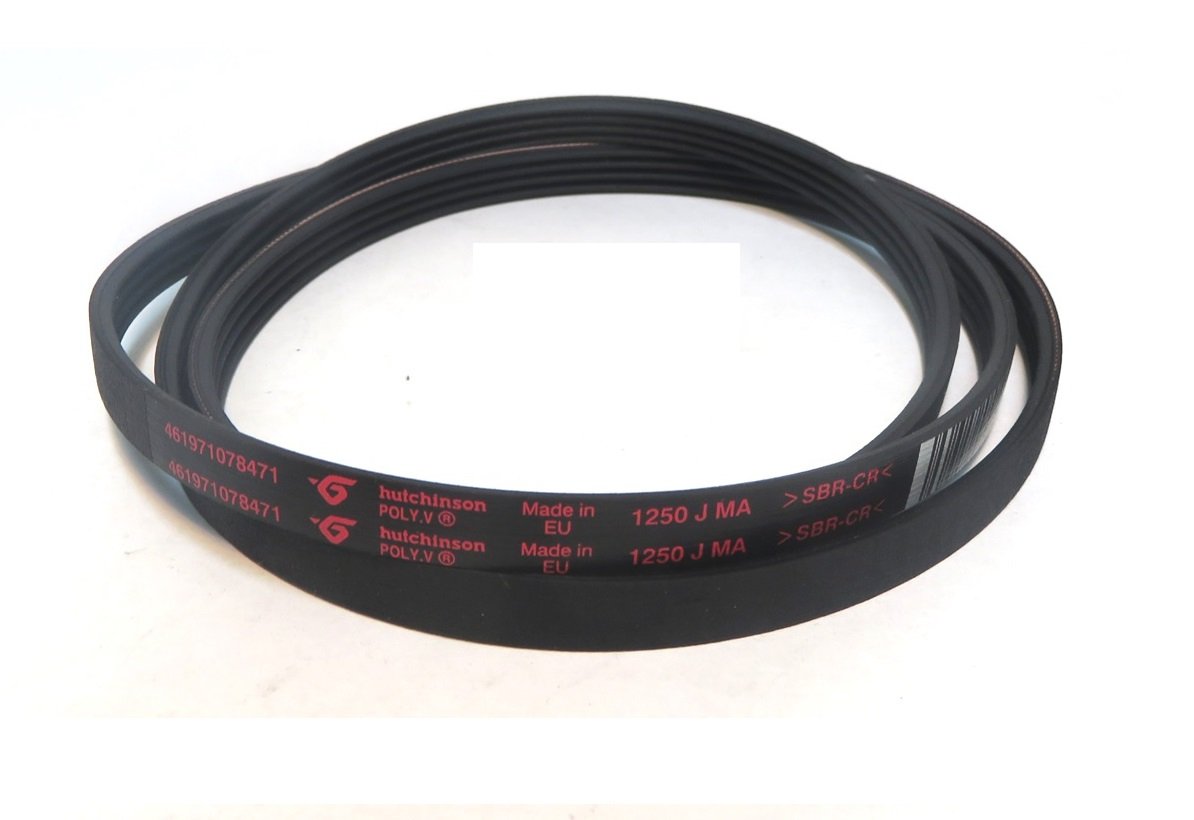

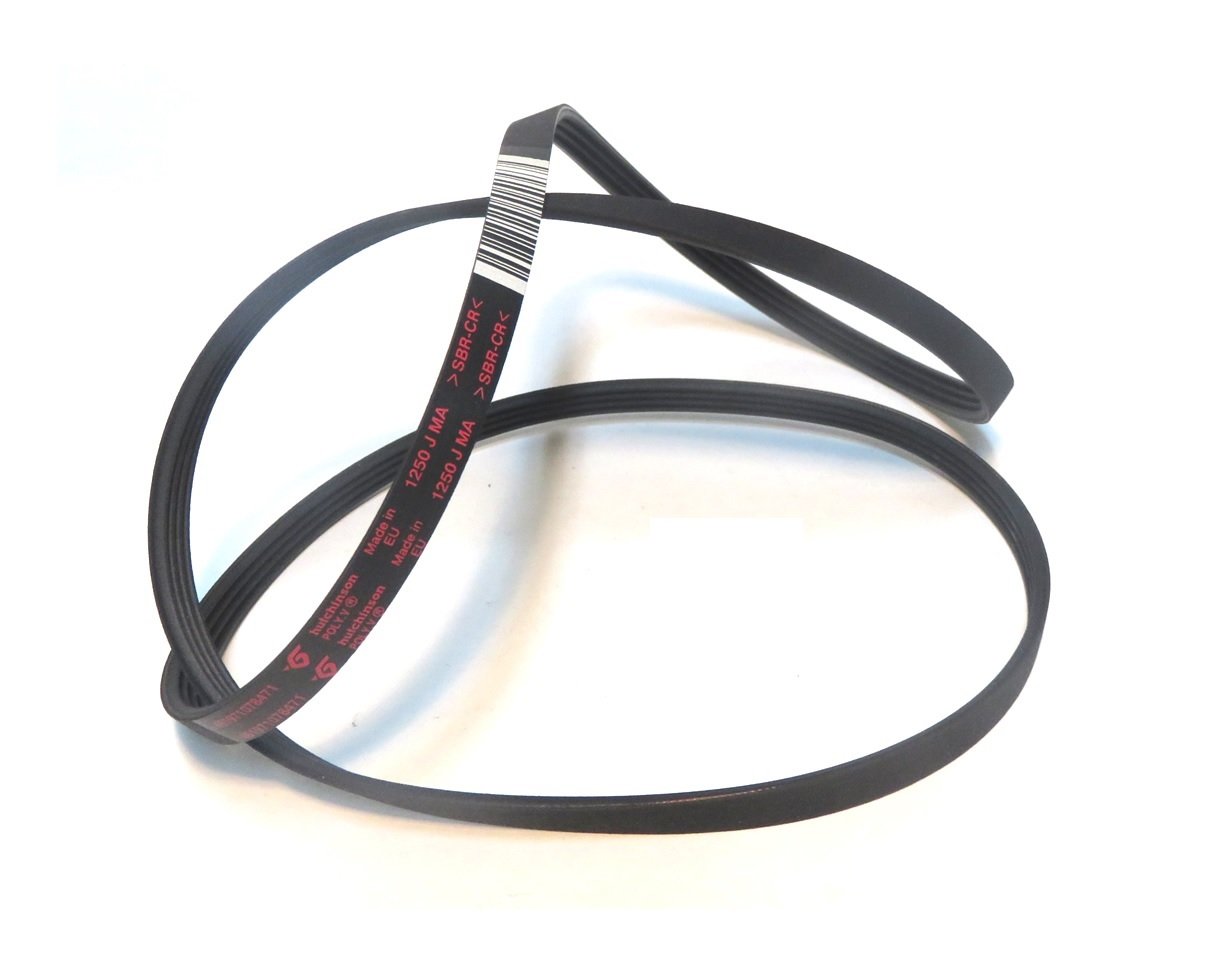

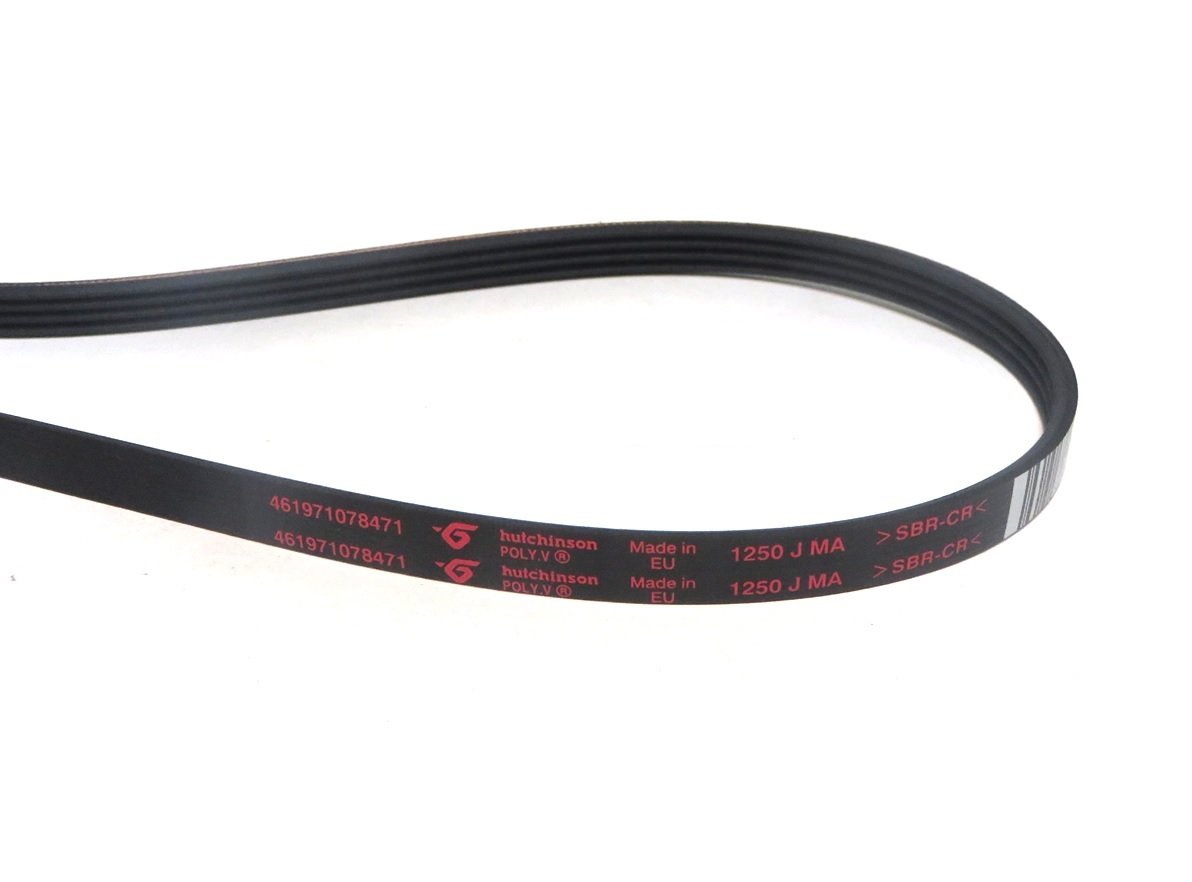

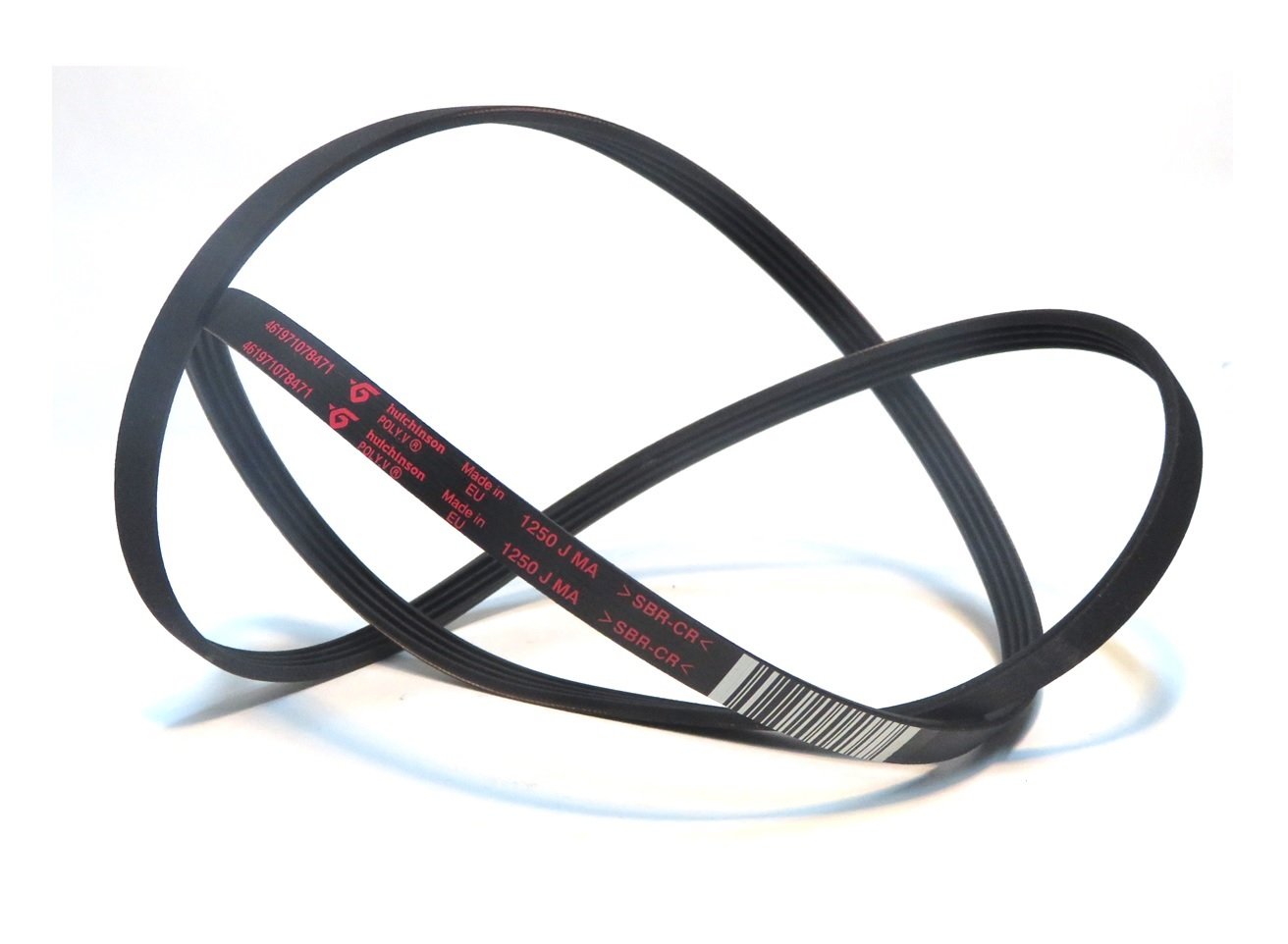

Hutchinson V-belt for washing machine 1250 J MA (461971078471)

• With ribbed drive belt, 1250 milimètres development
• It has the function of transmitting the movement of the motor into the drum of the washing machine
• Length: 1250 mm/Elasticity: Ma/Slotted: Type J
• Compatible with: it is a good replacement drive belt EL 1250 J6, El 1250 J5, 1250 J5 MAEL, 1250 J5, PJ 1250, EPJ 1250 cylindrical linkage
• Please find attached instructions for placement

With ribbed drive belt, 1250 milimètres development, with the function of moving the engine into the drum washing machine. It is installed in the machine brands to load, Ignis, Bauknecht, Whirlpool, Maytag, Philips, Ardo, Romer, New Pol, Romer, Taurus, among many other brands. Length: 1250 mm/Elasticity: Ma/Slotted: Type J/Height of Teeth: 3.30 mm/Channel Width: 2.34 mm/Code: 461971078471/Manufacturer: Hutchinson. Placement instructions: Once you have them on the inside, the washing machine: 1. You belt into the pulley of the engine. 2. Then drive the belt until the large pulley. It is important that you do not have to worry about the belt pulley. What to do is support the pulley in a corner 3. And start à Tourner slowly and with forced. Straps scratch position that you have the elasticity (you mount like a chain). (In the photo)
