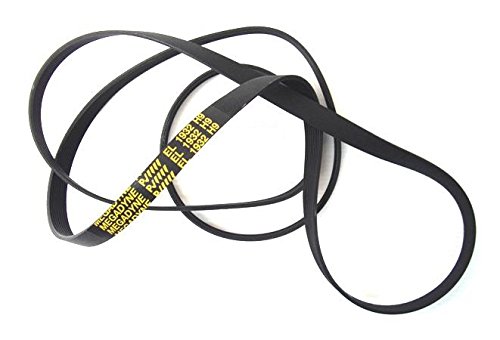

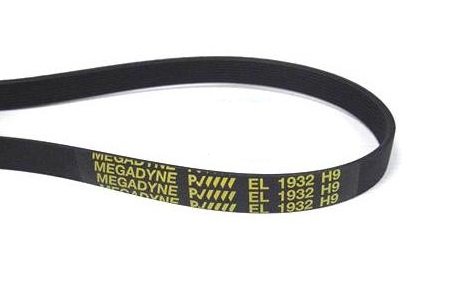

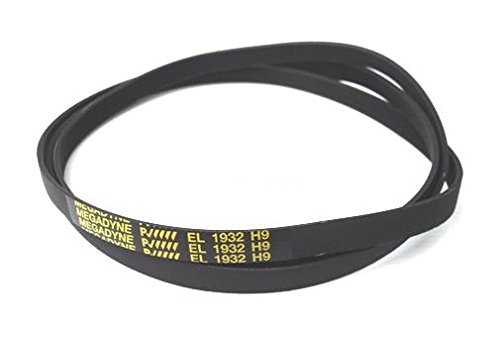

Hutchinson - Tumble dryer belt EL 1932 H9

• This is a power transmission belt of 1932 mm length, responsible for transmitting the movement to the tumble dryer drum
• Ribbed belt / Type of ribs: H / Ribs: 9 / Grooves: 8 / Elasticity: EL / Length: 1932 mm
• Includes assembly instructions

This is a power transmission belt of 1932 mm length, responsible for transmitting the movement to the tumble dryer drum. It is installed in tumble dryers of the brands Edesa, Aspes, Fagor, Vedette, Brandt, Domeos, Laden, Ignis, Whirlpool, Hotpoint, Ariston, Indesit, among many other brands. Type of ribs: H / Elasticity: PHE / Length: 1932 mm / Rib height: 2,5 mm / Groove widht: 1,60 mm. Manufactured in polyurethane (thermoset polyurethane with 85 ± 5 ShA hardness) with polyester tension cords, which combine the high flexibility of flat belts with the power transmission capability of v-belts (the tensile member consists of high- strength low-stretch polyester cords, which grant length stability). Compact smooth running drive system with low vibration. High transmission ratio. INSTRUCTIONS FOR THE CORRECT FITTING Once you have accessed inside the tumble dryer: 1. Pass the belt through the pulley of the motor 2. Thread the belt up through the lateral tensor* up to the side of the drum (* the tumble dryer may have more than one tensor, or it may have none) 3. Slowly turn the drum, applying force to the belt
