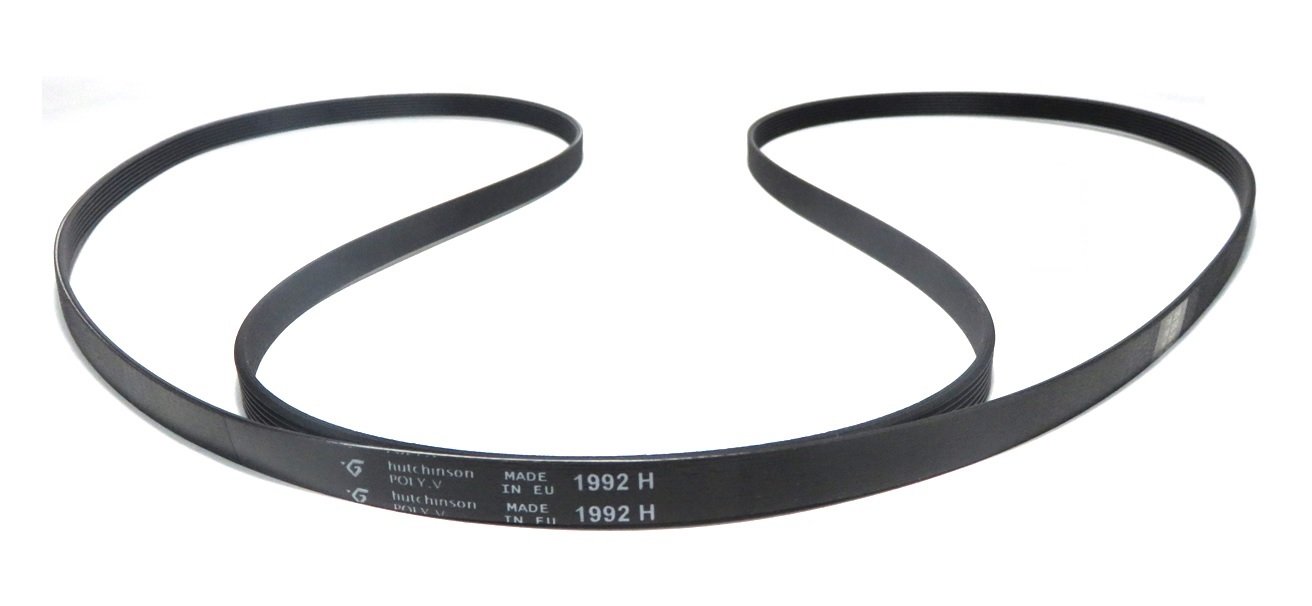

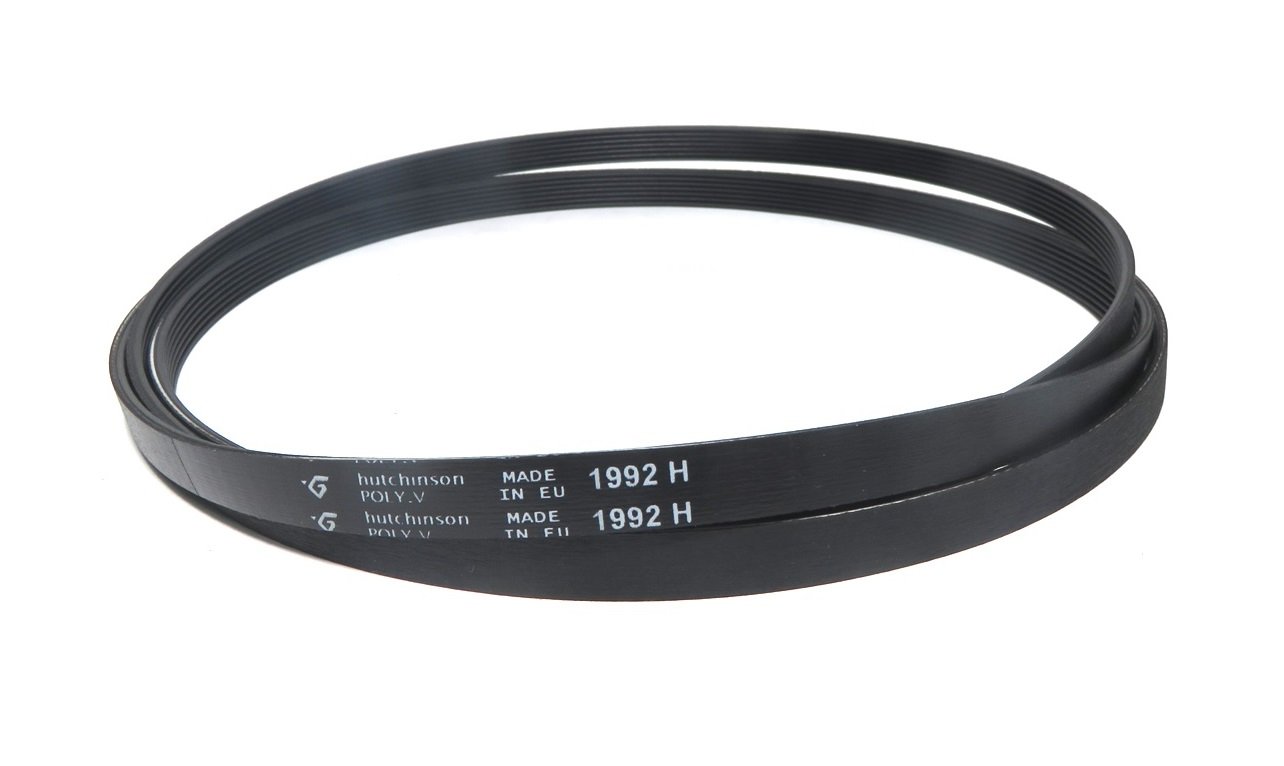

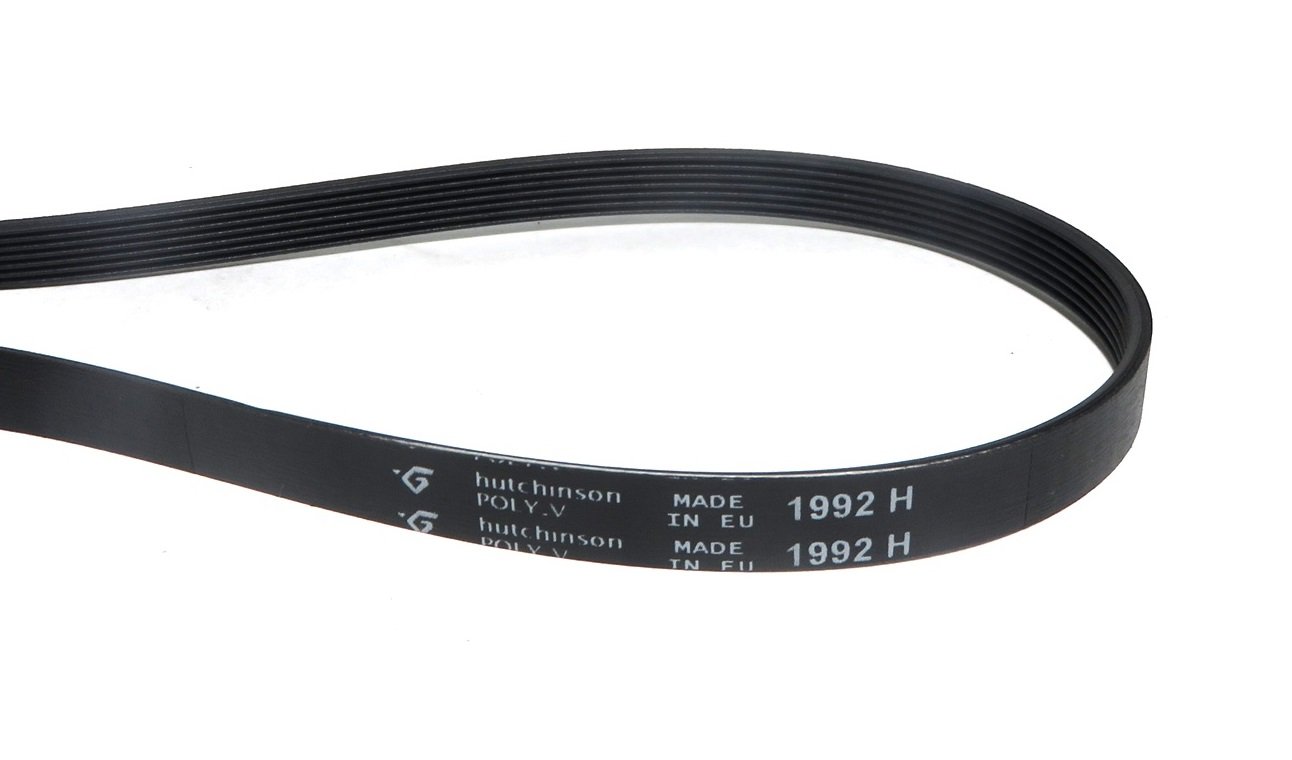

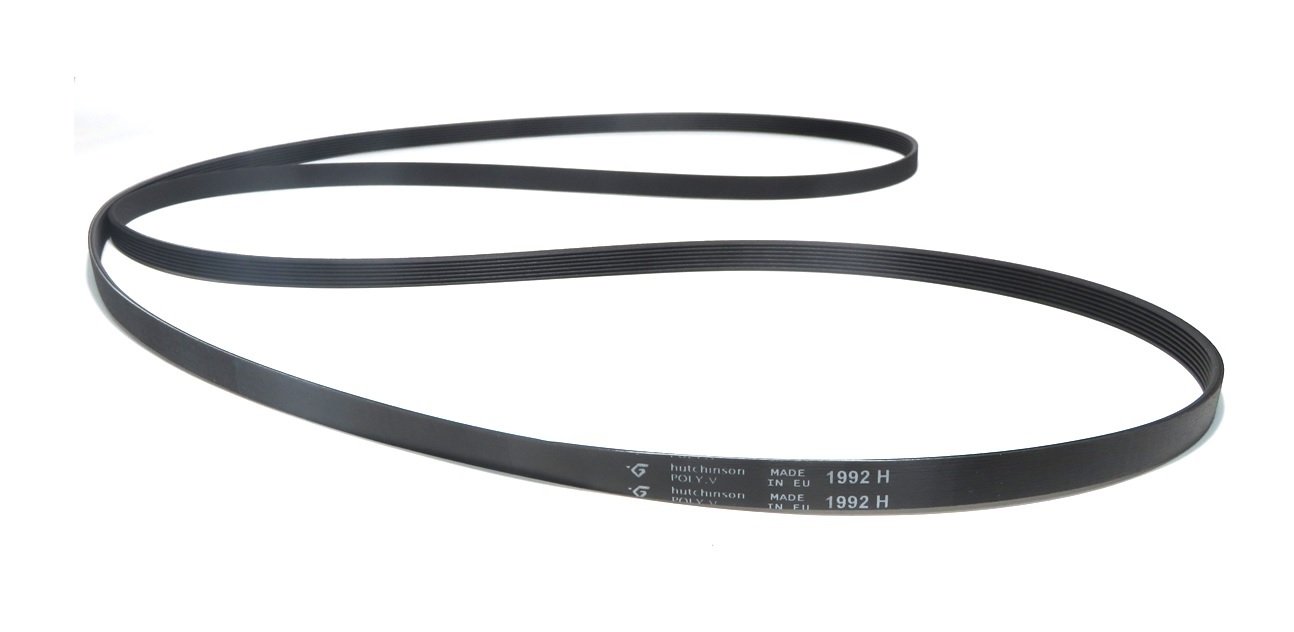

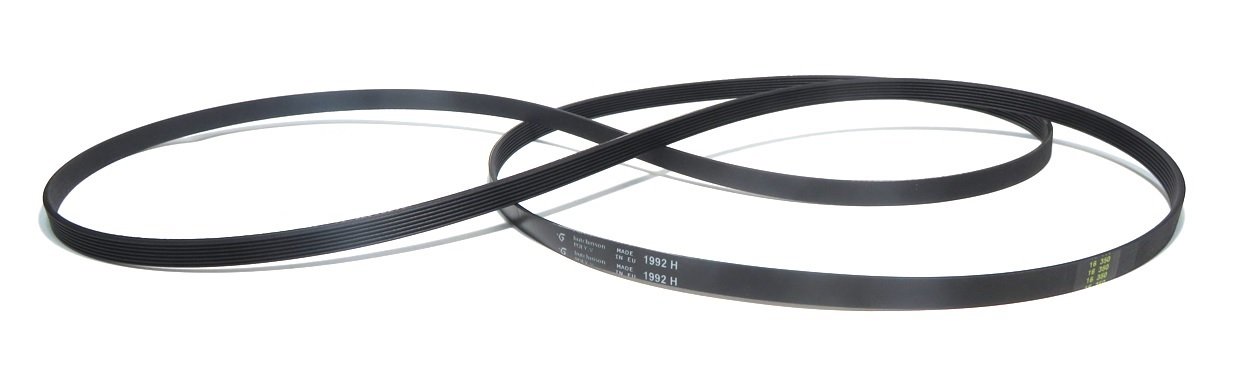

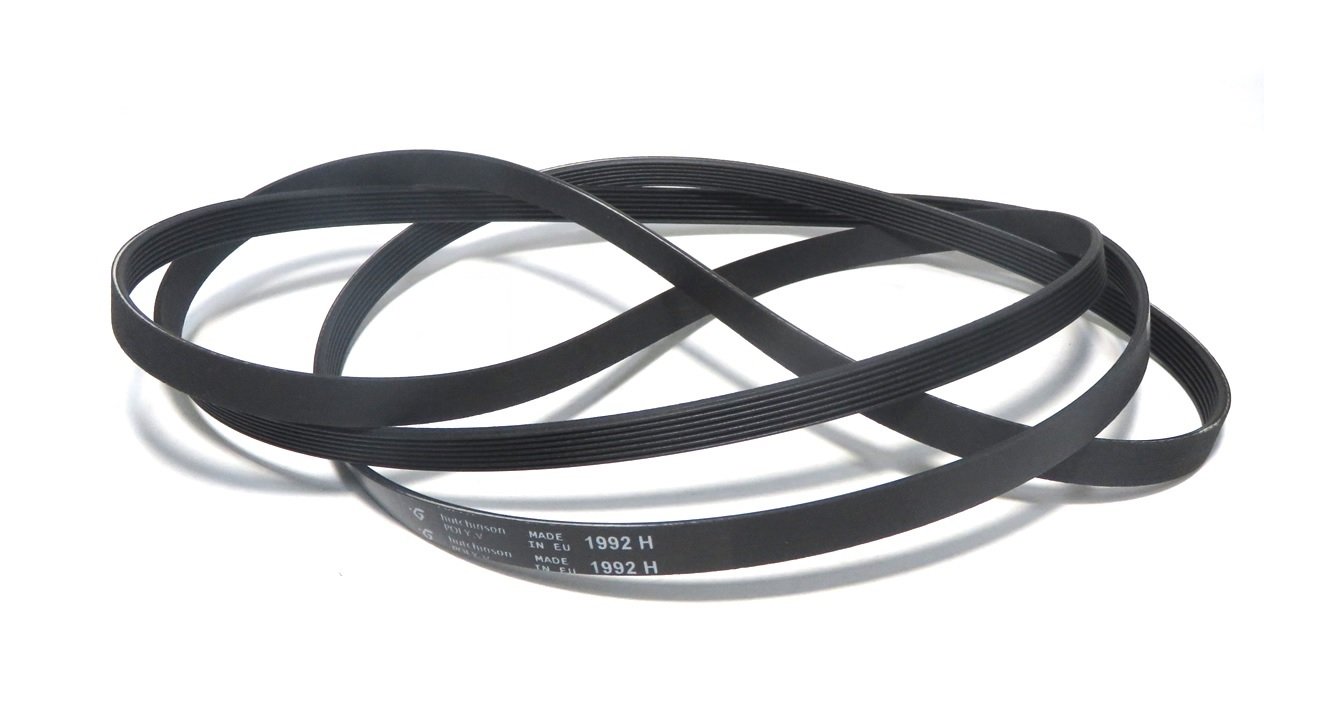

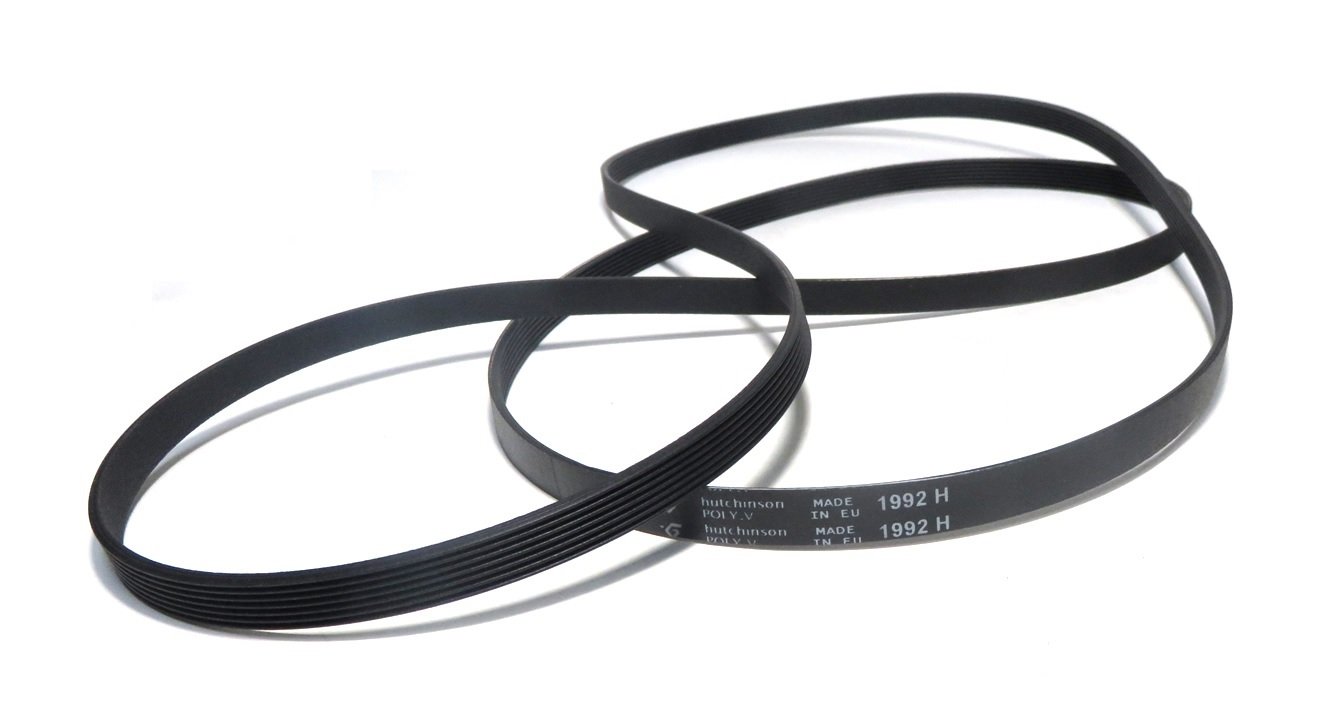

HUTCHINSON - Tumble dryer belt 1992 H

• Drive belt 1992 mm development
• For transmitting the movement of the motor to the drum of the dryer
• Length: 1992 mm / Slot: Type H / Poly.V-belt
• Compatibility: perfect replacement for bracelet 7PH 1992, 1992 H7, 1992 H6, 1992 PH
• Including assembly instructions

1992 mm developed drive belt transfers the movement of the motor to the laundry drum. Can be fitted to Balay, Bosch, Siemens, Lynx, Philips, Whirlpool, Ignis, Bauknecht, Laden, Radiola and many other brands. Length: 1992 mm. Slotted: Type H / bracelet poly.V / tooth height: 2.5 mm / dist channels: 1.60 mm. Manufacturer: Hutchinson assembly instructions: Once accessed the back of the dryer: 1. Guide the belt over the pulley of the engine. 2. Then wear the strap over the tensioner*, to the side of the bass drum (* There may be 1 tensioner, 2 tensioners or no tensioner). 3. And starts to spin slowly and powerfully. This means that it is mounted like a bicycle chain. (see photo) Why broken the bands? Most tumble dryer belts break from one cause because they are burned. You will know that your tumble dryer belt is burned as the ends of the belt are slightly bent inwards and the inner grooves have been lowered. To prevent the strap from tearing for this reason, you should not overload the dryer or dry shoes or sports shoes. This prevents the bass from blocking when turning the engine pulley and burning the belt.
