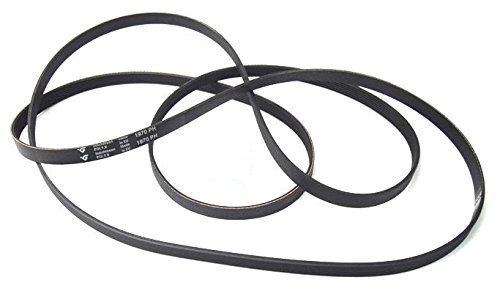

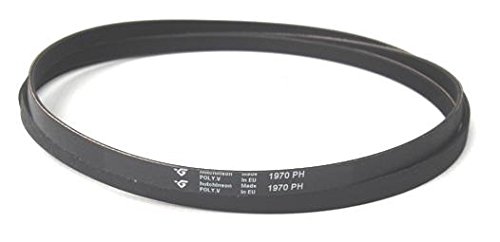

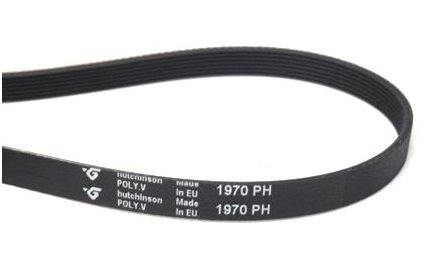

Hutchinson - Tumble dryer belt 1970 PH

• Ribbed drive belt, 1970 mm in stretch
• Transmits the movement of the engine to the drum of the dryer
• Length: 1970 mm. Slotted: Type H / V-belt Poly-V
• Compatibility: Perfect for belts 1970 H, 1970 H7, 8PH 1970
• Please find installation instructions included (English language not ). not in English)

Ribbed drive belt, 1970 mm in stretch. Transmits the movement of the engine to the dryer drum. Suitable for tumble dryers from Ardo, Ariston, Indesit, New Pol, Rommer, Teka, Eurotech, Zanker, Proline, Far and many other brands. Length: 1970 mm. Slotted: Type H / Height of teeth: 2.5 mm. Channel width: 1.60 mm. Manufacturer: Optibelt-RB Installation Instructions: Once you have access to the inside of the dryer: 1. Put the belt into the engine pulley. 2. Run the belt through the tensioner on the side of the drum (the dryer may have more than one tensioner and may not have). 3. Slowly turn the drum (along with the force of the belt) and the belt will be tightened (mounted like a bicycle chain). (see photo).
