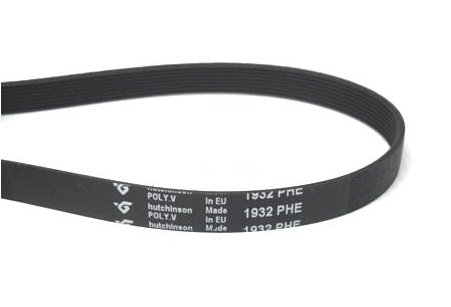

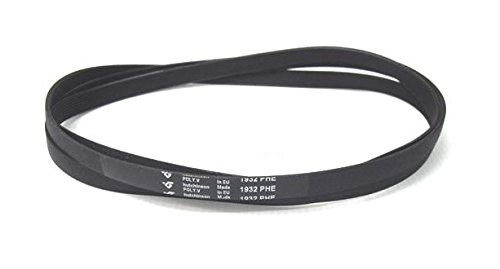

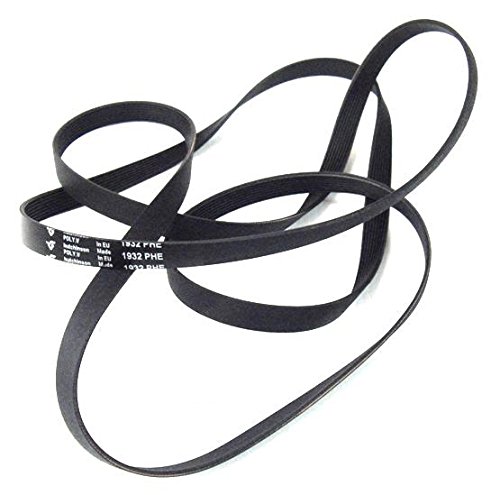

Hutchinson - Tumble dryer belt 1932 PHE

• This is a power transmission belt of 1932 mm length, responsible for transmitting the movement to the tumble dryer drum
• Ribbed belt / Type of ribs: H / Elasticity: PHE / Length: 1932 mm
• Compatibility: It is perfectly equivalent to the belts 1932 H MAEL, 9PHE 1932, 1932 H9 MAEL, 1932 H8 MAEL, EL 1932 H8, 1932 H8, EL 1932 H7, PH 1932, 1932 PH
• Includes assembly instructions

This is a power transmission belt of 1932 mm length, responsible for transmitting the movement to the tumble dryer drum. It is installed in tumble dryers of the brands Edesa, Aspes, Fagor, Vedette, Brandt, Domeos, Laden, Ignis, Whirlpool, Hotpoint, Ariston, Indesit, among many other brands. Type of ribs: H / Elasticity: PHE / Length: 1932 mm / Rib height: 2,5 mm / Groove widht: 1,60 mm / Manufacturer: Hutchinson. The Poly V? is a power transmission belt featuring multiple longitudinal ribs. It transmits the torque by contact of the belt rib flanks and the pulley grooves. Its monobloc design guarantees: compactness, high power transmission, operating cost. The Poly V has been designed with a larger contact surface area than V belts or flat belts. INSTRUCTIONS FOR THE CORRECT FITTING Once you have accessed inside the tumble dryer: 1. Pass the belt through the pulley of the motor 2. Thread the belt up through the lateral tensor* up to the side of the drum (* the tumble dryer may have more than one tensor, or it may have none) 3. Slowly turn the drum, applying force to the belt
