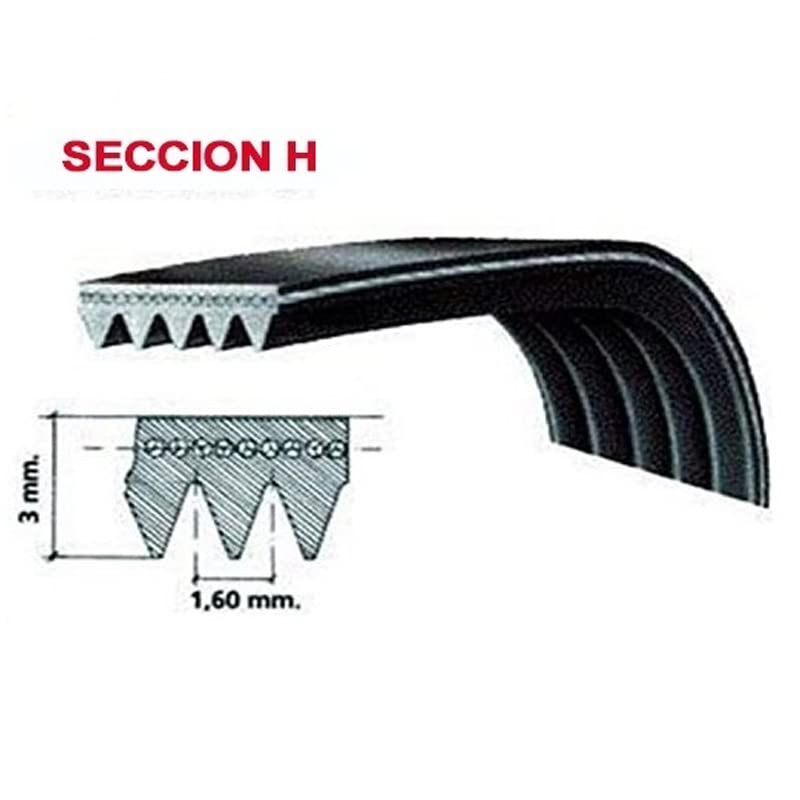

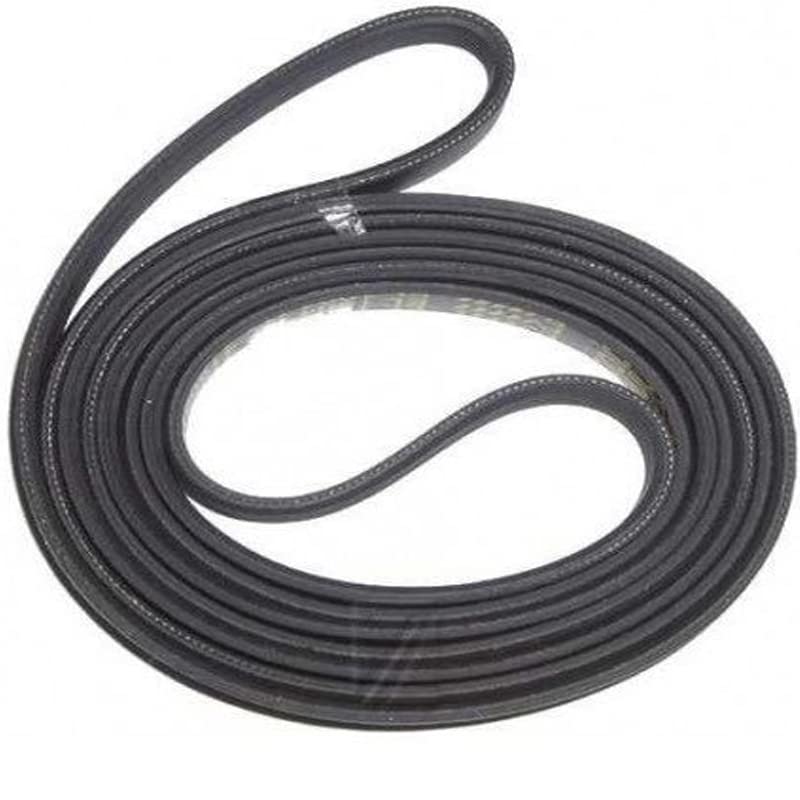

Ribbed drive belt, 1890 mm in stretch. Transmits the movement of the engine to the dryer drum. It is installed in tumble dryers of Ariston, Indesit, Otsein, Hoover, Candy, Zerowatt, Creda, Rosières Fagor, Edesa, White Westinghouse, Brandt, Aspes, Kelvinator, Hotpoint, and many other brands. Length: 1890 mm / Poly.V belt / slots: Type H / Height of teeth: 2.5 mm. Channel width: 1.60 mm. Manufacturer: Hutchinson Installation Instructions: Once you have access to the inside of the dryer: 1. Put the belt into the engine pulley. 2. Run the belt through the tensioner on the side of the drum (the dryer may have more than one tensioner and may not have). 3. Slowly turn the drum (along with the force of the belt) and the belt will be tightened (mounted like a bicycle chain). (see photo).
