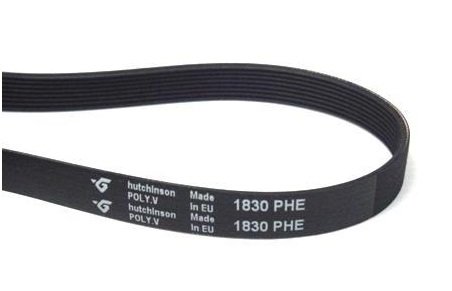

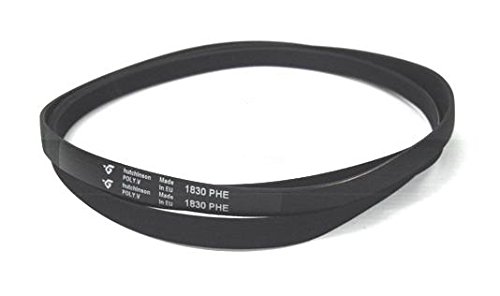

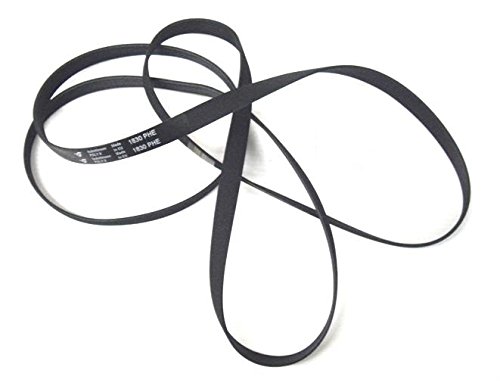

Hutchinson - Tumble dryer belt 1830 PHE

This is a power transmission belt of 1830 mm length, responsible for transmitting the movement to the tumble dryer drum. It is installed in tumble dryers of the brands AEG, Corberó, Electrolux, Zanussi, Ariston, Indesit, Scholtes, among many other brands. Type of ribs: H / Length: 1830 / Belt: POLY.V / Rib height: 2,5 mm / Groove widht: 1,60 mm / Manufacturer: Hutchinson.The Poly V is a power transmission belt featuring multiple longitudinal ribs. It transmits the torque by contact of the belt rib flanks and the pulley grooves. Its monobloc design guarantees: compactness, high power transmission, operating cost. The Poly V has been designed with a larger contact surface area than V belts or flat belts.INSTRUCTIONS FOR THE CORRECT FITTINGOnce you have accessed inside the tumble dryer:1. Pass the belt through the pulley of the motor2. Thread the belt up through the lateral tensor* up to the side of the drum (* the tumble dryer may have more than one tensor, or it may have none)3. Slowly turn the drum, applying force to the belt
