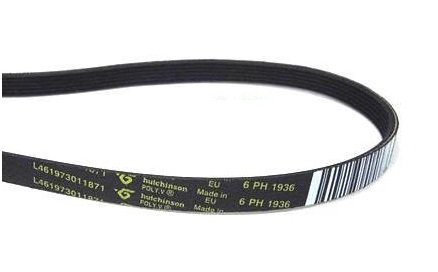

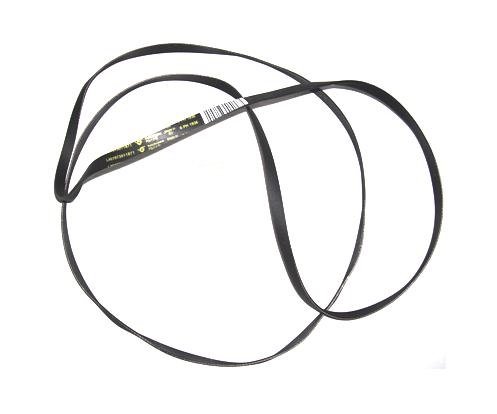

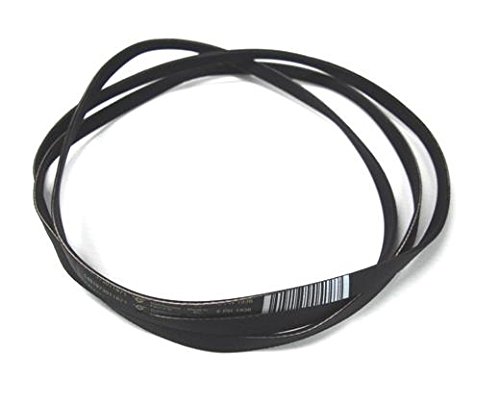

Hutchinson - Dryer belt 6PH 1936 (L461973011871)

• 1930 mm long drive belt.
• To transmit the motor movement to the drum of the dryer.
• Teeth 6 / Channels: 5 / Housing: Type H
• Compatibility: Perfectly replaces 7PH 1936 straps.
• Installation instructions included (English language not guaranteed).

1930cm overall drive belt to transmit motor movement to dryer drum. It should be mounted on dryers of brands Brandt, SanGiorgio, Vedette, Thomson, Bauknecht, Ignis, Zanussi, WHirlpool, AEG, Electrolux, Ariston, Indesit, among other many brands. Teeth. 6 / Channels: 5 / Housing: Type H / Teeth height: 2.5 mm / Channel distance: 1.6 mm / Manufacturer: Hutchinson. Assembly instructions (English language not guaranteed). After accessing the back of the dryer: 1. Pass the belt on the motor pulley. 2. Then bring the belt, through the belt tensioner, to the side of the basket (there can be 1 belt tensioner, 2 belt tensioners or none). 3. Start turning it slowly and strongly. Exactly how you mount the bicycle chain. (See photos). Why do the straps break? Most dryers straps break for the same cause: because they burn out. To understand if the belt of the washing machine has burned out, just note if the ends of the strap have curved slightly inward, and whether the inner groove has lowered. To prevent the strap from breaking due to this cause, it is advisable not to overload the dryer or dry shoes or sports shoes. This prevents the drum from freezing during the rotation of the motor pulley and the belt from burning.
