12V 24V Vehicle Rear View Backup Camera and 7'' HD TFT LCD Reversing Monitor System for RV Truck Trailer, Waterproof Night Vision Reverse Camera, with 33ft 4Pin Aviation Connector Cable

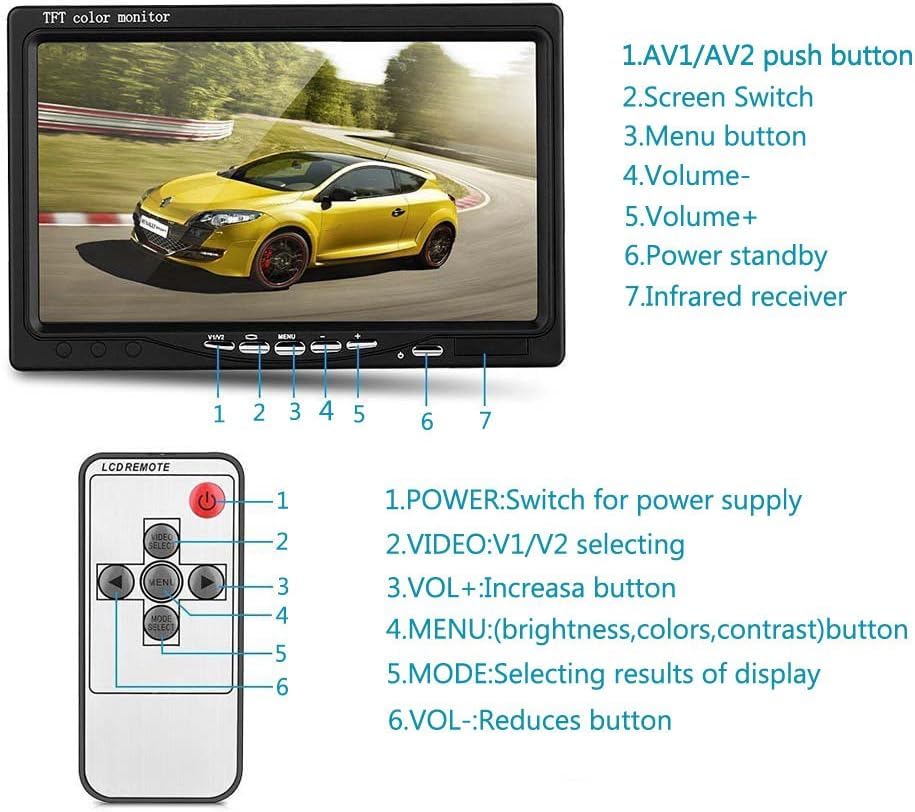

• Monitor: 7 inch LCD widescreen with high resolution, full color, 2 channel video Input, sharp image. Switch picture by V1/V2 button or remote control, Image can be rotated horizontally and vertically for mirror or normal viewing, adjustable brightness, contrast and color

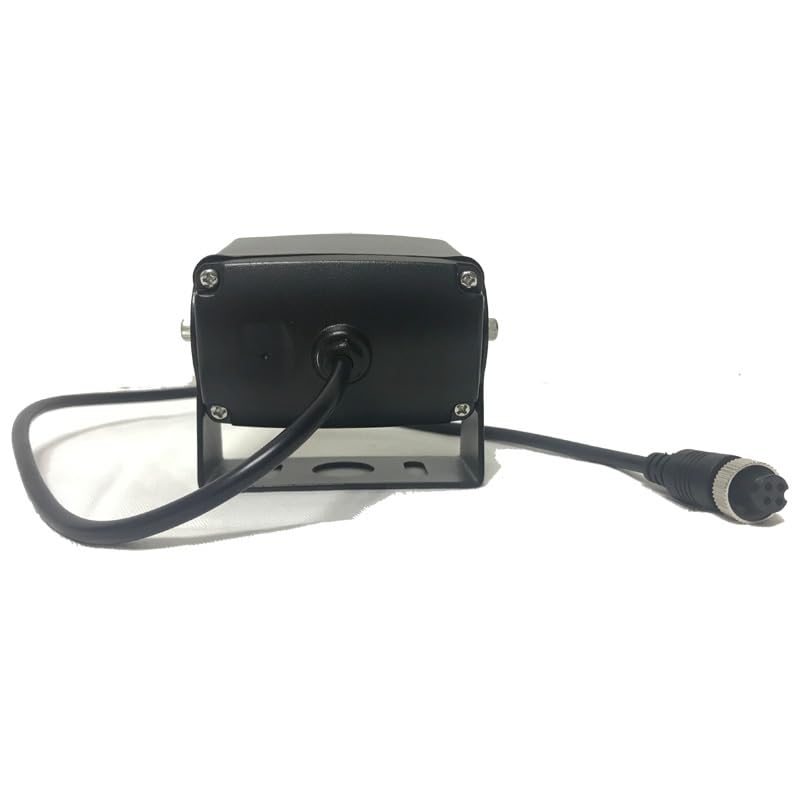

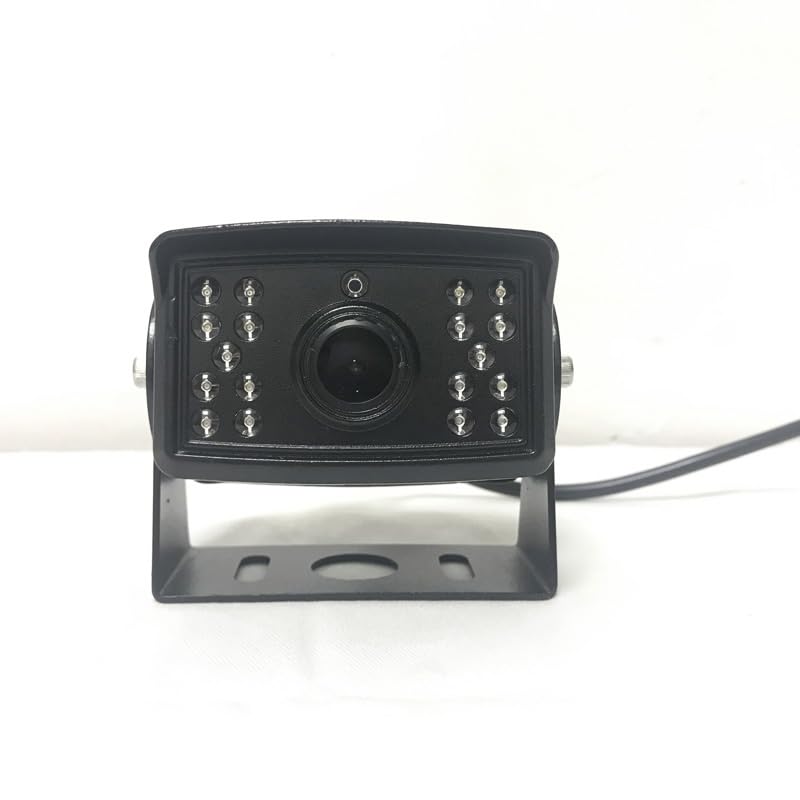

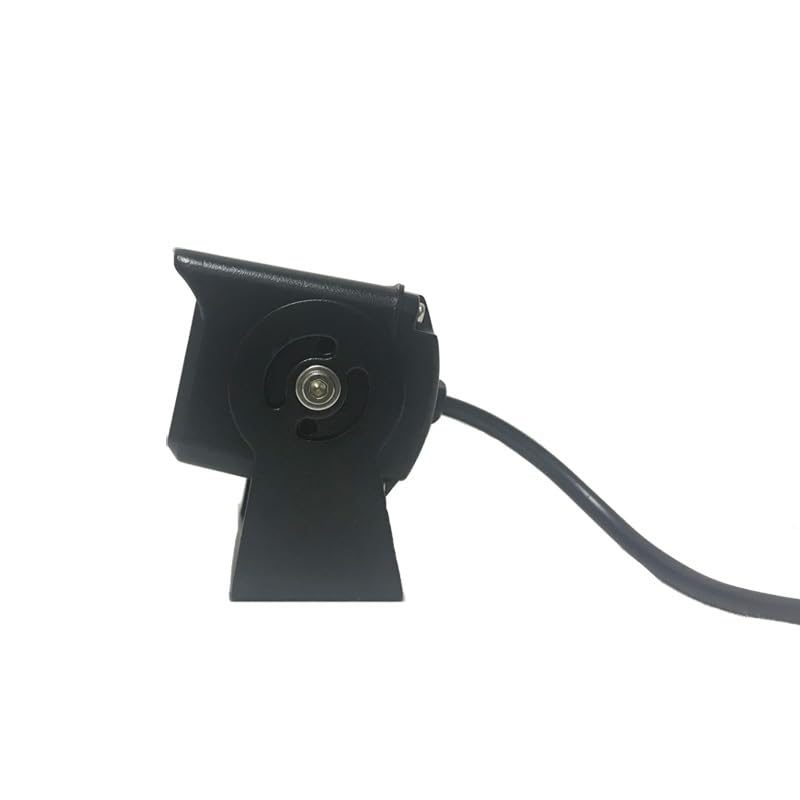

• Waterproof Night Vision Rear View Camera -- 18 IR LEDs for Night Vision, good performace in day and night. Automatically switches to IR when light level is low. 120 degree field of view. You can get it work all the time when connect to 12-24V power source.
• Professional 4Pins Aviation Connector Vehicle Backup Camera and monitor kit for more safe, fit most of large vehicles, such as RV, truck, trailer, bus, motor home, caravan and campers, support 12V-24V power system.Hard wired connection guarantees safe and clear and stable reversing image.

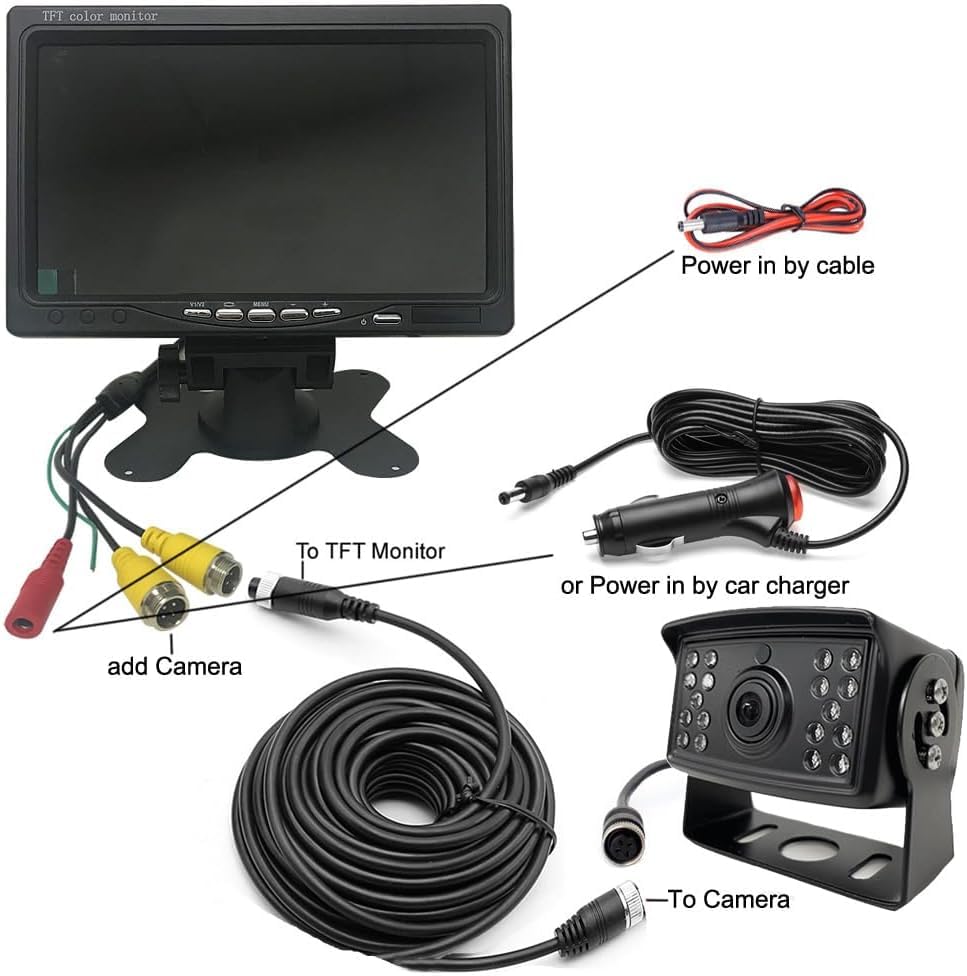

• Easy to install---Extended Aviation 4 Pins Connector Cable, Strong anti-interference, more close connection, easy to install. Special thick hardwire can shield vehicle's circuit interference better than normal AV cable.
• After sales service: Online stores can provide technical support and after-sales service

Specification Camera: (No Parking Lines) ◆ Image Device: 1/3 Inch Color CMOS OV7950 ◆ Effective Pixels: 628x586pixles/PAL; 510X496pixels/NTSC ◆ TV System: PAL/NTSC ◆ Minimum Illumination: 0.1Lux / F1.2 (IR ON) ◆ Horizontal Resolutions: 420 TV lines ◆ Video Output: 1.0vp-p 75Ohm ◆ Gamma Consumption: 0.45 ◆ Lens angle: 120deg ◆ White Balance: Auto ◆ S/N Ratio: More than 48db ◆ Video output: RCA connector, 1.0V p-p 75ohm ◆ Size: 60.5(L)*27.5(W)*31.6(D)mm ◆ Power Supply: DC 12V-24V ◆ Weatherproof/Waterproof, can be used both in car and home. ◆ 18 LED light. Monitor: ◆ LCD: 7 inch TFT LCD Screen ◆ Resolution: 800(W) X 480 (H) ◆ Video System: NTSC/PAL ◆ 2-channel video input: V1/V2 auto switching ◆ Power: = 3W ◆ Environment Humidity: 10% ~ 90% ◆ Operating temperature: -20 ~ 60 degree Celsius ◆ Storage temperature: -40 ~ 85 degree Celsius ◆ Consumption: 7W ◆ Power Supply: DC +12V-24V ◆ Rear view pictures can be overturned by the butons of Up / Down / Left / Right ◆ All functions can be operated by remote control, or buttons on the device Package Contains 1 x 4Pin 18LEDS Waterproof Night Vision Rear View Camera 1 x 10M Cable 1 x 4Pin 7" Car TFT LCD HD Monitor 1 x Bracket 1 x Remote Control 1 x Convert Cable 1 x Manual
