Bearing HTB UCFL 206 drilling diameter 30 mm Hole spacing 117 mm 1 pc(s)

• HTB UCFL 206 · Content: 1 pc(s)
• in agricultural machinery, conveyor plants, construction machinery

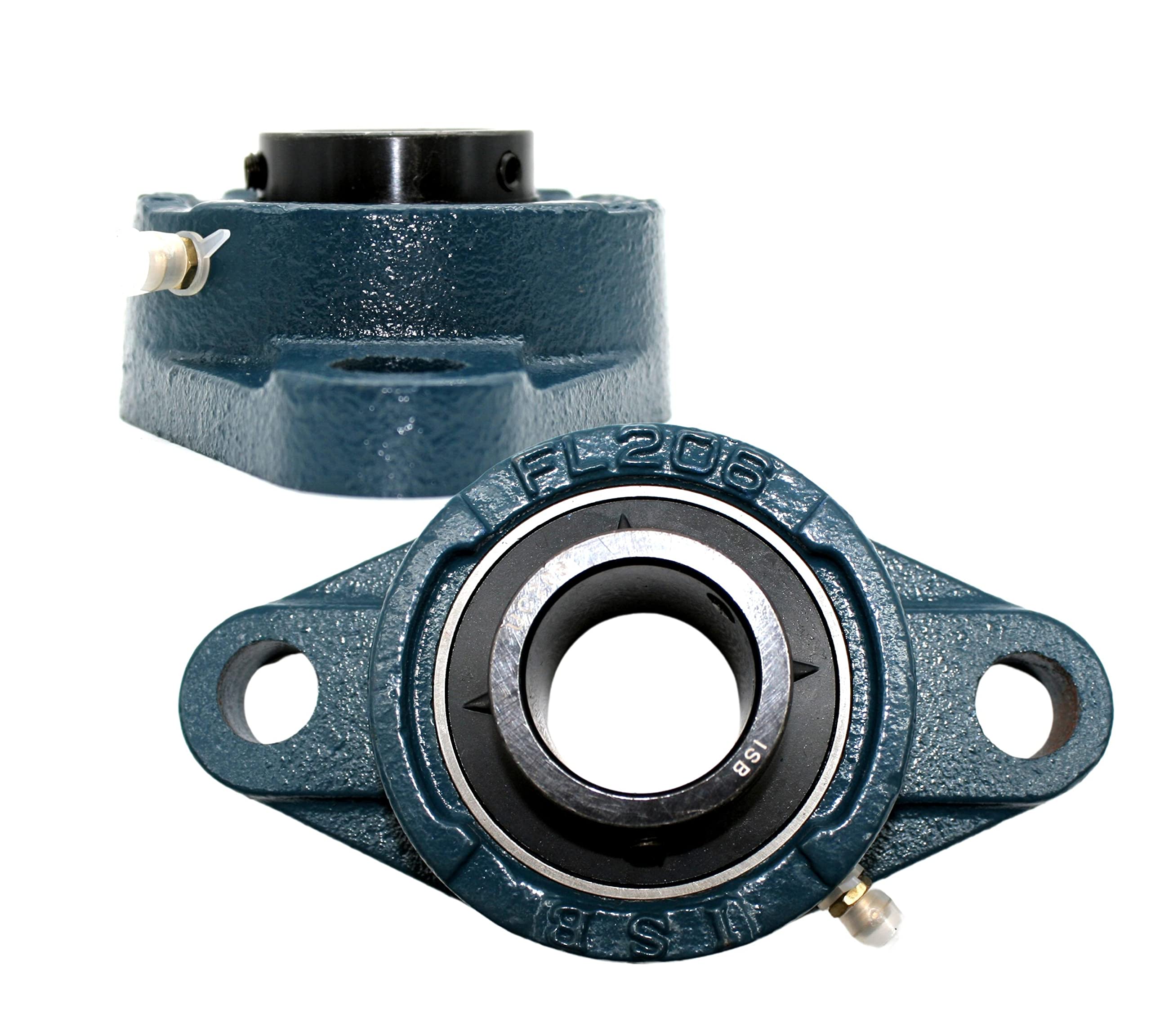

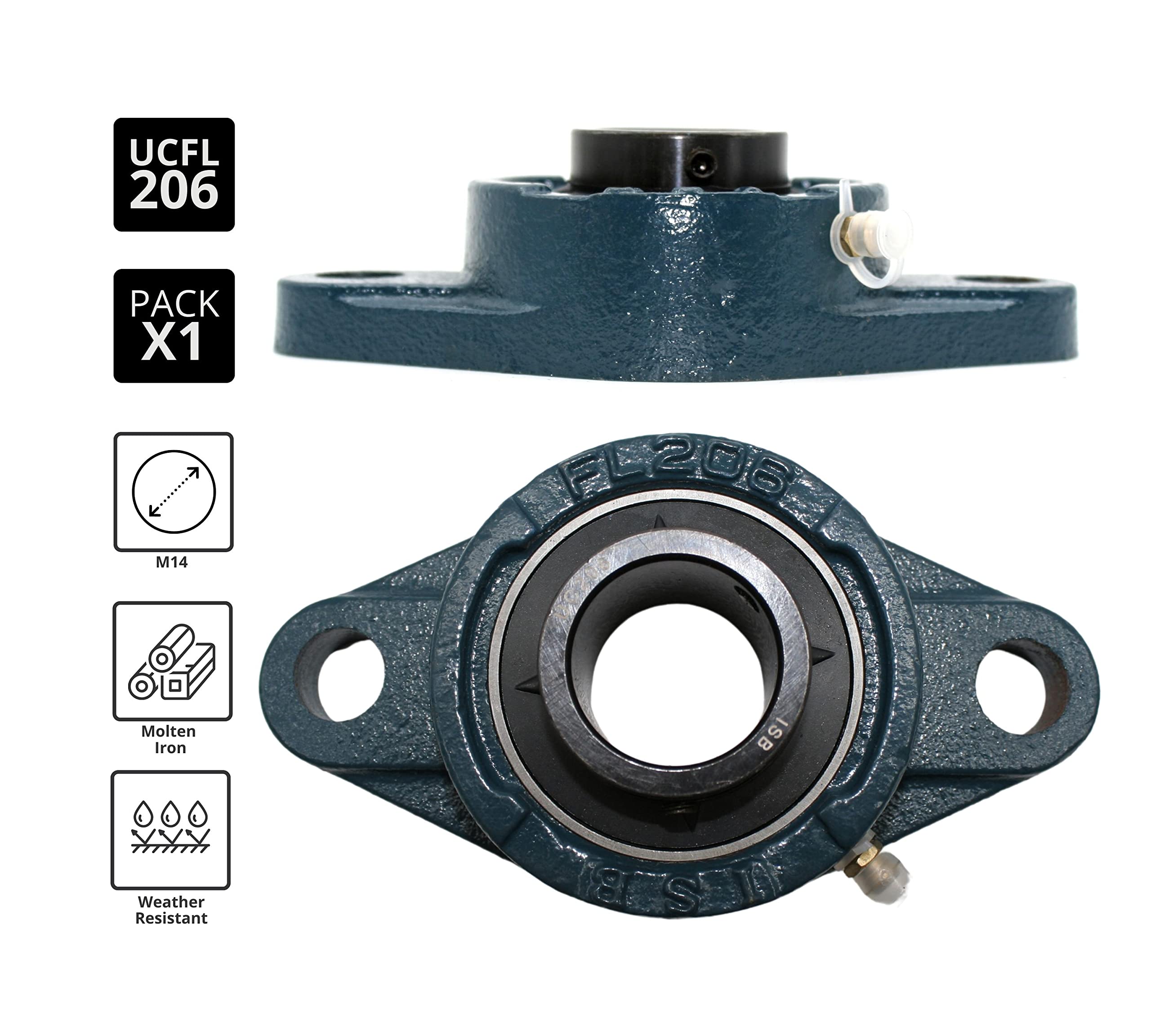

• UCFL unit is composed of sealed bearing and cast iron flange bearing housing
• The axis is fixed using grub screws at the inner ring
• Thanks to the spherical outer surface of the bearing, alignment errors at the shaft can be compensated

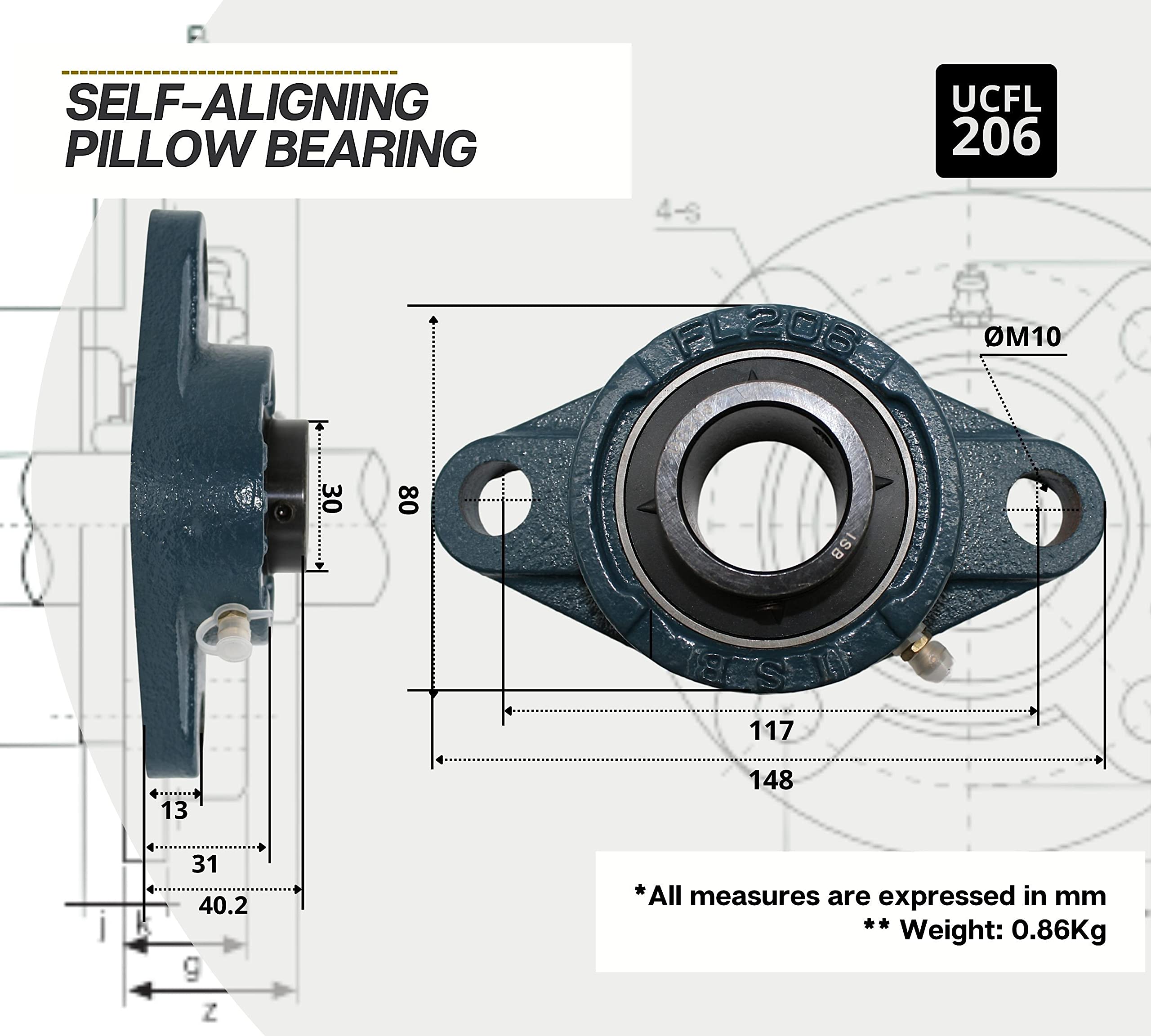

Flange bearing UCFL, grey cast iron housing for easy storage such as in agricultural machinery, conveyor systems, construction machinery. The UCFL unit consists of a sealed bearing and a cast iron flange bearing housing. The shaft attachment is done by means of grub screws on the inner ring. Due to the spherical outer surface of the bearing, misalignment of the shaft can be compensated. Technical data: bore diameter: 30 mm. Casing material: grey cast iron. Weight: 0.9 kg. Hole spacing: 117 mm. Dimensions: (A x b x i x g x l x s x z uc x n uc) 148 x 80 x 117 x 18 x 13 x 31 x 16 x 40.2 cm. x15. 9 mm. Product type: flange bearing. Load number dyn. Radial: 15400 N · Load count stat. Radial: 10200 N · Type (manufacturer type): UCFL 206.
