HSTYAIG Junction Box IP68 Waterproof 3 Way Cable Connectors Outdoor/External Electrical Junction Box

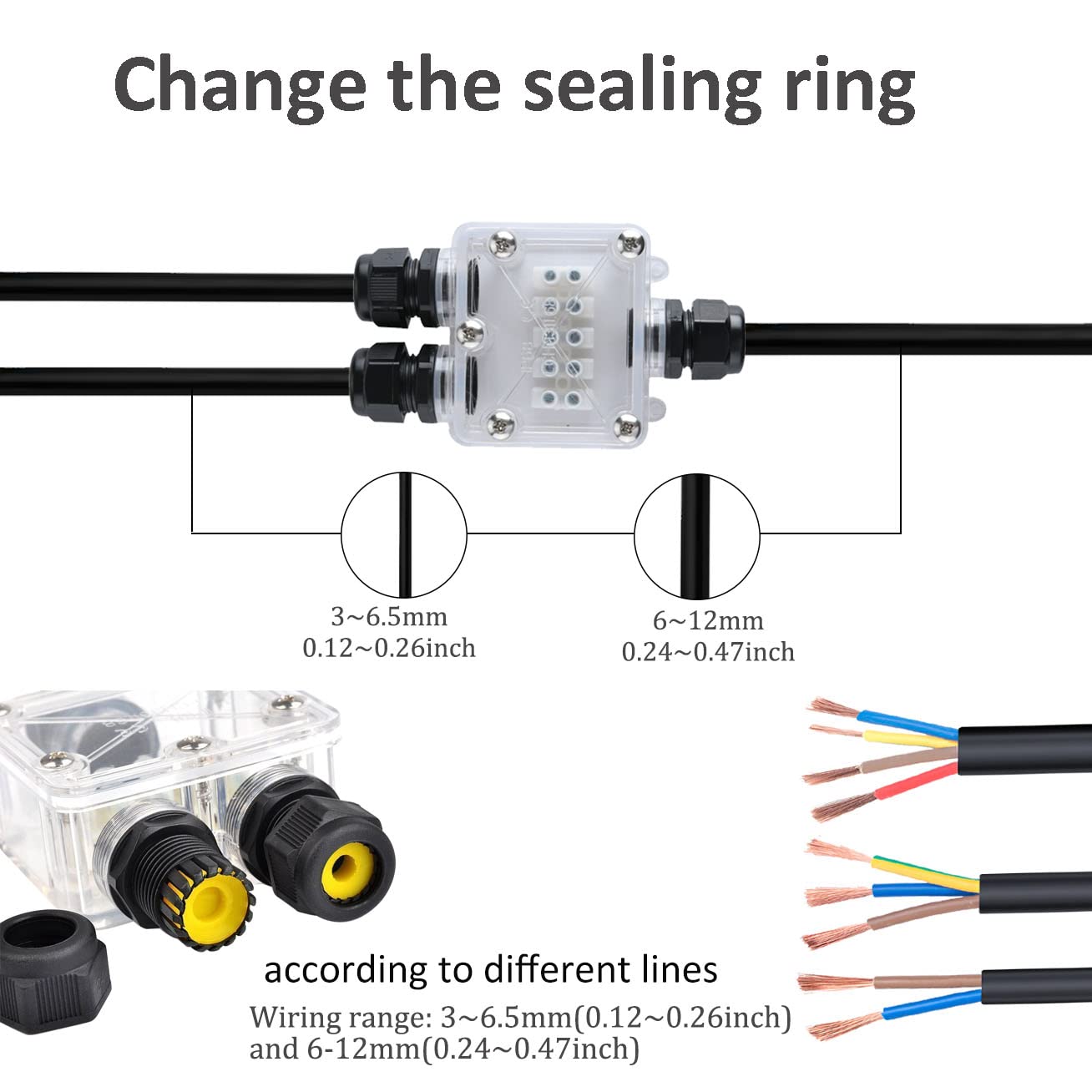

• Material: Made of the polycarbonates, Nickel-plated copper contacts.M20 connector. Applicable Wire Diameter: Wiring range: 3~6.5mm(0.12~0.26inch) and 6-12mm(0.24~0.47inch); One input and two output, delivered with a three-position terminal block. Terminal Block Current: 24A; Terminal Block Voltage: AC 450V , PC housing Adaptor 5 pin terminal PA10.

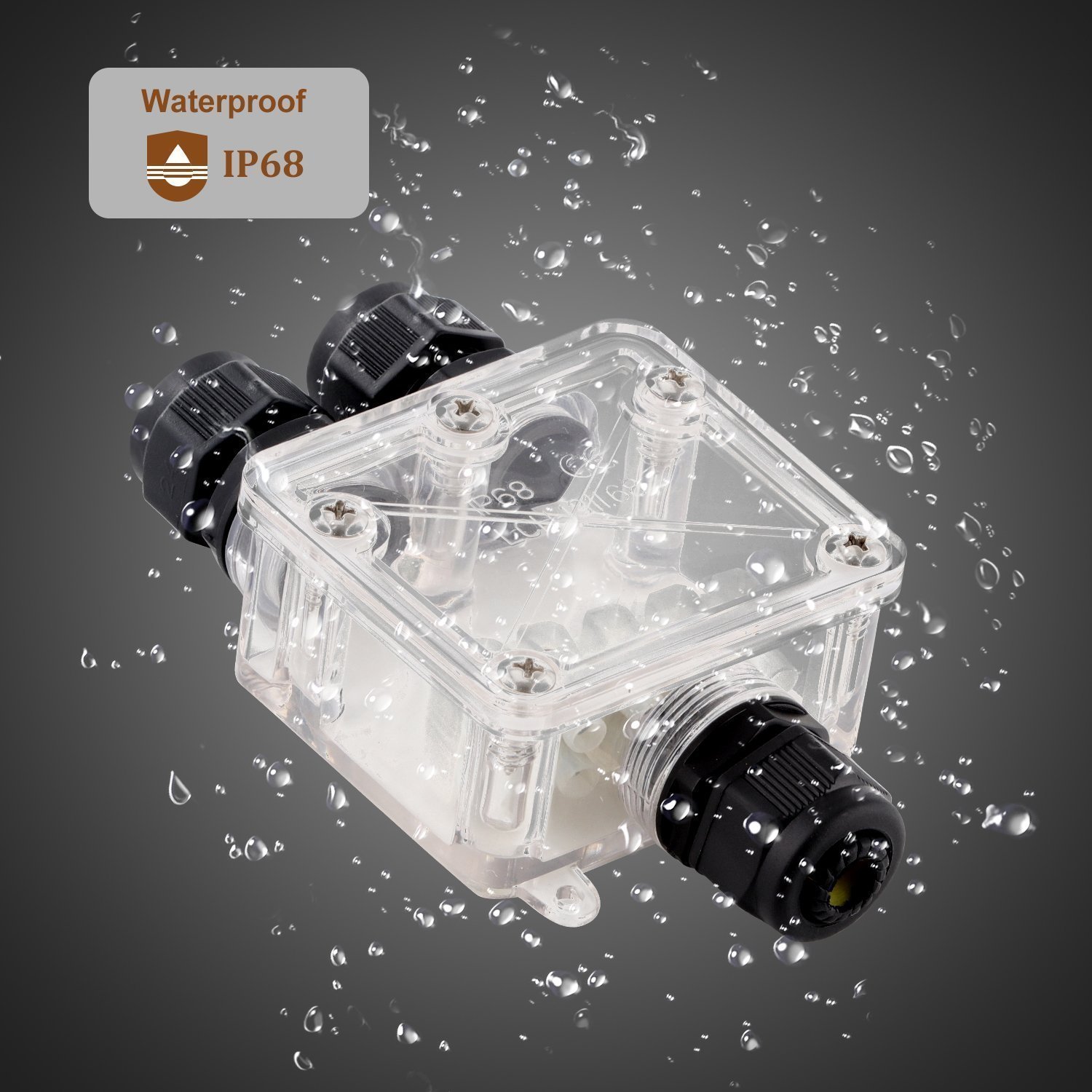

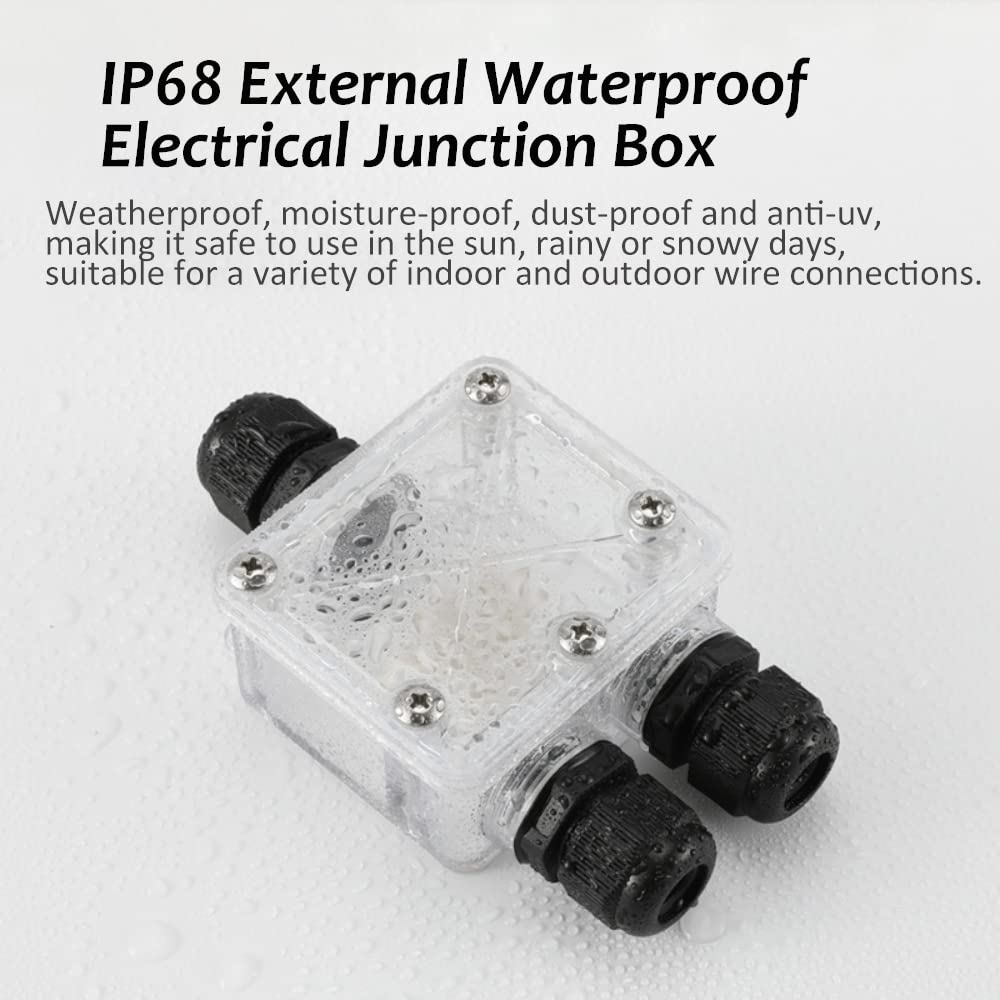

• Strong Waterproof: IP68 high level waterproof class , weatherproof, moisture-proof, dust-proof , making it safe to use in the sun, rainy or snowy days, suitable for a variety of indoor and outdoor wire connections.
• Easy to Install: It can be installed anywhere you need indoors or outdoors. The connector shell and waterproof layer are integrally formed, the swivel caps at both ends can seal the rubber at both ends of the cable, and the internal fixing posts can fix the terminal block.
• Safe & Convenient Operation: Durable to use，Suitable for fast connection to the outdoor lighting, external wiring, extending and joining cables.Easy to operate and repair, no cable cutting, more convenient and safer.
• Wide Usage: Suitable for LED billboards, LED tunnel lights, LED Road landscape lighting, LED outdoor display, LED garden lights.Further applications in coastal, river, sea or underwater engineering, underground engineering, mining engineering, solar-wind power, solar water heaters, various machinery and equipment.

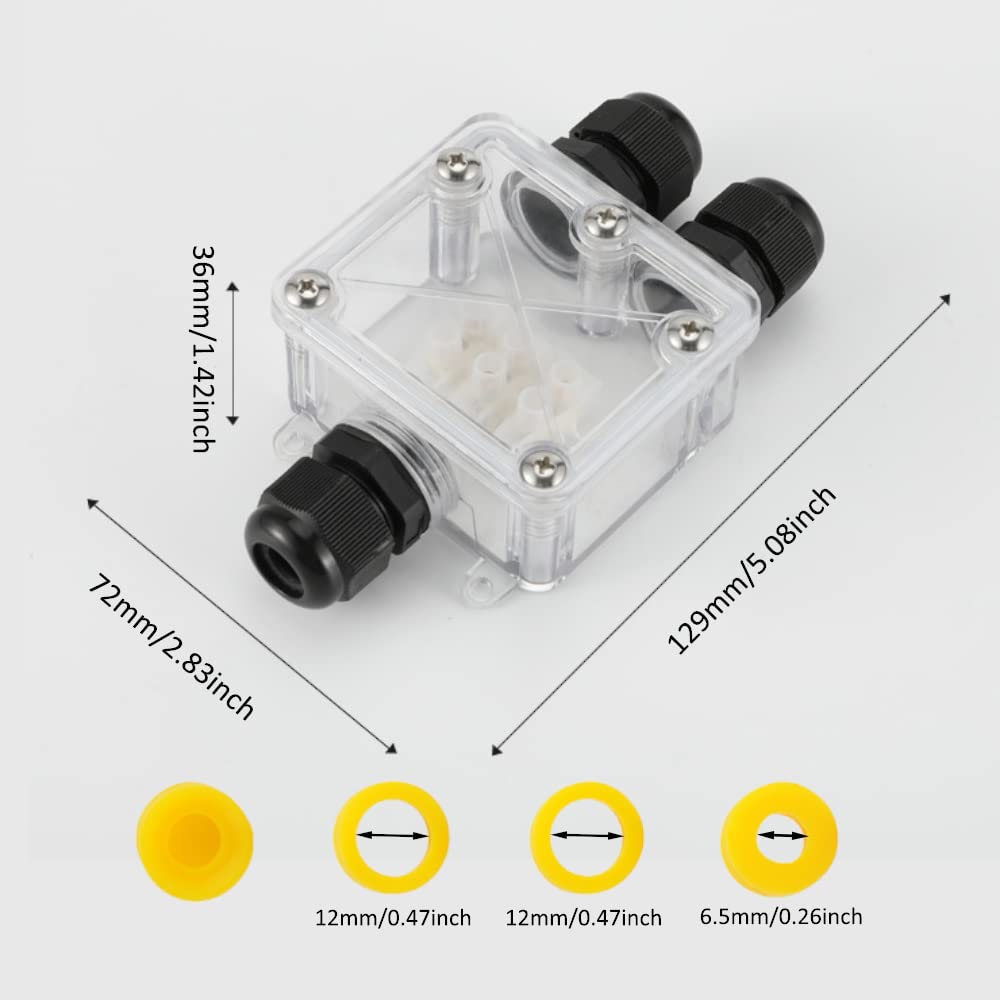

<b>Where can you use this Waterproof Junction Box?</b> <br>1. Suitable for LED billboards, LED tunnel lights, LED Road landscape lighting, LED outdoor display, LED garden lights, and so on. <br>2. Further applications in coastal, river, sea or underwater engineering, underground engineering, mining engineering, solar-wind power, solar water heaters, various machinery and equipment. <br>3.Waterproof and dustproof rated to IP68, durable to use，Suitable for fast connection to the outdoor lighting, external wiring, extending and joining cables, easy to install and lasting performance <br><br><b>Specifications:</b> <br>- Material: Polycarbonates, Nickel-Plated Copper Contacts <br>- Size: 75 x 40 x 65mm(Length of box only) / 140mm( Max Length) <br>- Terminal Block Voltage: AC 450V <br>- Terminal Block Current: ≤25A <br>- Operating temperature range: -40℃ ~ +105℃ <br>- Waterproof grade: IP68 <br>- Suitable cable diameter: OD ≤12mm <br><br><b>Package:</b> <br>1* Waterproof Junction Box <br>1* Five Pole Terminals <br>3* Outer Screws <br>4* Waterproof Loop
