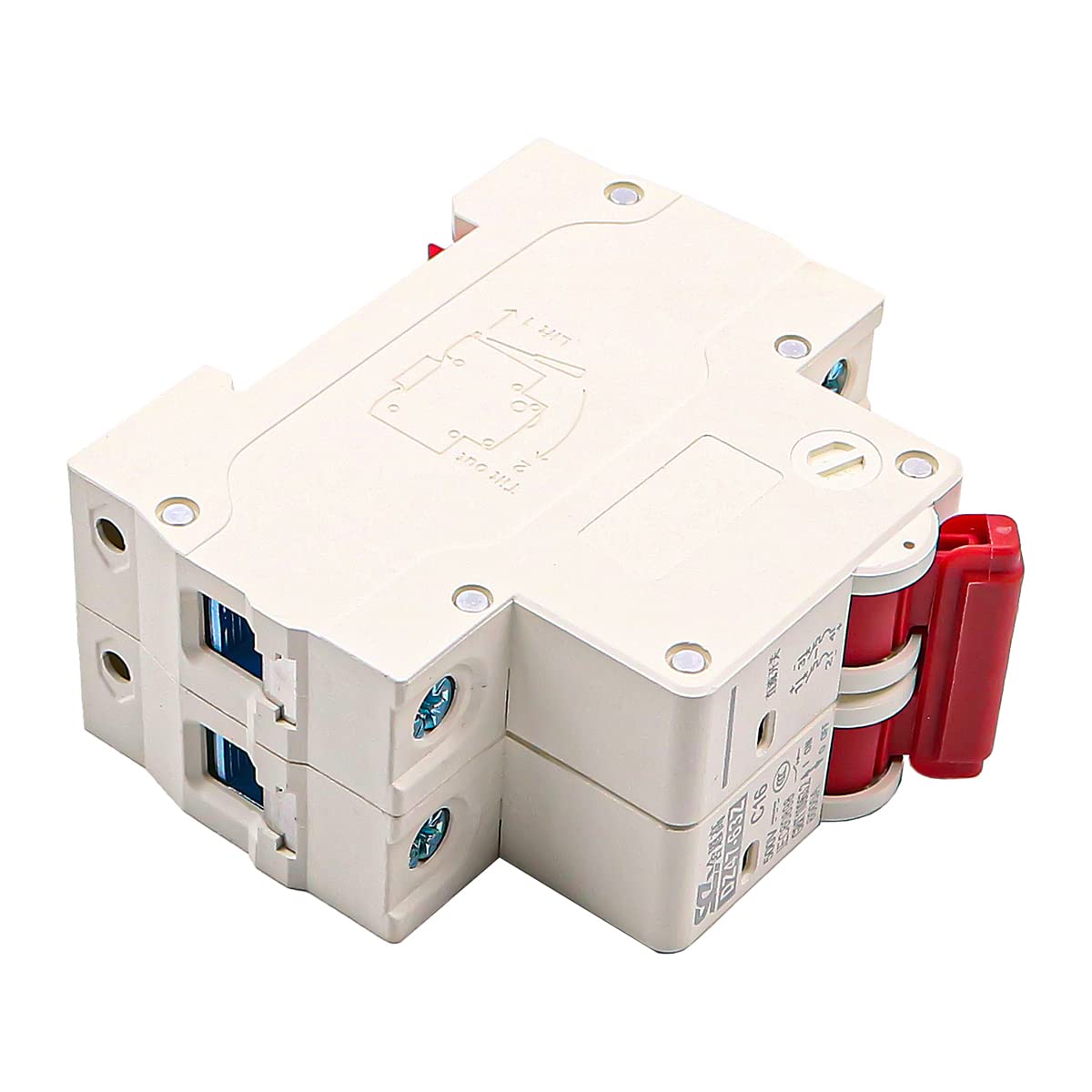

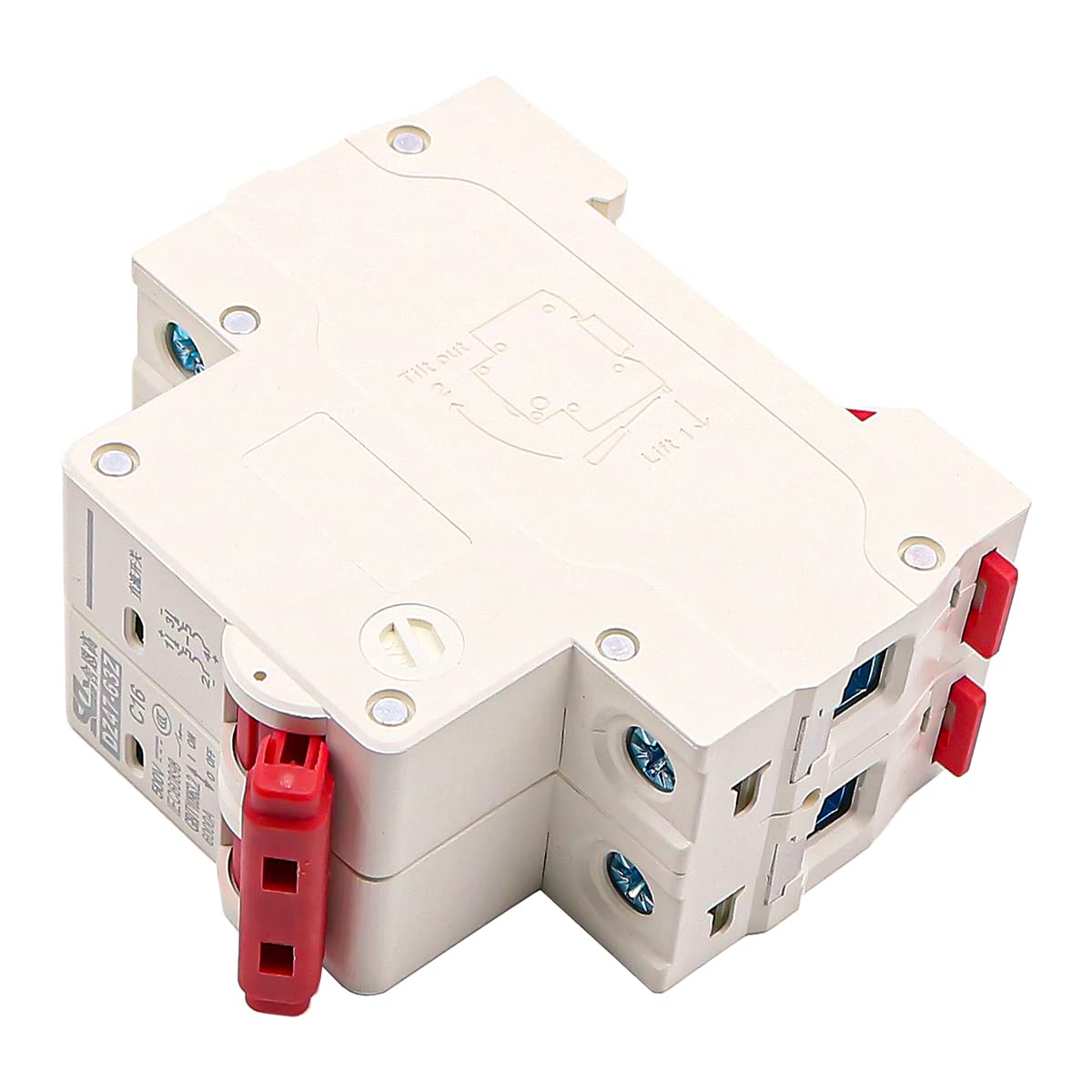

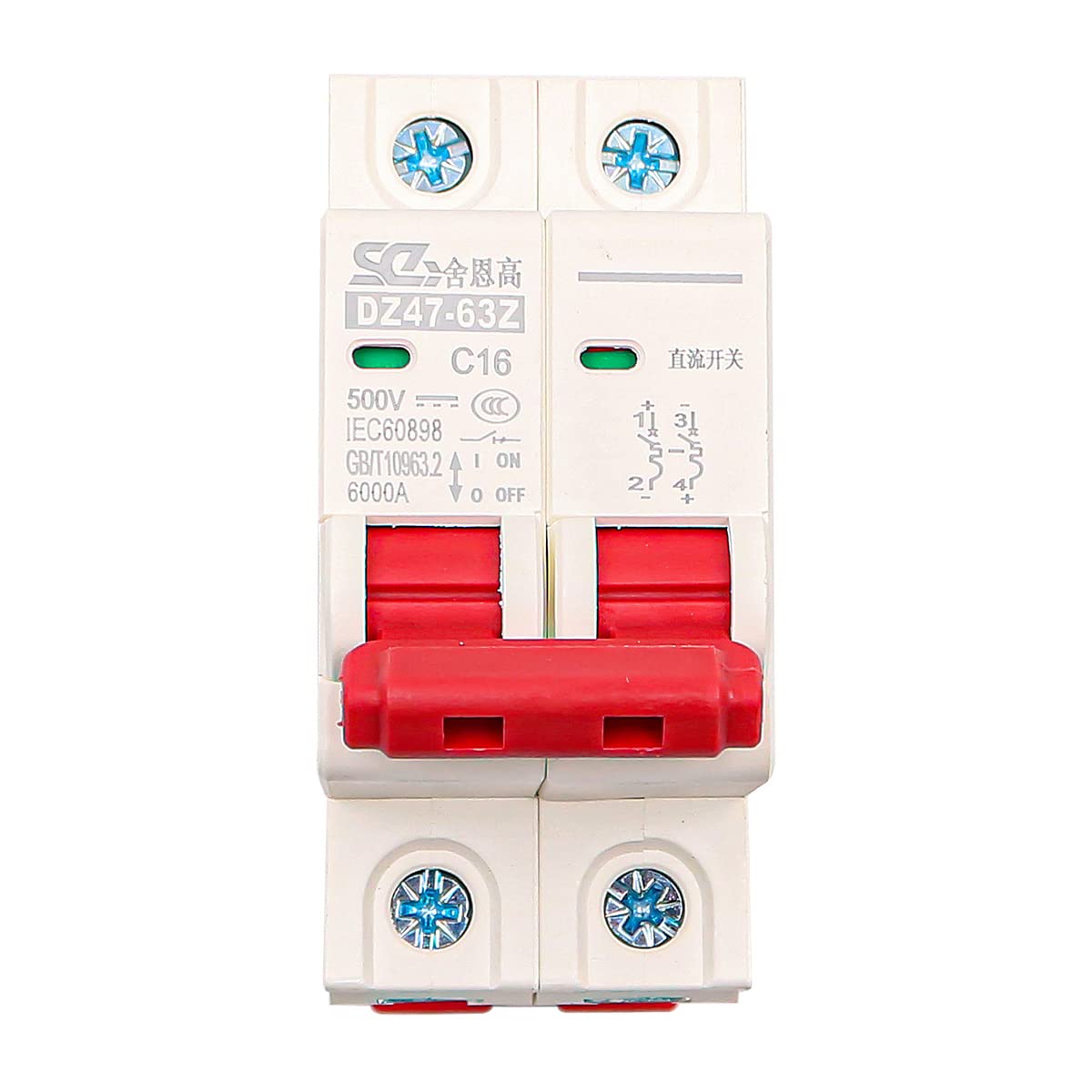

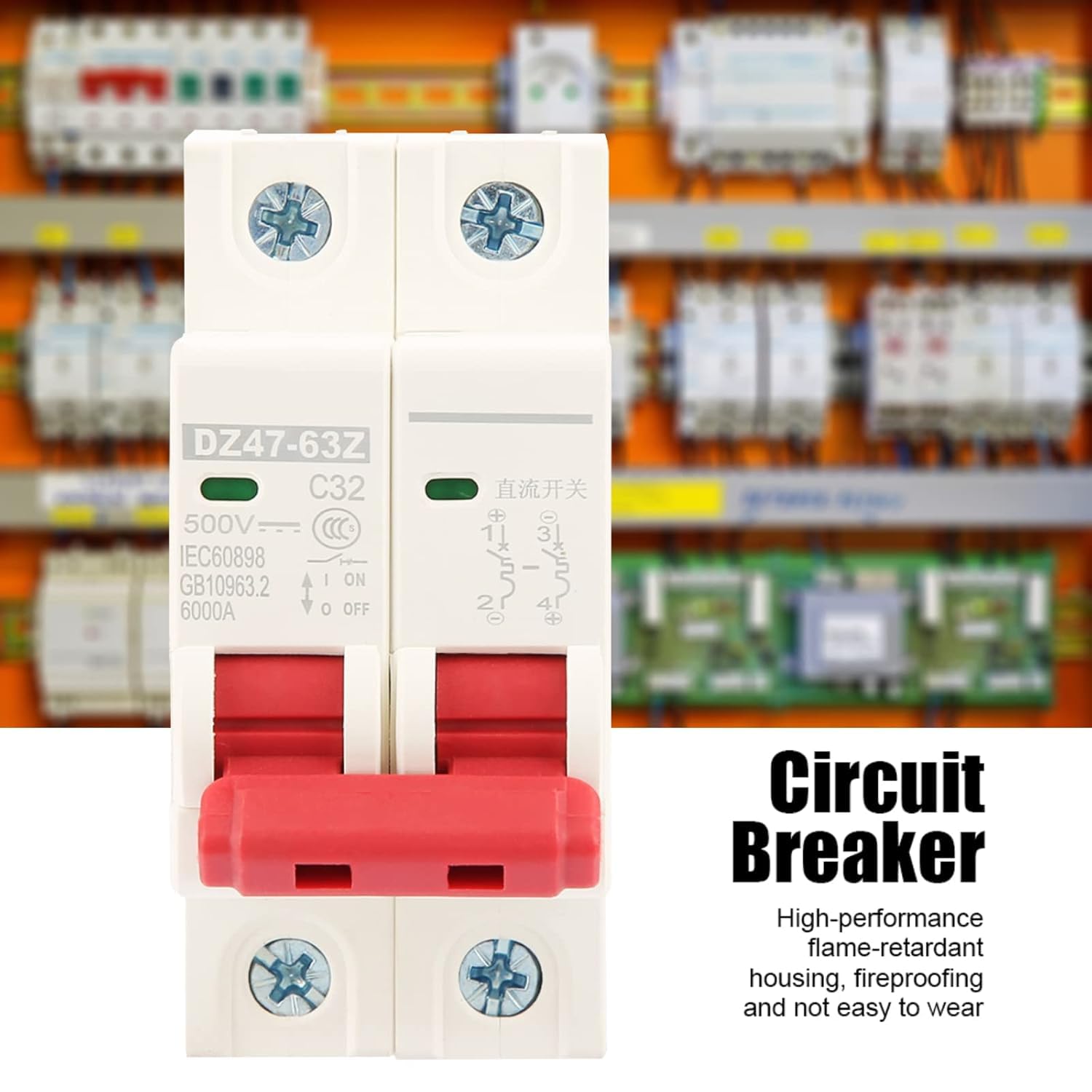

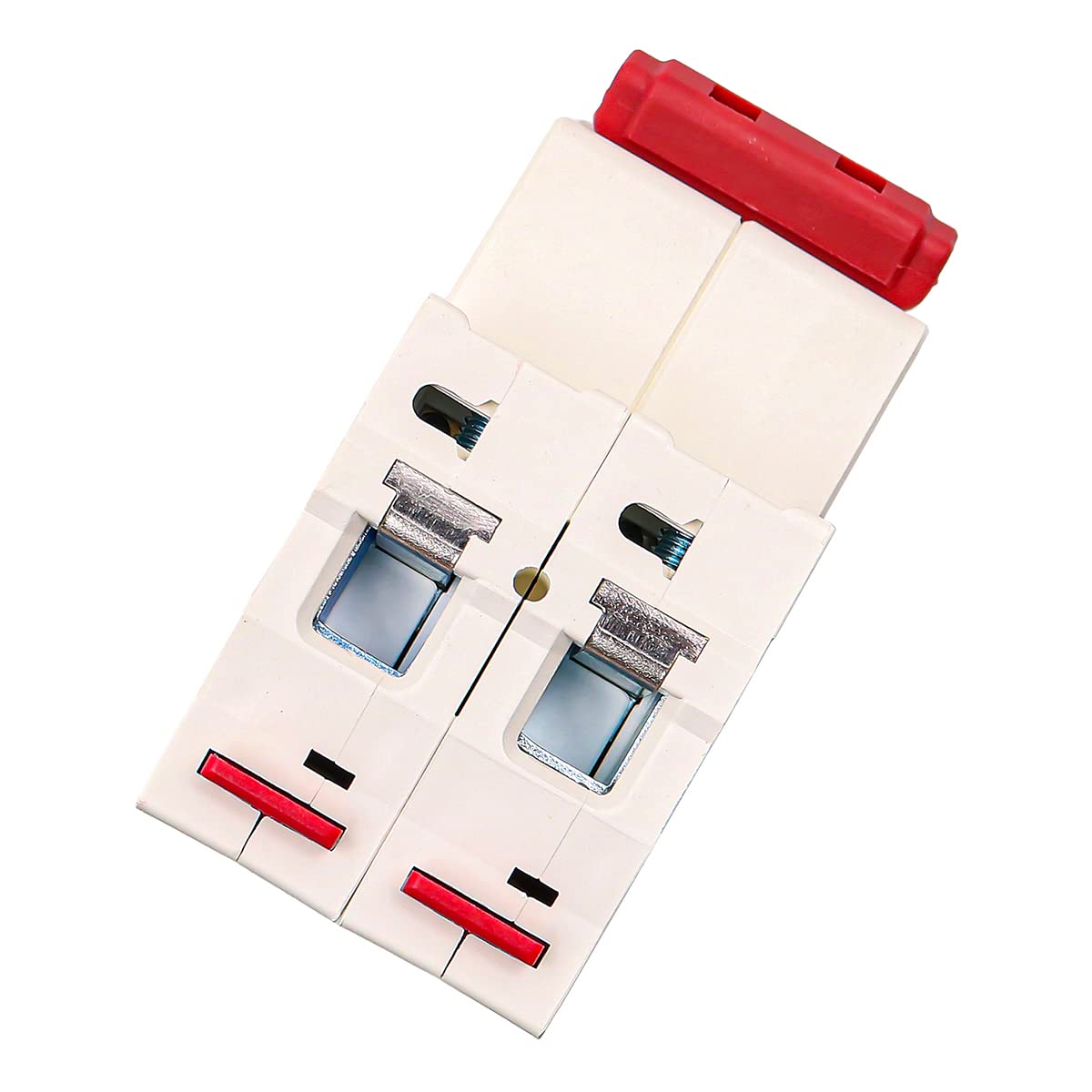

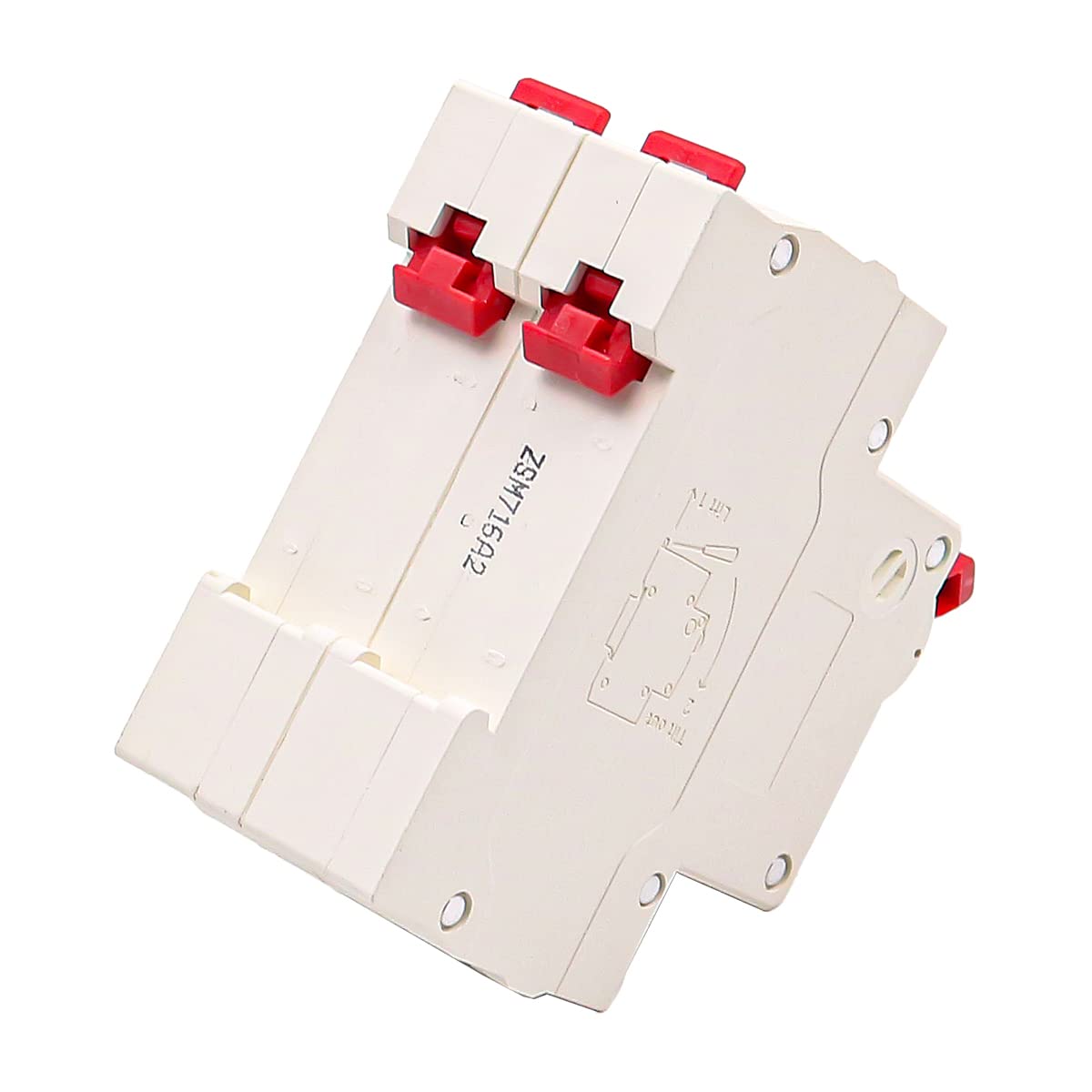

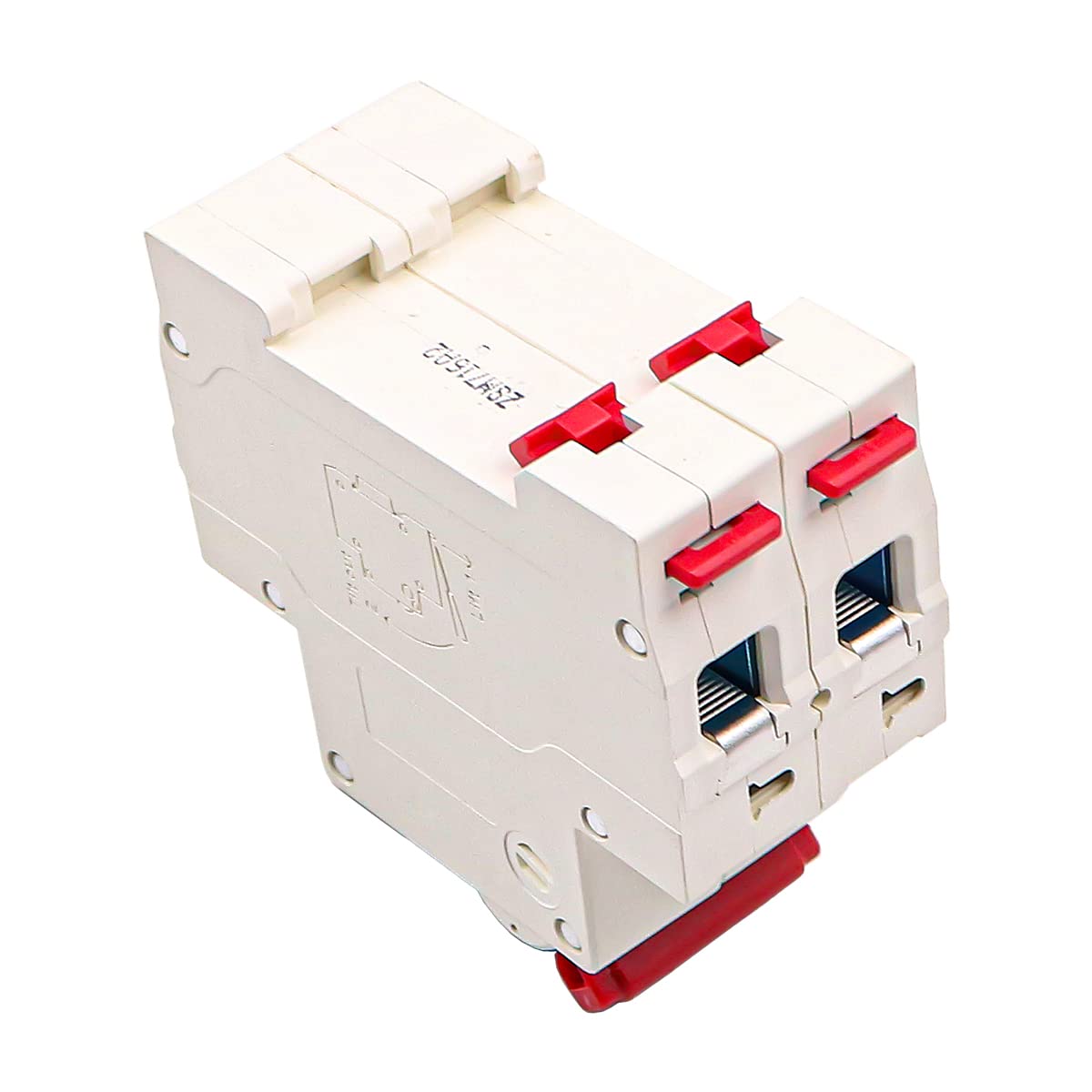

Hsthe Sea Miniature Circuit Breaker, 2P DC 500V Mini Circuit Breaker, Photovoltaic Dc Small Circuit Breaker, MCB Safety Breaker DZ47-63Z-2P(16A)

• Used for overload protection, short circuit protection, and infrequent switching of DC lines or equipment.
• High-performance flame-retardant housing, fireproofing and not easy to wear.
• Terminal quenching treatment, environmental protection electroplating, with good torque tolerance and rust prevention effect
• High breaking capacity up to 6kA, high sensitivity, quick response,strong compatibility, long service life
• This dc breaker widely used for solar panels grid system, wind and solar hybrid system and many other DC systems Impeccable practicability-- Provide overload protection, short circuit protection for DC circuit or equipment.

Product description Specification: Model: DZ47-63Z-2P Number of poles: 2P Rated voltage: 500V Rated current: 16A Breaking capacity: 6kA Mechanical life: 20000 times Tripping method: Overcurrent Weight: Approx. 177g/6.2oz Package List: 1xCircuit Breaker
