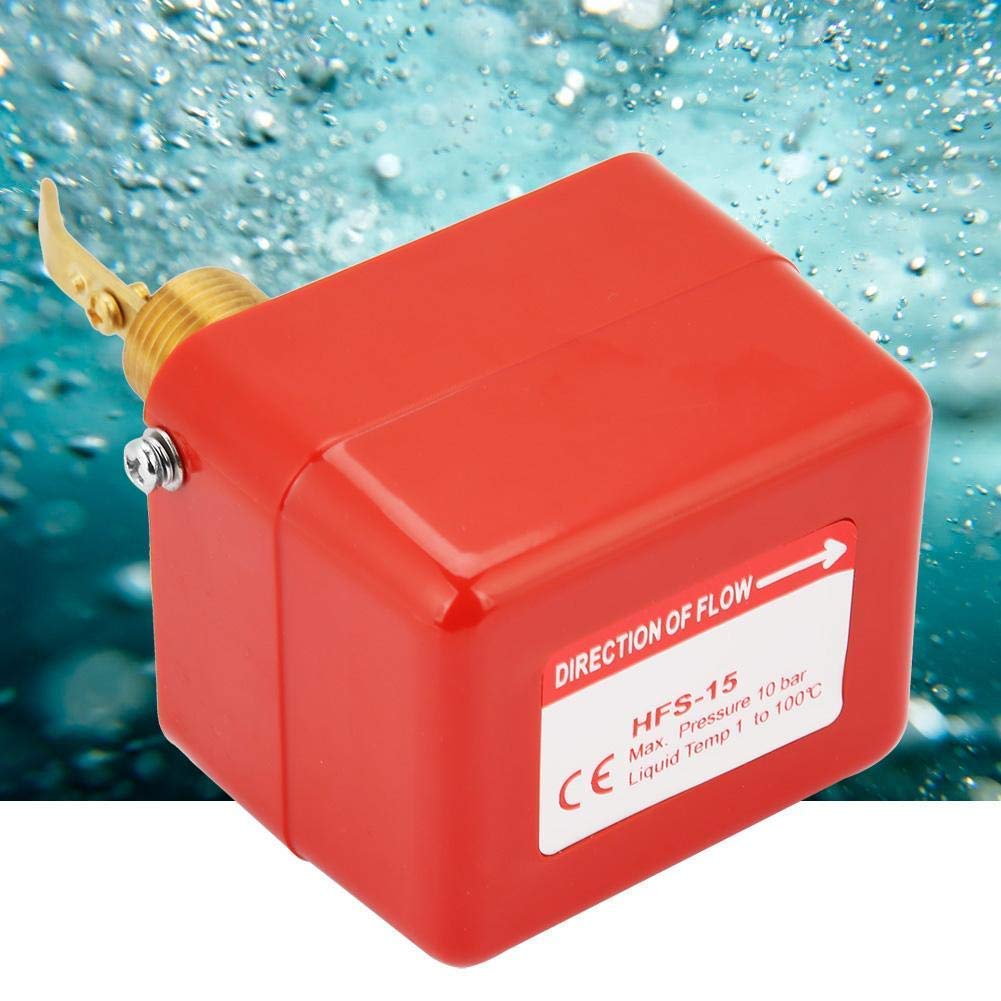

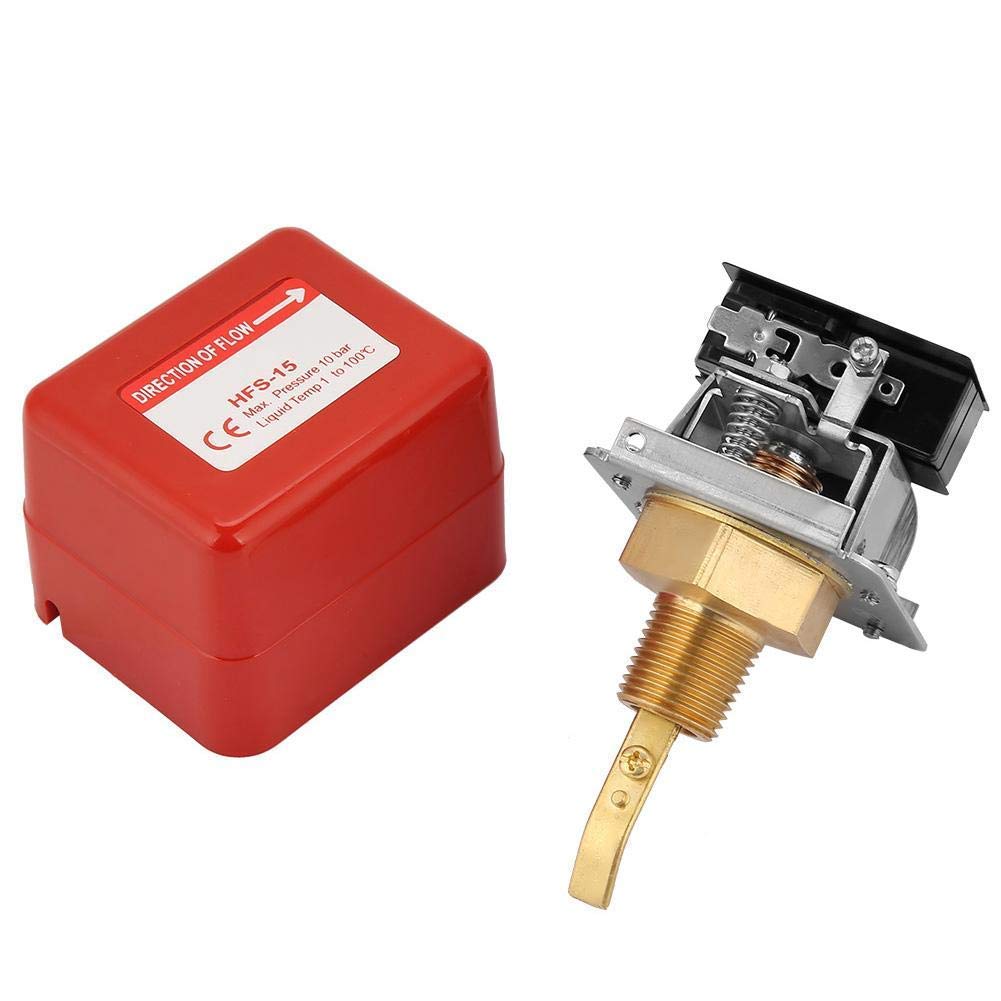

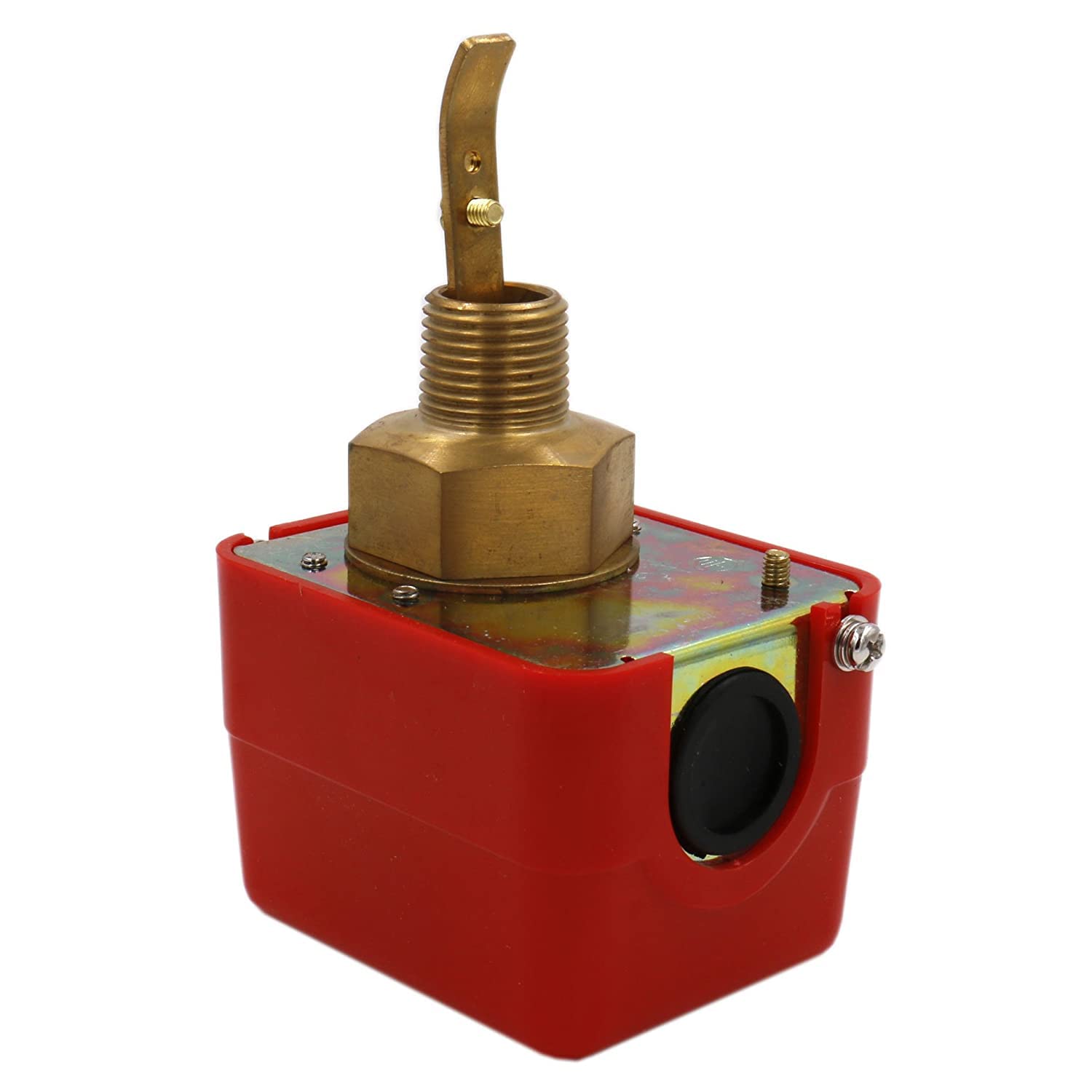

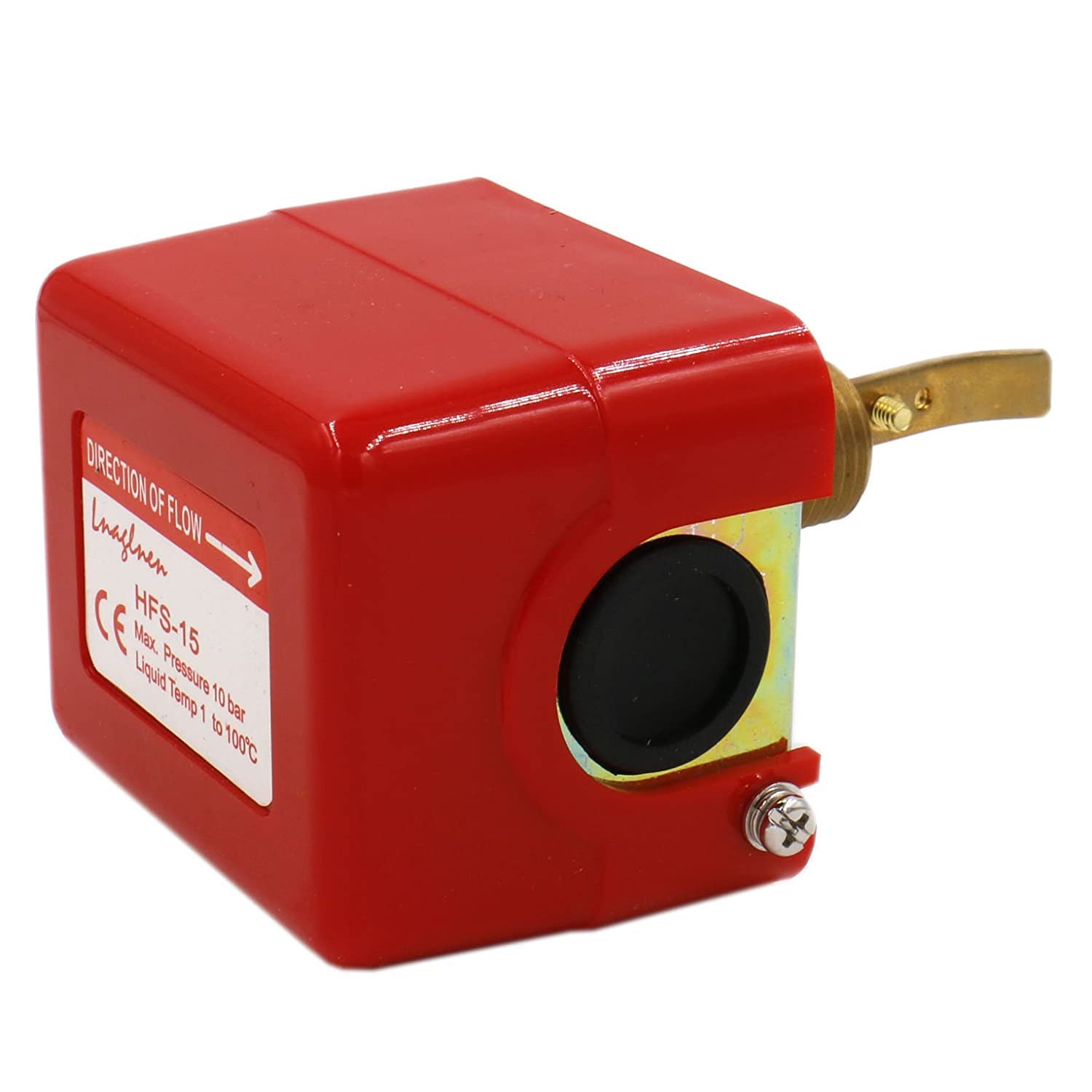

Hsthe Sea 1/2inch Water Flow Switch, HFS-15 Adjustable Thread Double Throw SPDT 220VAC 15A Water Flow Control 1.0Mpa

• It adopts premium material, with strong temperature adaptability of 0~ 120, and can withstand high pressure of 1.0Mpa.
• The flow control value is adjustable and the action repetition point is stable.
• The product is used to measure the dynamic state of the liquid flowing through the pipeline, such as: water, ethylene glycol and other liquids that have no corrosive effect on copper.
• It is application for water treatment system, central air conditioning, water cooling unit, fire protection system and other fields.

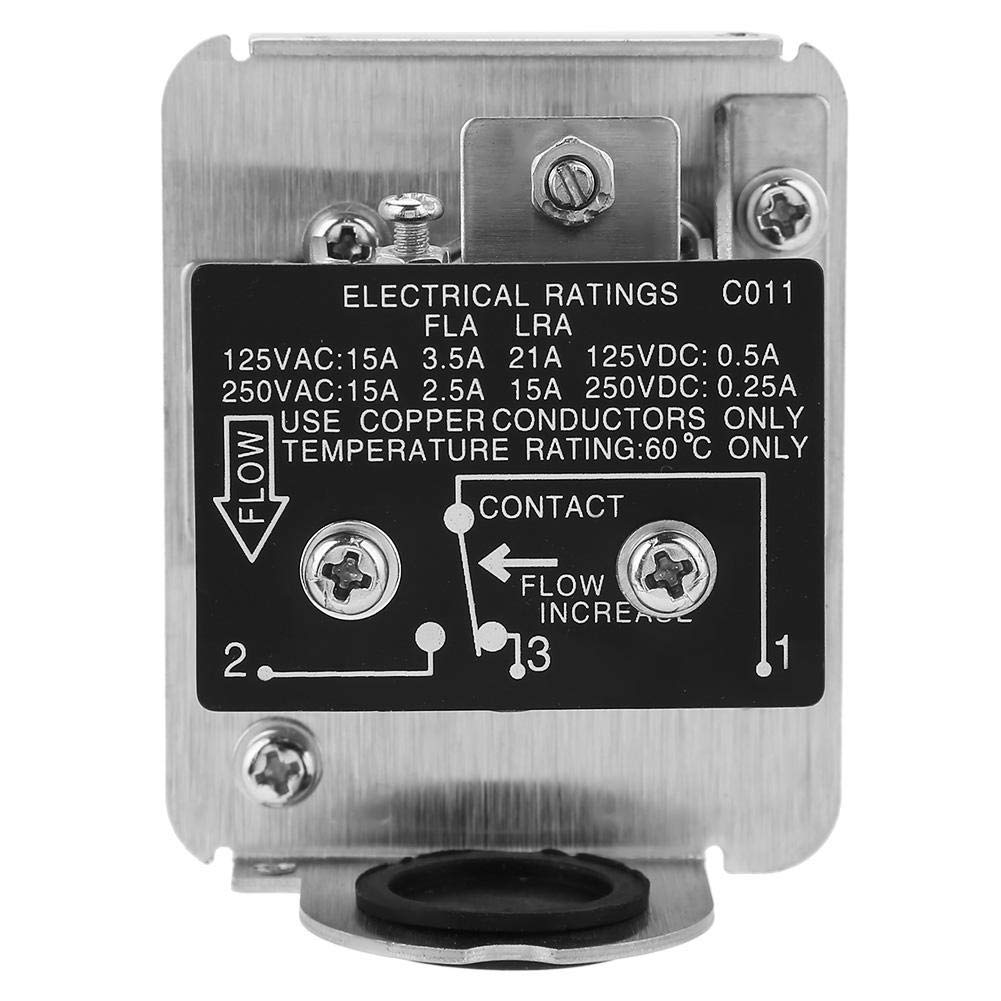

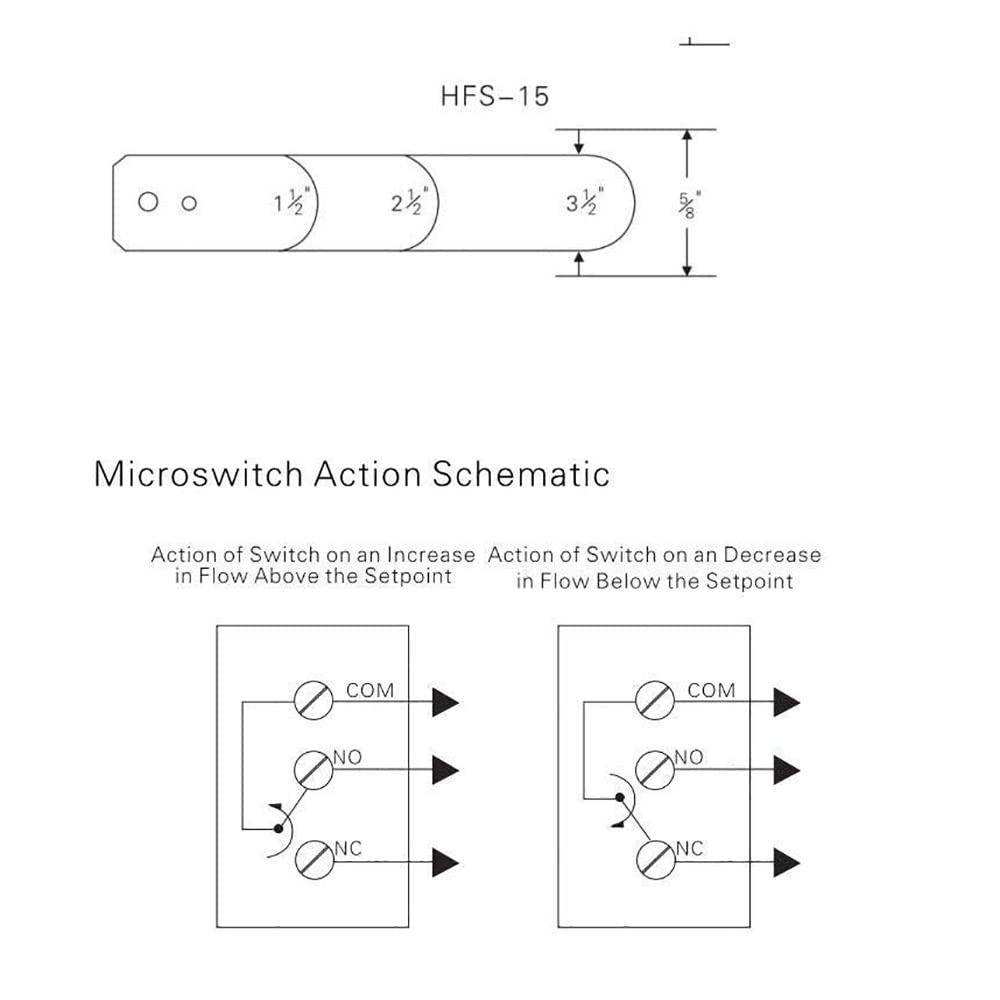

• When the flow exceeds the set value, the fluid drives the blades and the microswitch, and the SPDT contact can connect the circuit and disconnect other circuits.

1/2inch Water Flow Switch, HFS-15 Adjustable Thread Double Throw SPDT 220VAC 15A Water Flow Control 1.0Mpa Product Description: It adopts premium material, with strong temperature adaptability of 0~ 120, and can withstand high pressure of 1.0Mpa. The flow control value is adjustable and the action repetition point is stable. The product is used to measure the dynamic state of the liquid flowing through the pipeline, such as: water, ethylene glycol and other liquids that have no corrosive effect on copper. It is application for water treatment system, central air conditioning, water cooling unit, fire protection system and other fields. When the flow exceeds the set value, the fluid drives the blades and the microswitch, and the SPDT contact can connect the circuit and disconnect other circuits. Specification: Color: As Pic Shown Interface dimensions: 1/2""(HFS-15) Control mode: blade type Max. working pressure: 1.0Mpa Ambient temperature: 0C~60 Liquid temperature: -10~100(non-freezing) Micro switch: single pole double throw (SPDT) Contact life: 100, 000 cycles Electrical parameters of micro - switch: 220VAC, 15A Weight: Approx.407g/14.4oz Packing List: 1 x Flow Switch 3 x Paddle
