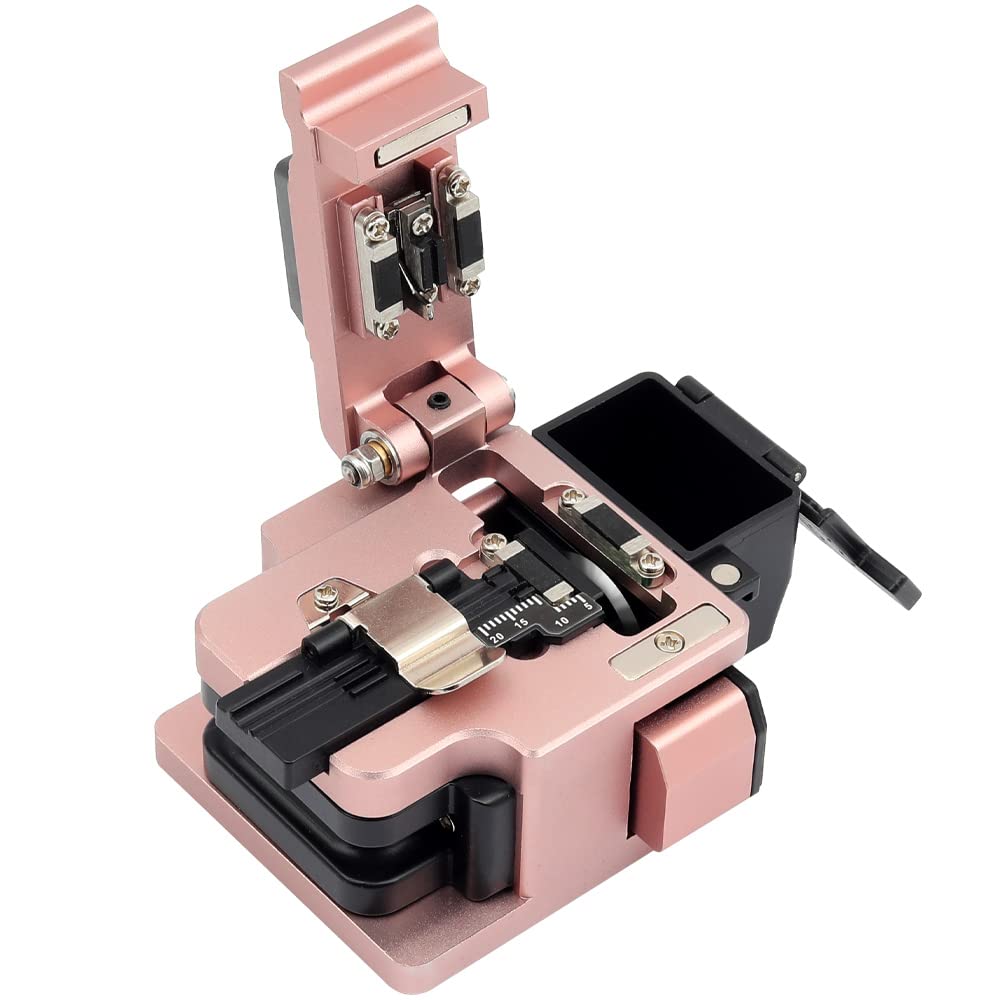

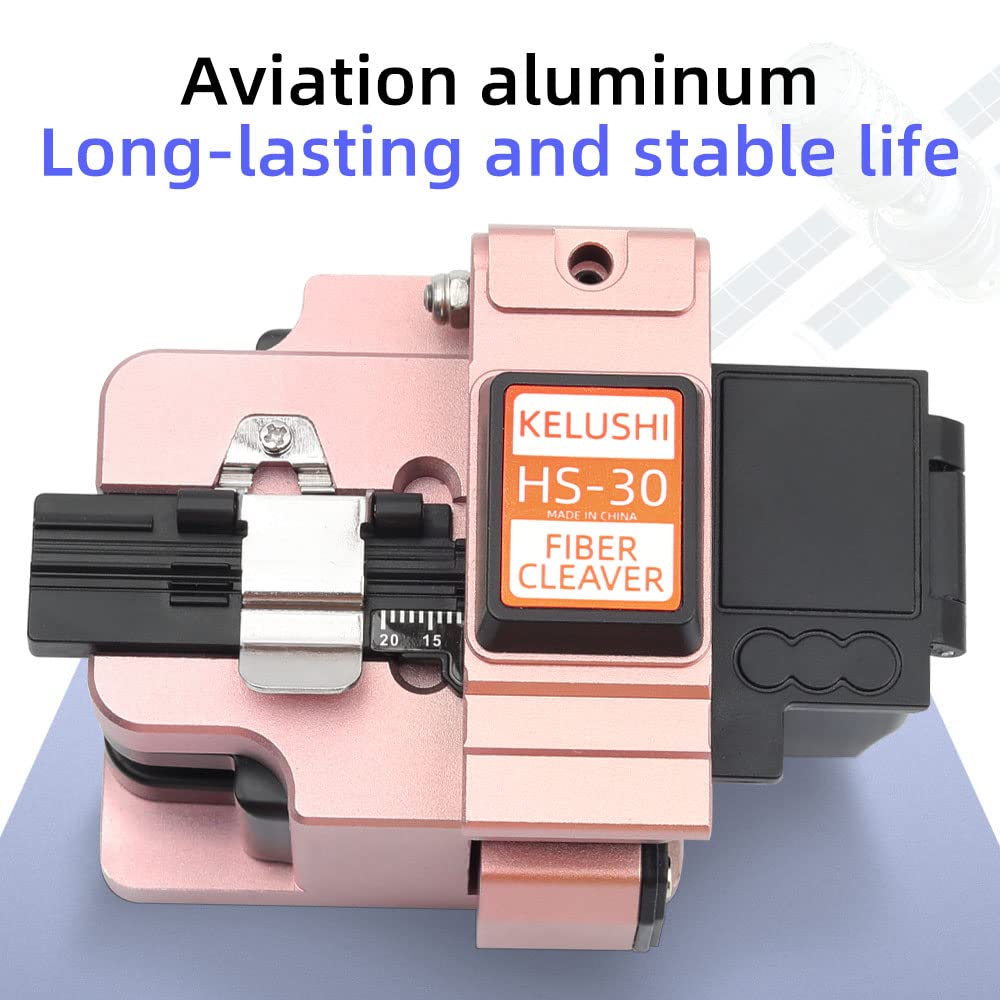

HS-30 Optical Fiber Cable Cleaver Welding Machine Special Cutting Blade comparable for Fujikura Optical Fiber Cleaver CT-30

• Application: silicon optical fiber
• Cutting the bare fiber diameter: 125um
• Optical fiber coating diameter: 250-900um

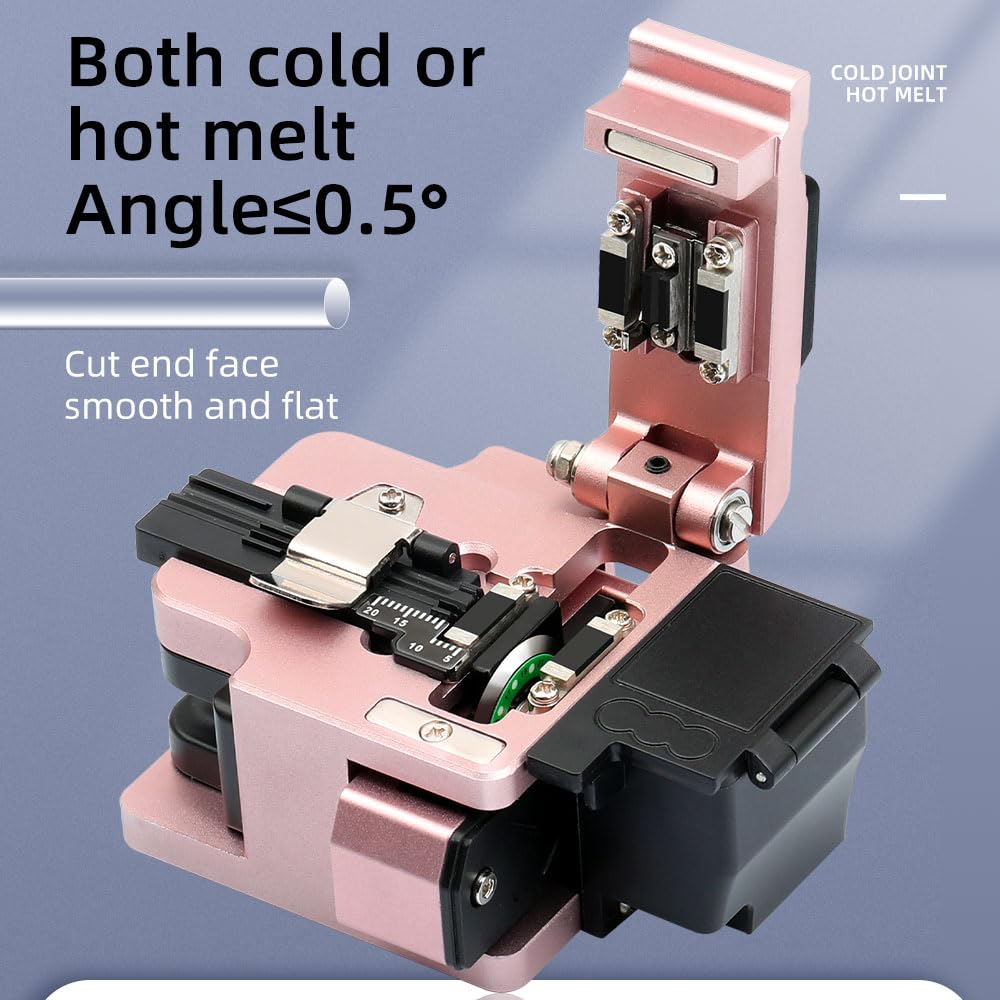

• Cutting angle: 0.5 (single core fiber)
• Blade cutting life: 48000 times

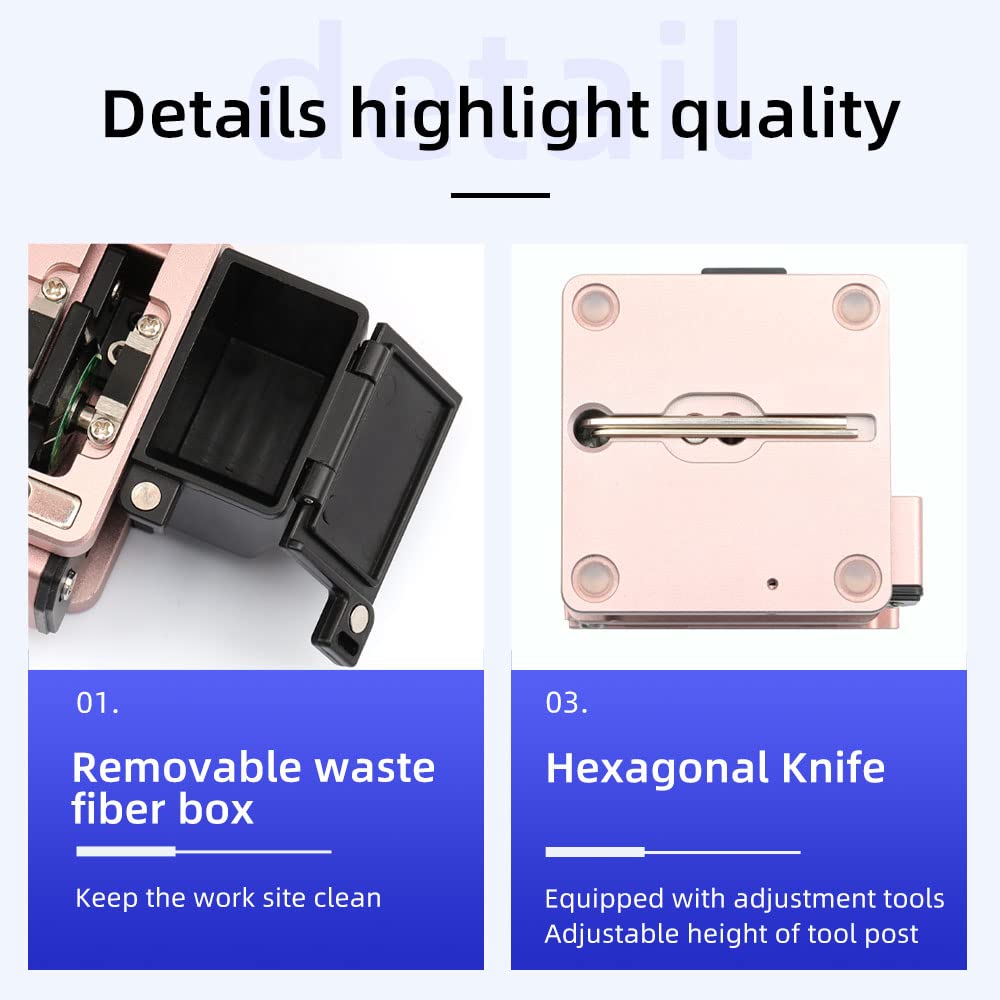

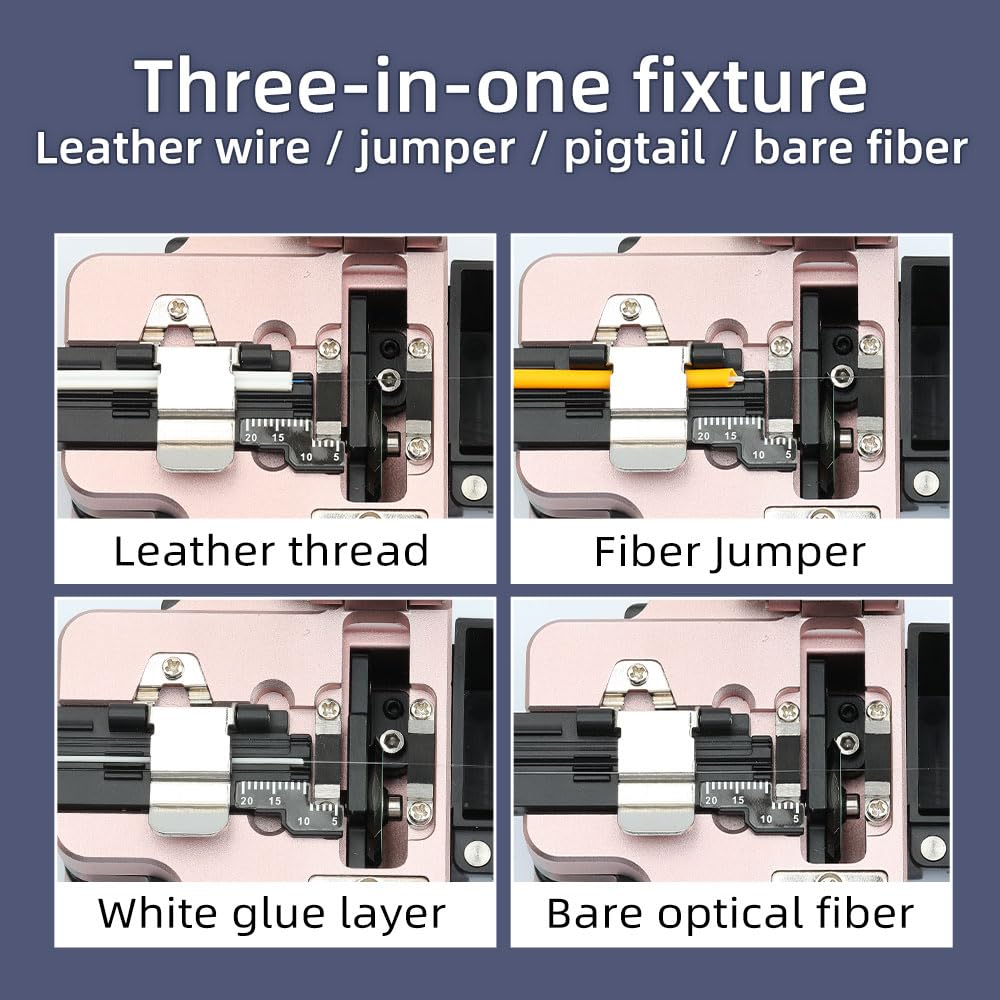

The HS-30 Cleavers are compatible with all AFL Telecommunications fusion splicers. Designed for excellent portability, the HS-30 is equally at home in a splicing van or in a bucket truck and is ideal for FTTH applications. The 16-position blade yields 48,000 single-fiber cleaves, or 4,000 12-fiber ribbon cleaves before requiring replacement, and the built-in scrap collector conveniently stores fiber shards until they can be safely discarded. Features: Dimensions (W x D x H): 69mm x 82mm x 41mm (2.7" x 3.2" x 1.6") Blade lifetime: 48,000 fiber cleaves (4000 12-fiber cleaves) Cleave angle capability: typically <0.5° Applications: Single fibers: 250um to 900um coating, 125um cladding Fiber Handling System: AD-30A Adapter Plate Cleave Length: (900um fiber) 10mm to 20mm, (250um fiber) 6mm to 20mm
