Household AC contactor,DIN Rail Mount Contactor Accessories, Modular Contactor,100,000 Times Electrical Life(AC230V)

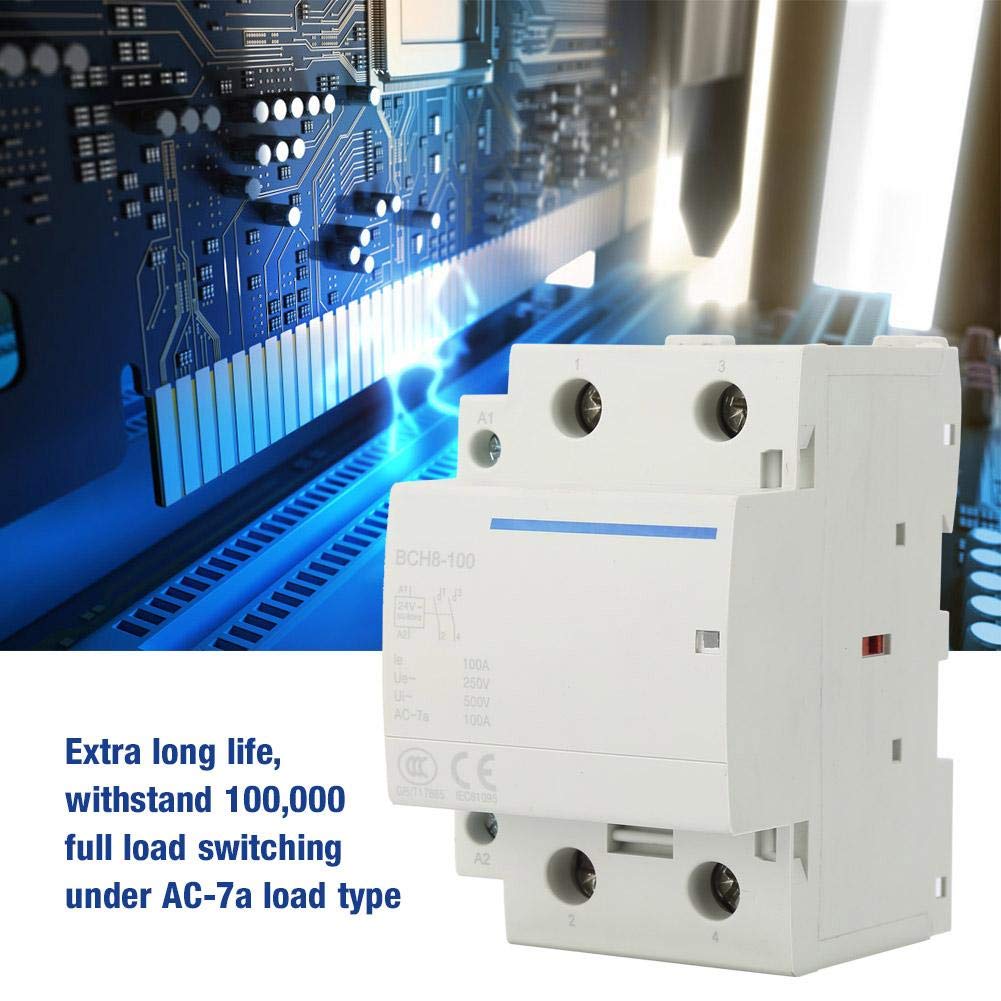

• 【EXTRA LONG LIFE】 Household AC contactor has extra long life, withstand 100,000 full load switching under AC‑1 load type.
• 【ULTRA-SILENT】 Household AC Contactor eliminates the obvious impact sound of the traditional contactor at the moment of suction, and eliminates the low-frequency buzz in the work of the contactor. It is suitable for the vast majority of building electrical control

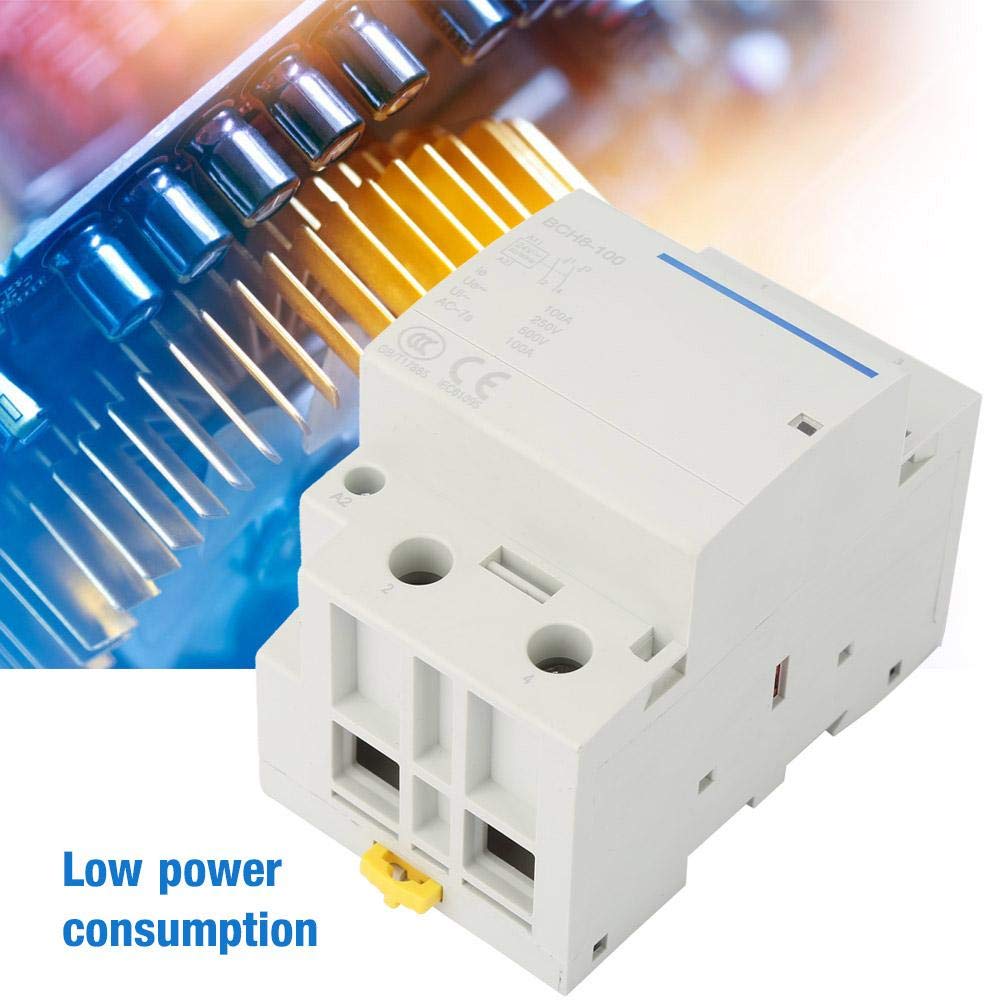

• 【ULTRA-ENERGY-SAVING】 Contactor in working state, need to maintain a long period of power-on to keep the coil suction, in this process Household AC Contactor need to consume a lot of electricity. DIN Rail Mount Contactor reduces the maintained power of the contactor greatly by optimizing
• 【 RATED OPERATING FREQUENCY 】 The rated operating frequency of contactor under this working system is 30 times/h and the load factor is 40%.
• 【 AIR TEMPERATURE RANGE OF - 5 +60℃】 In the ambient air temperature range of - 5 +60℃, when rated control power supply voltage Us is applied to the Household AC Contactor attraction coil to it heat to stable state, the contactor should be able to close reliably at any voltage

Specification: Rated current: 100A (AC-1) Conventional heating current(lth): 63A Rated control power supply voltage(Us): 24V AC; 230V AC (Optional) Rated insulation voltage(Ui): 500V AC Rated operating voltage(Ue): 250VAC Number of main contacts: 2P, 2NO Electrical life (time): 100000 Mechanical life (time) : 1000000 Maximum switching operation times: 1h/30 Package list: 1 x AC Contactor Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
