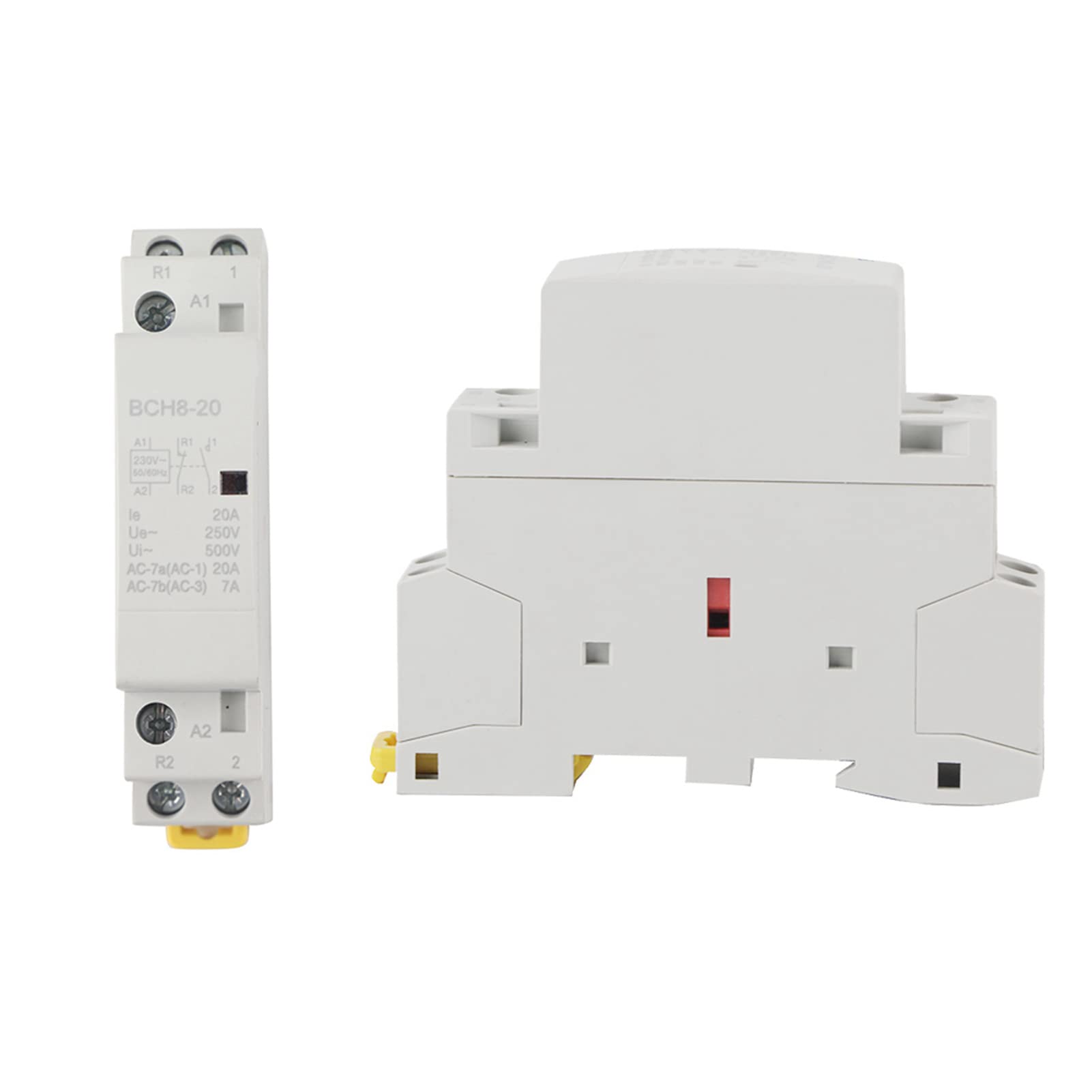

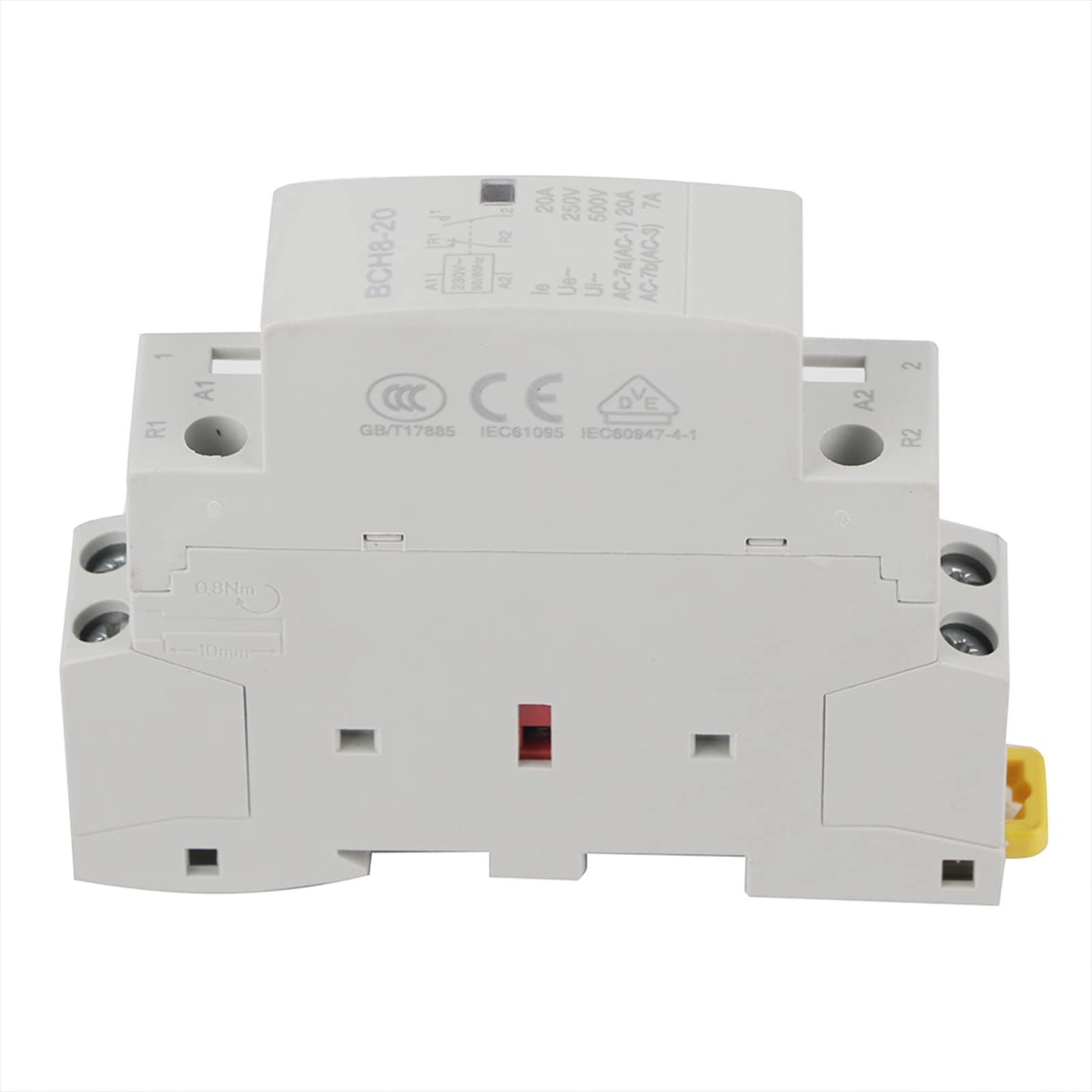

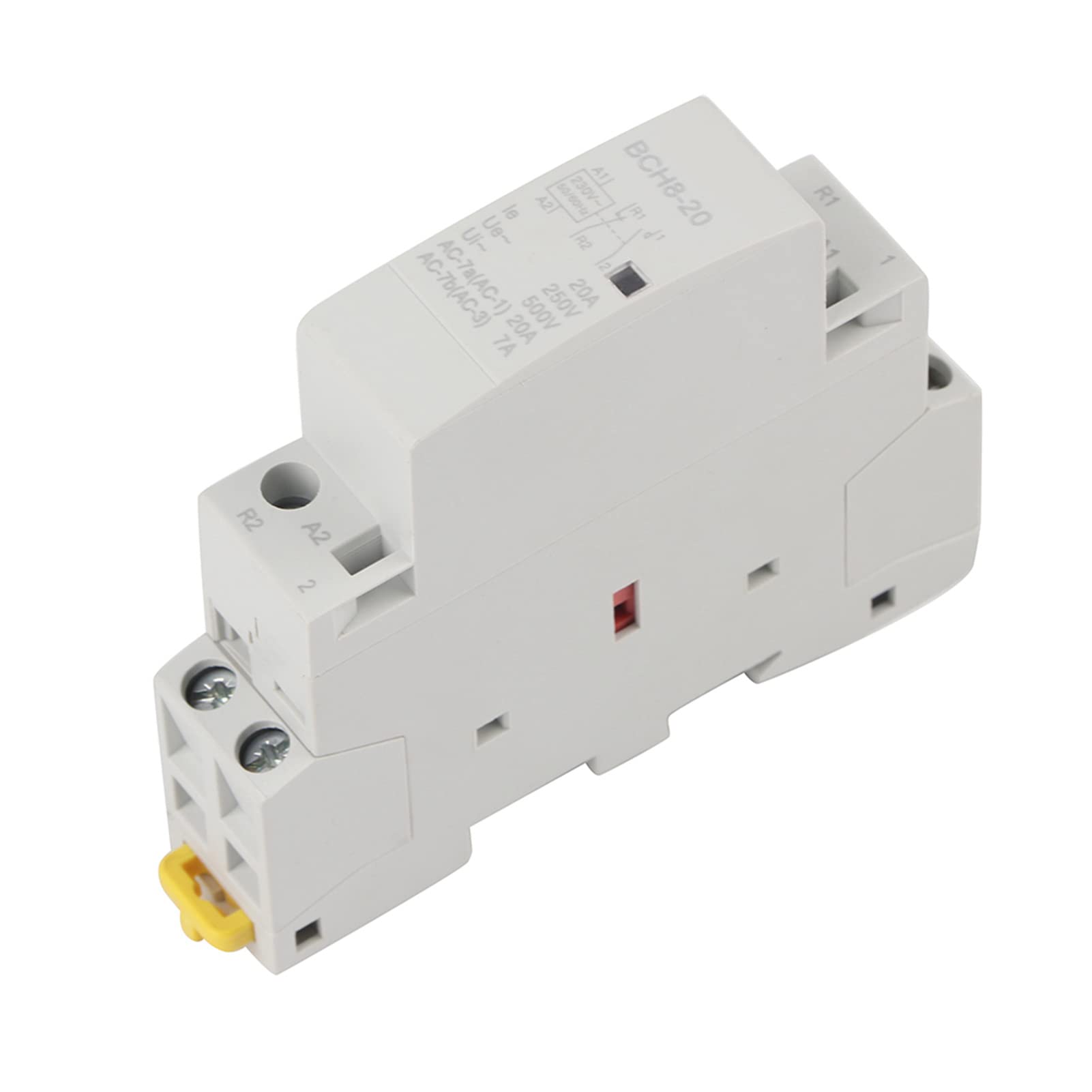

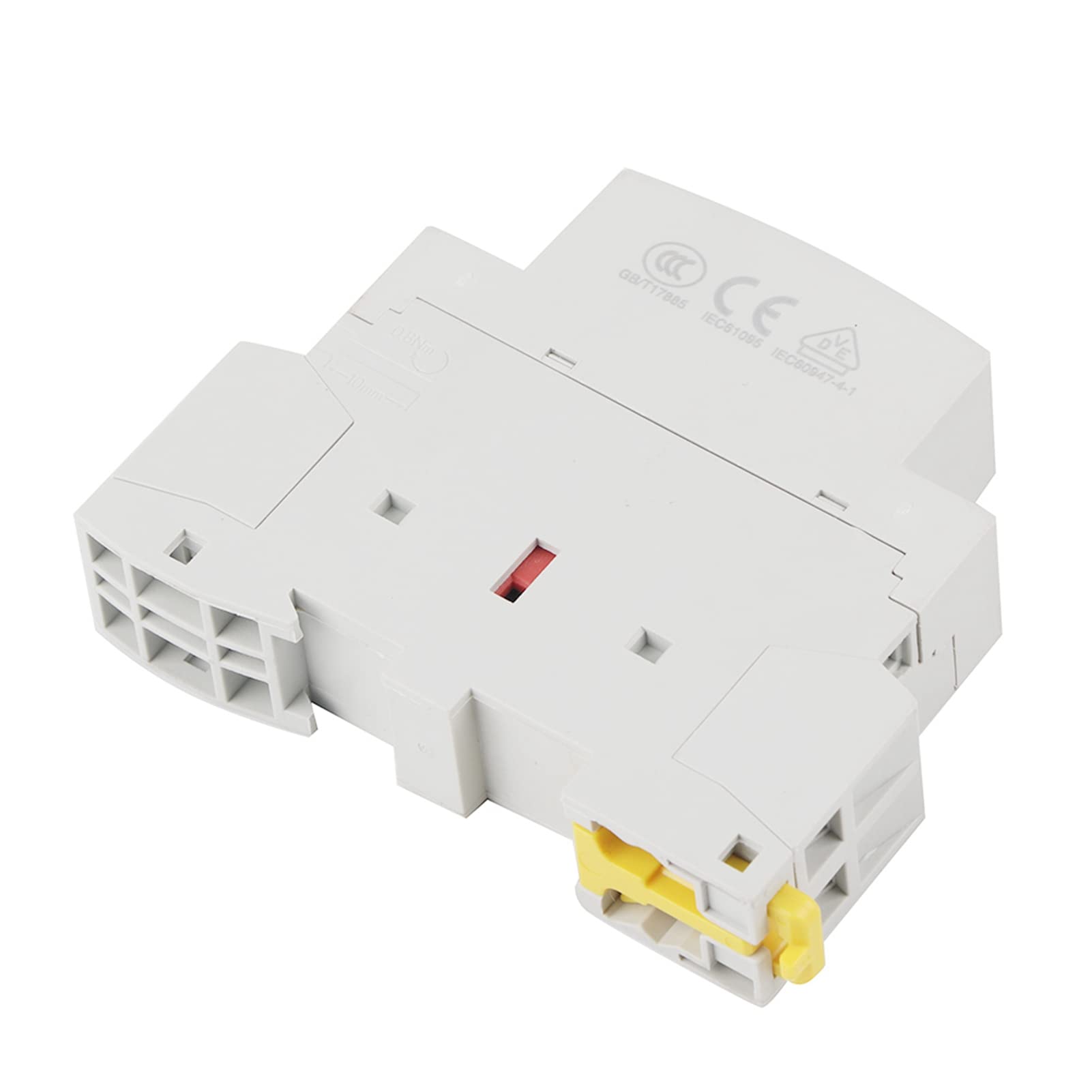

Household AC Contactor 2P 20A 24V 220V/230V 50/60Hz Household AC Contactor 2 Pole DIN Rail Mount 1NO 1NC Replacement (220V/230V)

• SAFE This household AC contactor is adopt high superior insulation material to enhance the security to a great extent.
• WIRING DIAGRAM: A wiring diagram is printed on the of the contactor.

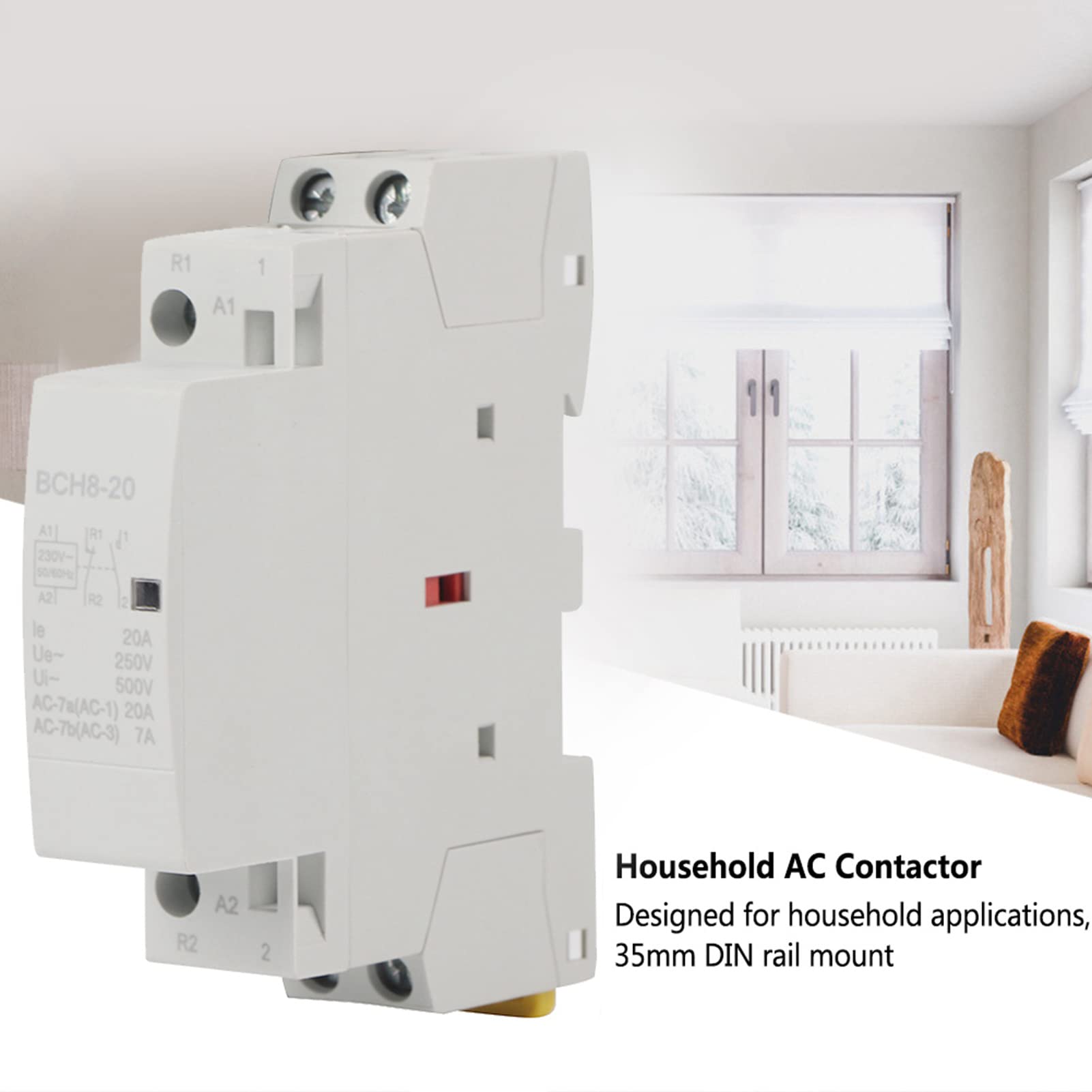

• HIGH QUALITY: This home AC contactor is new and high quality, designed for home use, 35mm DIN rail mounting.
• EASY TO INSTALL: The compact, modular design makes this AC contactor easy to install and saves space.
• APPLICATIONS: This home AC contactor is suitable for most building electrical control applications and works quietly to create a quiet environment.

Specification: Rated Control Supply Voltage (Us): AC 24V, AC 220V/230V(Optional) Rated Current: 20A(AC-7a), 7A(AC-7b) Conventional Thermal Current (lth): 25A Rated Insulation Voltage (Ui): 500VAC Rated Working Voltage (Ue): 400VAC Number of Poles: 2P(1NO + 1NC) Maximum Number of Switching Operations: 30times/hour Electrical Life: 100,000 times Mechanical Life: 1,000,000 times Package Weight: Approx. 128g Rated Duty: 1) 8-hour duty This is the basic duty, and conventional heating current Ith of the contactor is determined by this working system. 2) Intermittent periodic duty The rated operating frequency of the contactor under this duty is 30 times/h, and the load factor is 40%. Action(Operation) Condition: When the ambient temperature is in the range of -5°C to +60C, apply the rated control power supply voltage Us to the contactor sucking coil to make it heat up to a steady state, Then the contactor should be reliably closed under any voltage of (85% ~ 110%) Us. Its release voltage is (20%~75%) Us. Package list: 1 * AC Contactor
