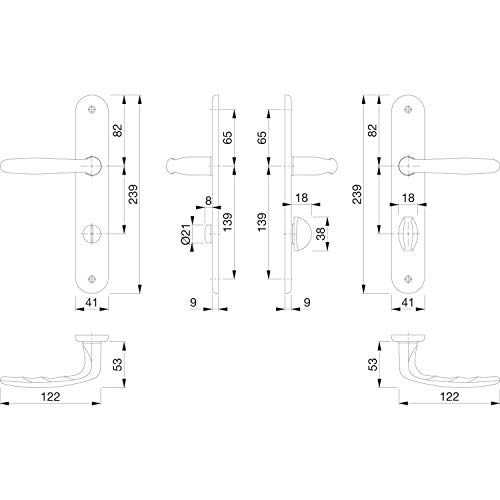

Hoppe Verona 2949578 Door Handle Set on Plate WC 90, Door Thickness 37-42, VK 8/8.5 Stainless Steel Effect NA

• Design: WC (bathroom/toilet) 90 mm ÖNORM
• Door thickness (mm): 37 - 42
• Square pin (mm): 8 fixed quick pin with A-sleeve to 8.5
• Material: aluminium
• With return spring

With conventional door handle assembly, many steps have to be taken, which also make frequent regripping necessary. This is tedious and takes time. Significantly faster and better: the HOPPE quick pin connection. With this advanced technique, the door handles are permanently fixed with a single movement. The core of the technology is the clamping mechanism developed by us in the door handle hole part. This picks up the full square pin of the door handle pin part and clamps it permanently and without play. Thanks to the solid square pin, the complete square cross section is used for maximum torque transmission. The Hoppe quick pin connection is a continuously axial door handle connection, tested according to DIN EN 1906 and can be used for different door thicknesses (within a defined range).
