Hoppe New York Door Handle Set on Sign BB 90, Door Thickness 35-45, VK 8/8.5 Anodised Silver

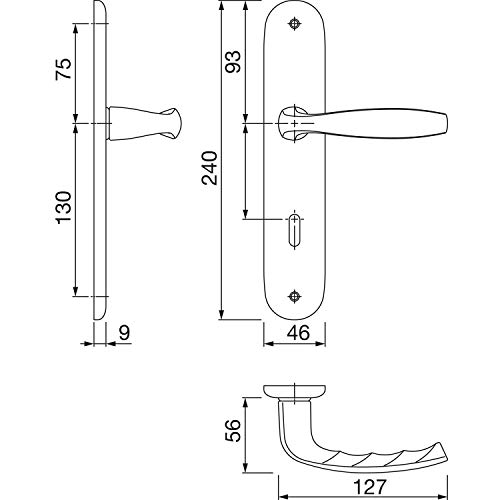

• Design: BB (Deadlock) 90 mm ÖNORM
• Door thickness (mm): 35 - 45
• Square pin (mm): 8 fixed quick pin with A-sleeve to 8.5
• Material: aluminium
• With return spring

In the conventional door handle assembly many steps are to be carried out, which also require frequent gripping. It's tedious and takes time. Significantly faster and better: the Hoppe quick-pin connection. With this advanced technology, the door handles are permanently fixed in place with a single movement. The core piece of technology is the clamping mechanism developed by us in the door handle hole part. This picks up the full square pin of the door handle pin part and locks it permanently and without play. Thanks to the full square spindle, the complete square cross section is used for maximum torque transfer. The Hoppe quick-pin connection is a fully axial door handle connection, tested according to DIN EN 1906 and can be used for different door thicknesses (within a defined area).
