HOPPE Amsterdam Handle Set for Mini Rosette BB, Door Thickness 40-50, Stainless Steel, 0

• Holes: BB (deadlock) rosettes self-adhesive.
• Door thickness (mm): 40 - 50.
• Square pin (mm): 8 fixed quick pin with A-sleeve on 8.5.

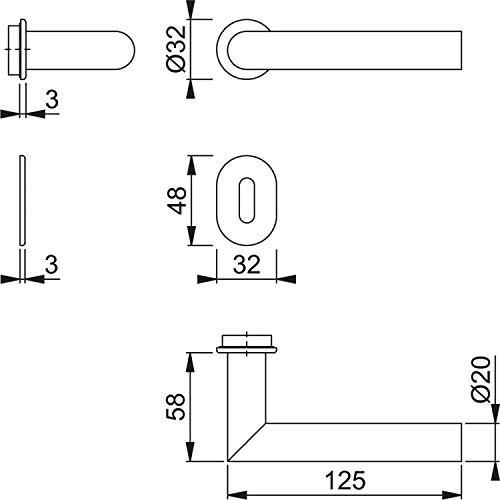

• Rosette (mm): 32 x 48 x 3.
• Screwless installation thanks to self-adhesive key rosettes and quick pin.

With a conventional door handle assembly, many steps are carried out, which also make frequent re-gripping necessary. This is tedious and costs time. Significantly faster and better: The Hoppe quick-pin connection. With this advanced technology, the door handles are permanently fixed with a single movement. The heart of the technology is the clamping mechanism developed by us in the door handle hole part. This picks up the full square pin of the door handle pin part and clamps it permanently and free from play. It is with the whole width of the spindle that maximum torque transmission is achieved. The Hoppe quick-pin connection is a continuously axial door handle connection, tested according to DIN EN 1906 and can be used for different door thicknesses (within a defined area).
