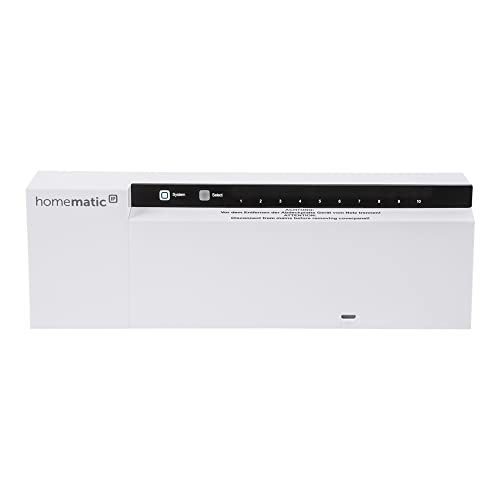

Homematic IP 143238A0 24 V 10 Channels Floor Heating Actuator - White

• Floor heating actuator with 10 heating zones offers comfortable control of floor heating systems
• Individual room-by-room temperature control
• Rooms are heated efficiently via floor surfaces and can be cooled via floor surfaces
• No cabling effort thanks to secure 868.3 MHz/869.525 MHz radio technology
• Controls floor heating systems and heating pumps

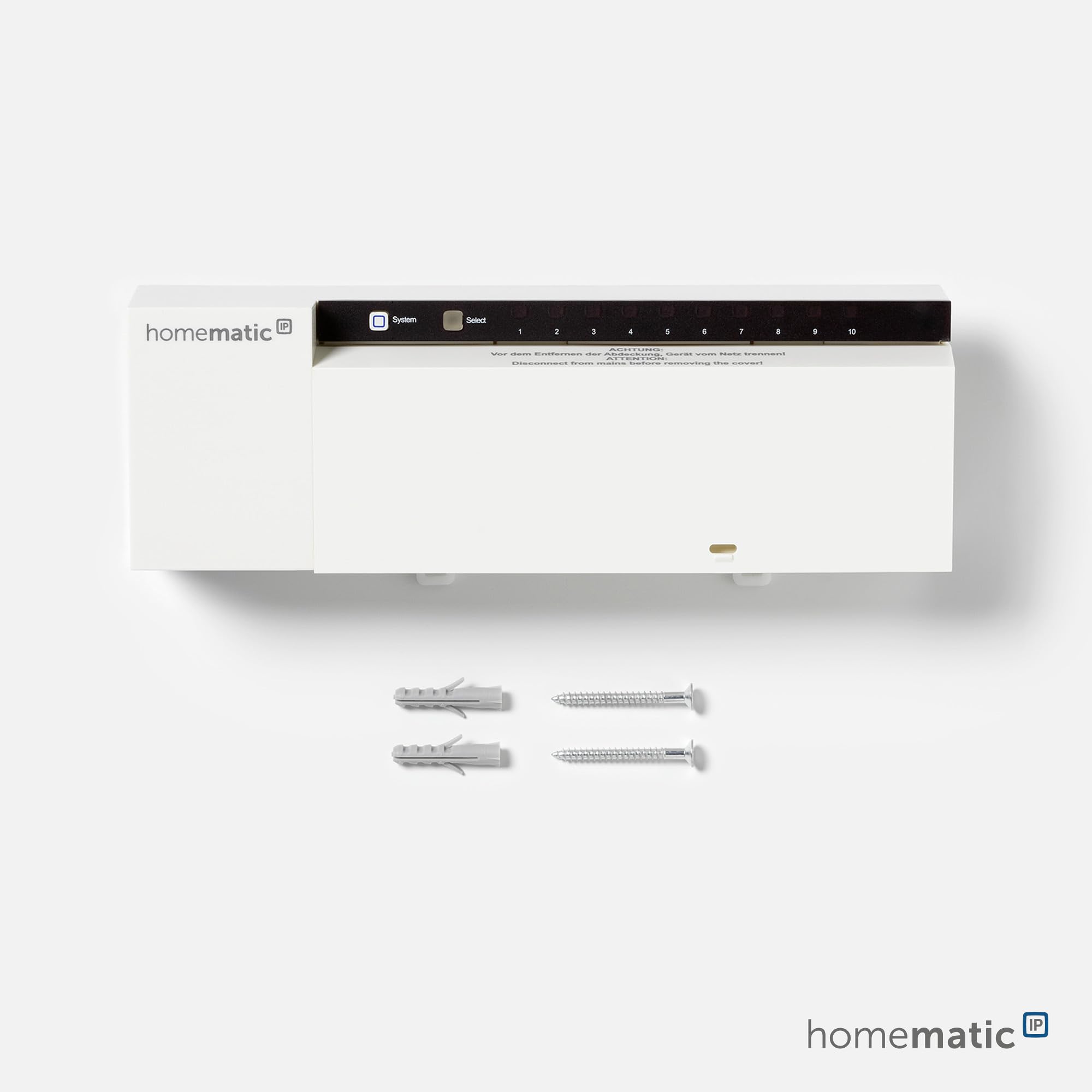

Product features: Floor heating actuator with 10 heating zones offers comfortable control of a floor heating system Individual room-by-room temperature control Rooms are heated efficiently via floor surfaces Rooms can be cooled via floor surfaces No cabling effort thanks to secure 868.3 MHz/869.525 MHz radio technology Controls floor heating systems and heating pumps (via additional switch relay) Automatically provides continuous flow of heating water and therefore ensures constant and efficient utilisation of the central heating Several floor heating actuators can be used in one house Connection to the Homematic IP Multi IO Box for controlling boilers or switching between heating and cooling Screw less plug-in/clamp connection technology Every second heating zone is equipped with two clamp terminals. Thus, two heating circuits can be connected to one heating zone. Easy installation with supplied screws or via DIN rail mounting Most advanced control algorithms for all kinds of water based floor heating systems Flexible application: Stand-alone operation in connection with the Homematic IP Wall Thermostat (HmIP-WTH-2) Via the Homematic IP Access Point and Homematic IP app as well as the Homematic Central Control Unit or control units of partners in connection with the Homematic IP Wall Thermostat or Temperature Sensor (always required for operation) Technical specifications: Supply voltage 24 V/50 Hz Current consumption 1.25 A max. Maximum switching capacity Channel 1 - 6 Channel 1 - 10 24 W 24 W Degree of protection IP20 Ambient temperature 0 to 50° C Dimensions (W x H x D) 225 x 75 x 52 mm Weight 282 g Radio frequency 868.3 MHz/869.525 MHz Typ. open area RF range 270 m Max. number of heating zones 10
