Hobby Components MAX7219 8 Digit Seven Segment Display Module

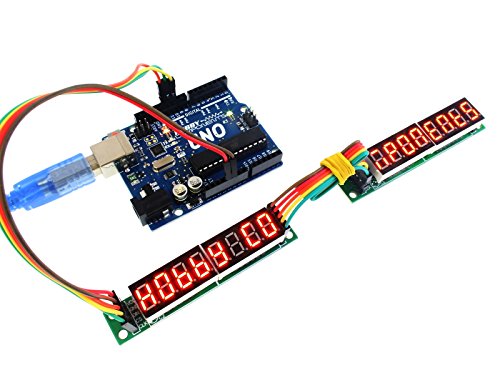

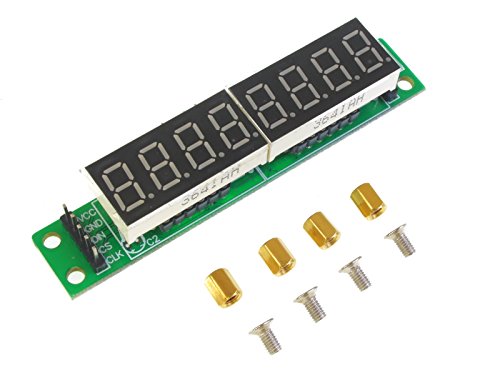

• This 8 digit seven segment display module (HCMODU0082) is based upon the Maxim MAX7219 LED display driver. The module uses two standard 4 digit seven segment displays to display a total of 8 digits in RED with decimal point. A convenient input and output header allows additional modules to be daisy-chained and controlled with just just 3 digital IO pins. To panel mounting the module has 4 mounting holes and 4 brass pillars with screws are supplied.
• The Maxim MAX7219 driver allows for each segment of up to 8 digits (with decimal point) to be controlled individually from a serial interface. An 8x8 static ram area stores each digit and multiplexing the display is handled automatically.

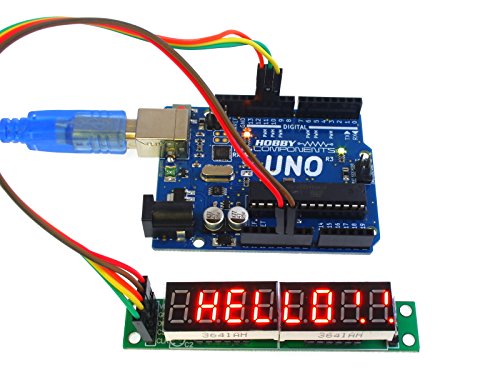

• If you plan to use this module with an Arduino board we have written an exclusive library (HCMAX7219) than allows you to effortlessly display and scroll alphanumeric characters across one or more modules. This can be downloaded from the software section of our support forum.
• Example sketch, datasheet and exclusive library available from our support forum. check out our blog posts "Getting Started with Seven Segment Serial Displays" and "Library for MX7219 LED Driver".

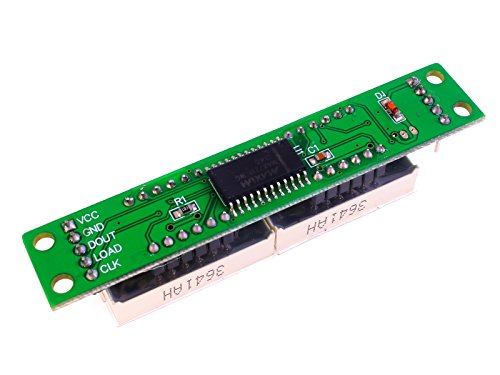

• HOBBY COMPONENTS NOTES: PLEASE NOTE WHEN CONNECTING MULTIPLE MODULES: The modules are fitted with a reverse polarity protection diode in series with the 5V (VCC) supply. This has the effect of reducing the voltage on the VCC output pin relative to the voltage applied to its VCC input pin. Therefore when daisy-chaining multiple modules you should either supply 5V to each module's VCC input pin separately, or short out the diode (D1) on each additional module.

This 8 digit seven segment display module (HCMODU0082) is based upon the Maxim MAX7219 LED display driver. The module uses two standard 4 digit seven segment displays to display a total of 8 digits in RED with decimal point. A convenient input and output header allows additional modules to be daisy-chained and controlled with just just 3 digital IO pins. To panel mounting the module has 4 mounting holes and 4 brass pillars with screws are supplied. The Maxim MAX7219 driver allows for each segment of up to 8 digits (with decimal point) to be controlled individually from a serial interface. An 8x8 static ram area stores each digit and multiplexing the display is handled automatically. If you plan to use this module with an Arduino board we have written an exclusive library (HCMAX7219) than allows you to effortlessly display and scroll alphanumeric characters across one or more modules. This can be downloaded from the software section of our support forum. Cable is not supplied. If you require a cable, please see our range of dupont cables. Model number: HCMODU0082 Driver: Maxim MAX7921 Voltage: 4.0 - 5.5V Max current: 180mA (all LEDs on) Min current: <0.5mA (shutdown mode) Length: 70mm Width: 15mm Height: 18mm (approx) Example sketch, datasheet and exclusive library available from our support forum. Also, check out our blog posts "Getting Started with Seven Segment Serial Displays" and "Library for MX7219 LED Driver".
