RIVERWELD HJC40 Multi-Function Welding Gauge Inspection Checks Weldment Thickness Weld Bead Height Welding Seam Gap Weldment Gap Groove Angle Marks Metric

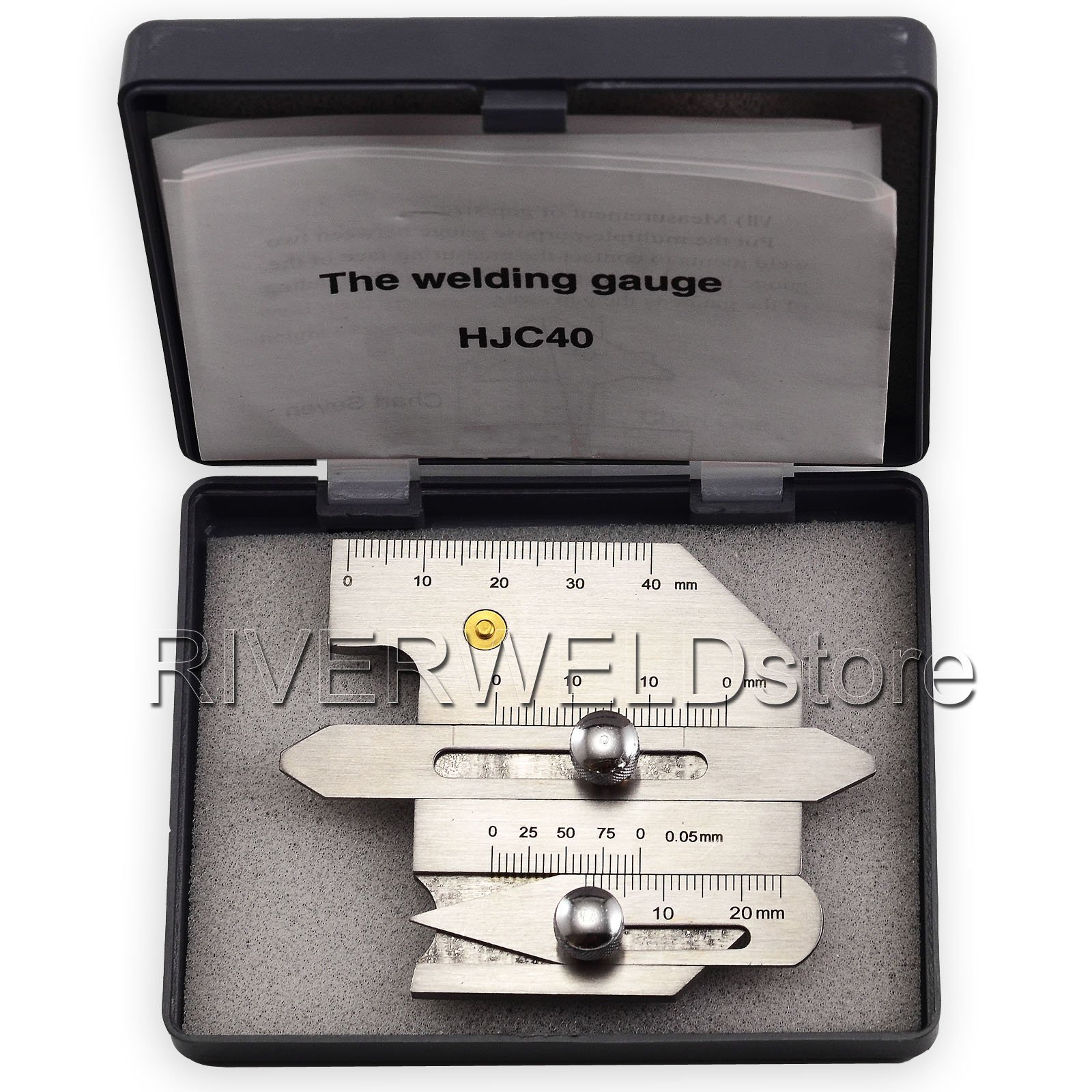

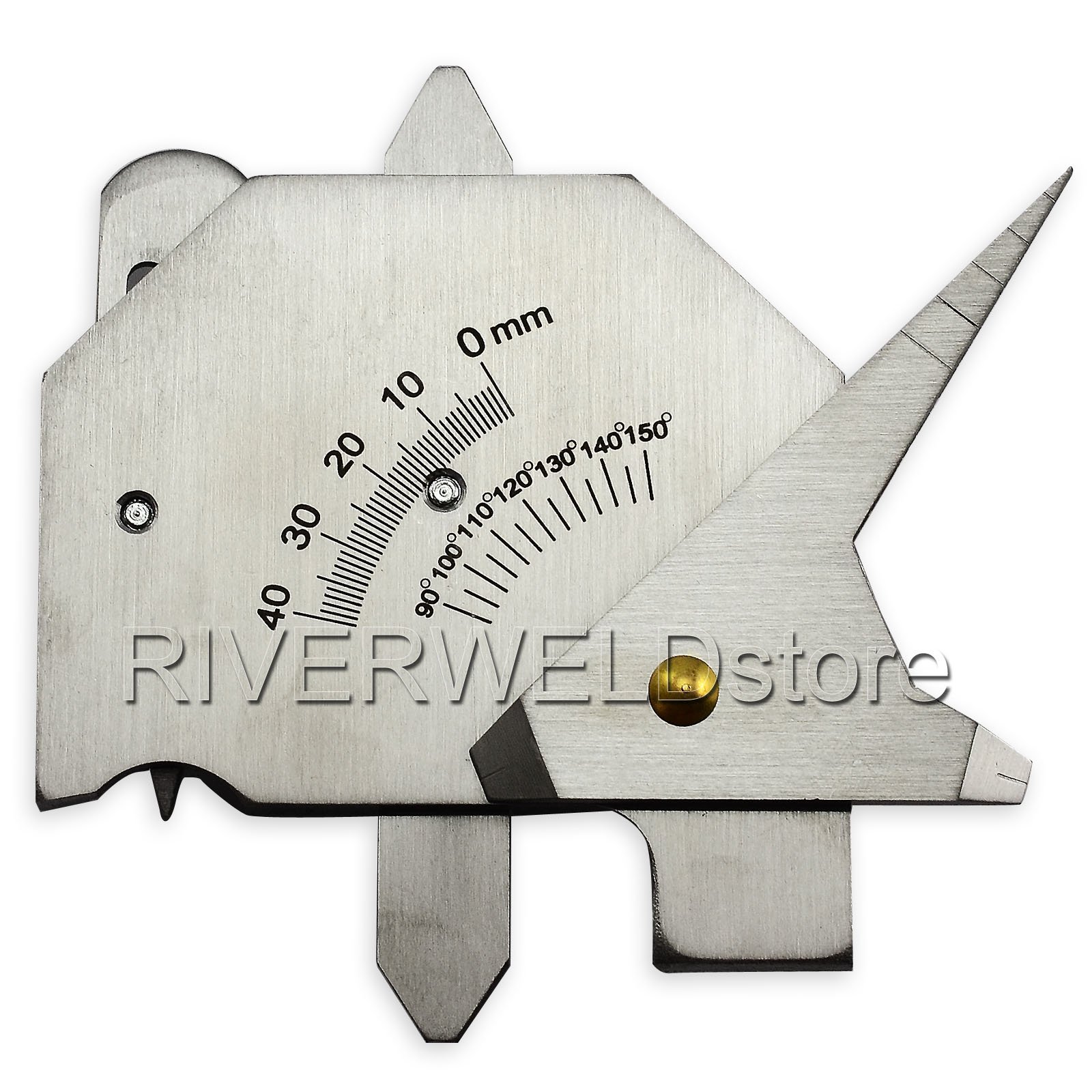

• HJC40 Multi-Function Welding Gauge
• Checks Height of fillet weld and Plane
• Checks Fillet thickness and Width
• Checks Depth of weld edge and Bevel angle of weld
• checks Gap size

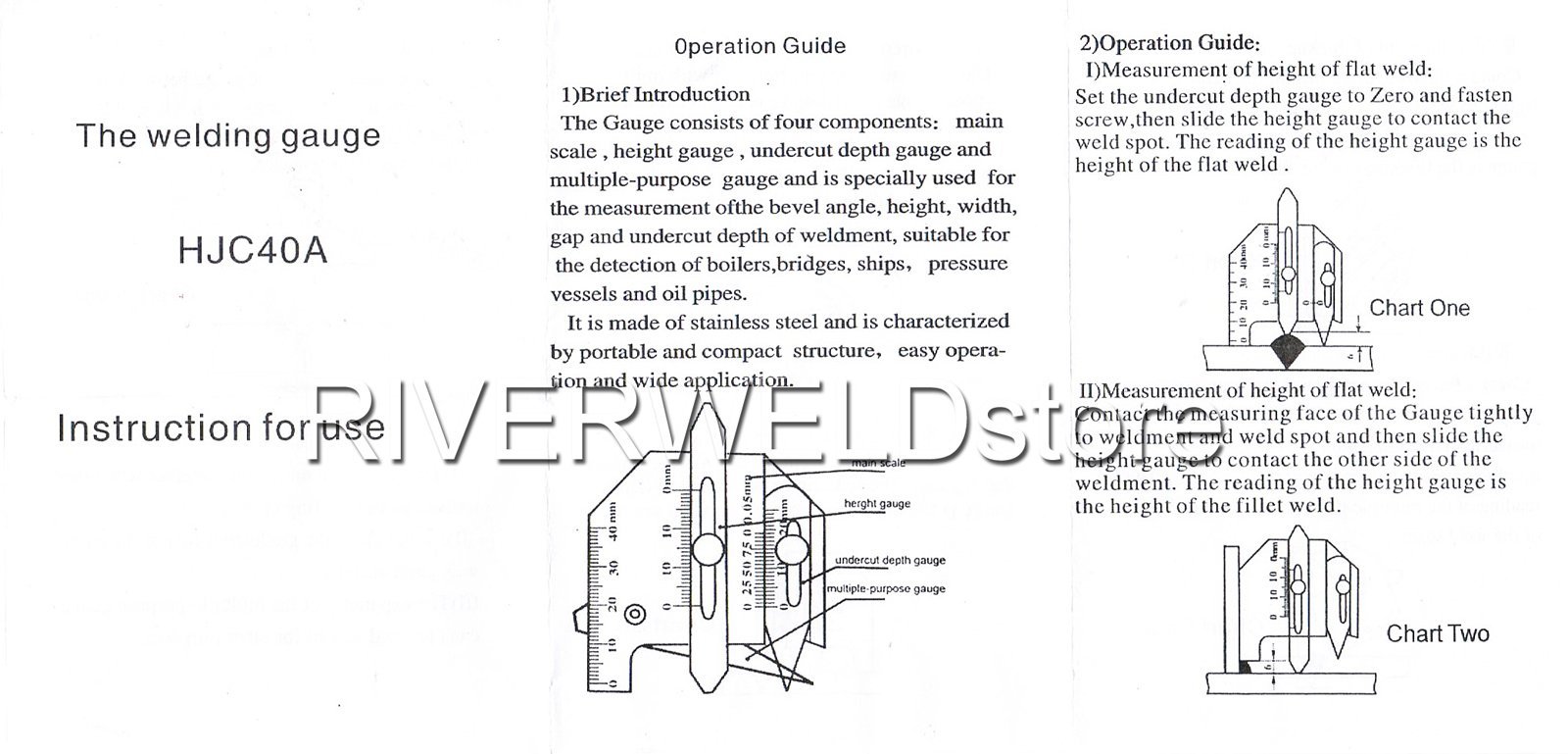

The Gauge consists of four components: main scale, height gauge, undercut depth gauge, and multiple-purpose gauge, and is specially used for the measurement of the bevel angle, height, width, gap, and undercut depth of weldment, suitable for the detection of boilers, bridges, ships, pressure vessels, and oil piles. It is made of stainless steel and is characterized by a portable and compact structure, easy operation, and wide application.
