Hiwonder 35KG High Voltage Bus Servo HTD-35H Sevo with Three Connectors and Data Feedback

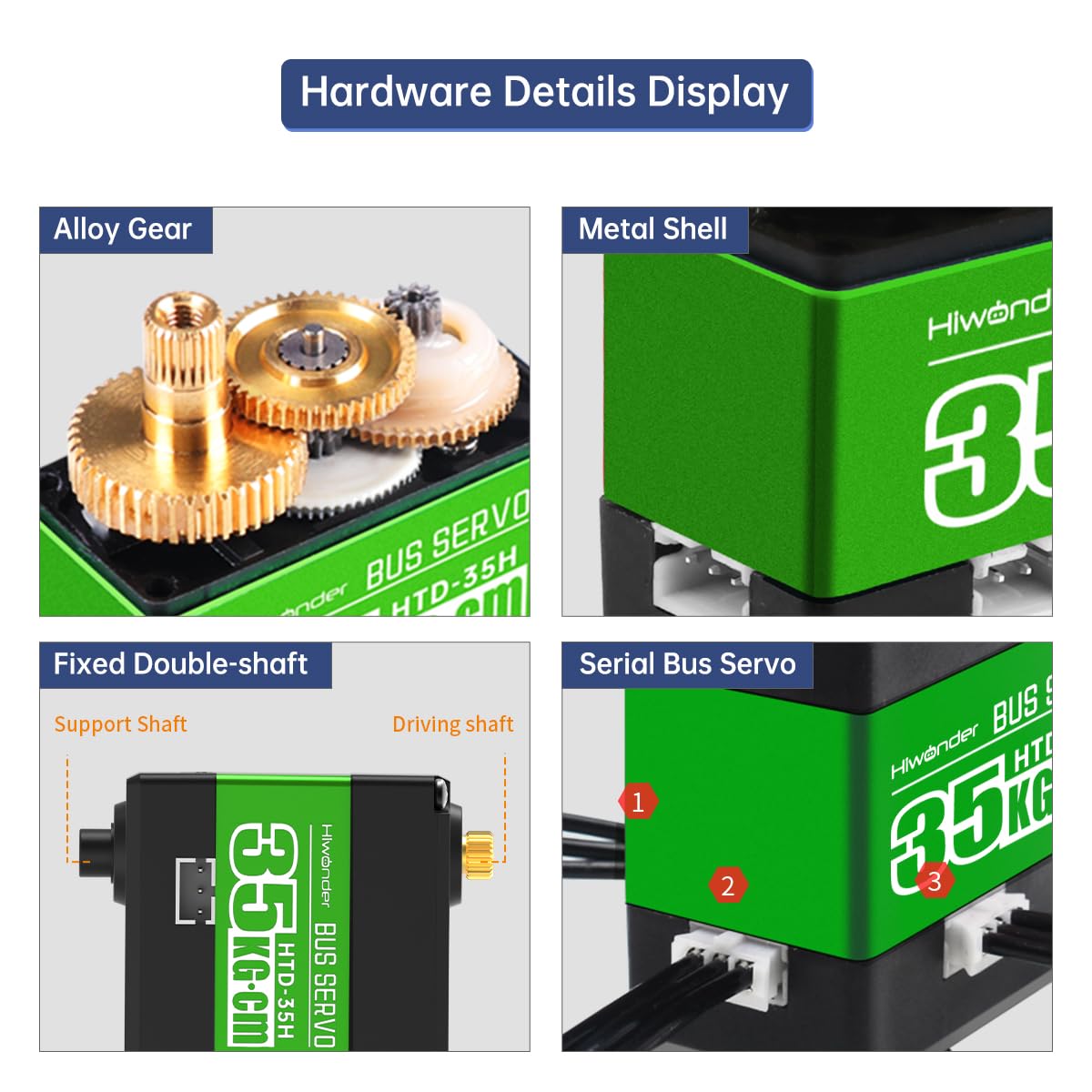

• This three connectors serial bus smart servo possess 35KG torque and adopts all-metal gears inside, strong and durable.
• The 11.1V high-voltage servo can reduce the current by more than 60% and improve the battery life. 35kg of large torque gives your robot plenty of power.

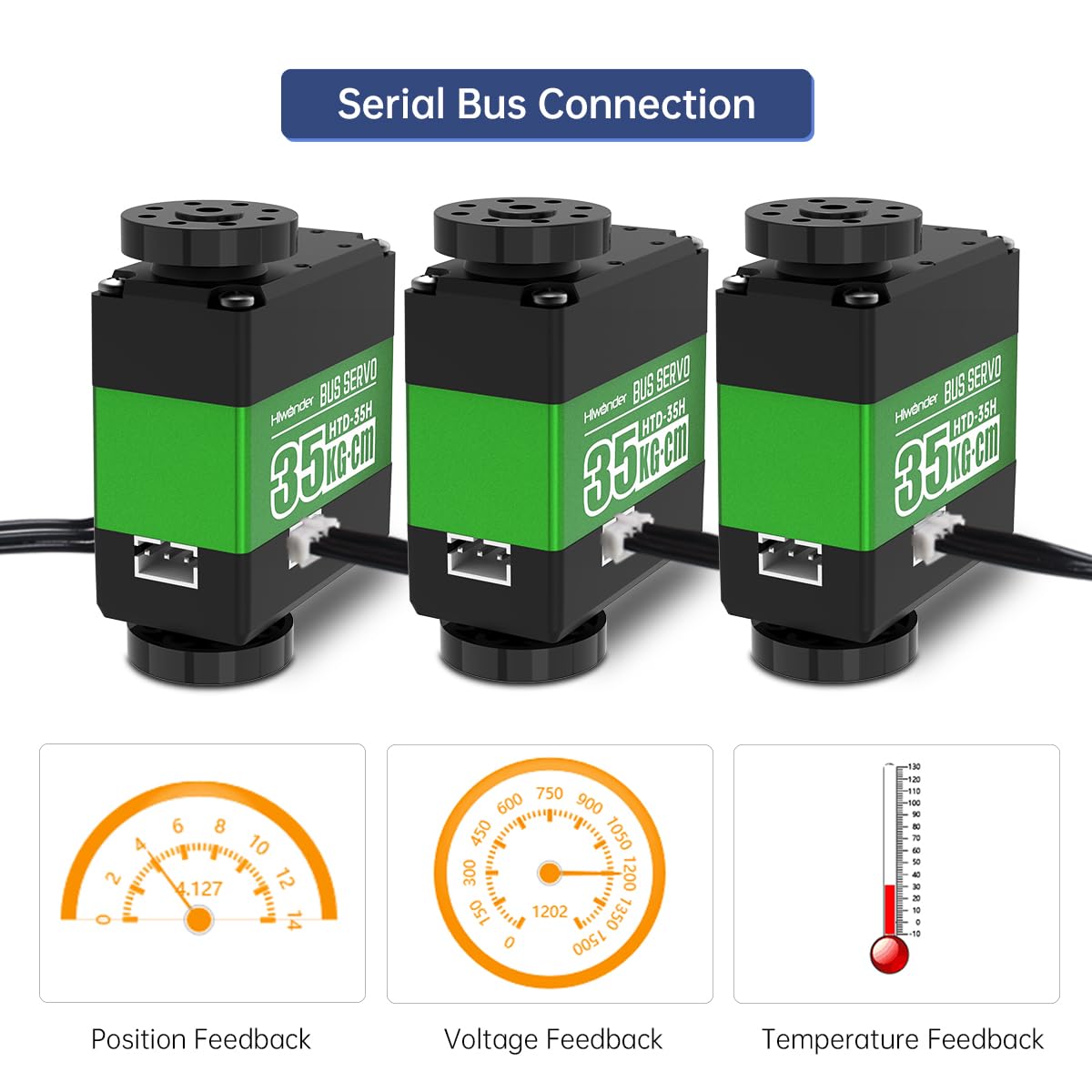

• Compared with ordinary servos on the market, it can read back the angle and faceback voltage, temperature position parameter.
• The servo adopts a high-precision potentiometer, which improves the accuracy and linearity

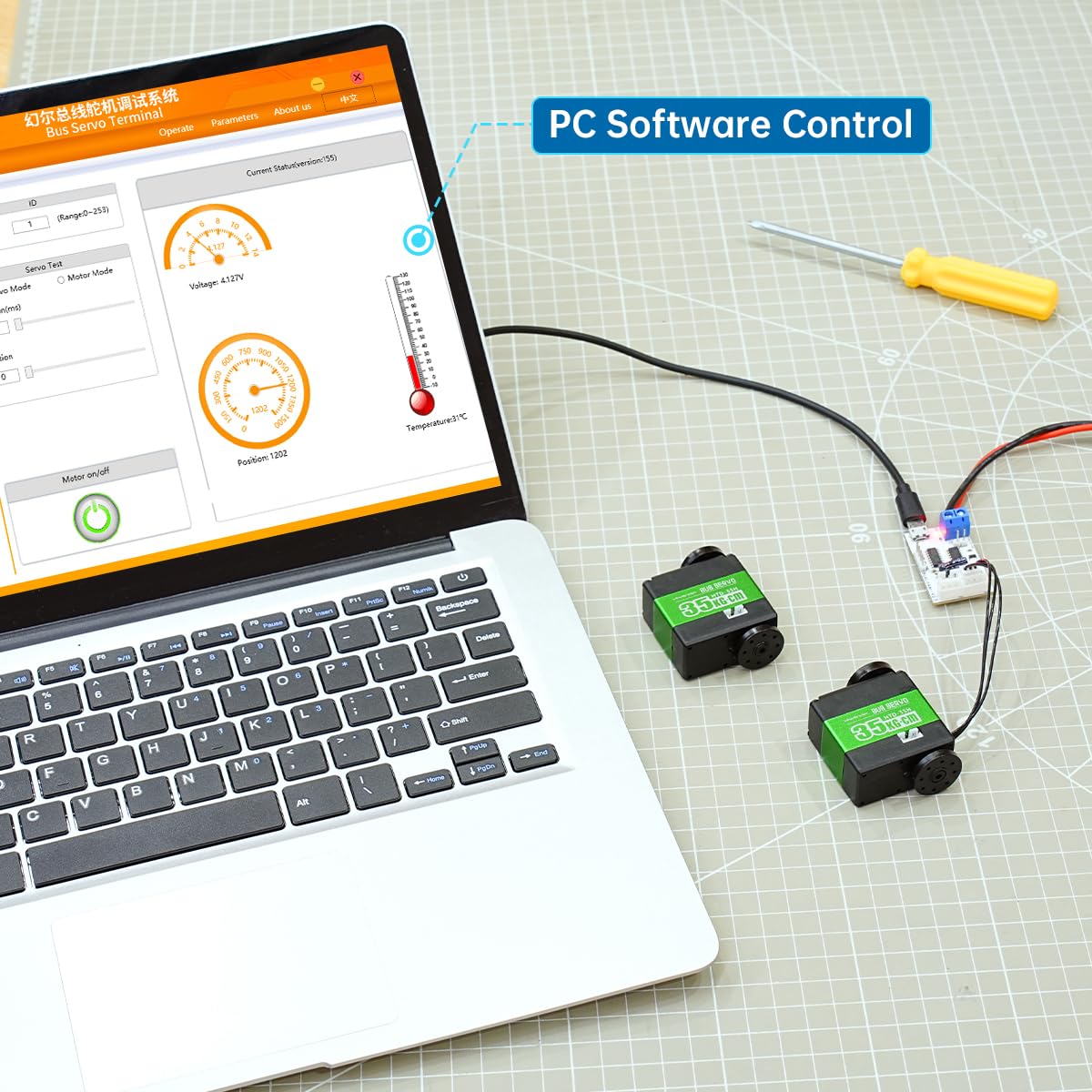

• We provide visual debugging sotware, which is simple to operate and facilitates users to quickly debug and set parameters.

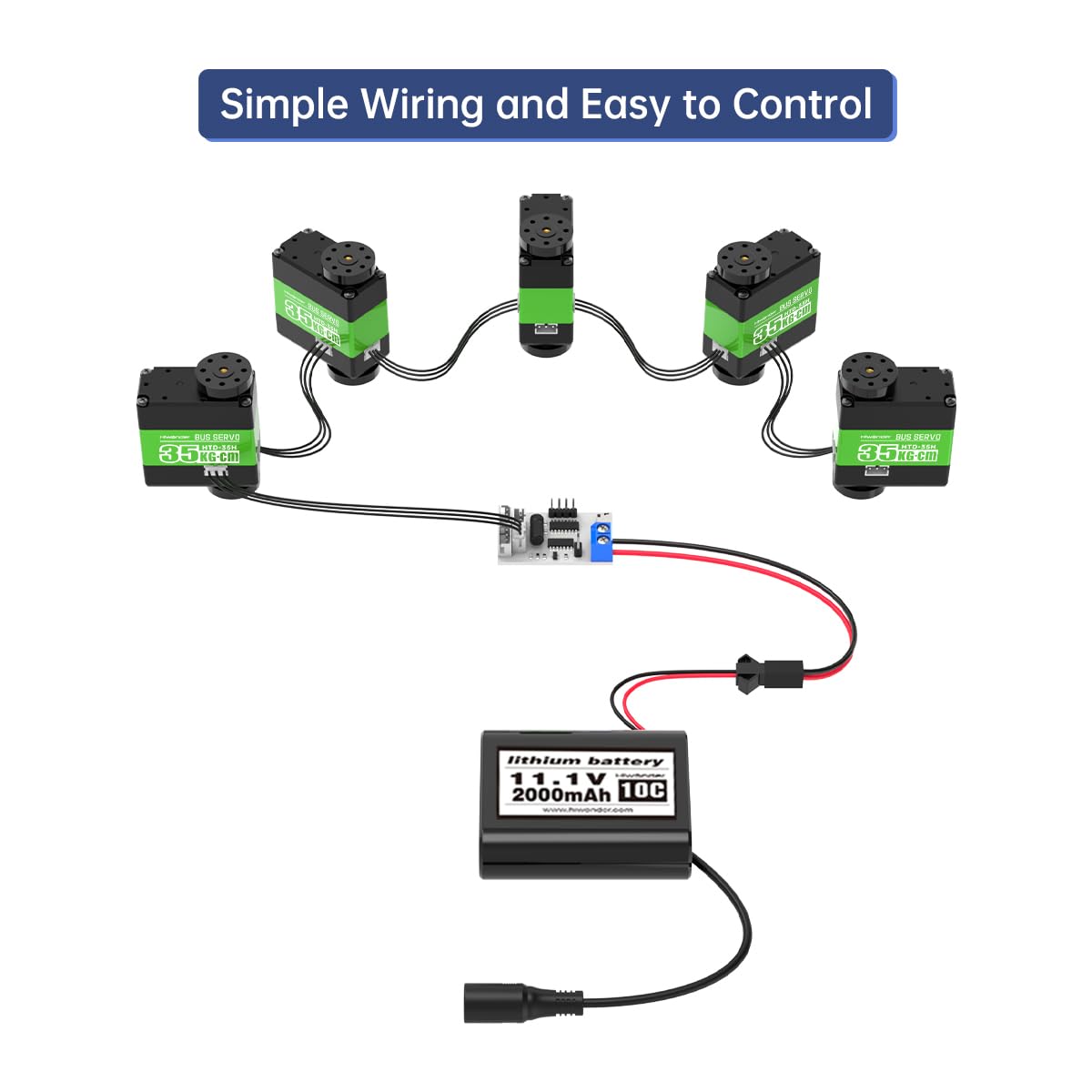

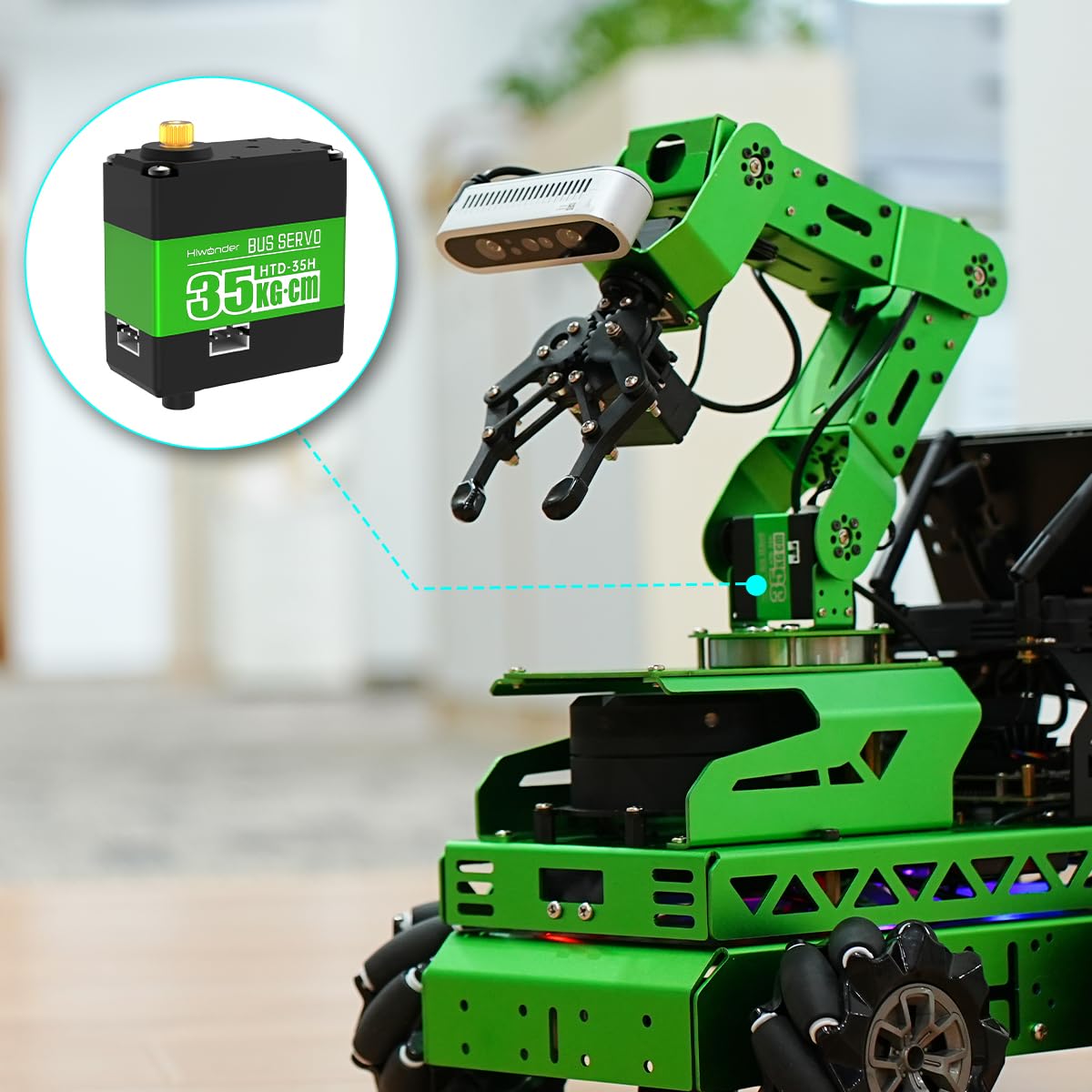

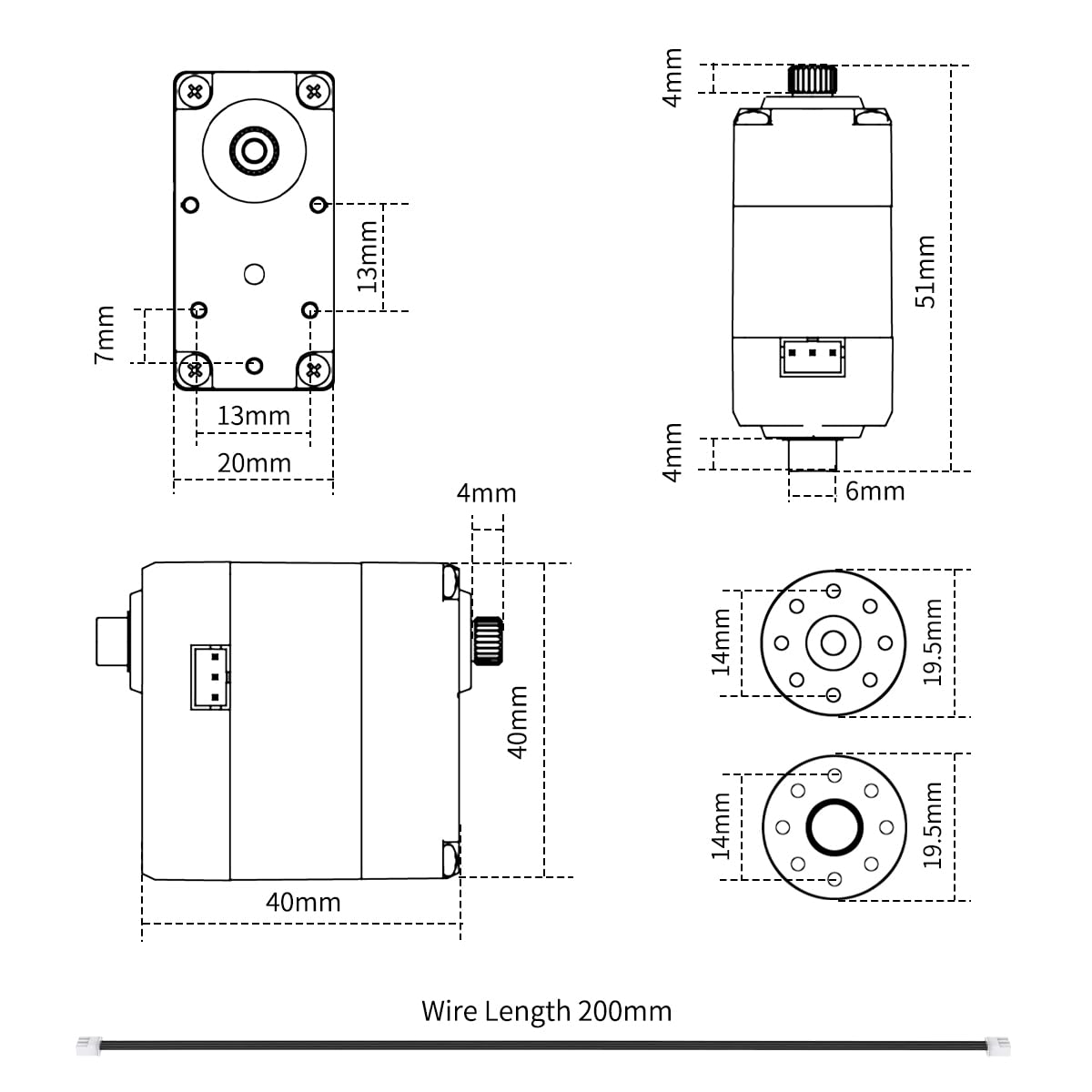

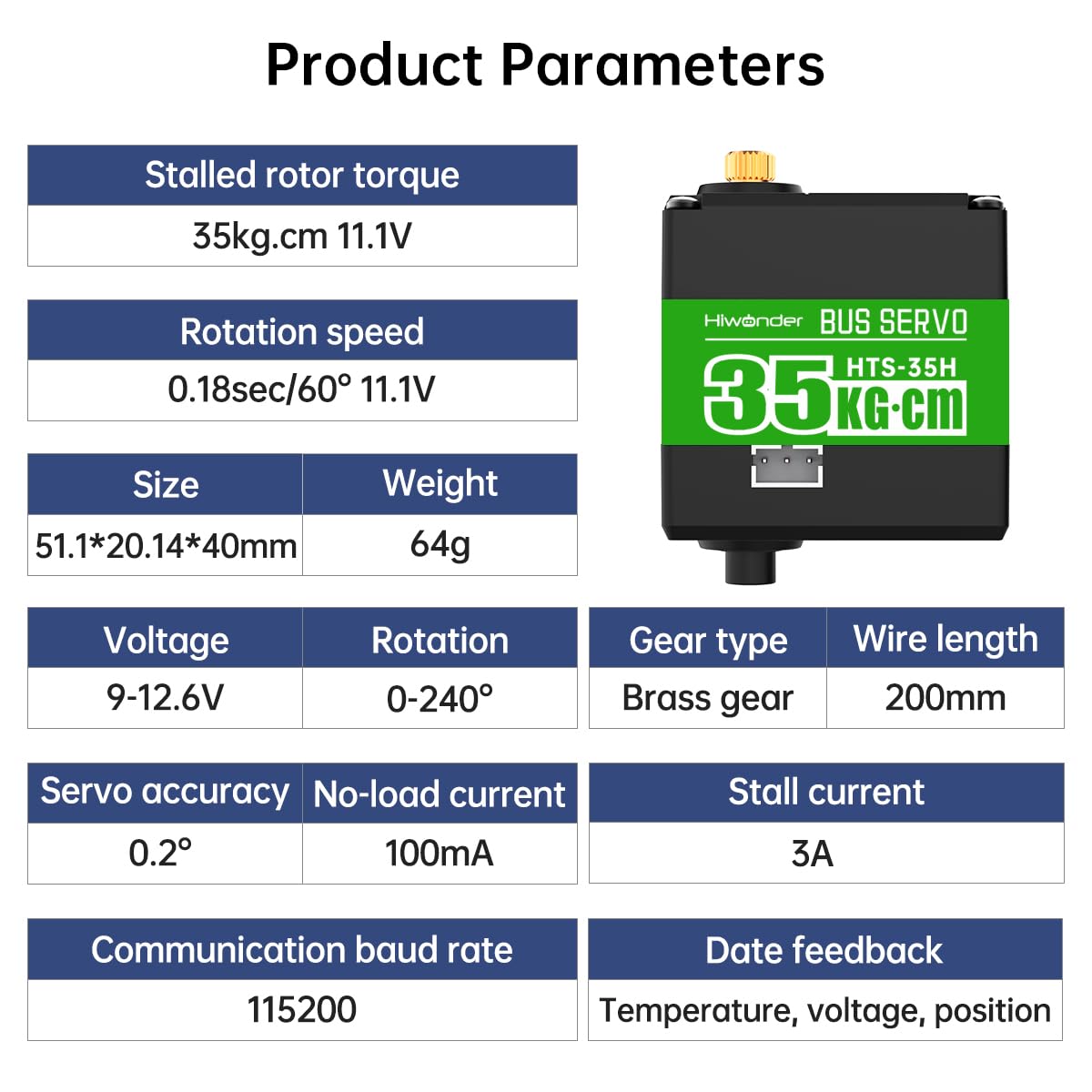

Description Product Description: This three connectors serial bus smart servo possess 35KG torque and adopts all-meta gears inside, strong and durable. It can be controlled by seria port commands, connected to multiple servo at the same time, which can helps us create robotic arms and bionic robots. Compared with ordinary servos on the market, it can read back the angle and faceback voltage, temperature position parameter. Feature: -Support position/temperature/voltage feedback for protecting the servo from burning. -With the TTL/USB debugging board, you can set the servo through the proded PC software -High-precision potentiometer for more stable operation -Provide 51, Arduino, STM32, and Raspberry Pi control source code -There are 3 ports for you to connet which makes the porject have clean wiring and beautiful outlook. Parameter: Name: HTD-35H serial bus high voltage Brand: Hiwonder Weight: 64g Dimension: 51.1 x 20.14 x 40mm Working voltage: 9-12.6V Rotation speed: 0.18sec/60°11.1V Rotation torque: 35kg.cm 11.1V Static maximum torque: 35kg.cm 11.1V Rotation range: 0-240° No-load current: 100mA Stall current: 3A Servo accuracy: 0.3° Controllable angle range: 0-1000, corresponding to 0-240° Control method: UART serial command Communication baud rate: 115200 Storage: save data when power off Servo ID: can be set to 0-253. 1 by default Angle read back function: support Protction: avoid stalling and overheat Data feedback: temperature, voltage and position Working mode: servo mode and gear motor mode Gear type: metal gear Servo wire length: 20cm Connector: PH2.0-3P Applicable to: joints of bionic robots Package list: HTD-35H servo*1 Plastic main servo horn*1 Plastic assis
