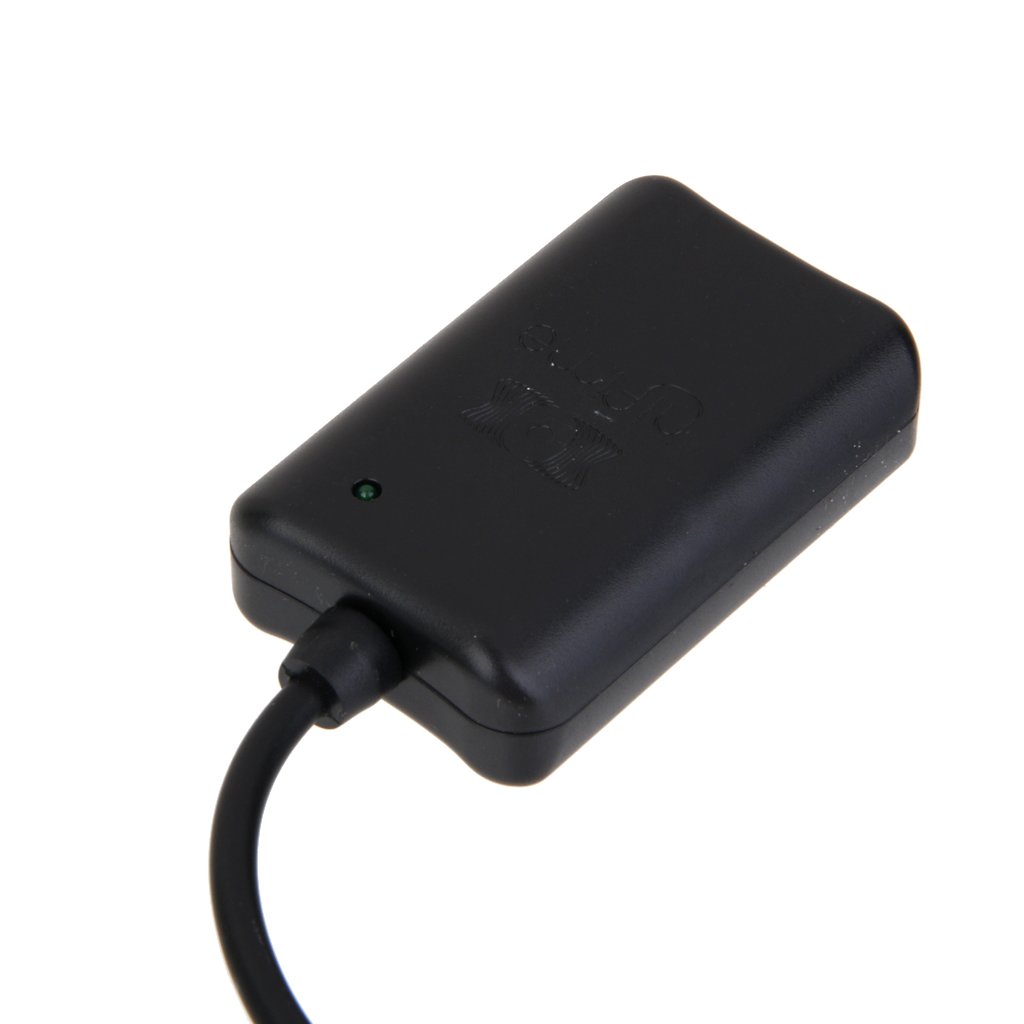

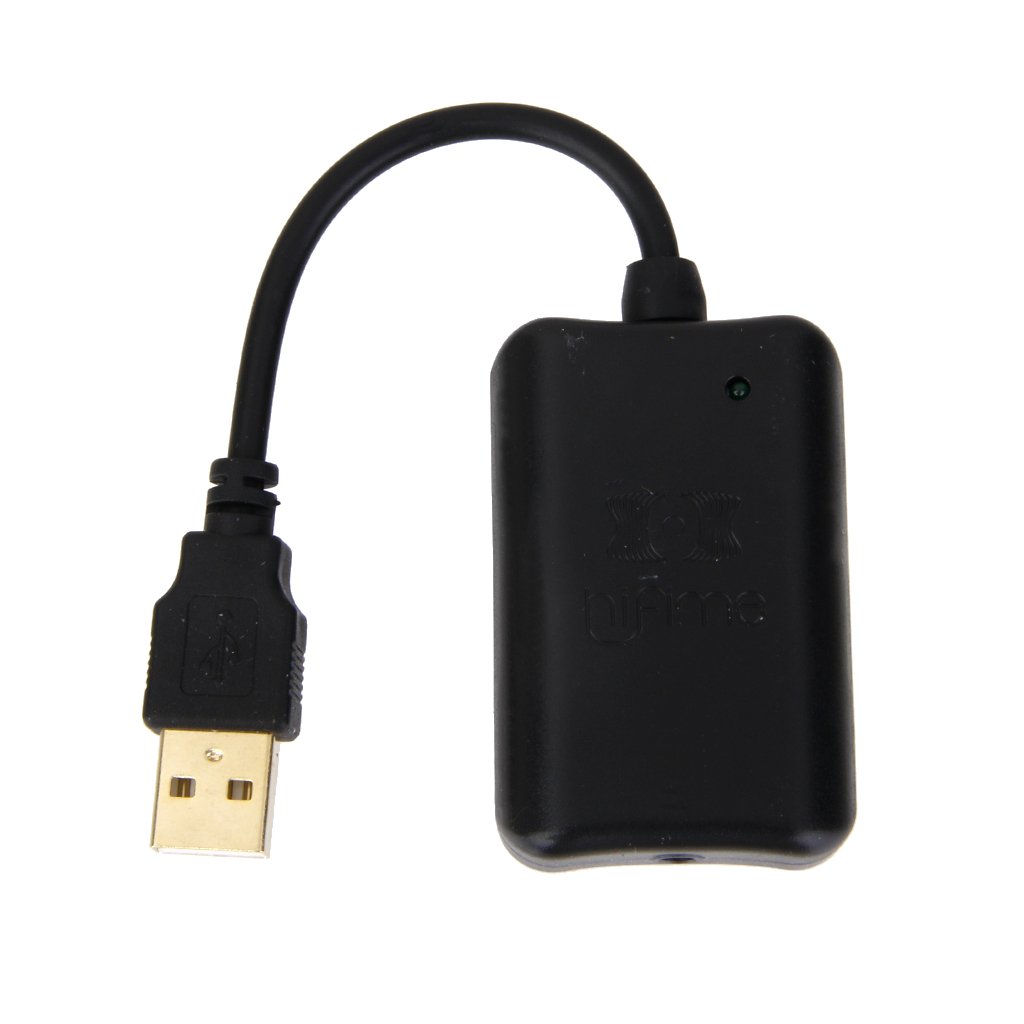

HiFimeDIY Sabre USB DAC UAE23 96/24 ES9023 + USB to Optical Converter

• Sabre DAC Technology
• Up to 96khz/24bit USB input
• Small lightweight simple design, you pay for the sound, not a fancy box

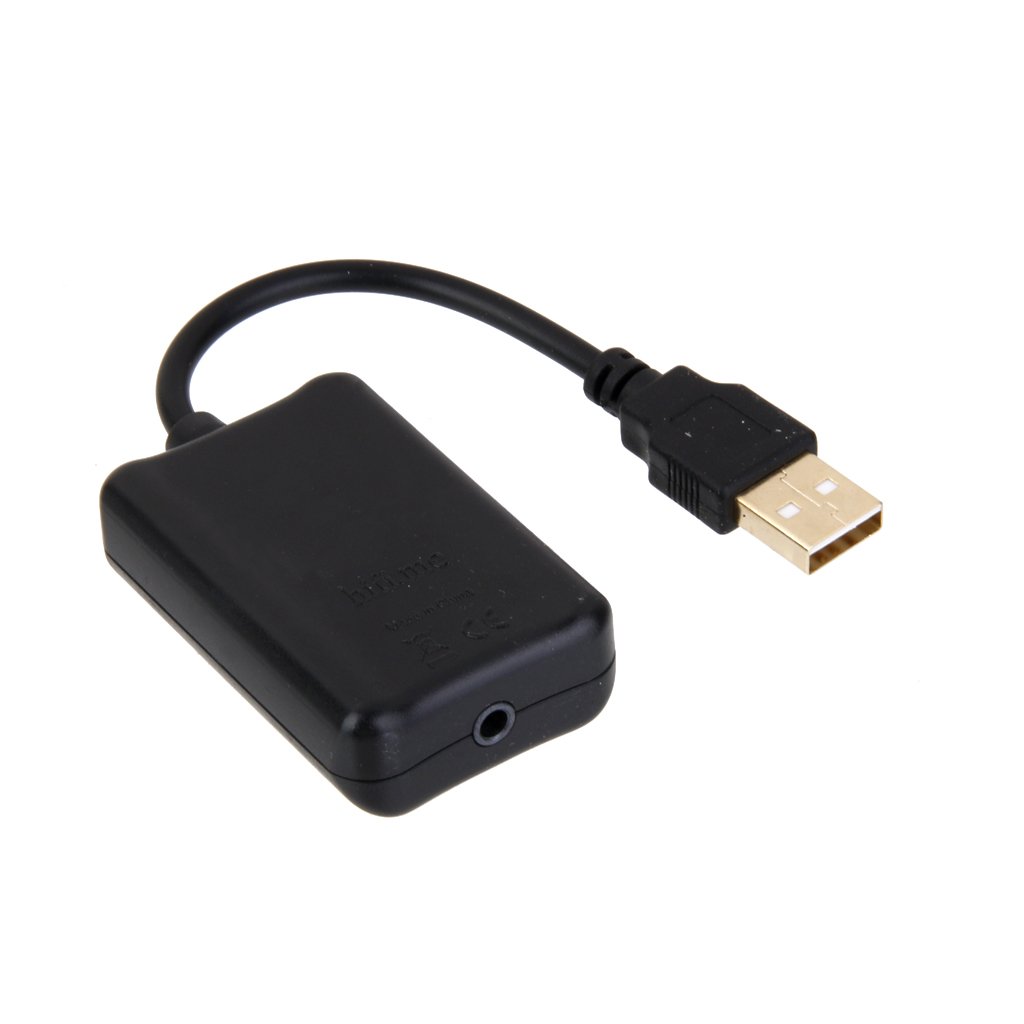

• Output on 3.5mm headphone jack
• Volume level adjustable with computer hardware keys

Hifimediy Sabre DAC was developed by DIY (do it yourself} enthusiasts in the purpose of making a really good but cheap dac that could compete against regular commercial DAC's costing many times as much. It utilises a DAC chip from the ESS Technology which range of DAC chips is highly regarded amount audio enthusiast. You pay for the sound, not the enclosure. We use a small lightweight simple box, so you don't have to pay extra for a bigger and more expensive enclosure. The power supply is very important for the sound quality. We use a high end ultra low noise regulator (LT1763). Features: - Output on 3.5mm headphone jack. - Volume Level is controlled by the normal volume control keys on your computer. (no need to use the volume control inside iTunes etc.) - No drivers required for Mac, Windows and Linux! - Normal line level output (2Vrms) when connected to amplifiers/preamps. For headphones the level decreases down to 1Vrms for 32ohm headphones Additional features: -Usb to optical converter. Outputs optical signal if you connect a 3.5mm optical cable in place of a 3.5mm audio cable. Can be useful for connecting your computer to another DAC without usb input. New batch uses USB receiver TE7022L: - Accepts 32khz, 44.1khz, 48khz, 96khz and 16/24bit input signals over USB. Most USB DAC's use the cheaper PCM2704 usb receiver chips that can only accept up to 48KHZ/16BIT. Output levels: Open 2.2Vrms 4.7Kohm 2.1Vrms 1.8Kohm 1.9Vrms 510ohm 1.5Vrms 330ohm 1.3Vrms 30ohm 1Vrms Normally amplifier inputs are from 10K to 100K ohm. Normal headphones are from 32 ohm to 250ohm.
