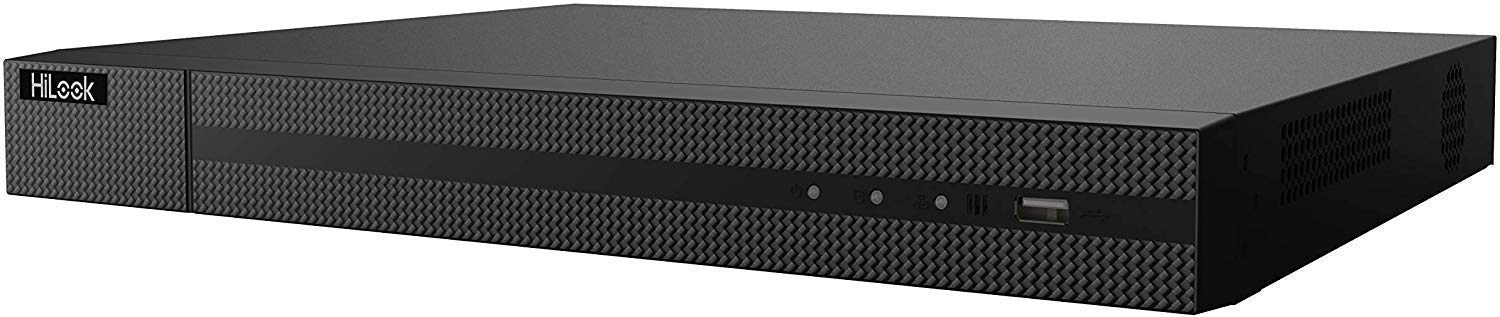

Hilook DVR-208U-K1 8Ch 8MP 5MP 4MP 1080P HD-TVI Hybrid CCTV DVR Recorder – Black (NO HDD)

• Video Input and Transmission l Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input l Up to 8/16-ch 8 MP IP cameras input for DVR-204/208U-K1 l 8 MP/5 MP/4 MP HDTVI video input and live view for DVR-208U-K1, and 5 MP/4 MP for DVR-204U-K1 l Defogging function enabled for the supported analog cameras l Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
• Compression and Recording l H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras l Connectable to H.265+/H.265/H.264+/H.264 IP cameras l H.265+ can be enabled to improve encoding efficiency and reduce data storage costs l Full channel recording at up to 8 MP resolution
• Video Output l Simultaneous HDMI/VGA output l HDMI output at up to 4K (3840 × 2160) resolution for DVR-208U-K1 Storage and Playback l 1 SATA interface (up to 10 TB capacity per HDD) l 4/8-ch synchronous playback l Smart search for efficient playback l Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
• Smart Function l Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras l Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection l VCA information overlay in live view and smart playback l VQD (Video Quality Diagnostics)
• 8 Turbo HD/CVI / AHD / CVBS self-adaptive interfaces input, 8-ch video&1-ch audio input, 8-ch IP video input(up to 16-ch IP), Up to 8MP IP video input 1 SATA interface, H.265 pro compression, 8MP: 8fps, 5MP: 12fps, 4MP: 15fps, 3MP: 18fps, 1920×1080P: 25(P)/30(N) fps/ch, 4K UHD HDMI output, mini 1U case

Video Input and Transmission l Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input l Up to 8/16-ch 8 MP IP cameras input for DVR-204/208U-K1 l 8 MP/5 MP/4 MP HDTVI video input and live view for DVR-208U-K1, and 5 MP/4 MP for DVR-204U-K1 l Defogging function enabled for the supported analog cameras l Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal Compression and Recording l H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras l Connectable to H.265+/H.265/H.264+/H.264 IP cameras l H.265+ can be enabled to improve encoding efficiency and reduce data storage costs l Full channel recording at up to 8 MP resolution Video Output l Simultaneous HDMI/VGA output l HDMI output at up to 4K (3840 × 2160) resolution for DVR-208U-K1 Storage and Playback l 1 SATA interface (up to 10 TB capacity per HDD) l 4/8-ch synchronous playback l Smart search for efficient playback l Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive) Smart Function l Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras l Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection l VCA information overlay in live view and smart playback l VQD (Video Quality Diagnostics) Network & Ethernet Access l Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management l 1 RJ45 10M/100M self-adaptive Ethernet interface for DVR-204U-K1, and 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface for DVR-208U-K1 l Output bandwidth limit configurable
