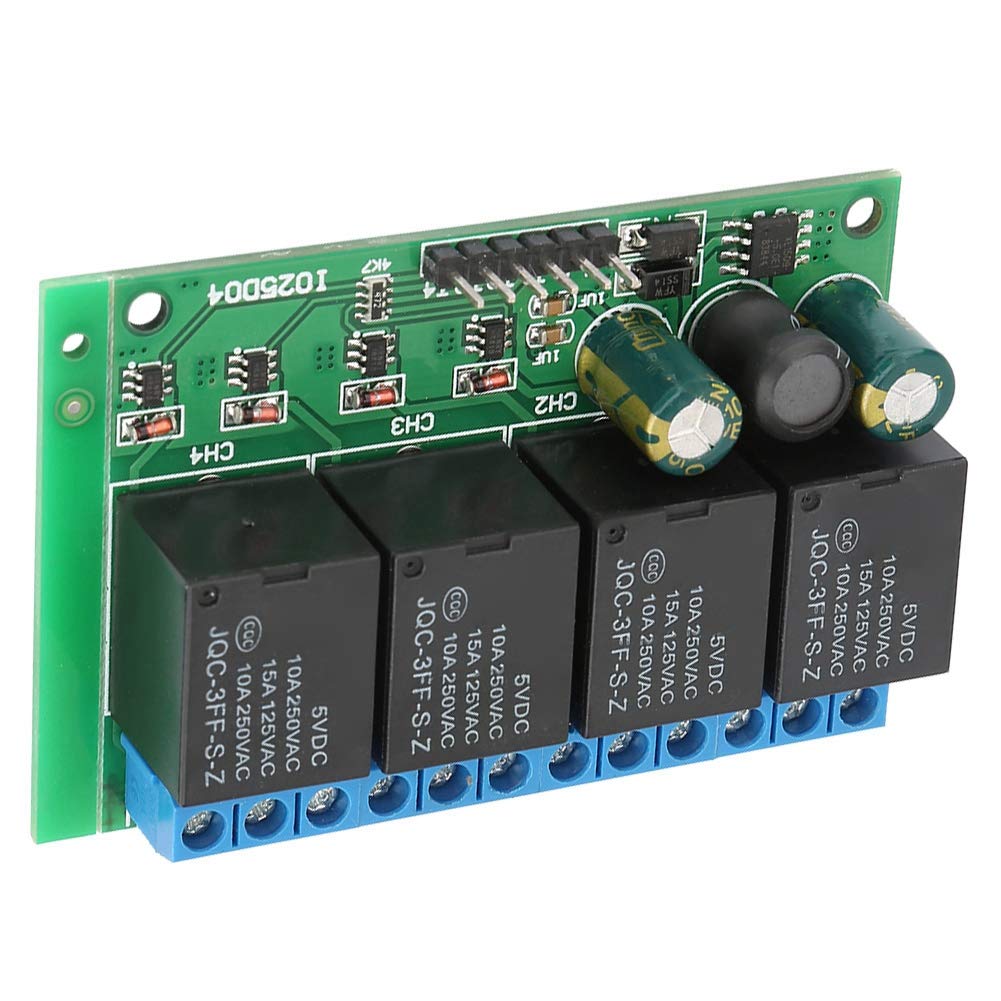

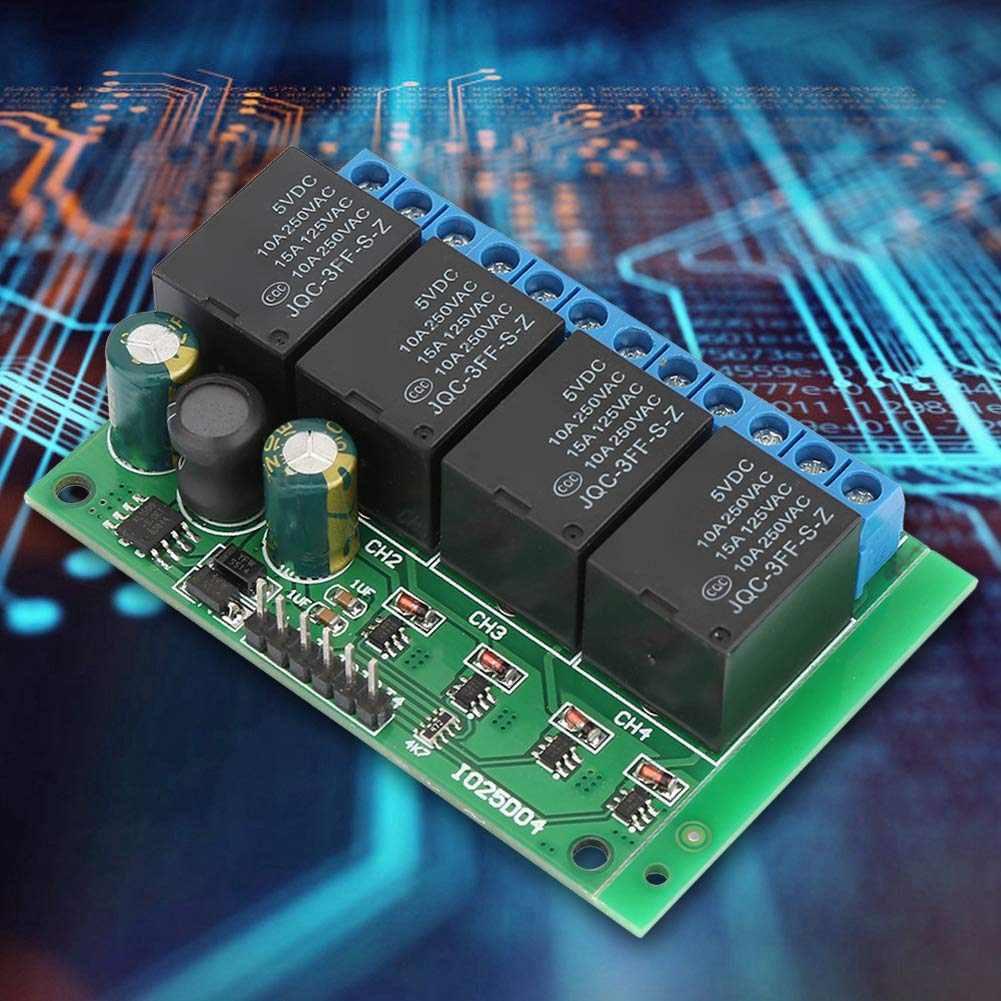

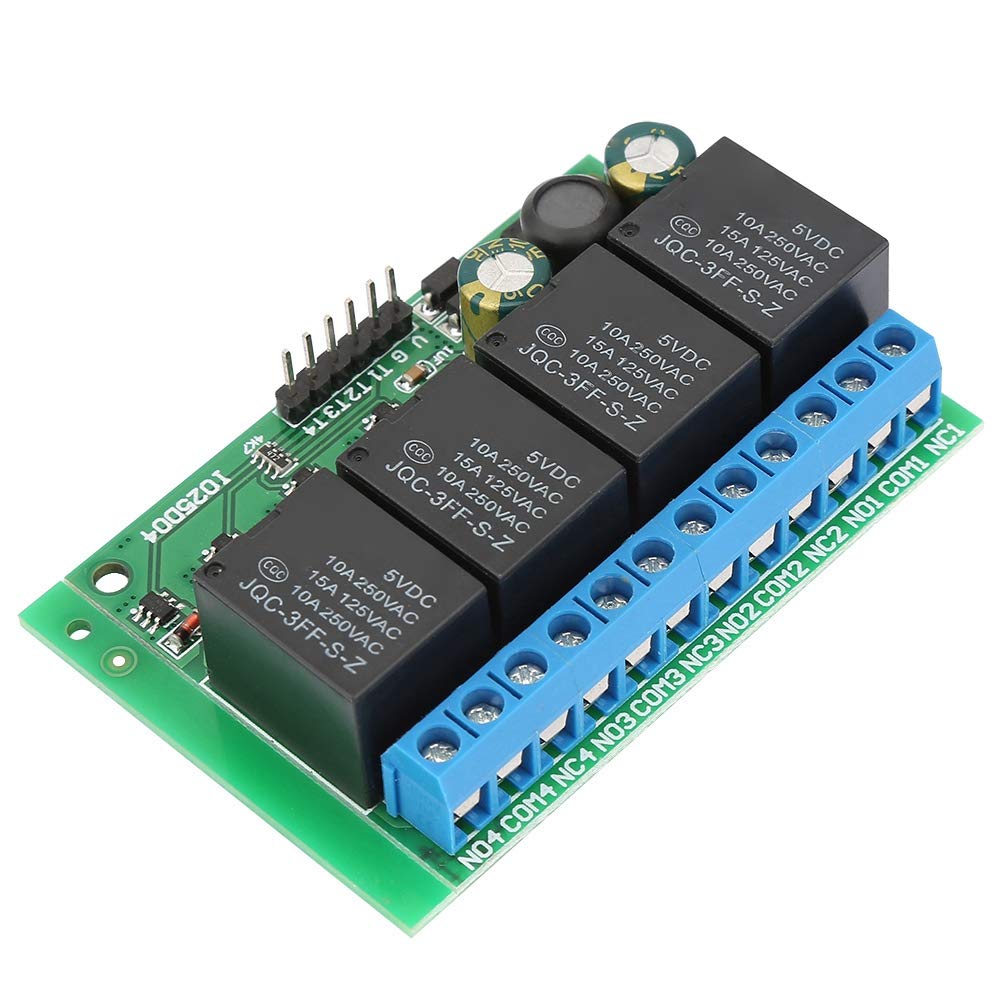

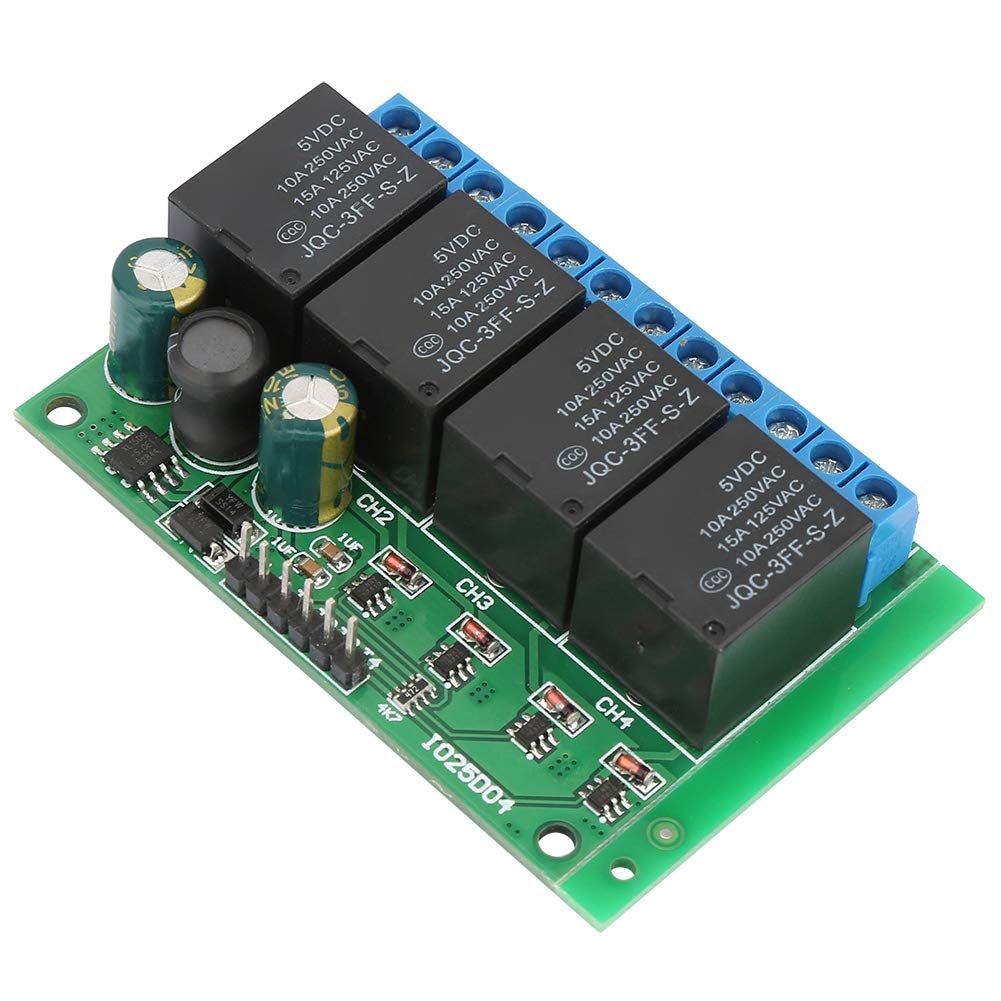

Hilitand DC 6-24V Relay Module 4 Channel Relay Module Flip-Flop Bistable Self-locking Relay Module Low Pulse Trigger Relay Module for Automotive Electronic Motor

• Working voltage: DC 6-24V; Working current(12V): 1 relay 37MA;2 relay 73 MA; 3 relay 110MA; 4 relay 146 MA; Standby current(12V): 2mA; Load current: AC 250V / 10A, DC 30V / 10A

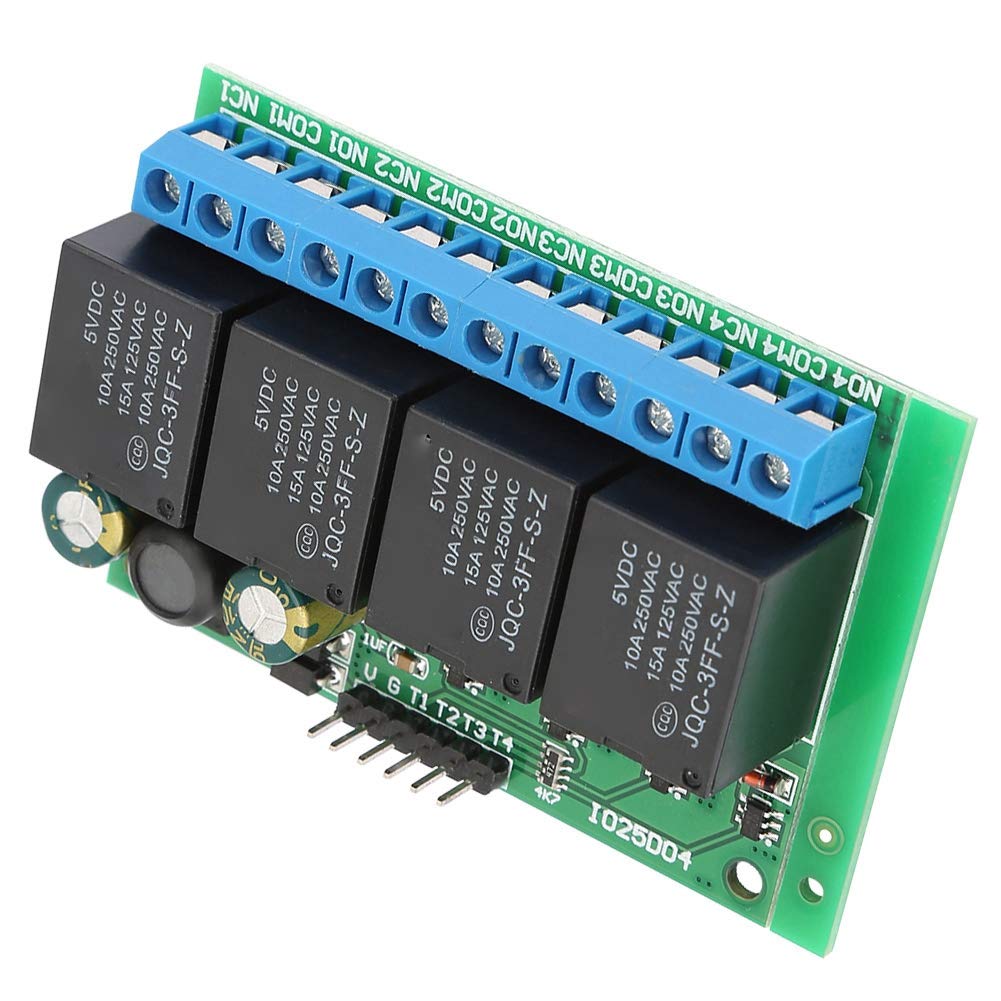

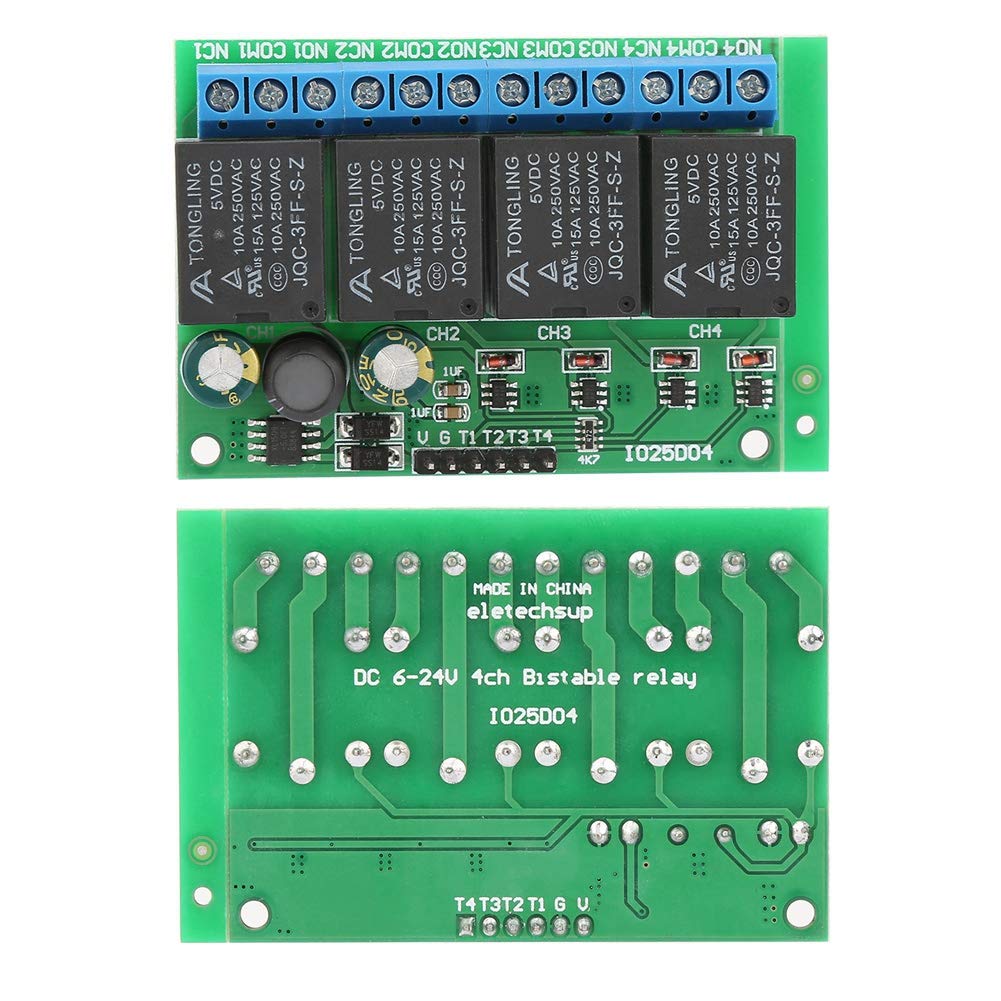

• MODULE INTERFACE: 1. VCC: positive power supply (VCC) 2. GND: negative power supply (GND) 3. T : Low pulse trigger; RELAY OUTPUTS: 1. NO: normally open relay interface 2. COM: Common Interface Relays 3. NC: normally closed relay interface
• USE 1: By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on.
• USE 2: By default, the relay is release, MCU output low-pulse(0.3-1seconds), the relay pull, low-pulse again, the relay release, the third low-pulse, the relay pull, and so on.
• TYPICAL APPLICATIONS: Automotive electronics, Motor, LED, Smart Home, Emergency lighting, MCU development board

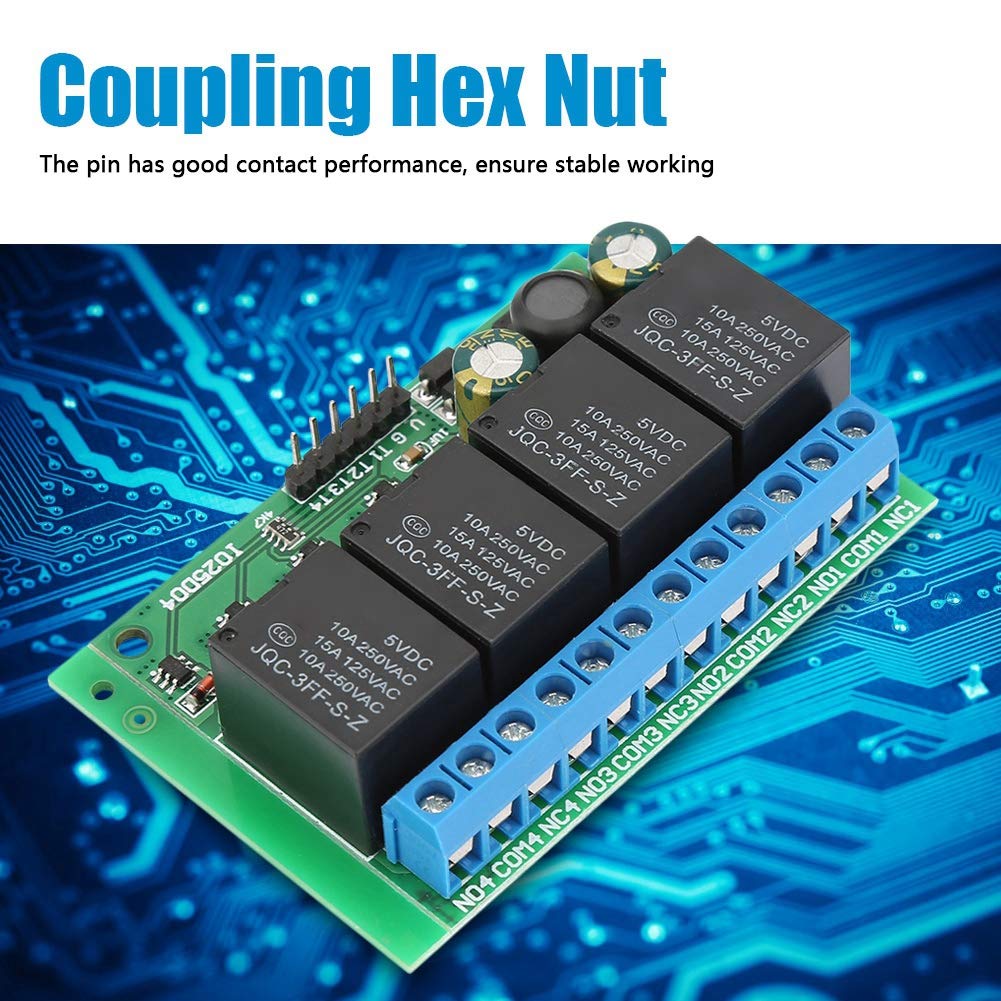

Features: 1. brand new and high quality 2. Small body and stable performance 3. The pin has good contact performance, ensure stable working 4. This is a four channels self-locking relay module. 5. Suitable for automotive, electronic motor, smart home, emergency lighting, microcontroller, development board and toy car Specification: Condition: Brand New Working Voltage: 6-24VDC Load Current: 250VAC/10A, 30VDC/10A Trigger Mode: Low Pulse Trigger Weight: Approx. 72g / 2.5oz Package List: 1 * Relay Module
