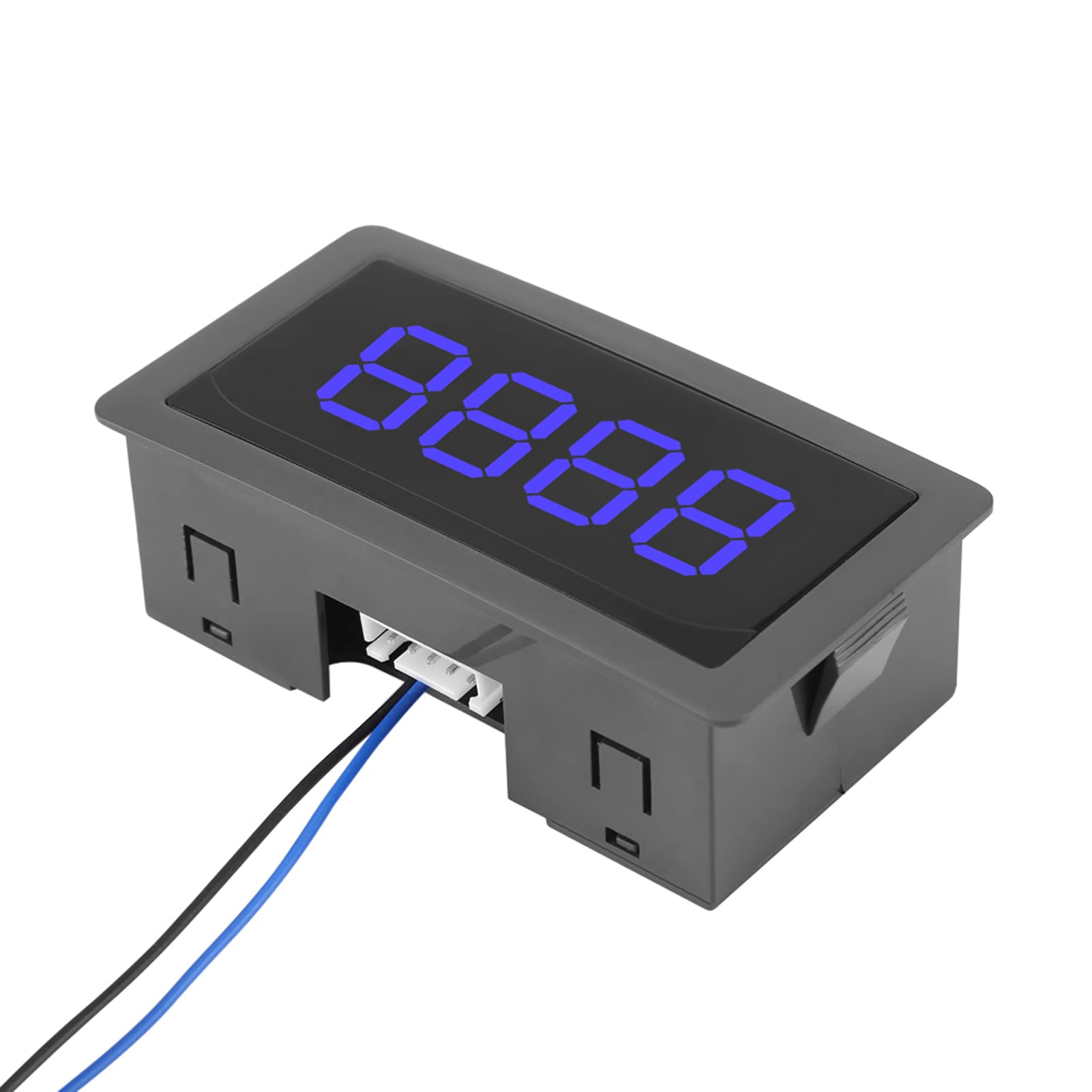

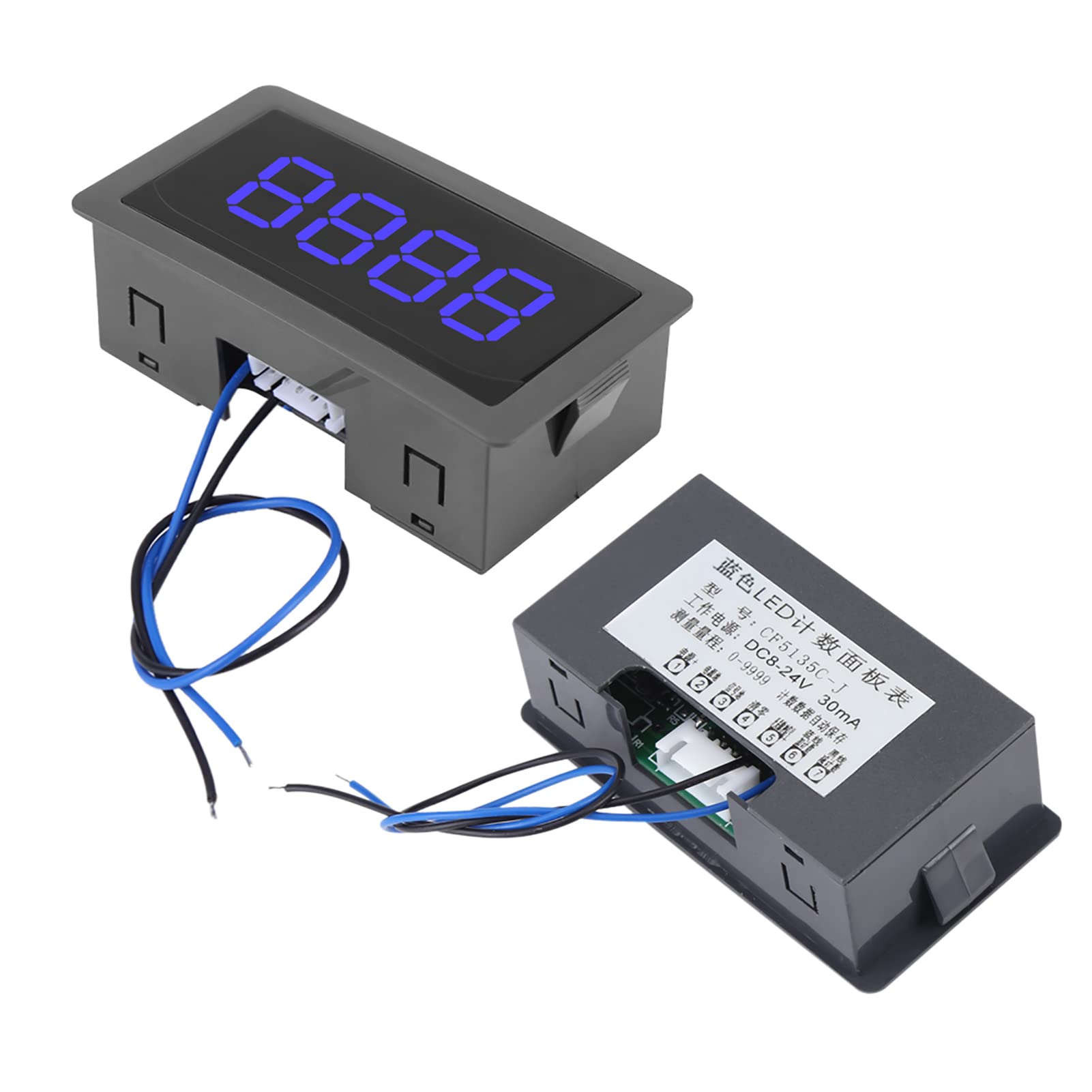

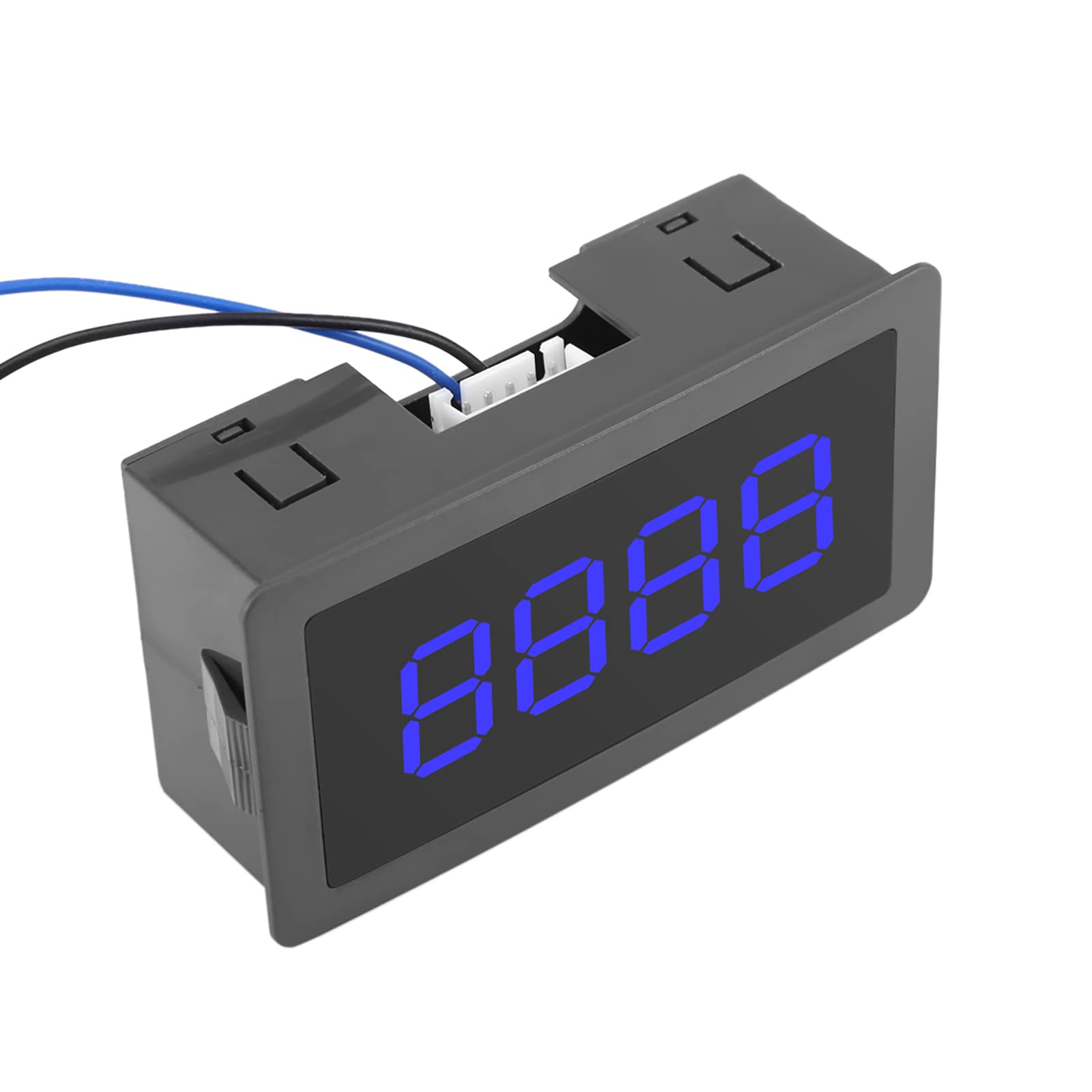

Hilitand Actuator Counter, DC 8-24V, 4-Digit LED Digital Display 0-9999 Up/Down Plus/Minus Panel Meter with Cable (Blue)

• High speed counter, low power consumption, accurate counting, small display error.
• Very strong anti-interference performance, stable and counting performance. Easy installation. Note: the 5-pin cable is used to connect to the meter.
• Even if the electronic meter with power failure can maintain the data for more than 10 years.
• ❤4-digit counting range: 0-9999, color(optional): blue, green, red
• ❤Suitable for all types of input meters, can be adjusted with light barrier, proximity switch, dry spring tube, micro switch, magnetic switch, semiconductor components and all kinds of relays, switching contacts.

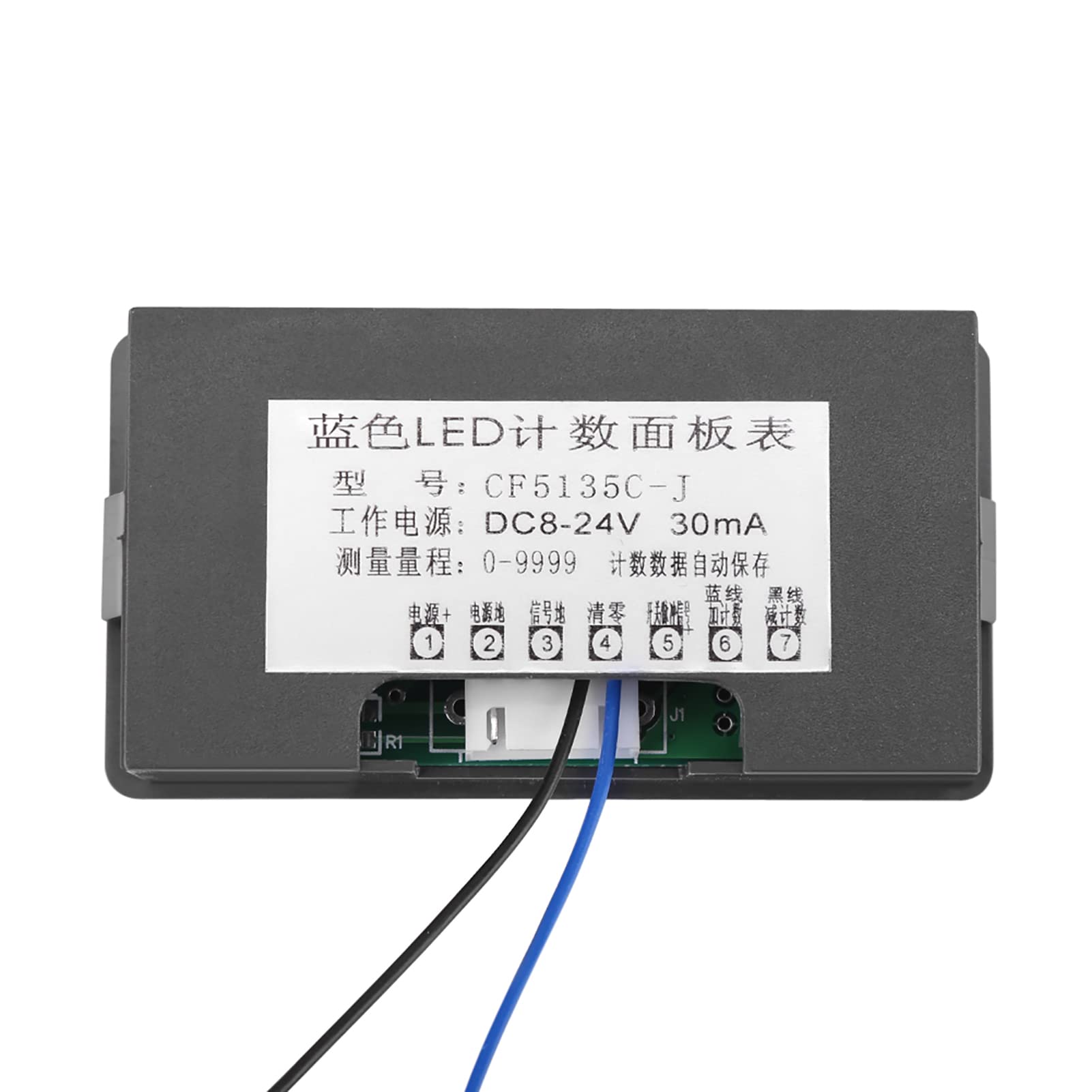

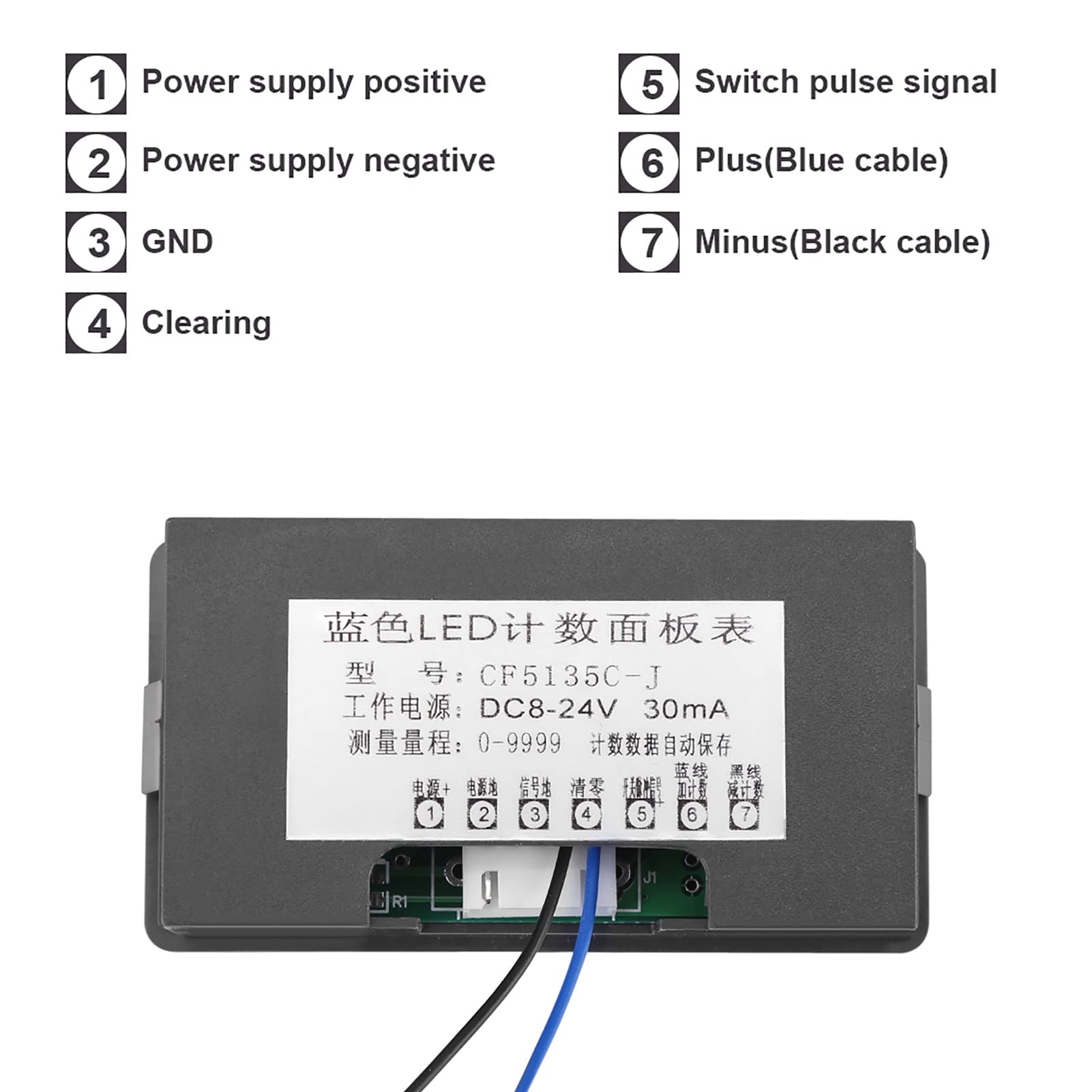

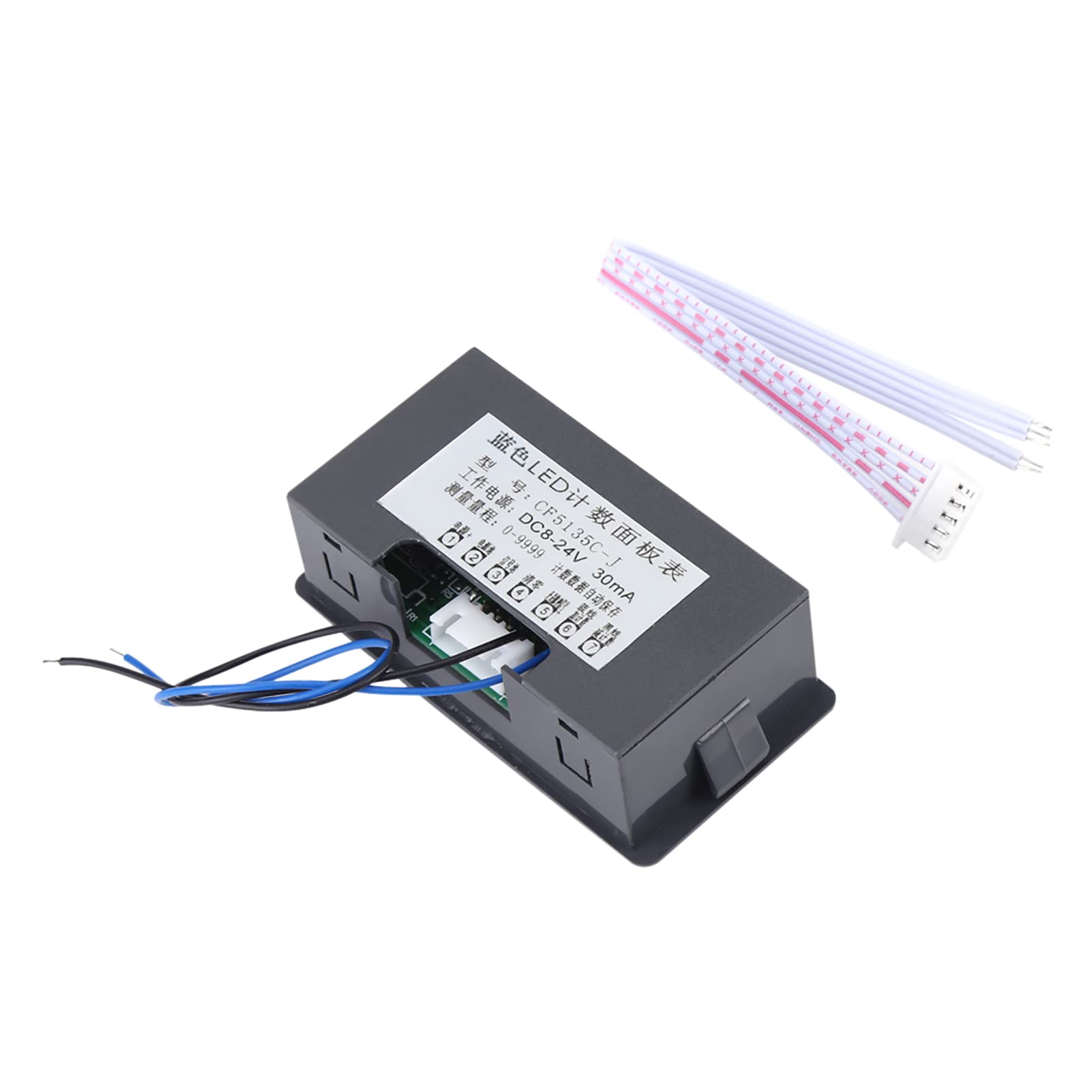

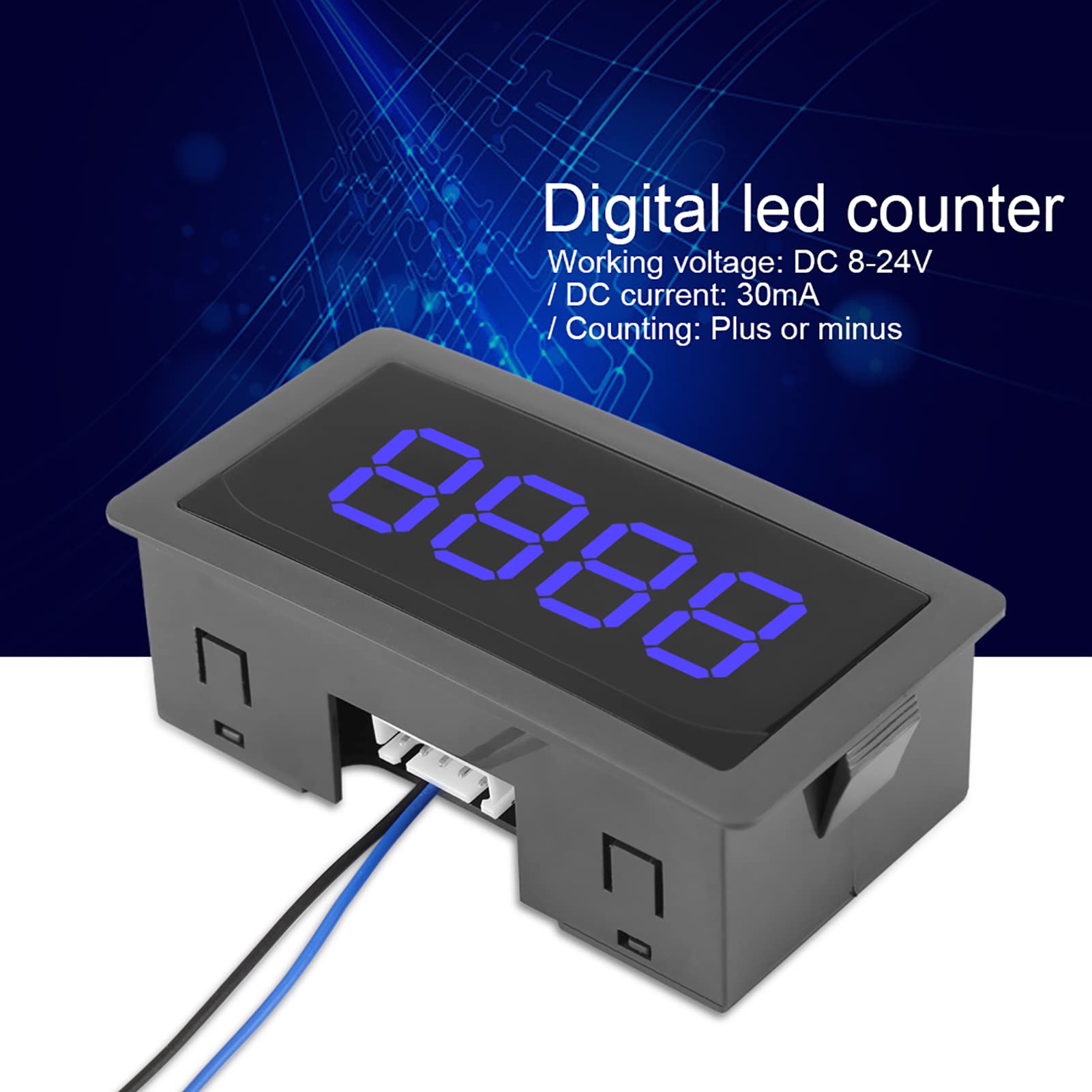

Description: This digital display counter features bright LED light, high accuracy, good stability and easy installation. The meter automatically retains the number when the device is turned off. The Specifications: Working voltage: DC 8-24V. DC current: 30 mA. Counting: plus or minus Counting range: 0-9999. Job number: 4 digits Color (optional): blue, green, red Size: approx. 8 x 4 x 2.5 cm / 3.1 x 1.5 x 0.9 inches. Weight: 48 g Wiring diagram: Terminal 1: Positive Terminal 2: Base Terminal 3: signal mass Terminal 4: delete Terminal 5: switch pulse signal Clamp 6: blue wire for raising. Clamp 7: black wire to remove Note: The 5 pin cable is used to connect to the counter. Package Included: 1 x digital display counter. 1 x 5-pin cable.
