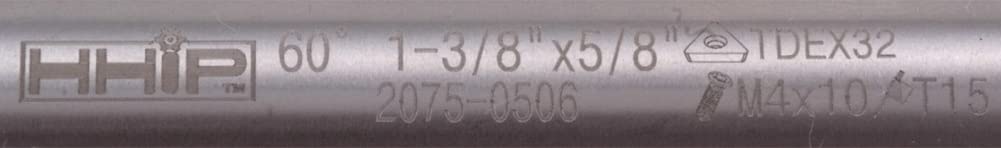

HHIP 2075-0506 3 Flute 60 Degree Indexable Dovetail Cutter, 1-3/8" x 5/8" Shank

• Right hand cut
• 60 degree angle 15 degree clearance
• For milling roughing and finishing at high speeds and feeds
• Takes 3 TDEX32 inserts #6062-0320.
• Overall length is 2. 76"

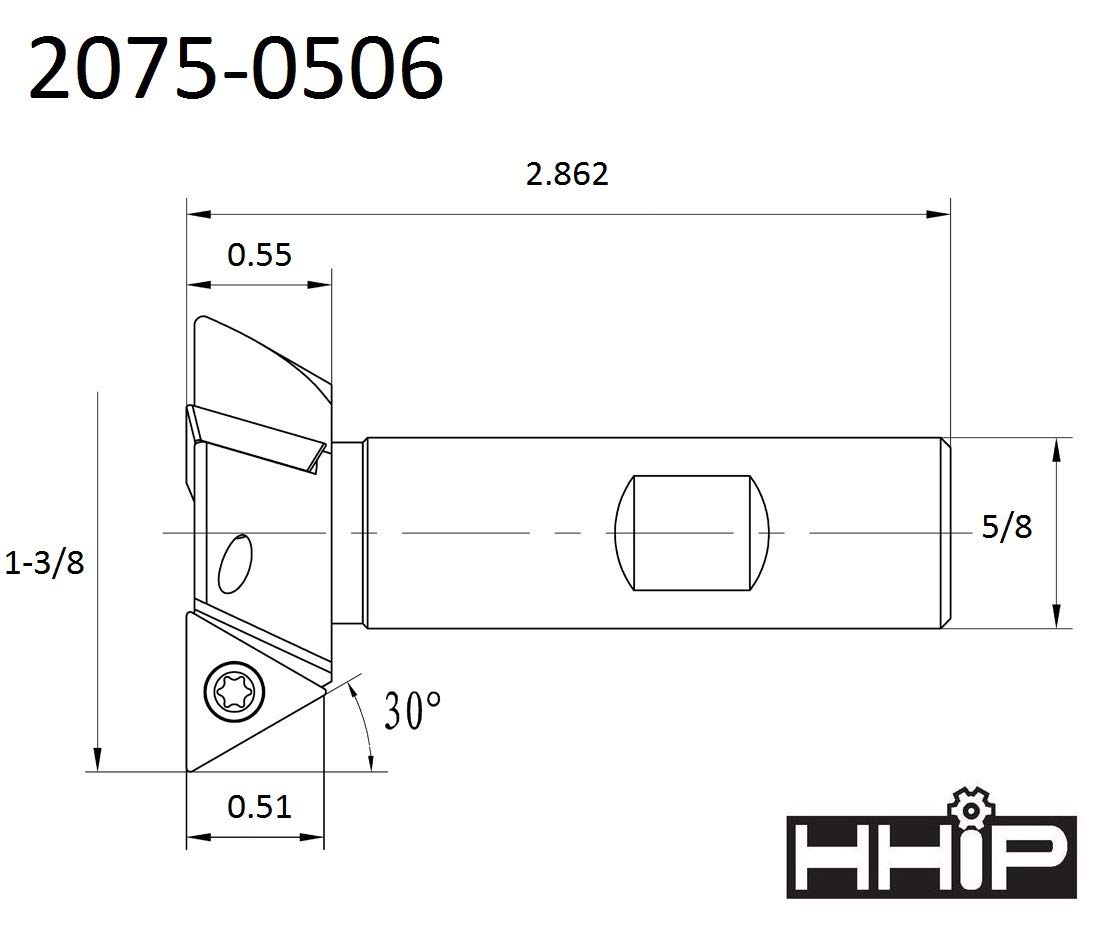

HHIP 1-3/8" X 5/8 Shank 3 Flute 60 Degree Indexable Dovetail Cutter ~ Right hand cut. ~ 60° angle ~ 15° clearance. ~ For milling roughing & finishing at high speeds & feeds. ~ Use with TDEX carbide nserts which are NOT INCLUDED but are shown for informational purposes. ~ Overall length L is 2. 76". ~ Cutting depth F is 0. 51". ~ Height H is 0. 550". ~ Takes 3 TDEX32 inserts #6062-0320. ~ Insert screw is M4 X 10 #2100-0074. ~ Cutting diameter D is 1-3/8". ~ Shank d is 5/8".
