HFeng Full Set Door Access Control System Kit RFID Controller Keypad 125KHz Reader with Power Supply + 180KG Electric Magnetic Lock Waterproof+20pcs Key cards Gate Opener

• 1. Support 1000 users. Can open the door with card, password, password plus card. Very easy to program.
• 2. With door bell button, can connect to a extra door bell.
• 3. Working with DC12V voltage. Low current. Holding force with 180KG/350lbs.
• 4. Suitable for wooden, metal, glass frame door. Best choice for home/office/apartment.

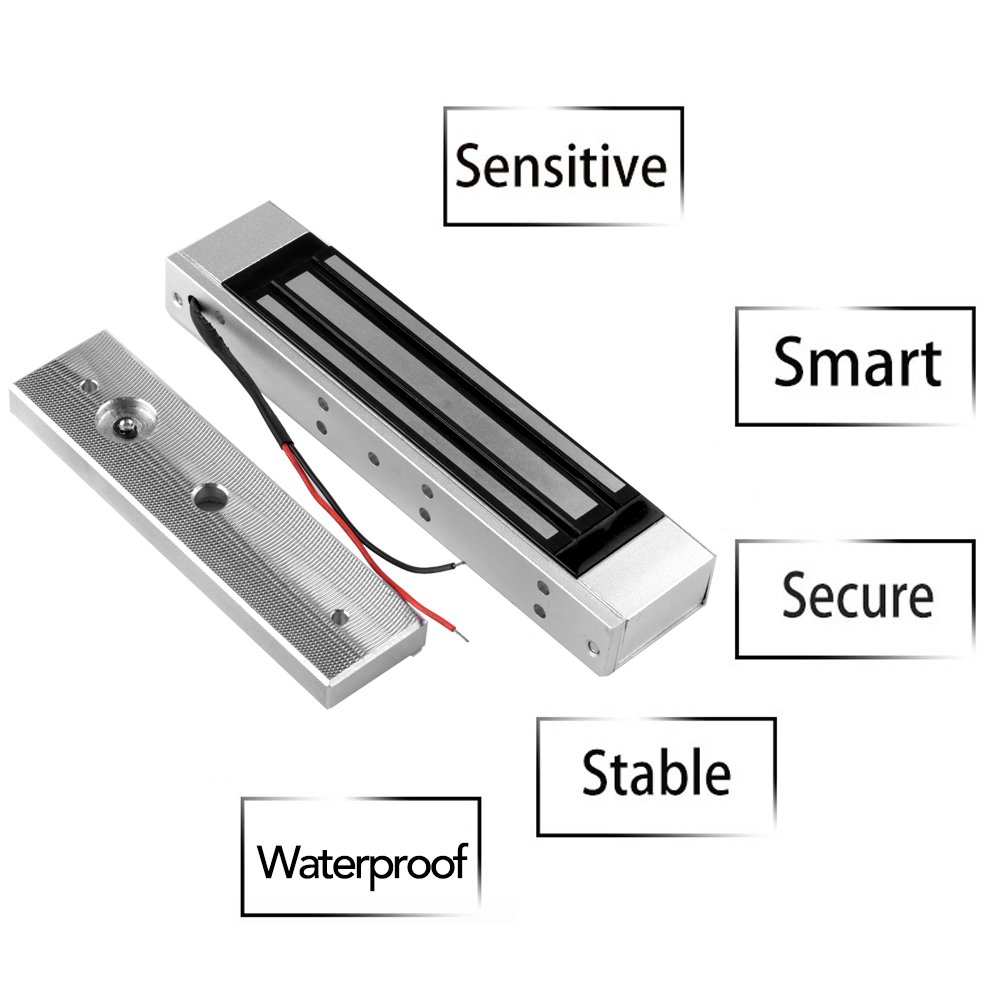

• 5. The door will locked with power, unlocked without power. The 180KG Magnetic Lock is waterproof.

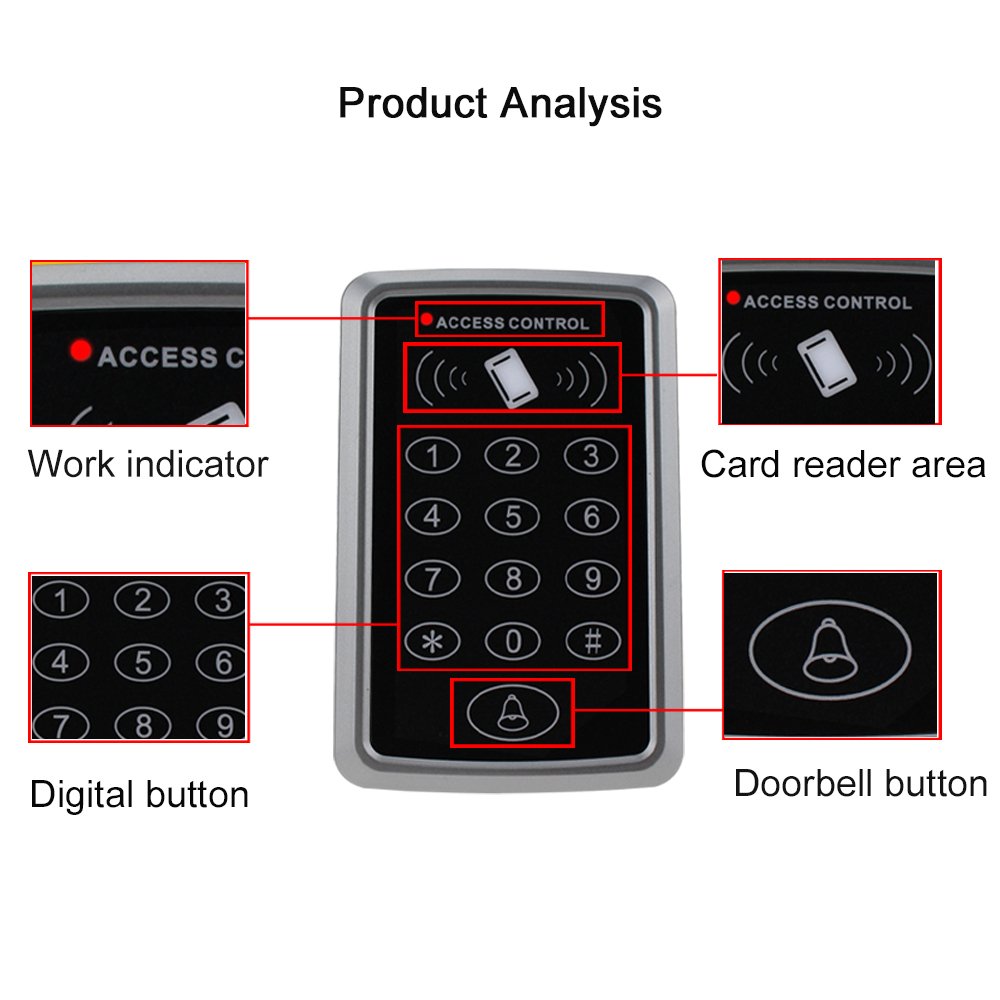

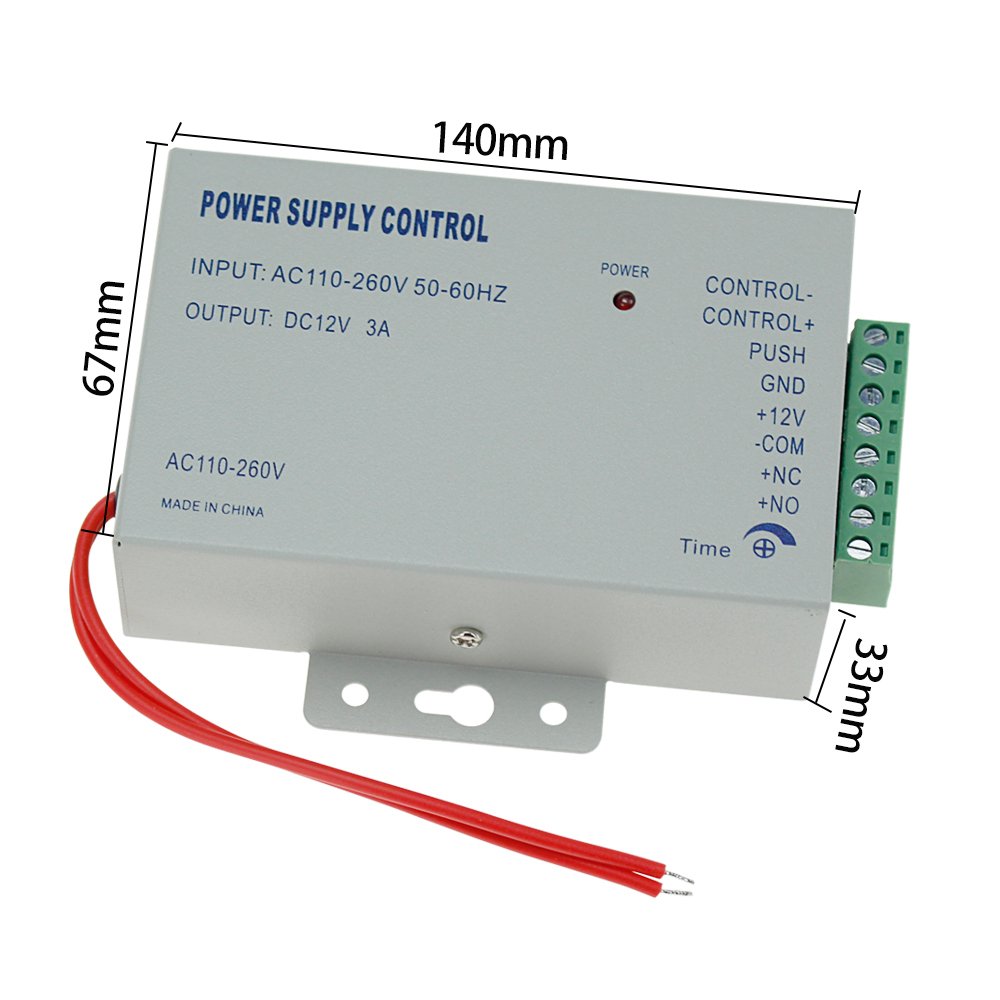

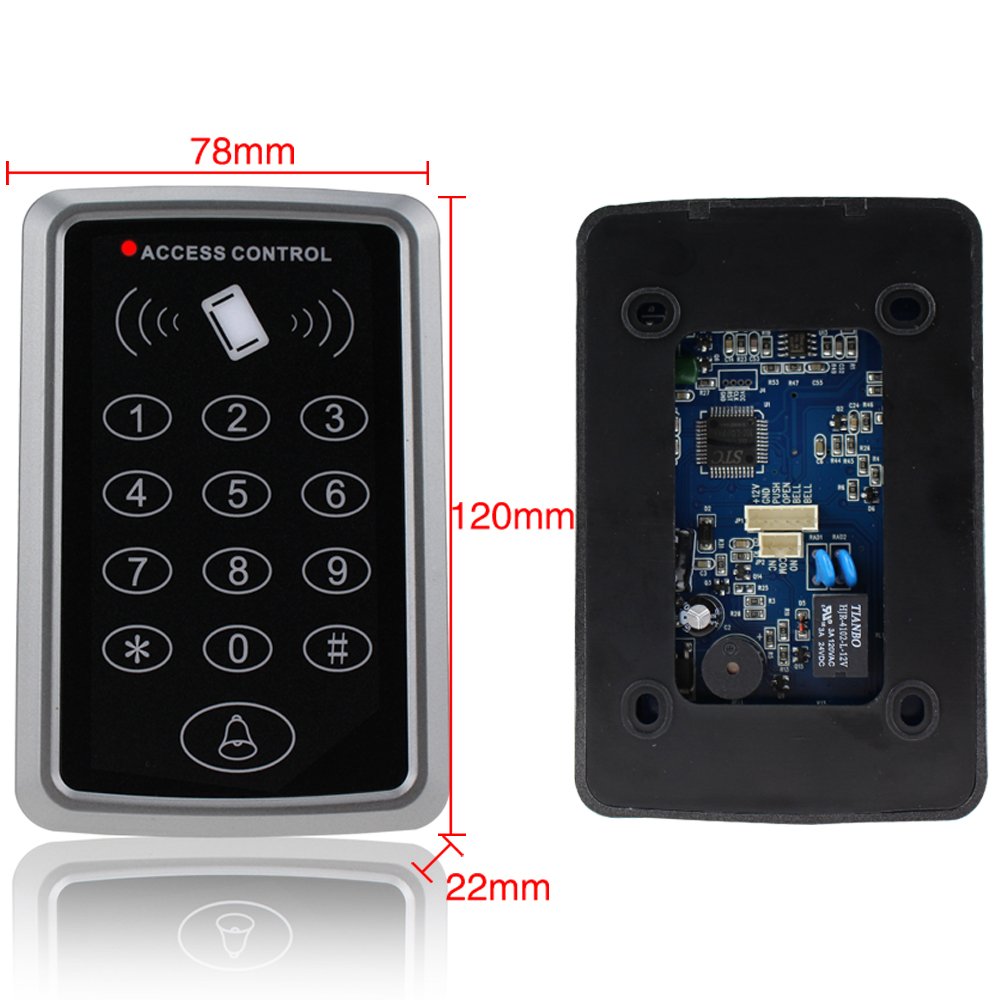

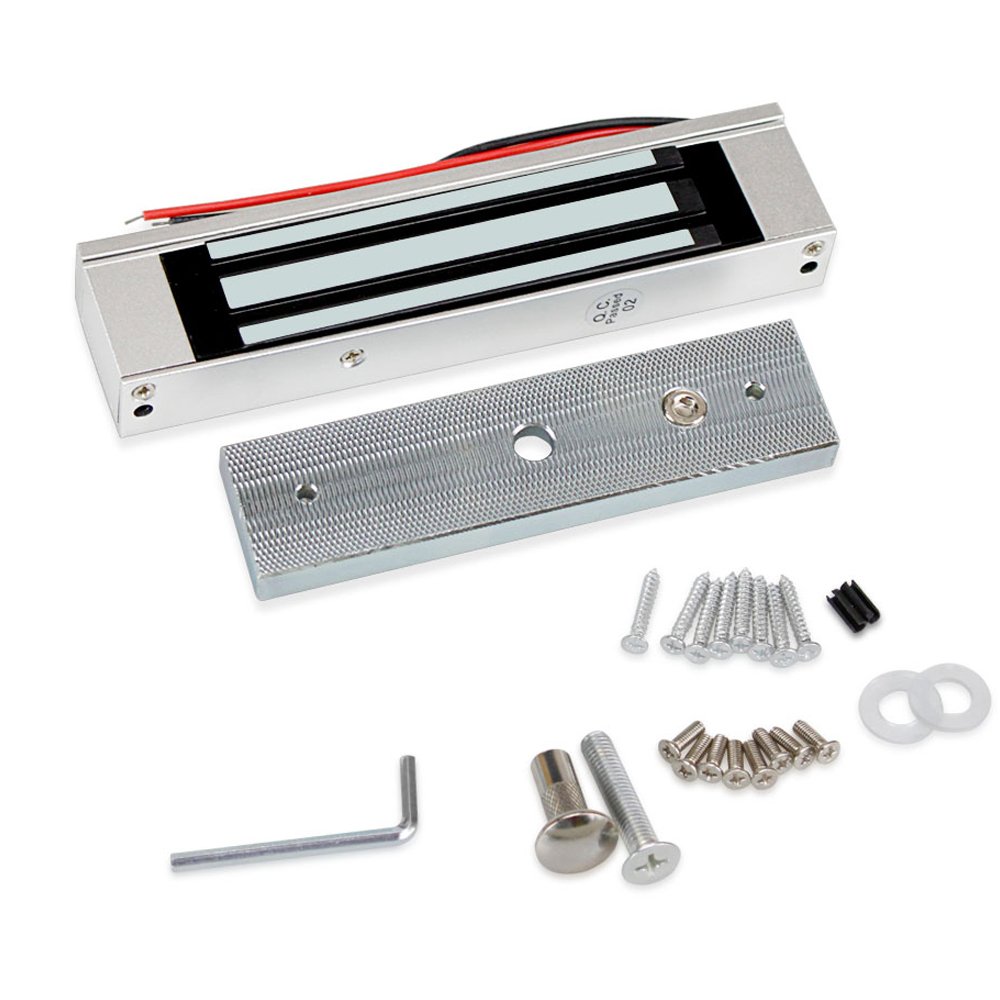

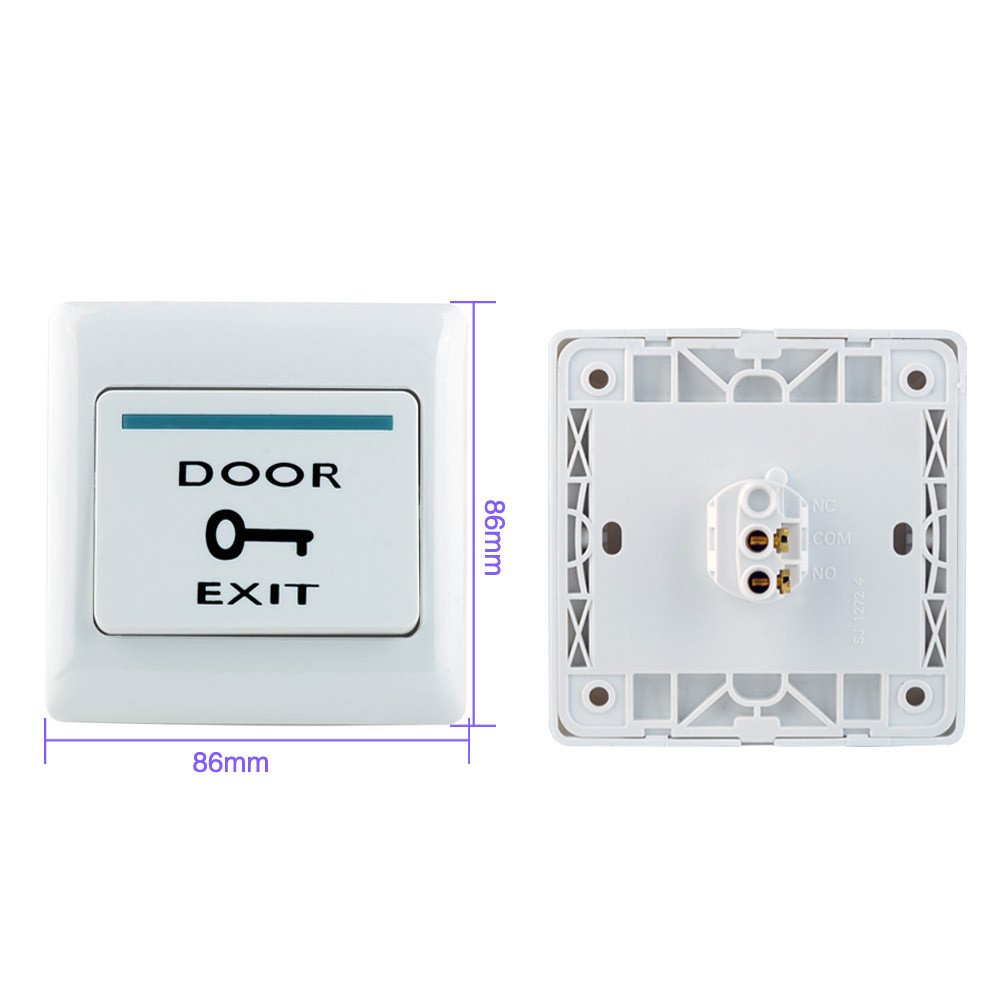

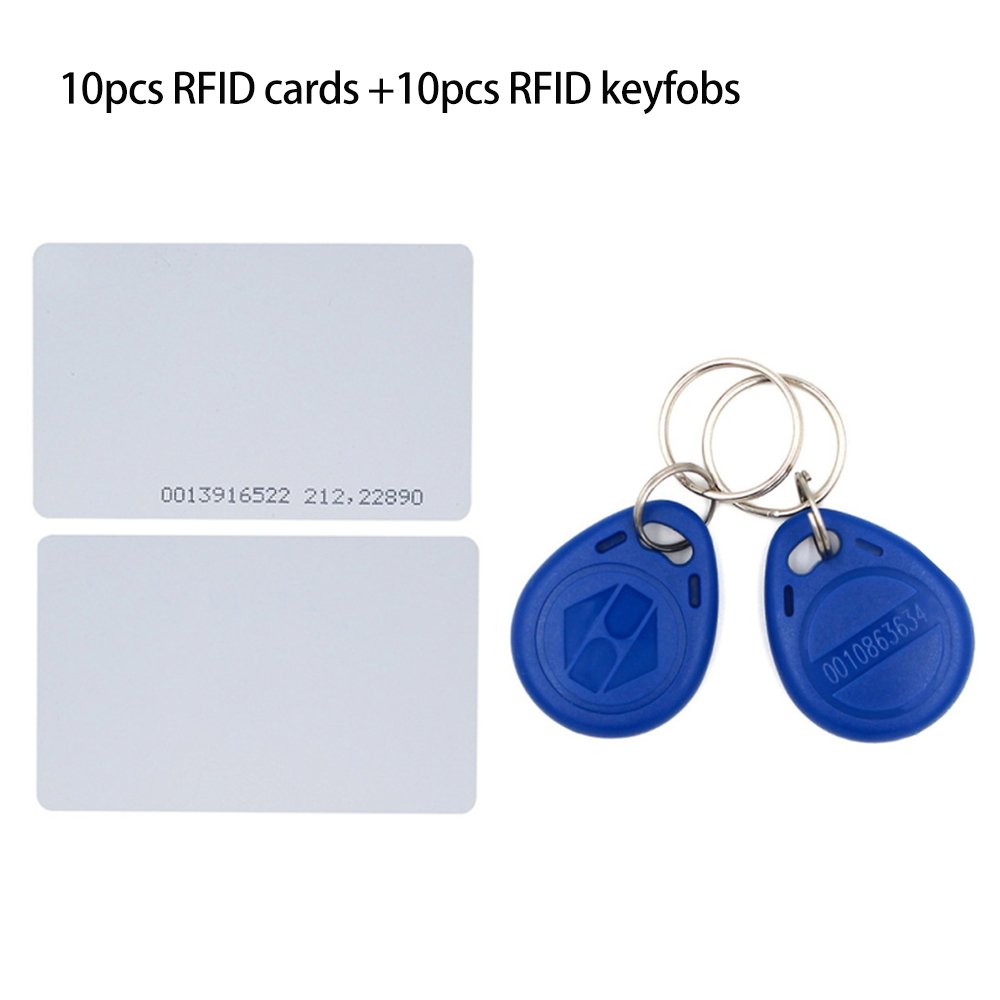

Product Specifications RFID Access Controller User capacity: 1000 users Dimensions: 120 x 22 x 78 mm (L / H / W) Working frequency: 125KHz Working voltage: DC12V Working Current<100mA Working temperature: -10 to +70 Reading distance: 0-10cm Relative humidity: 20% - 90% Unlock mode: RFID card, password, RFID card + password Power Supply Material: steel. Output power: 36W Durability test: 500000 times | Input frequency: 50-60Hz Input voltage: 110 260VAC Output voltage: DC12V / 3A. Working temperature: -20 to +65 Delay time: 0-15 seconds Relative Humidity Adjustable: 0% -90% Dimensions: 100 x 65 x 32 mm. Magnetic lock 180 kg Material: Aluminum alloy housing + iron plate Clamping force: 180 kg / 350 lbs. Working voltage: DC12V Working current: 380-430mA Working temperature: -10 to 55 ℃ Working mode: on to lock, power-off to unlock Waterproof: Yes Can be installed outside RFID Cards Working frequency: 125KHz With high quality ABS Each has a unique identification number on it Reading Range : 1-10cm Quantity: 10 cards + 10 keys. Door exit button Material: fire resistant plastic / ABS Durability test: 500,000 times Contact rating: 3A/36VDC Input: 12VDC Output: NA / NC / COM Working temperature: -10 to +55. Dimension: 86 x 86 x 20 mm. Package List 1 x RFID Access Control Keypad. 1 x power supply. 1 x 180 kg electric magnetic lock. 1 x exit button. 10 x RFID cards. 10 x RFID key fobs
