HFeng Full Kit Door Access Control System 125KHz RFID Keypad Reader Metal Case + 180KG Electromagnetic Lock + DC12V 3A Power Supply Controller + Door Exit Button + 10pcs Keyfobs

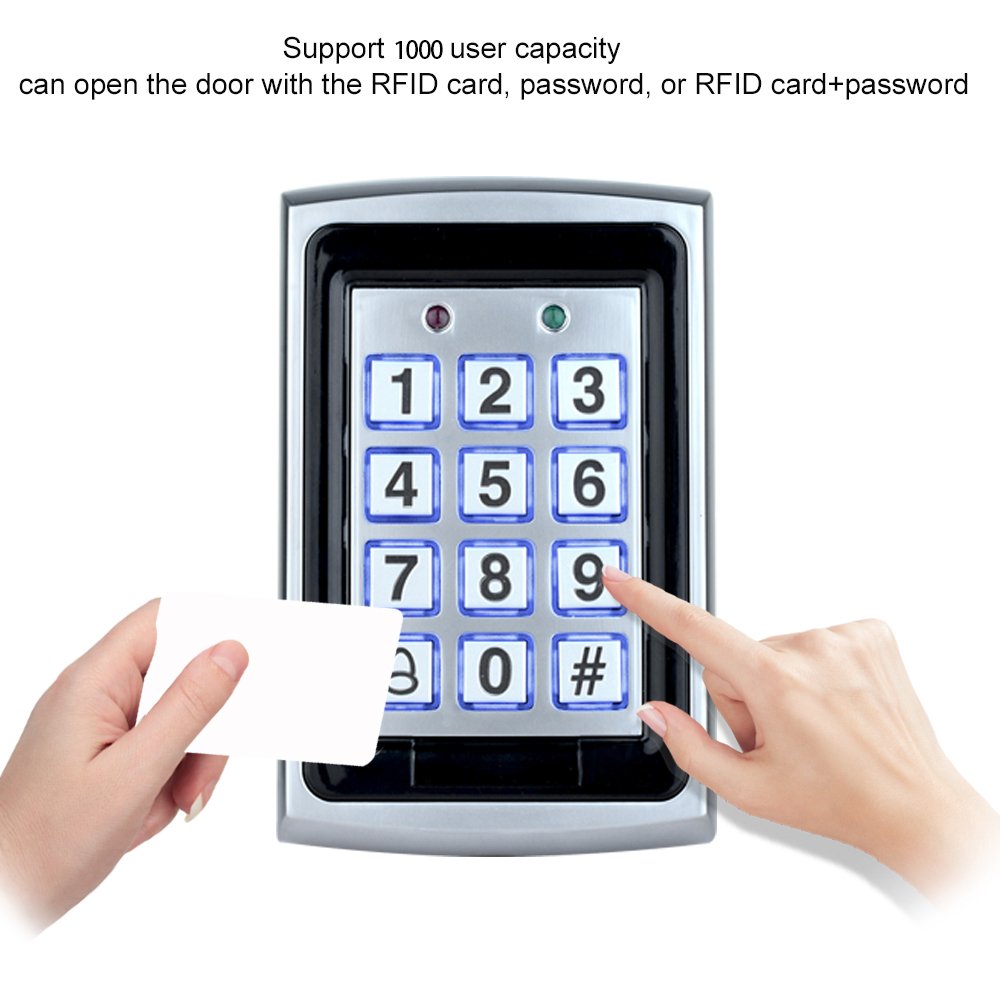

• 1) Support 1000 user capacity. Support RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
• 2) Made of high quality zinc alloy. Has a WG26/34 interface and 2 relays output. Support tamper alarm, door bell and time delay function.
• 3) Working with DC12V system, very easy to install. Don't need to connect to computer. You can program the RFID cards or password on the device directly.

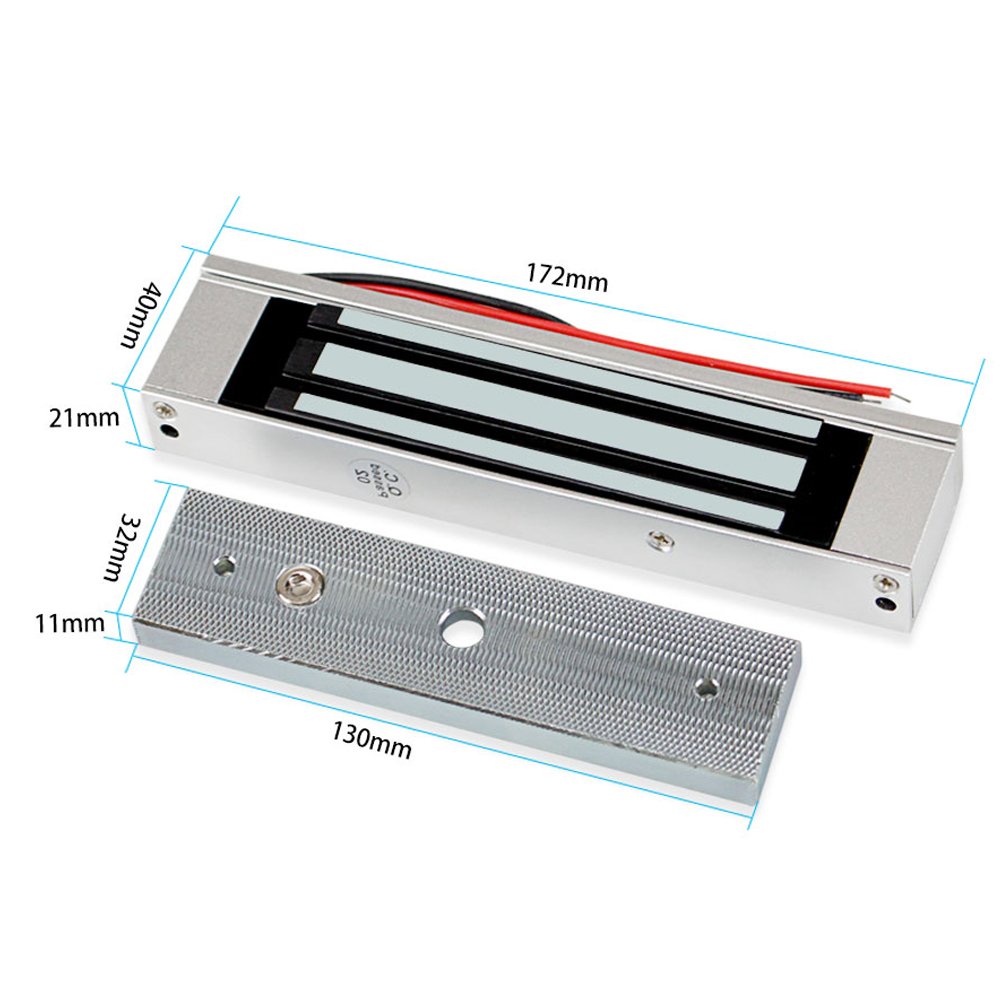

• 4) Electric magnetic lock, holding force 180KG / 350lbs. The door will be locked when power on, unlocked when power off. Very suitable for wooden door, metal door, glass door.

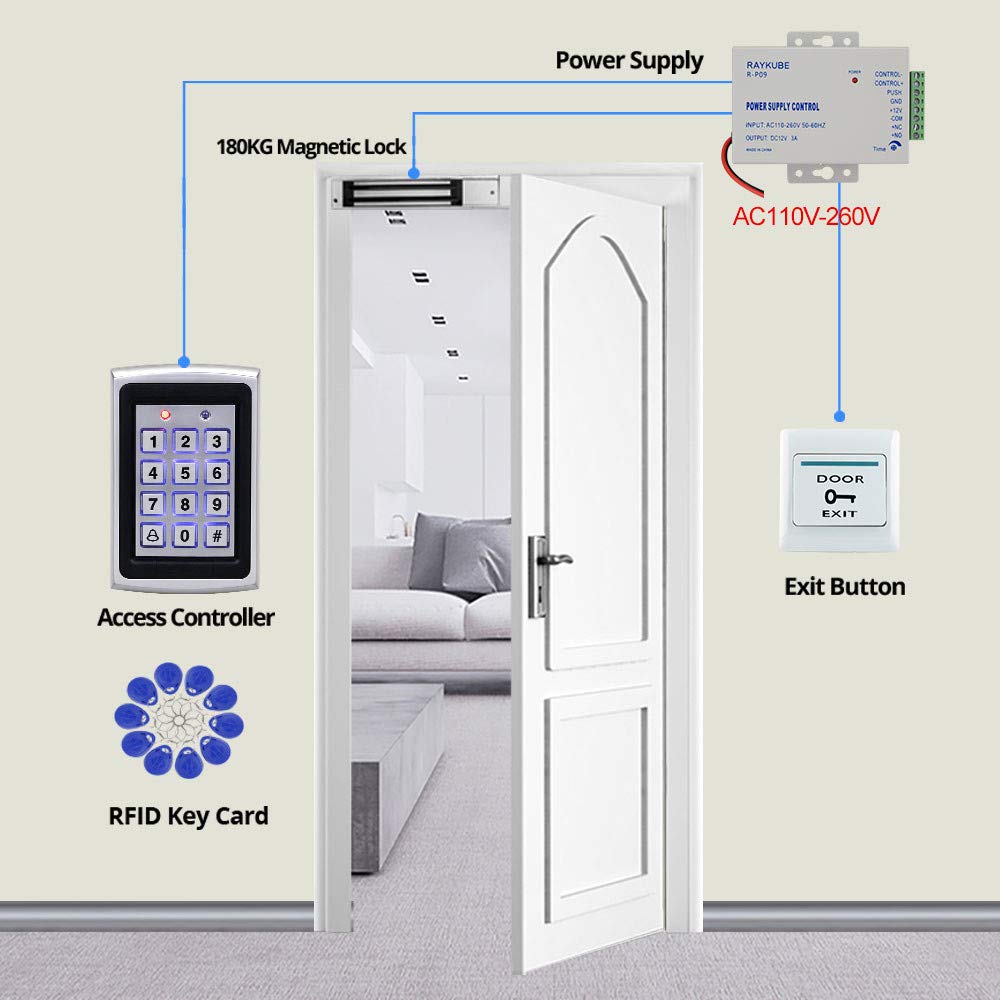

• 5) Package including access control keypad + 180KG electric magnetic lock + power supply+ door exit button +10pcs Keyfobs.

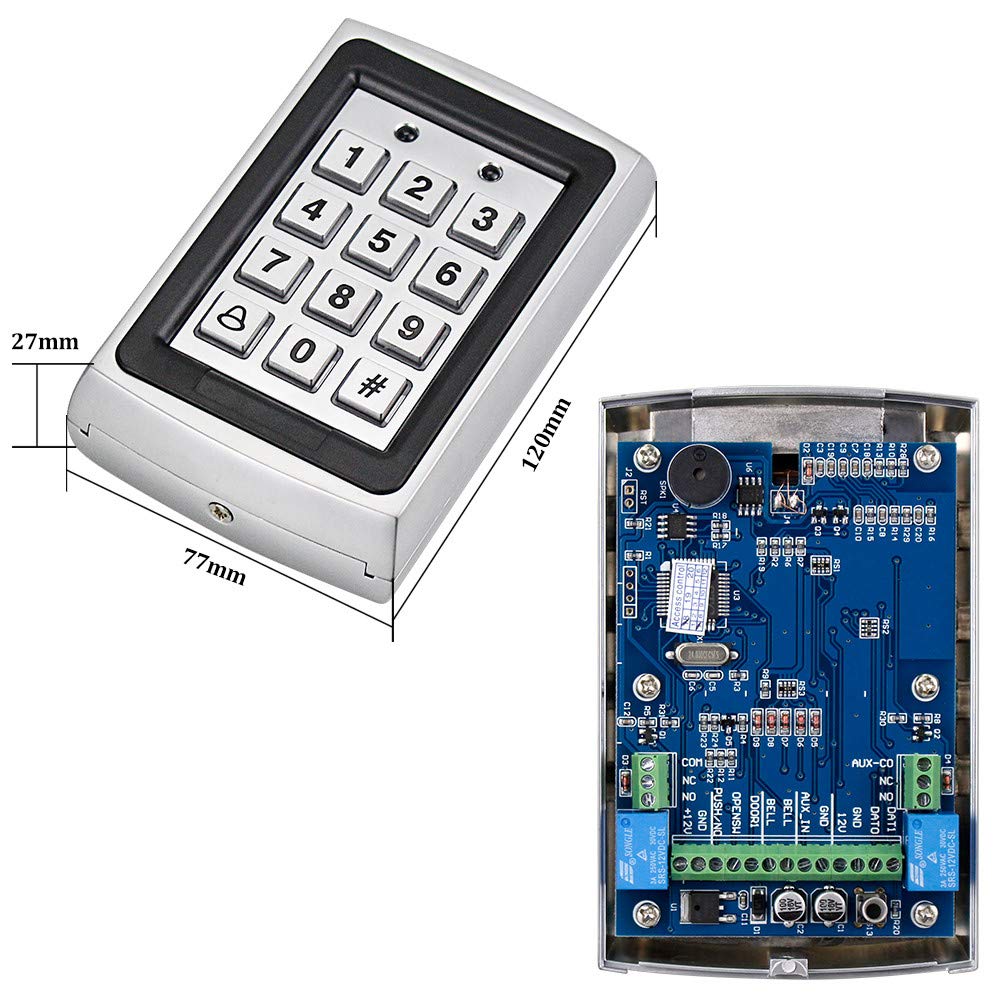

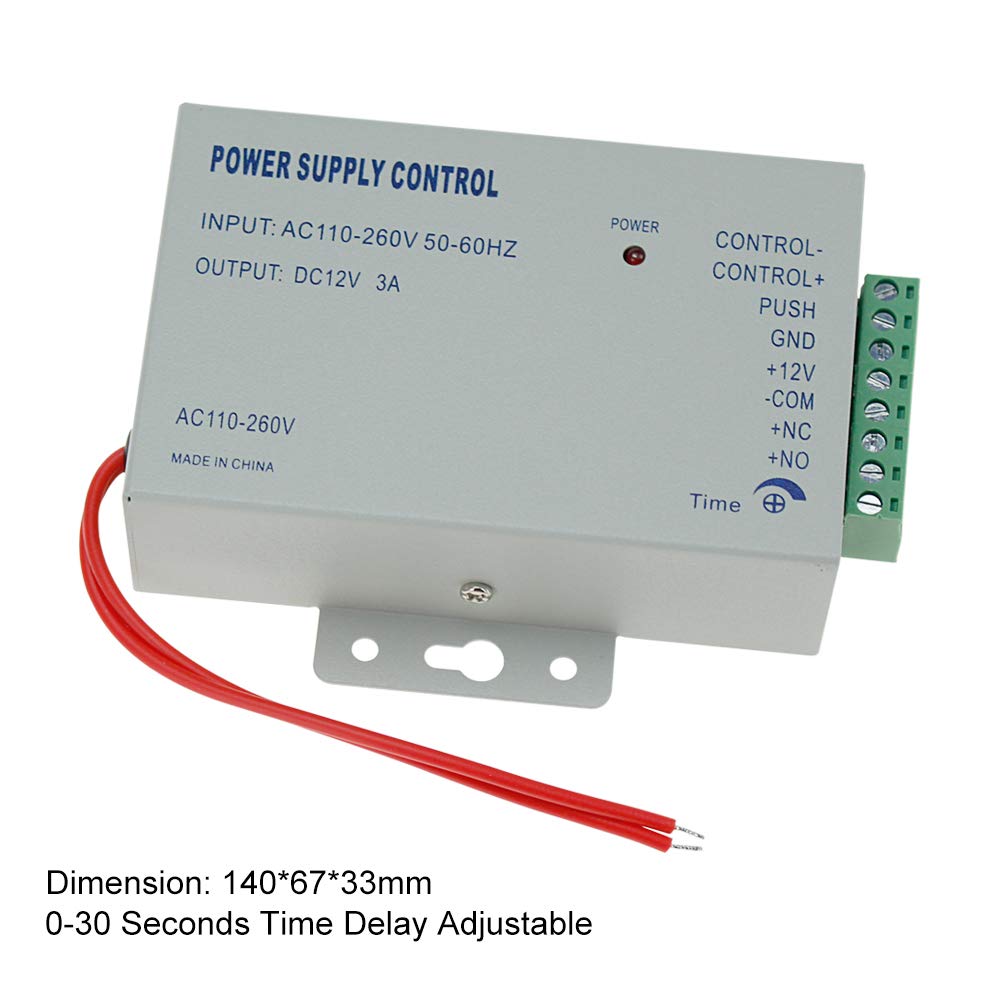

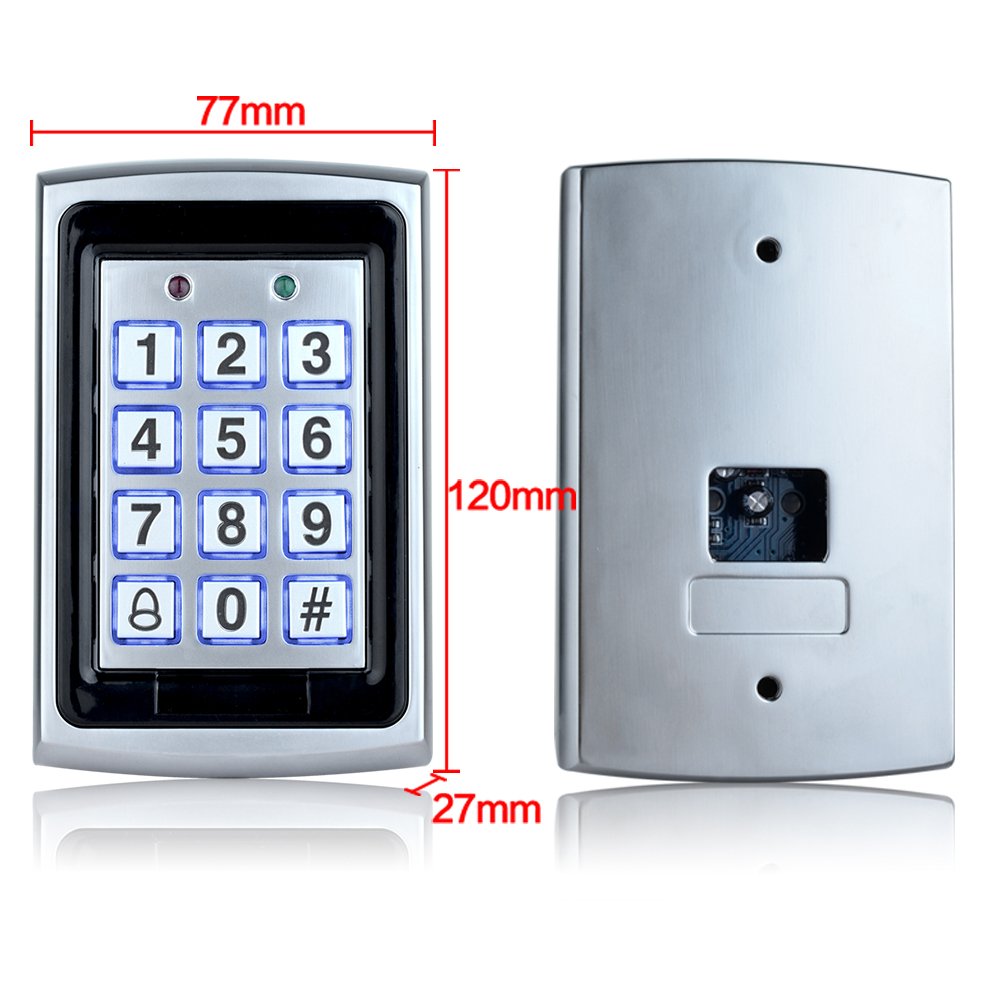

Product Specifications Access Control Keypad Material: metal zinc alloy Working frequency: 125KHz Card reading type: EM card Card reading distance: 0-10CM Identification method: RFID card, password, card + password User capacity: 1000 cards, 1 public password, 1000 private password Door bell function: support Digital backlit: support Tamper alarm function: support Time delay function: support Has a WG26 interface, 2 relays output Working Voltage: DC 12V ± 10% Working Current: 1.2A Working Temperature: -10 to +70 Relative Humidity: 20%-90% Size: 77*120*27mm(L/H/W) 180KG Magnetic lock Material: Aluminum alloy shell + iron plate Holding force: 180KG/350lbs Working Voltage: DC12V Working Current: 380-430mA Suitable for door: metal, wooden, glass door Humidity: 0 to 95% Working Temperature: -10 to 55 Celsius degree Working mode: locked when power on, unlocked when power off Waterproof: Yes. Can be install outside Power Supply Material: stell AC input: Standard AC100V-260V / 50-60HZ DC output: DC12V/ 3 A Time delay: 0-15 seconds adjustable. Dimension: 140X67X33mm( L/W/H ) Door Exit Button Material: Hard Plastic Maximum Power Rating: 36V DC 3A—5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode) Dimension: 86X86MM 10* RFID Keyfobs Material: ABS Operating frequency: 125kHz Detection range: 0-10cm Each card pre programmed and has a unique identity number on it. Package Including
1x RFID Access Control Keypad 1x 180KG electric magnetic lock 1x Power supply 1x Exit button
10x RFID blue keyfobs
