HFeng Full Access Control System Kit with Electric Drop Bolt Lock + RFID Access Control Keypad + Power Supply + 10pcs RFID Keyfobs Tags for Door Entry System

• 1) Working with DC12V system, very easy to install. Don't need to connect to computer. You can program the RFID cards or password on the device directly.
• 2) Support 1000 user capacity. Support RFID Card, password, RFID card + password to open the door.
• 3) Made of high quality. Has a door bell button, can be connected to a DC12V door bell. Support 0-15 seconds time delay adjustable.
• 4) Electric drop bolt lock, holding force 500lbs. The door will be locked when power on, unlocked when power off. Very suitable for wooden door, metal door.

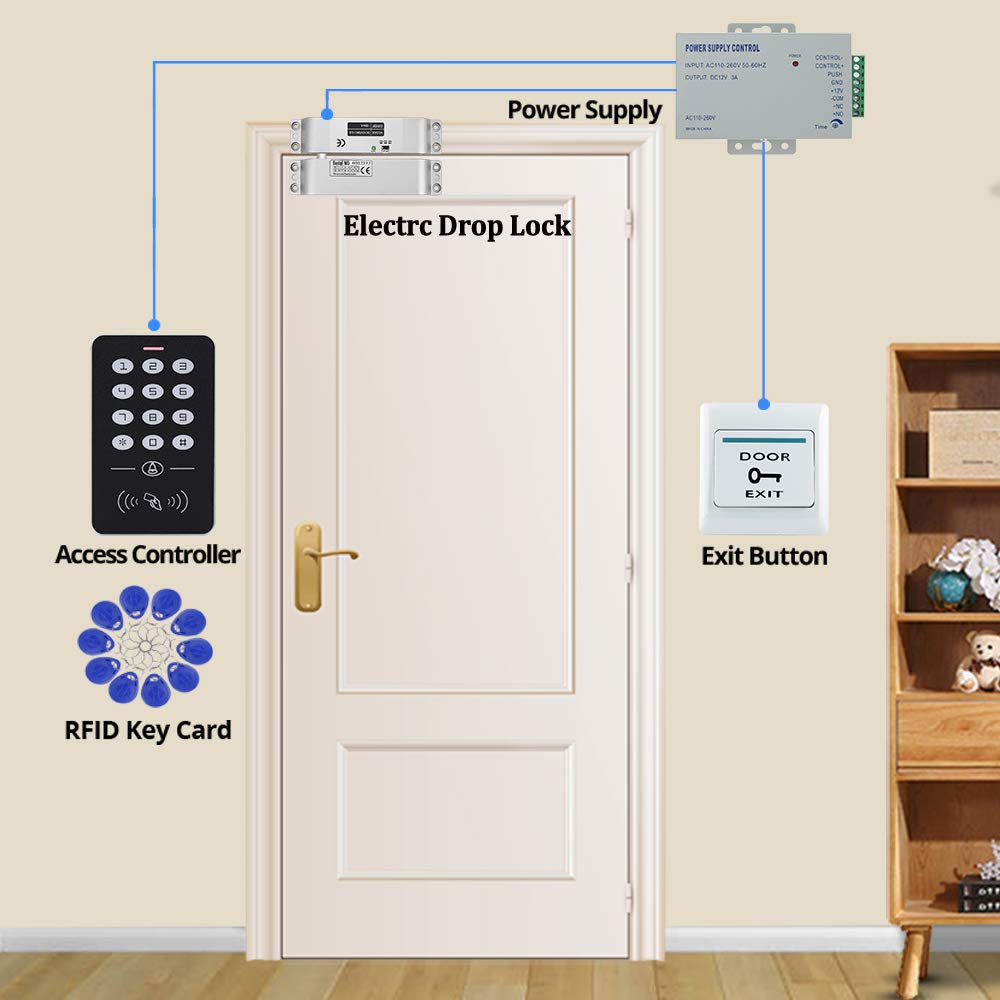

• 5) Package including access control keypad + Electric drop bolt lock + power supply+ door exit button +10pcs Keyfobs.

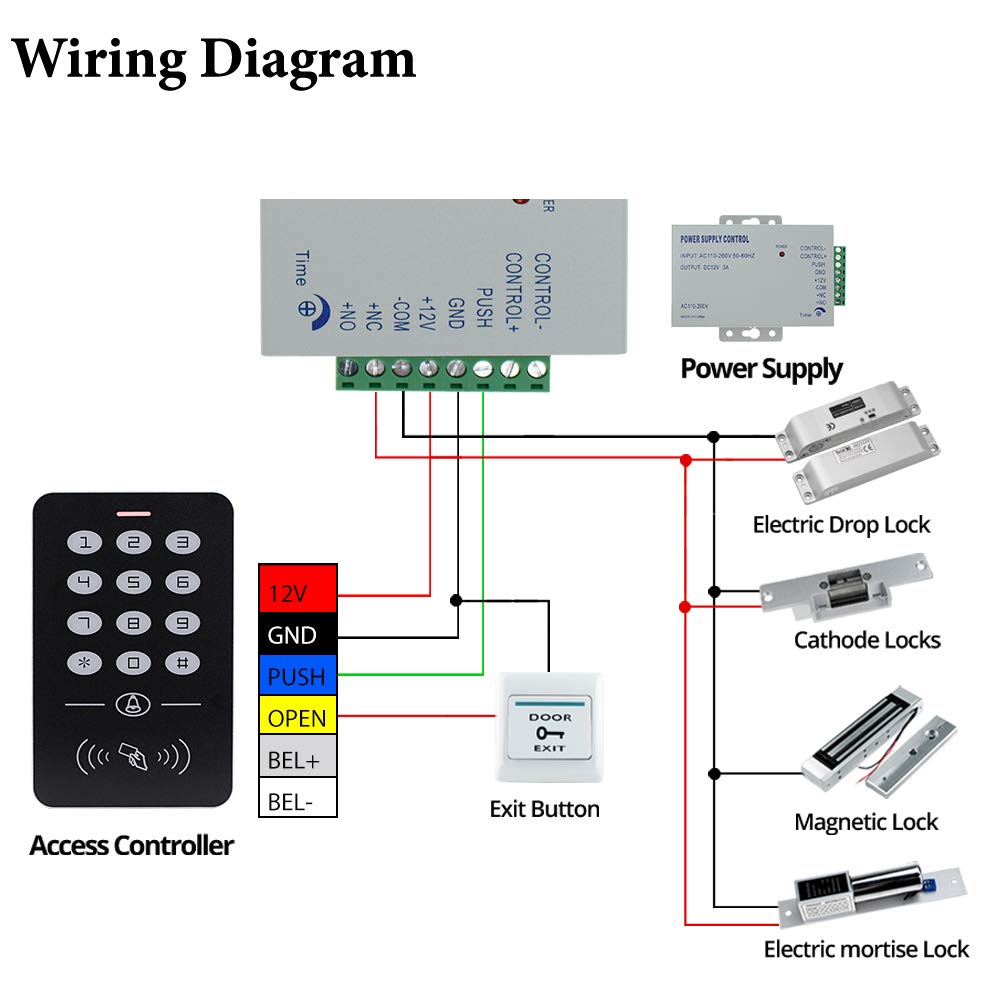

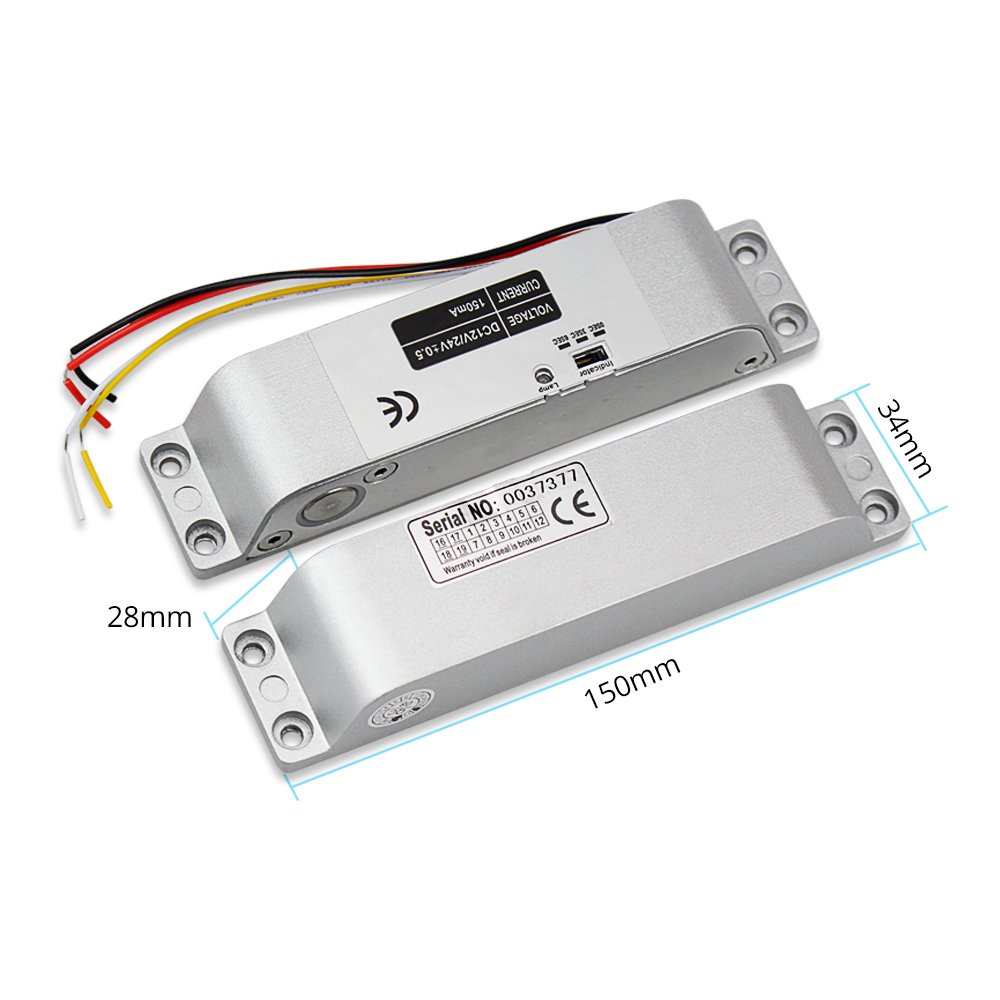

Product Specifications Access Control Keypad Material: high quality plastic User capacity: 1000 users Working frequency: 125KHz Card reading type: EM card Card reading distance: 0-5CM Identification method: RFID card, password, card + password Door bell function: support Unlocking time: 5 seconds Working voltage: DC 12V ± 10% Working power supply: <100mA Size: 113*70*20mm Electric Drop Bolt Lock Material: Aluminium Alloy Working Voltage: DC12V Dimension: 150*34*28 mm Secure Mode: NC model/ fail safe model ( Locked when power on, unlocked when power off ) Working Current: star-up: 1.2A, operating: 0.25A Wiring Diagram If you want to test the lock, please connect the red cable to "+12v", black cable to "GND" of the 12VDC power supply. When you install completed access control system kit set, please connect red cable to "NC", black cable to "COM" of the power supply. Power Supply Material: stell AC input: Standard AC100V-260V / 50-60HZ DC output: DC12V/ 3 A Time delay: 0-15 seconds adjustable. Dimension: 140X67X33mm( L/W/H ) Door Exit Button Material: Hard Plastic Maximum Power Rating: 36V DC 3A—5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode) Dimension: 86X86MM 10* RFID Keyfobs Material: ABS Operating frequency: 125kHz Detection range: 0-10cm Each card pre programmed and has a unique identity number on it. Package Including
1x RFID Access Control Keypad 1x Electric Drop Bolt Lock 1x Power supply 1x Exit button
10x RFID blue keyfobs
