HFeng Door Access Control System Kit Metal 125KHz RFID Access Control Keypad EM Reader + Electric Bolt Lock + DC12V/ 3A Power Supply + Door Release Button + 10pcs Keyfobs

• 1) Support 1000 user capacity. Support RFID Card, password, RFID card + password to open the door. Has backlight, work indicating light, very convenient to use even at dark.
• 2) Made of high quality zinc alloy. Has a WG26/34 interface and 2 relays output. Support tamper alarm, door bell and time delay function.
• 3) Working with DC12V system, very easy to install. Don't need to connect to computer. You can program the RFID cards or password on the device directly.

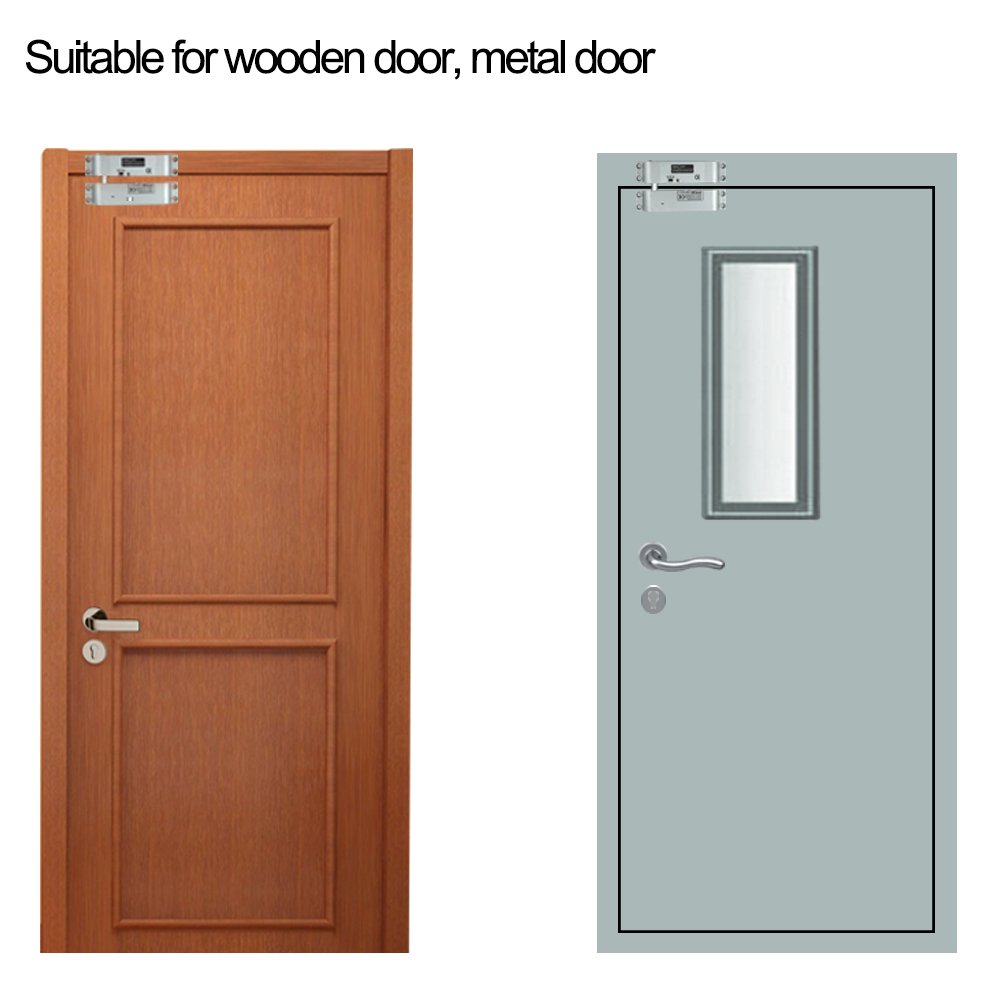

• 4) Electric drop bolt lock, holding force with 500lbs. The door will be locked when power on, unlocked when power off. Very suitable for wooden door, metal door.

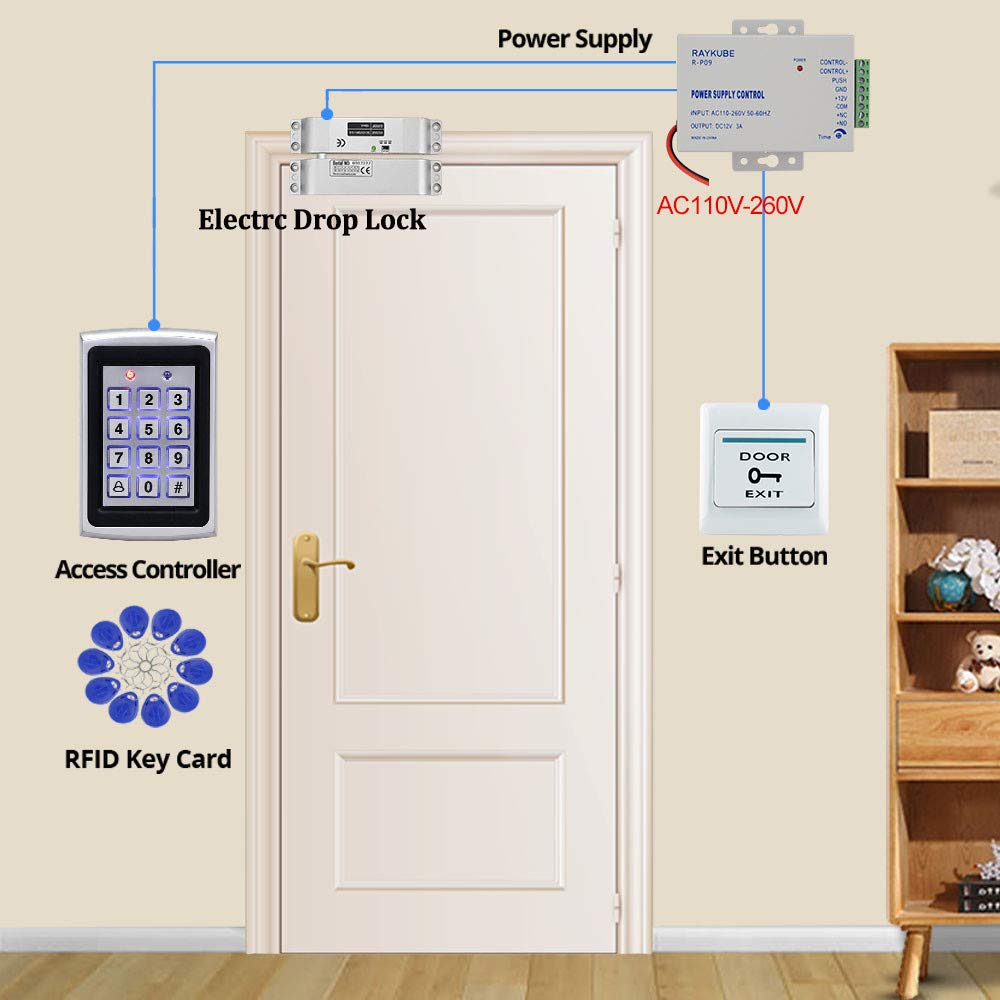

• 5) Package including access control keypad + Electric drop bolt lock + power supply+ door exit button +10pcs Keyfobs.

Product Specifications Access Control Keypad Material: metal zinc alloy Working frequency: 125KHz Card reading type: EM card Card reading distance: 0-10CM Identification method: RFID card, password, card + password User capacity: 1000 cards, 1 public password, 1000 private password Door bell function: support Digital backlit: support Tamper alarm function: support Time delay function: support Has a WG26 interface, 2 relays output Working Voltage: DC 12V ± 10% Working Current: 1.2A Working Temperature: -10 to +70 Relative Humidity: 20%-90% Size: 77*120*27mm(L/H/W) Electric Drop Bolt Lock Material: Aluminium Alloy Working Voltage: DC12V Dimension: 150*34*28 mm Secure Mode: NC model/ fail safe model ( Locked when power on, unlocked when power off ) Working Current: star-up: 1.2A, operating: 0.25A Wiring Diagram If you want to test the lock, please connect the red cable to "+12v", black cable to "GND" of the 12VDC power supply. When you install completed access control system kit set, please connect red cable to "NC", black cable to "COM" of the power supply. Power Supply Material: stell AC input: Standard AC100V-260V / 50-60HZ DC output: DC12V/ 3 A Time delay: 0-15 seconds adjustable. Dimension: 140X67X33mm( L/W/H ) Door Exit Button Material: Hard Plastic Maximum Power Rating: 36V DC 3A—5A output Support both NC Mode (Fail Safe Mode) & NO Mode (Fail Secure Mode) Dimension: 86X86MM 10* RFID Keyfobs Material: ABS Operating frequency: 125kHz Detection range: 0-10cm Each card pre programmed and has a unique identity number on it. Package Including
1x RFID Access Control Keypad 1x Electric drop bolt lock 1x Power supply 1x Exit button
10x RFID blue keyfobs
