HFeng Access Control Power Supply Box DC12V 5A Output AC 90V-260V Input UPS Back-up Emergency Source/Battery Box with Keys for Door Access Entry System

• 1. Input Voltage: AC90-260V, 50-65Hz; Output Voltage: DC12V/ 3A, DC12V/5A.

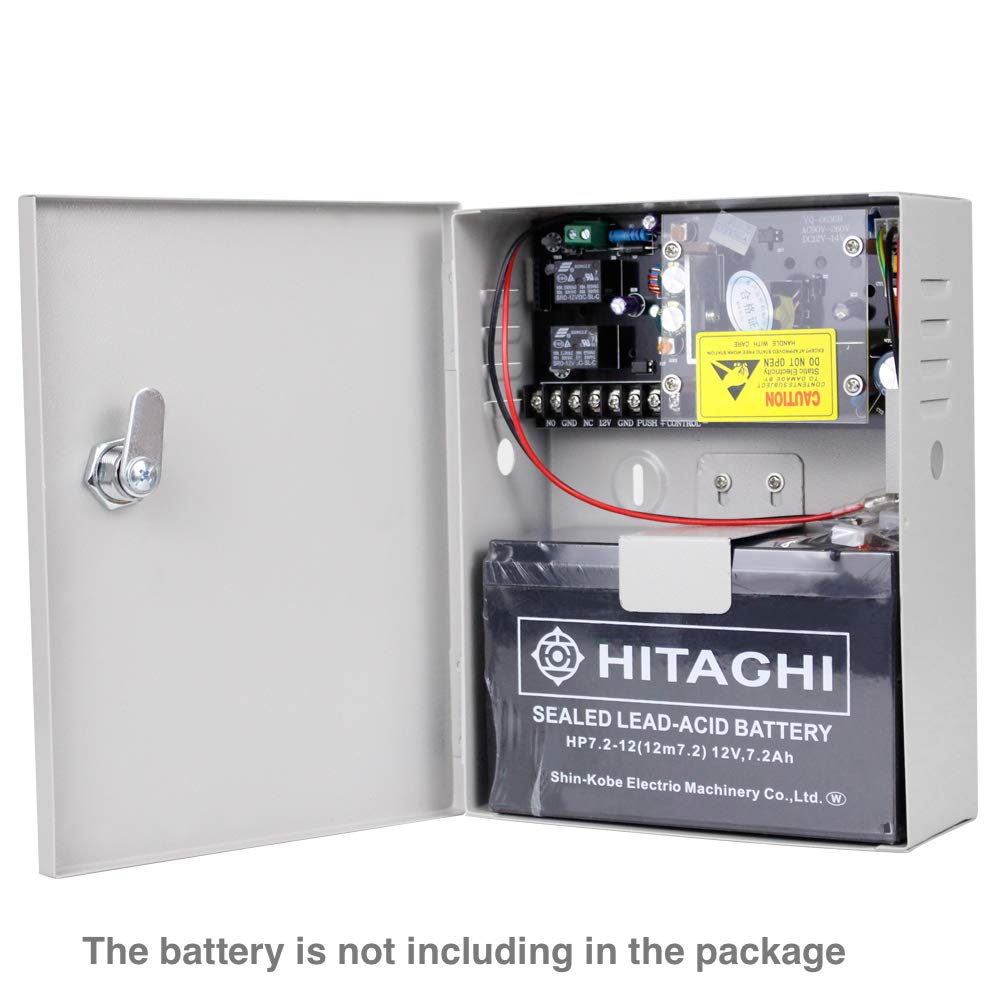

• 2. Can be connected to an external remote control module, external battery.(not included)
• 3. with 0-30 seconds time delay adjustable. Has over-voltage protection, over current protection, and fault protection.
• 4. Applicable to building intercom system, various electronic lock, various entrance and exit entrance guard, etc.
• 5. Adopt the industry level electron component, standard wielding the international advanced technology.

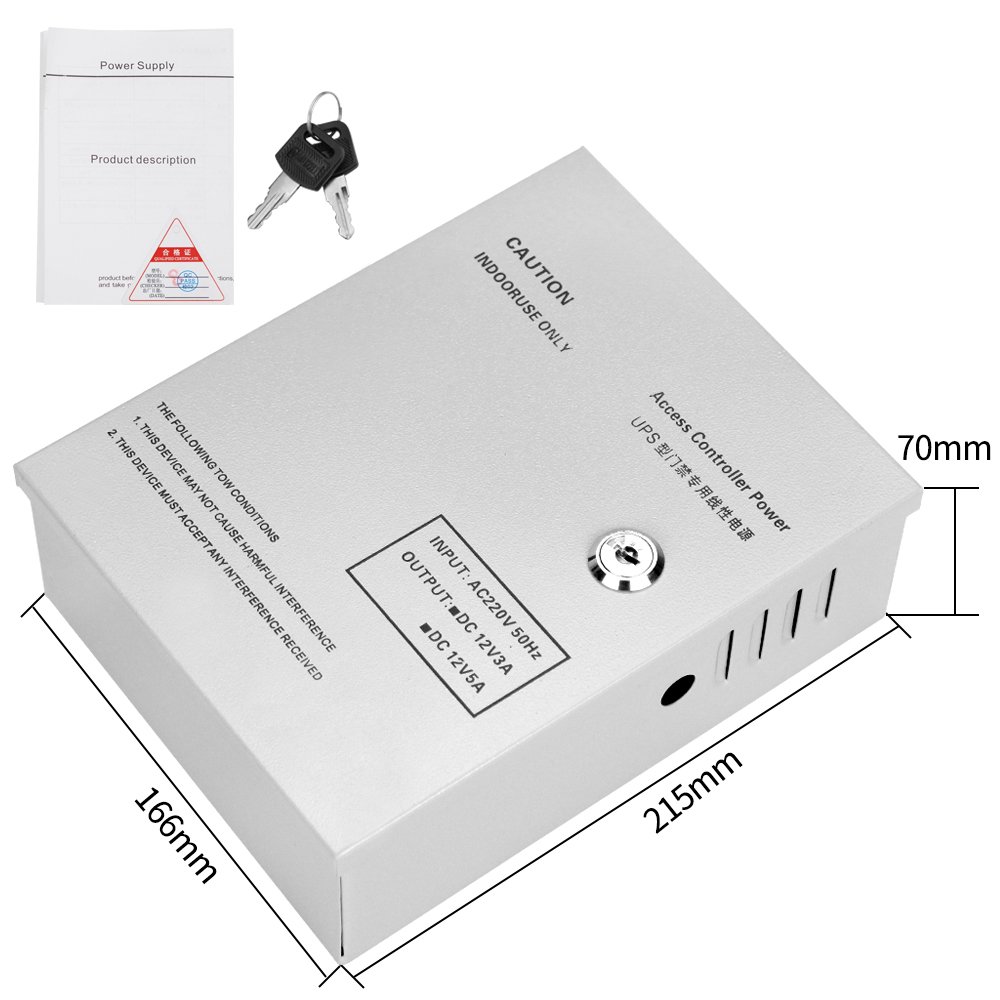

This DC12V 3A/ 5A access control system UPS power box, can connect to an external battery, applicable to building intercom system, all kinds of inward and outward entrance guard controller, and all kinds of access control electric door lock. (Note: This device can working for both 3A and 5A. The battery is not including in the package.) Features 1. 100% Brand new and high quality. Anti-interference ability strong, stabilizes reliably. 2. Adopt the industry level electron component, standard wielding the international advanced technology. 5. Applicable to building intercom system, various electronic lock, various entrance and exit entrance guard, etc. 6. Can be connected to an external remote control module, external battery. 7. Has over-voltage protection, over current protection, and fault protection. 8. The power supply will automatic shutdown protection if voltage less than 9v. Product Specifications Material: Steel Input Frequency: 50-65Hz Input Voltage: AC90-260V Output Voltage: DC12V/ 3A; DC12V/5A Working Temperature: -20 to +65 Lock time Delay: 0-30s Relative Humidity: 0%-90% Dimension: 215*166*70mm Rated Power: 42W Voltage adjustment range: 10.5V- 13.5V Power Protection: short circuit/ overload/over current /over voltage protection.
