Hettich Sensys 8645i TH52 110 Degree Standard Hinge with Self Closing Mechanism Kitchen Cabinet Cupboard Door Inset Hinges 9071207 Soft Slow Close Fast Assembly Buffering Hinge Germany Brand Pack of 2

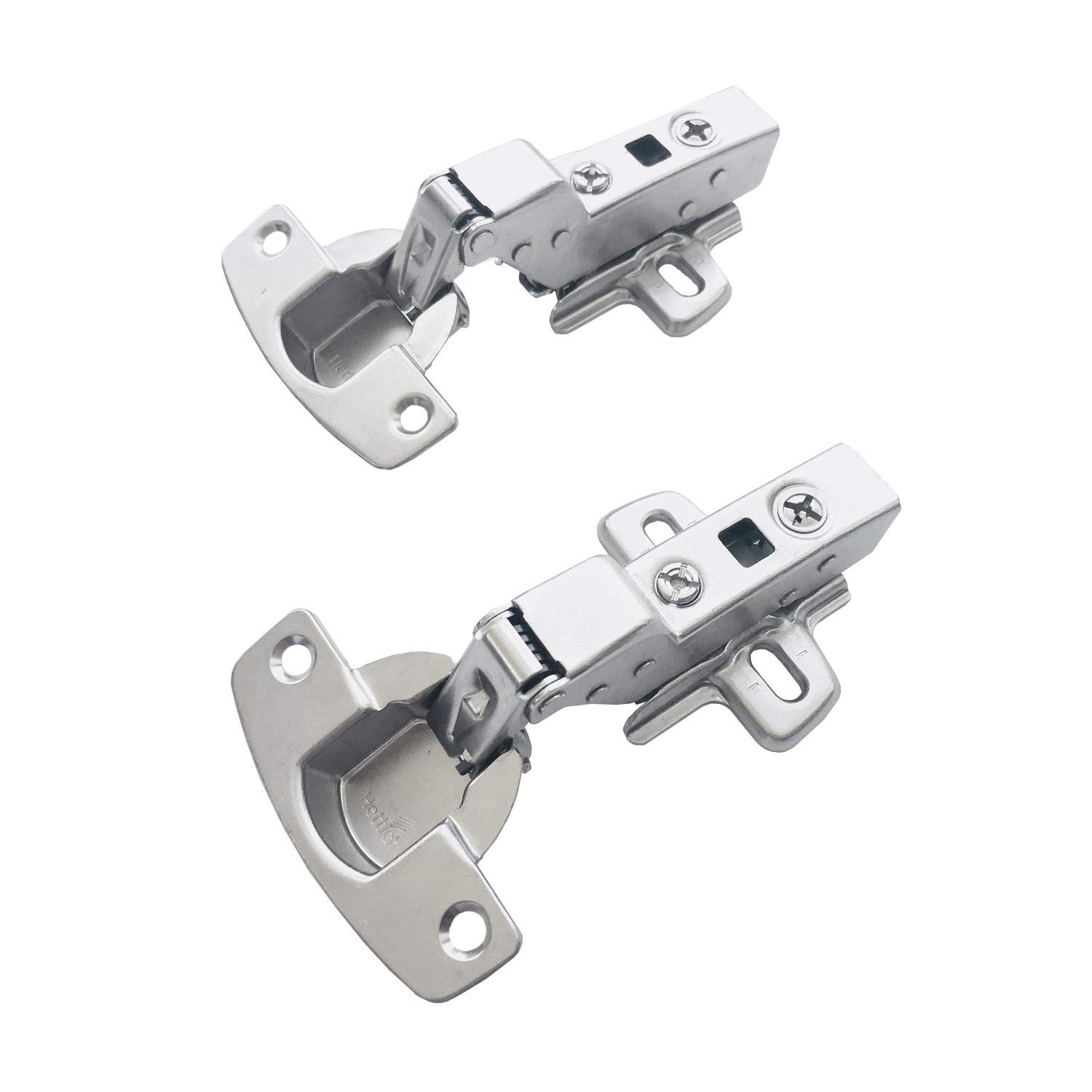

• Concealed hinges (Made in Germany) with clip on installation and integrated Silent System
• Quality classification under EN 15570, Level 3
• Heavy, Strong, and Sturdy Steel Hinge; Door mounting option: Inset

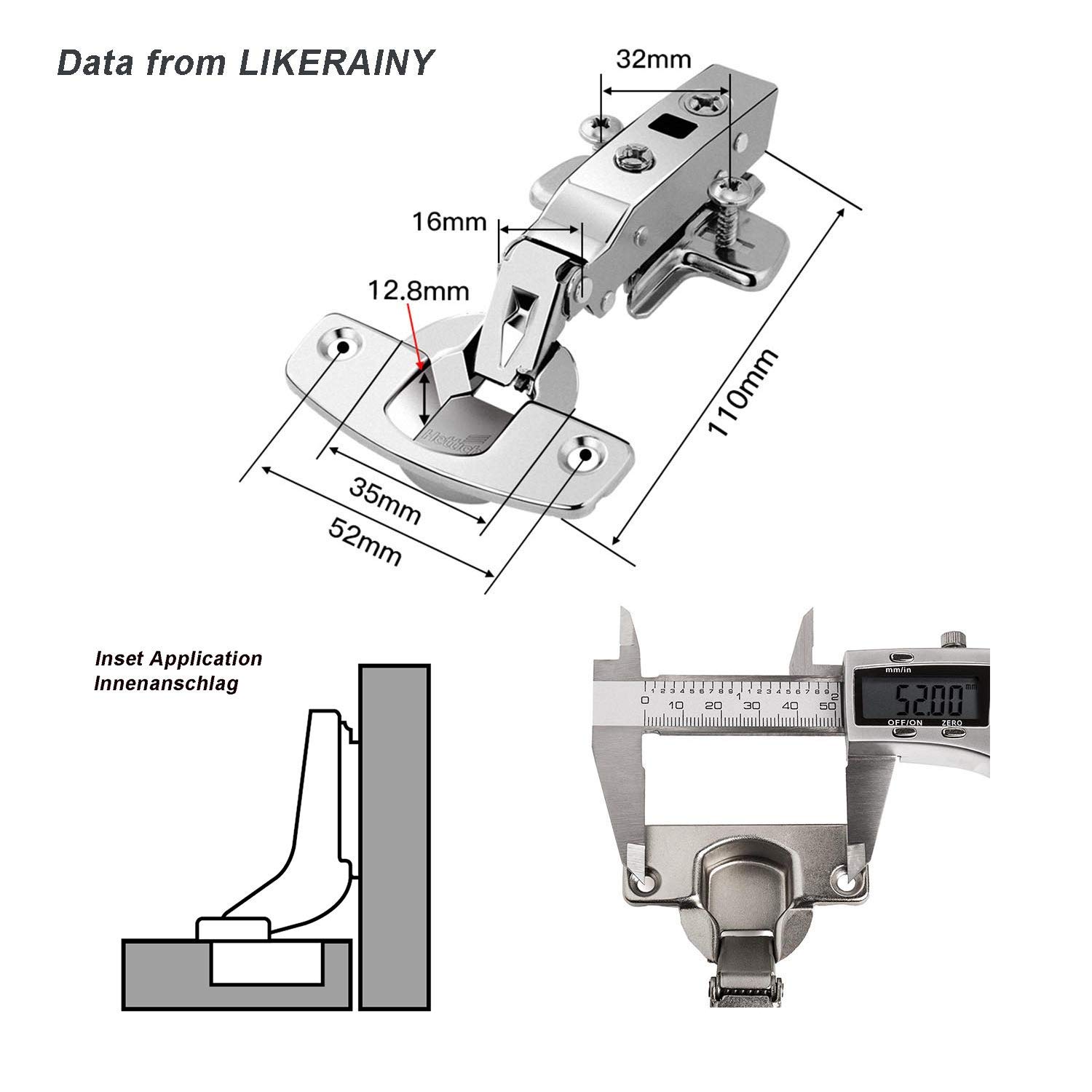

• For door thickness 15 - 24 mm; Cup diameter 35mm; Cup depth 12.8 mm; Two holes distance in mounting plate is about 32mm

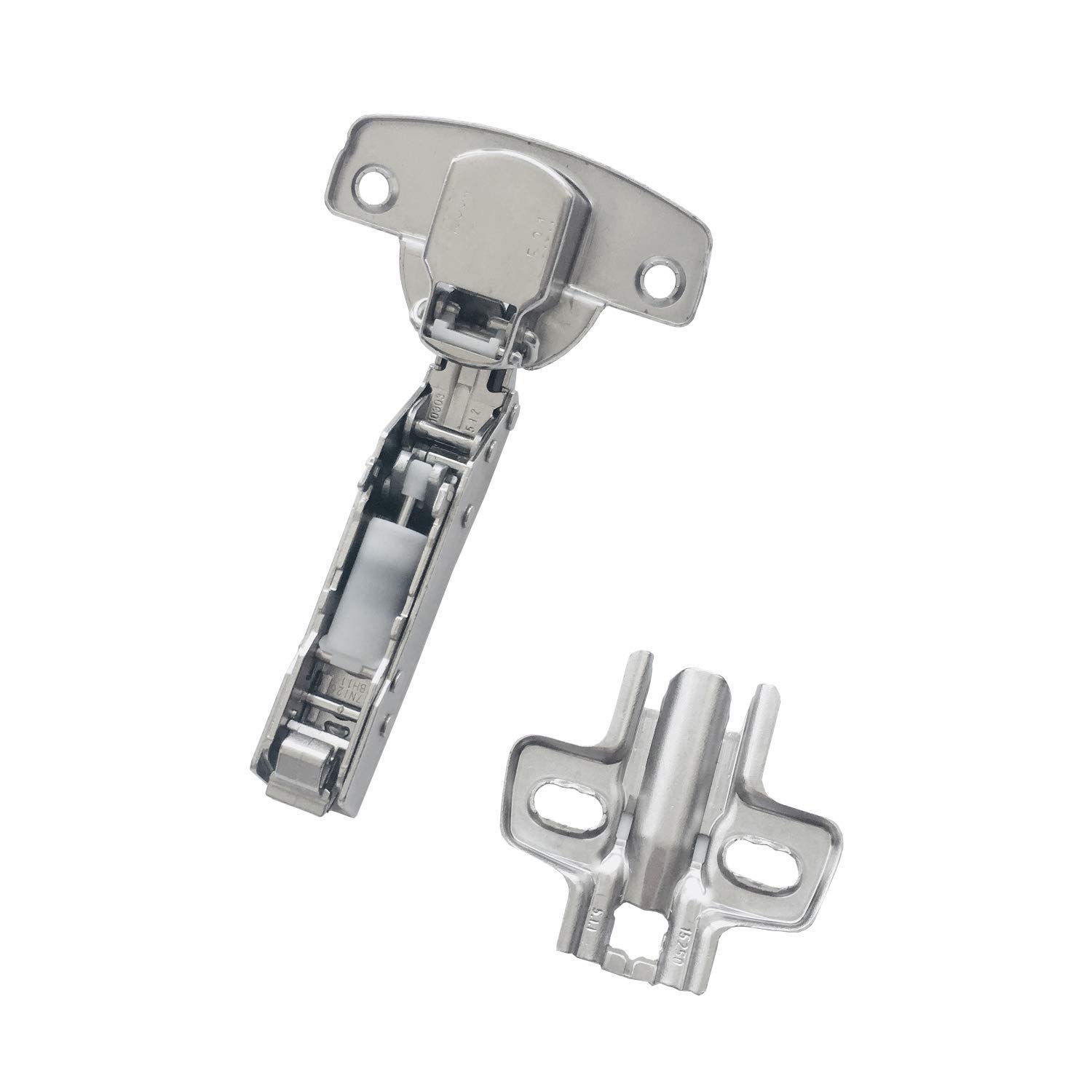

• Height adjustment at mounting plate; Excellent Replacement Solution for Kitchen Worn Out Hinges

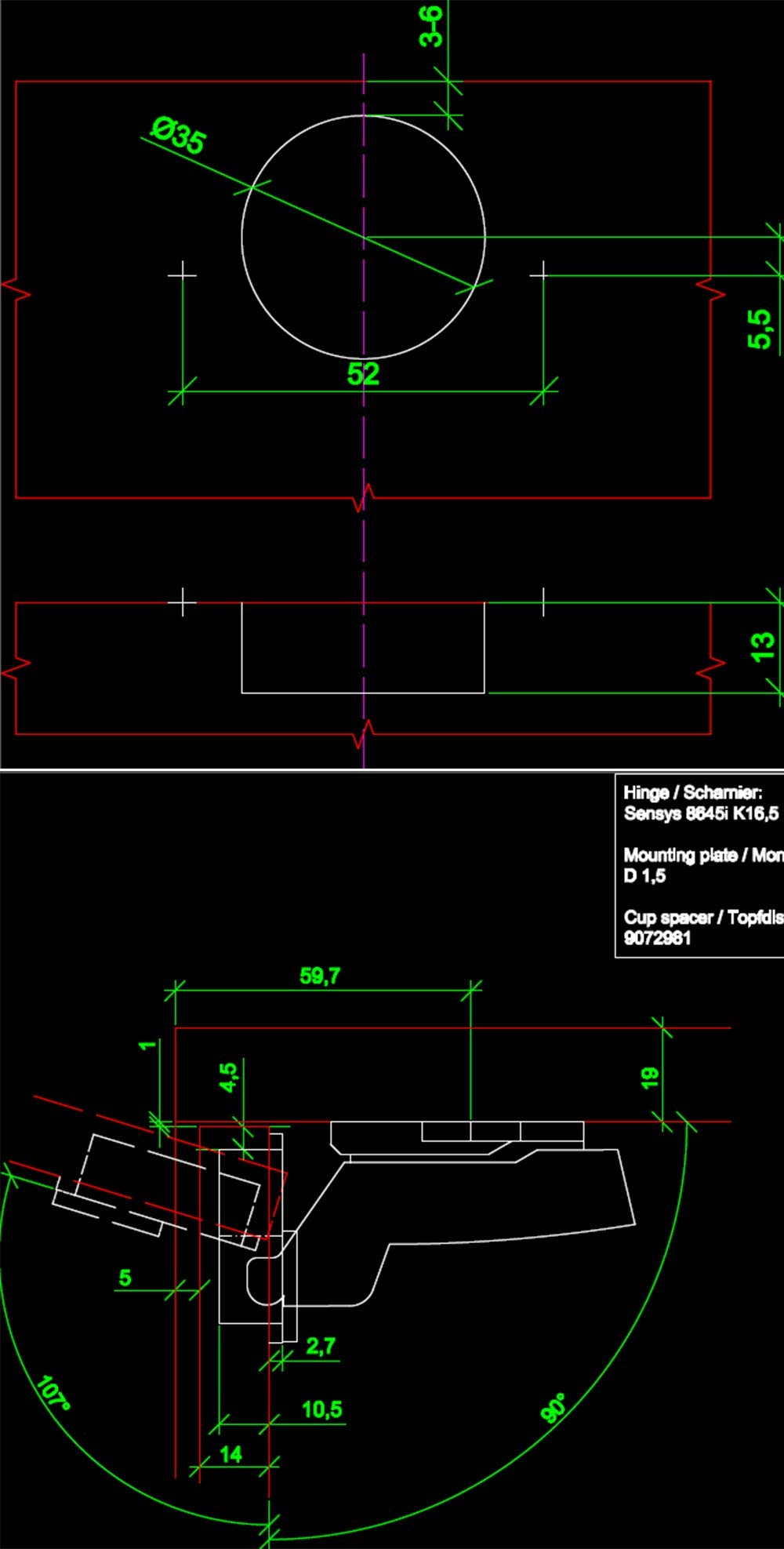

Please figure out the type of your hinge application (Full Overlay, Half Overlay, Inset) before you purchase, which are very important. Product Details -Order no.: 9071207 -Article type: Sensys 8645i, Base -4mm, TH52, Integrated Silent System, for screwing on -Split box permitted: Yes -Material: Steel -Cup version: TH 52 -Opening angle (°): 110° -Cup diameter: 35mm -Cup Depth: 12.8mm -Distance between the two screw holes (next to the cup): 52mm -Two holes distance in mounting plate is about 32mm -The distance from door edge to cup center is about 3-5mm -Mounting option: for screwing on -Door mounting option: inset -Hinge Cranking: 16.5mm -Hinge base: D1.5mm -For door thickness: 15mm (min) – 24mm (max) -Integrated overlay adjustment: +2 mm / -2 mm -Integrated depth adjustment: +3 mm/ -2 mm -Height adjustment at mounting plate -Hinge cup/arm finish: Steel nickel-plated -Cover cap for carcass: NO -Fast assembly, door: No -Fast installation: Yes -Stay closed function: Yes Standard Package -Cabinet hinge: 2 Pieces -Coming with fixing screws (Size: M4x16mm) -Mounting Instruction & Processing Information (See Pictures Above) Note -These soft closing hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary
