Hettich Sensys 110 Degree Full Overlay Hinges with Shock Absorber for Kitchen Cabinet Cupboard Door Hinge 9071205 Soft Closing Pack of 4

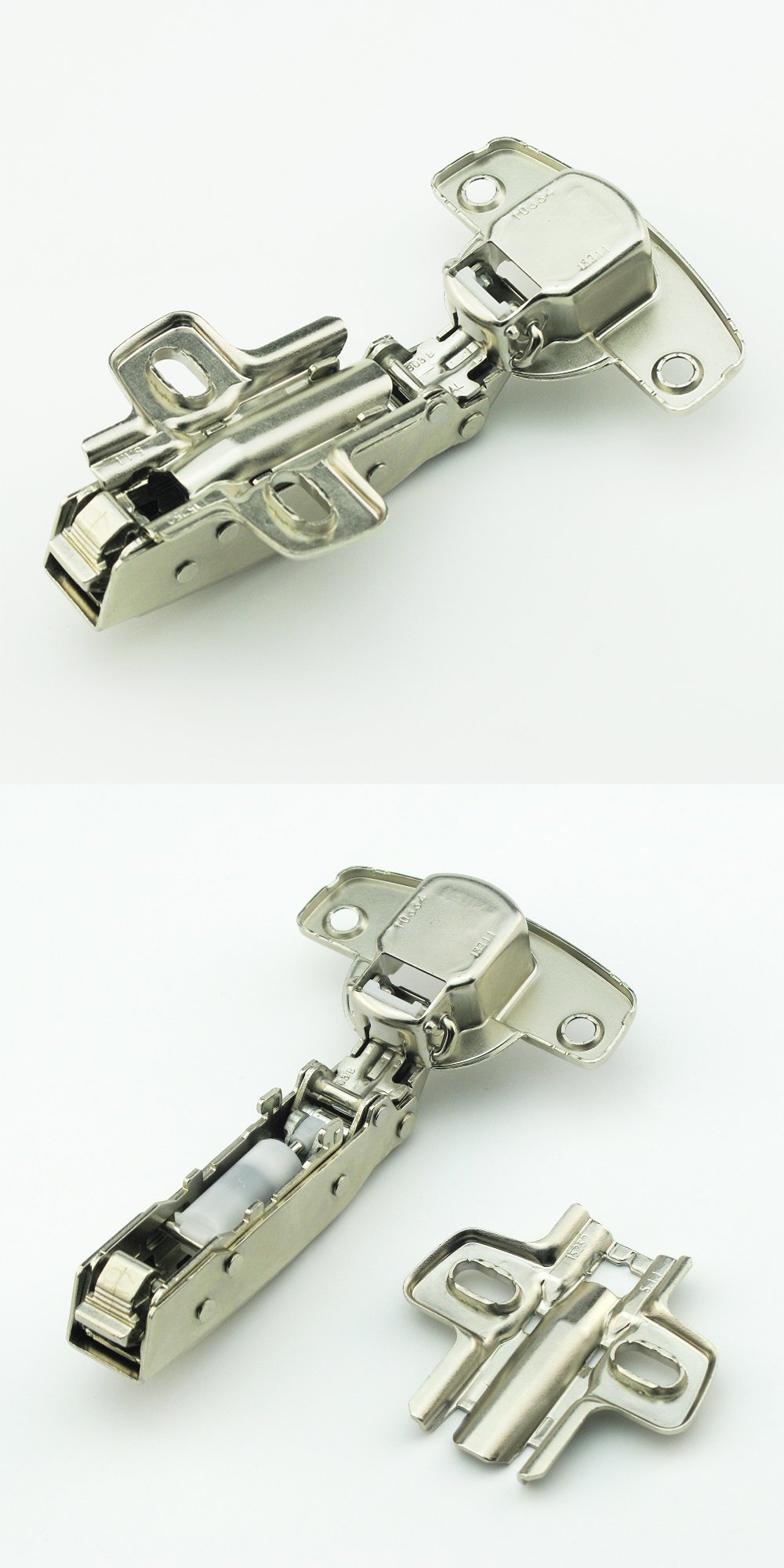

• Concealed hingeswith clip on installation and integrated Silent System (soft closing)
• Quality classification under EN 15570, Level 3
• Heavy, Strong, and Sturdy Steel Hinge; Door mounting option: Full Overlay Application

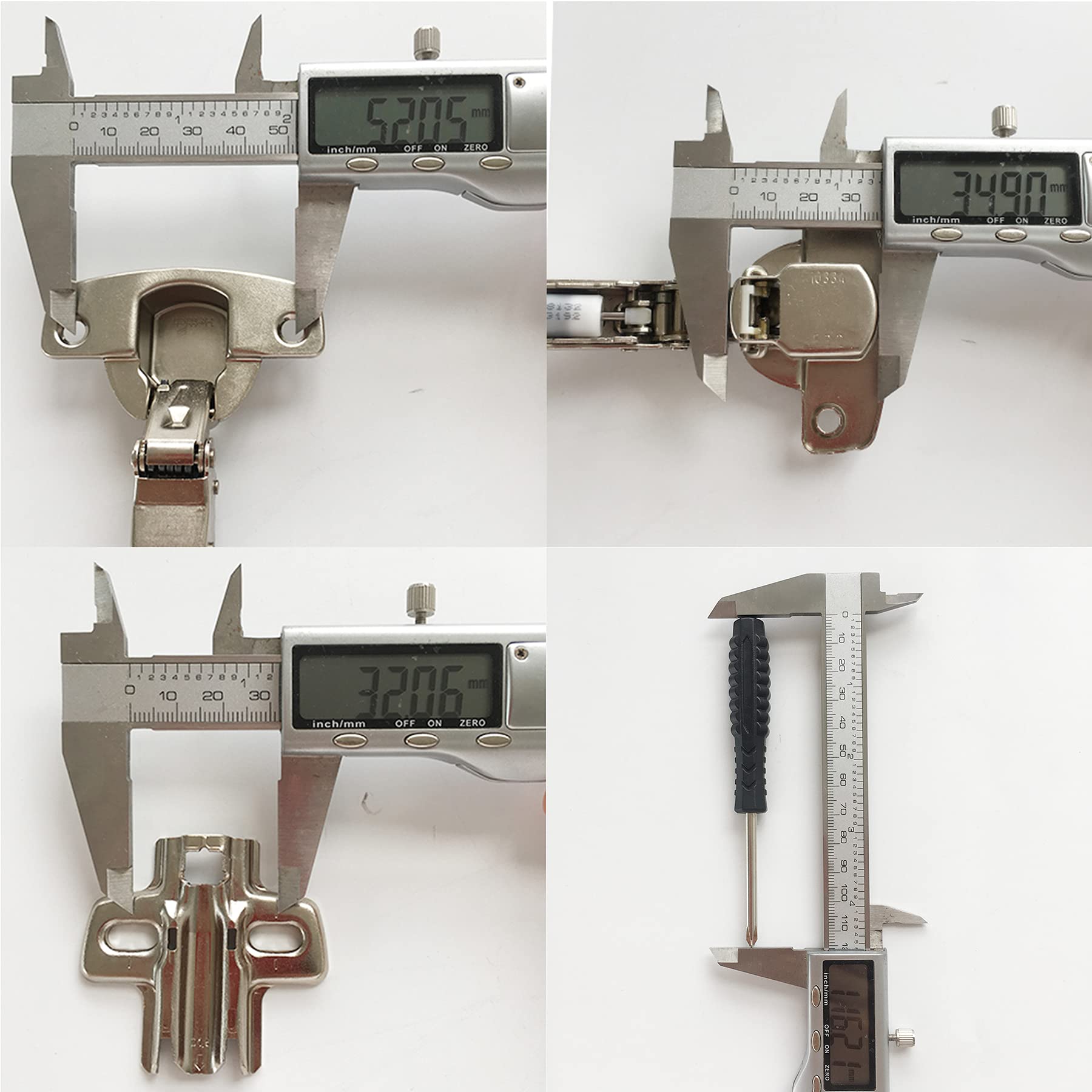

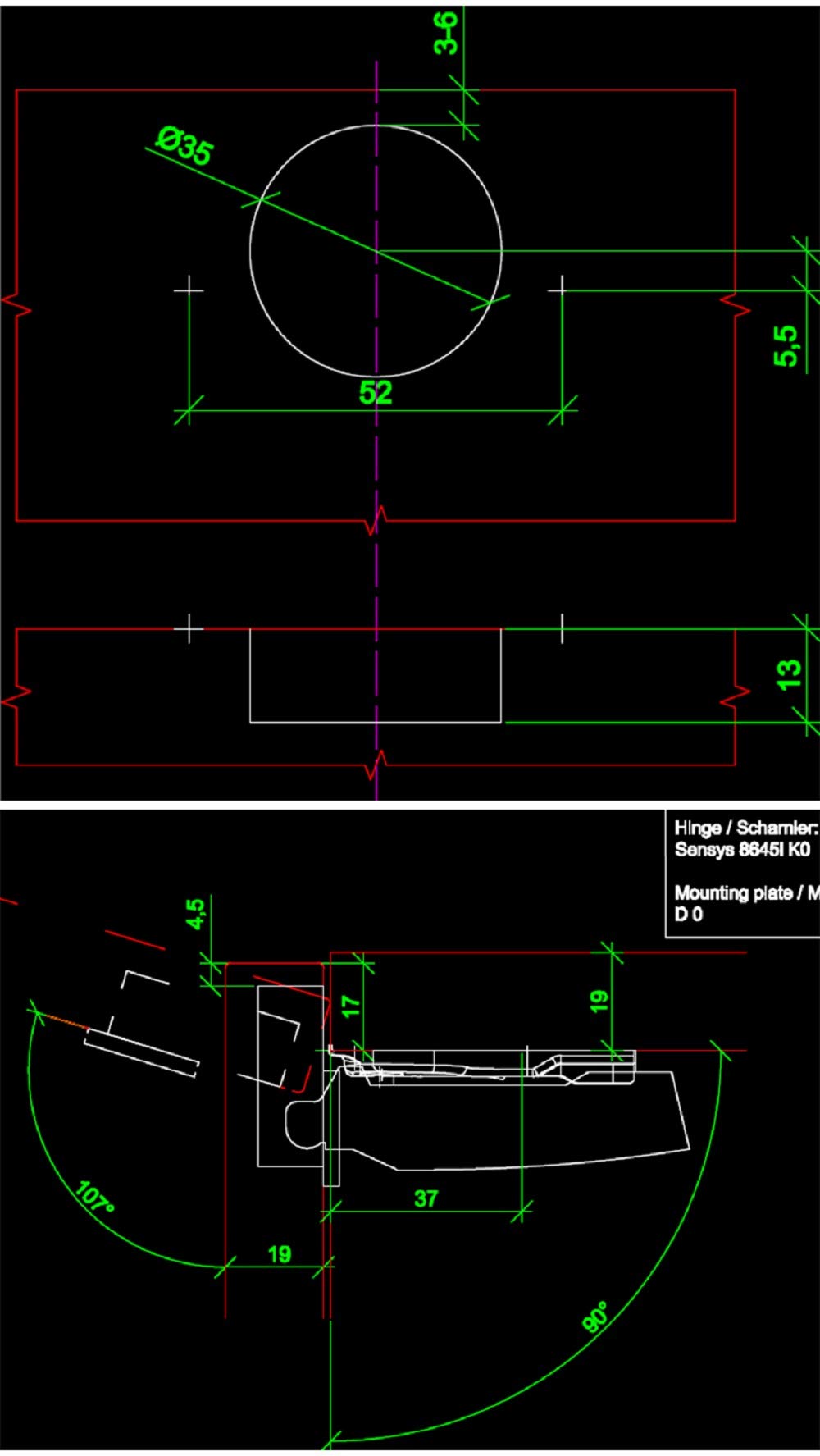

• For door thickness 14 - 22mm; Pot diameter Ø35mm; Pot depth 12.8 mm; Two holes distance in mounting plate is about 32mm

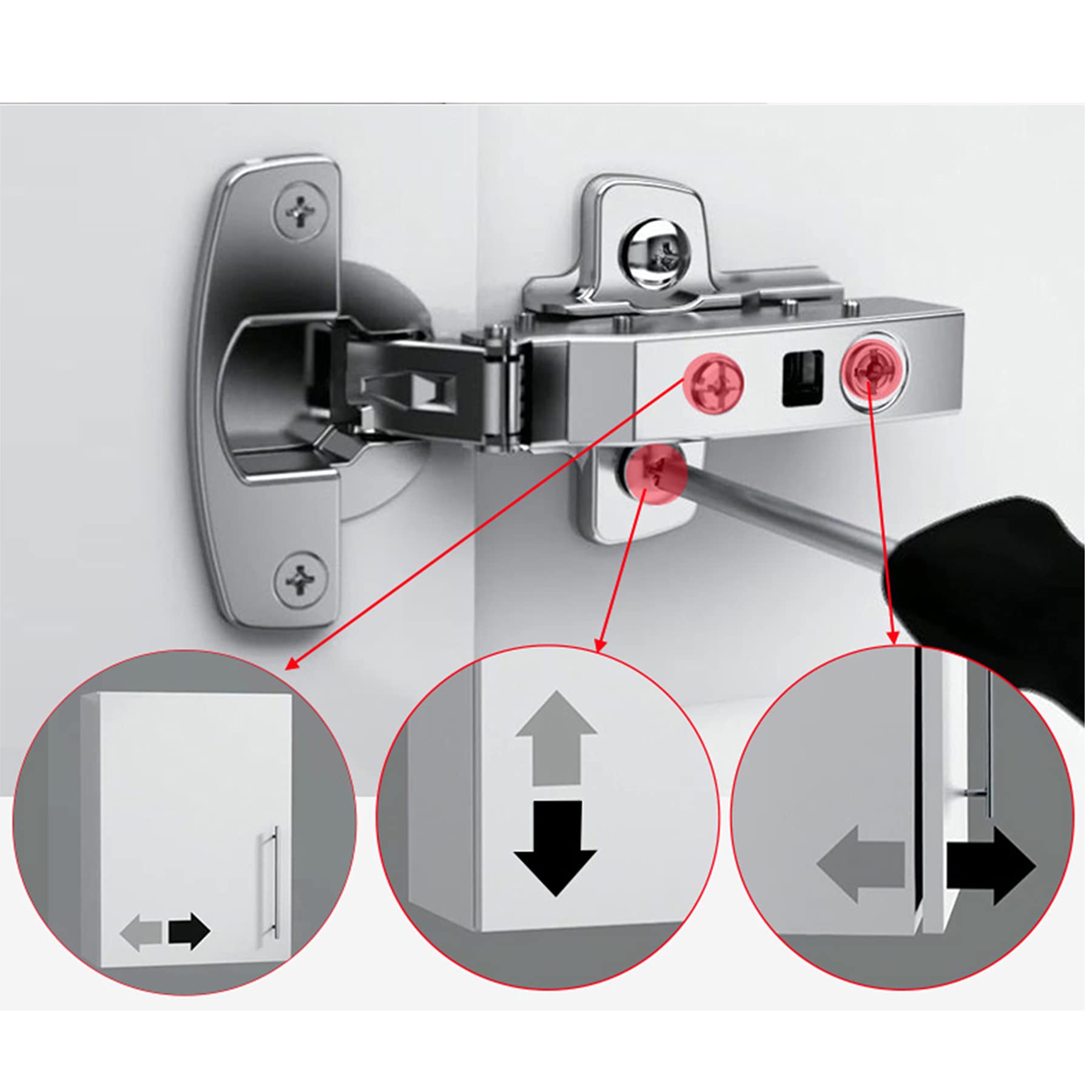

• Height adjustment at mounting plate; Excellent hinge replacement solution for kitchen worn out hinges

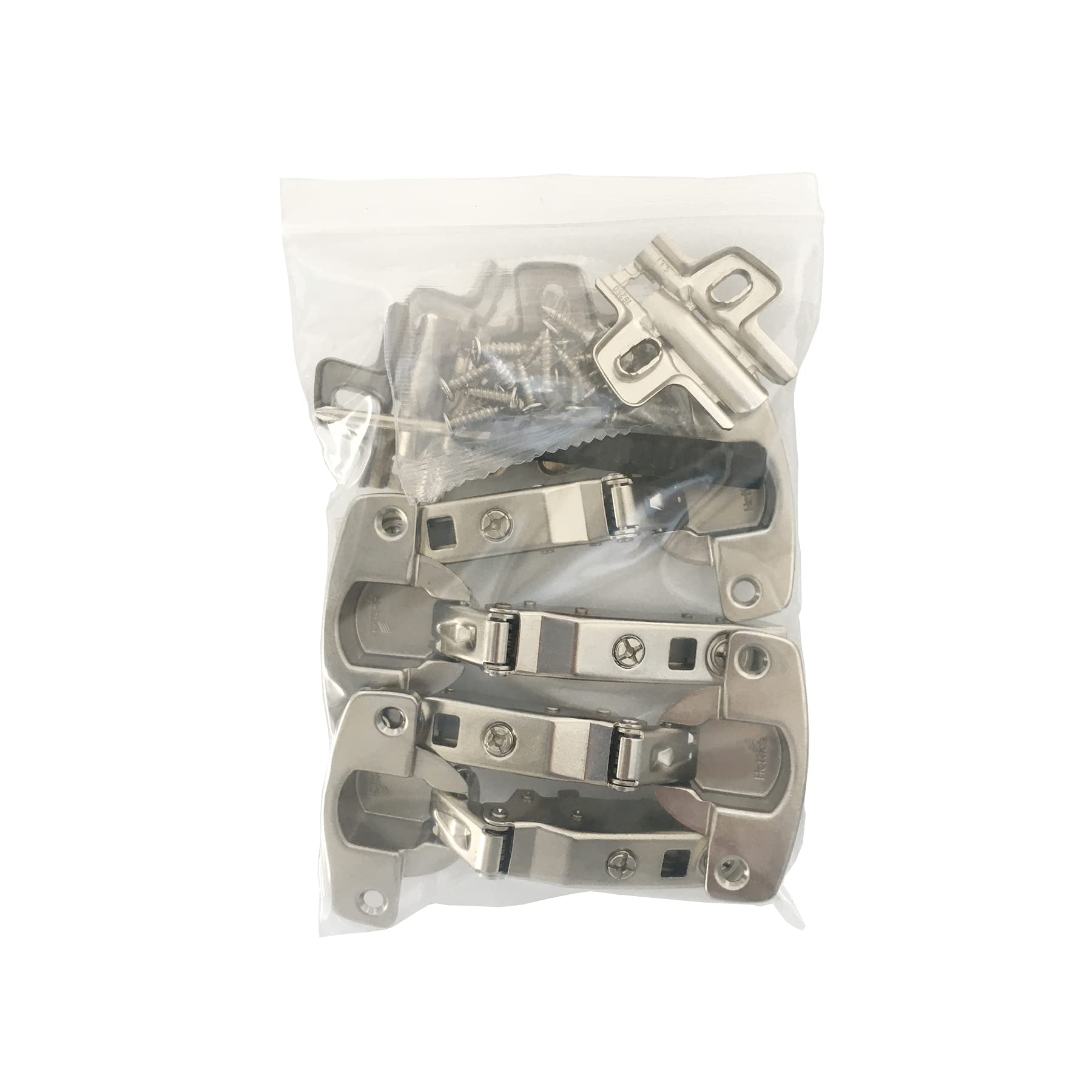

LIKERAINY WARNING -Please figure out the type of your hinge application (FULL OVERLAY, HALF OVERLAY, INSET) first before you purchase, which are very important. Product Dimension -Order no.: 9071205 -Article type: Sensys 8645i, Base 12.5mm, TH52, Integrated Self Closing System, for screwing on -Material: Steel -Opening angle (°): 110 Degree -Pot version: TH 52 -Pot diameter: Ø35mm -Pot depth: 12.8mm -Distance between the two screw holes (next to the cup): 52mm -Two holes distance in mounting plate is about 32mm -The distance from door edge to cup center is about 3-5mm -Mounting option: for screwing on -Door mounting option: full overlay -Hinge Cranking: 0 -Base: 12.5mm -For door thickness: 14mm (min.) – 22mm (max.) -For side panel thickness: 15mm (min.) - 20mm (max.) -Integrated overlay adjustment: +2 mm / -2 mm -Integrated depth adjustment: +3 mm/ -2 mm -Height adjustment at mounting plate -Hinge cup/arm finish: Steel nickel-plated -Cover cap for carcass: NO -Fast assembly: NO -Fast installation: Yes -Stay closed function: Yes Standard Package -Cabinet hinges: 4 Pcs -with fixing screws (size:M4x16mm): 16pcs -with screwdriver: 1 Pcs -No Mounting Instruction & Processing Information (See Pictures Above)
