Hettich 95 Degree Standard Hinges with Slide-on Assembly Kitchen Cabinet Cupboard Wardrobe Door Hinge Germany Brand 2333 Full Overlay, Pack of 2

• Small concealed hinge with slide on assembly
• Quality classification under EN 15570, Level 2
• Heavy Strong and Sturdy Steel Hinge; Door mounting option: Full Overlay Application
• For door thickness 14-25mm; Cup diameter 35 mm; Cup depth 11.1 mm
• Height adjustment at mounting plate; Excellent Hinge Replacement Solution for Kitchen Worn Out Hinges

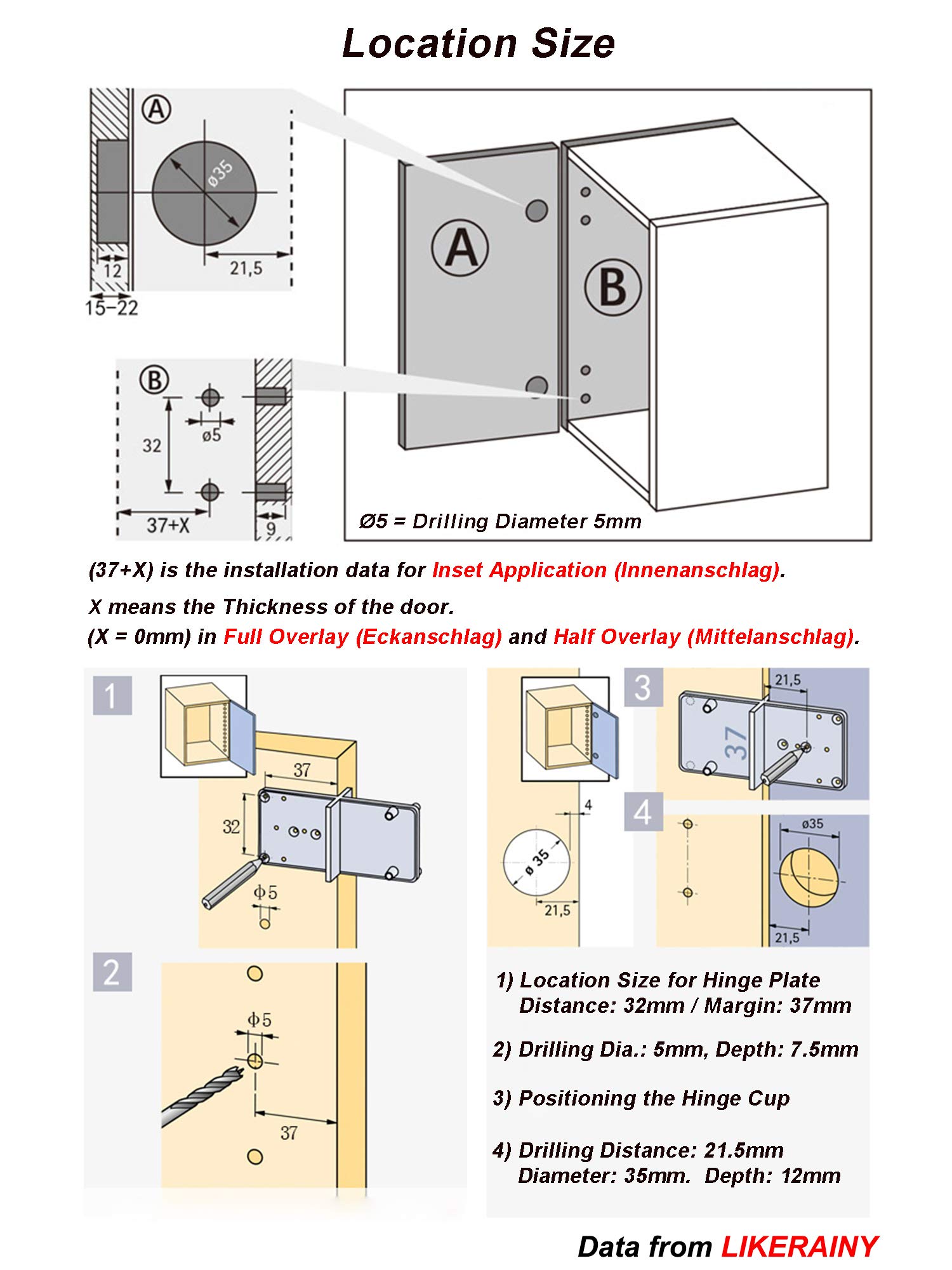

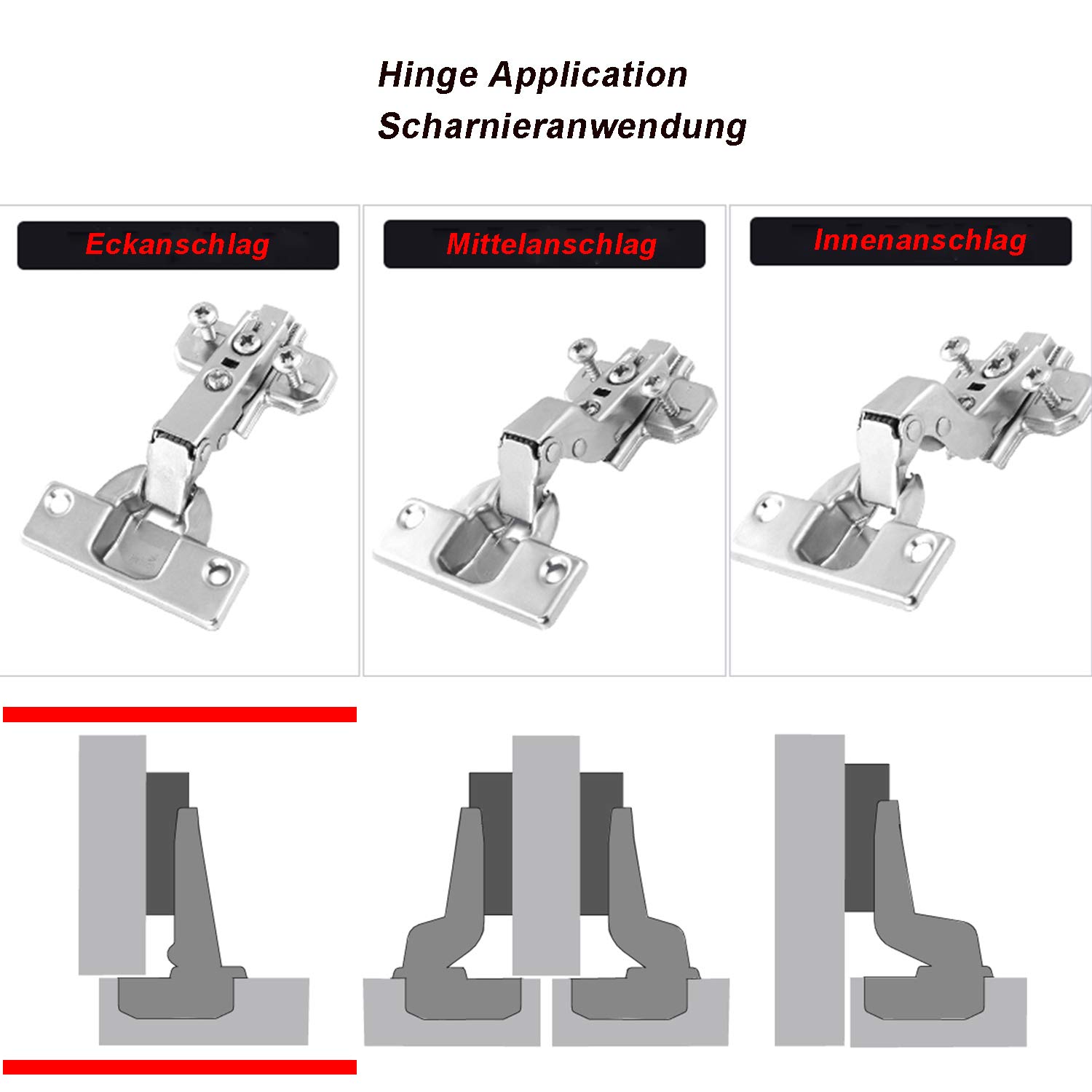

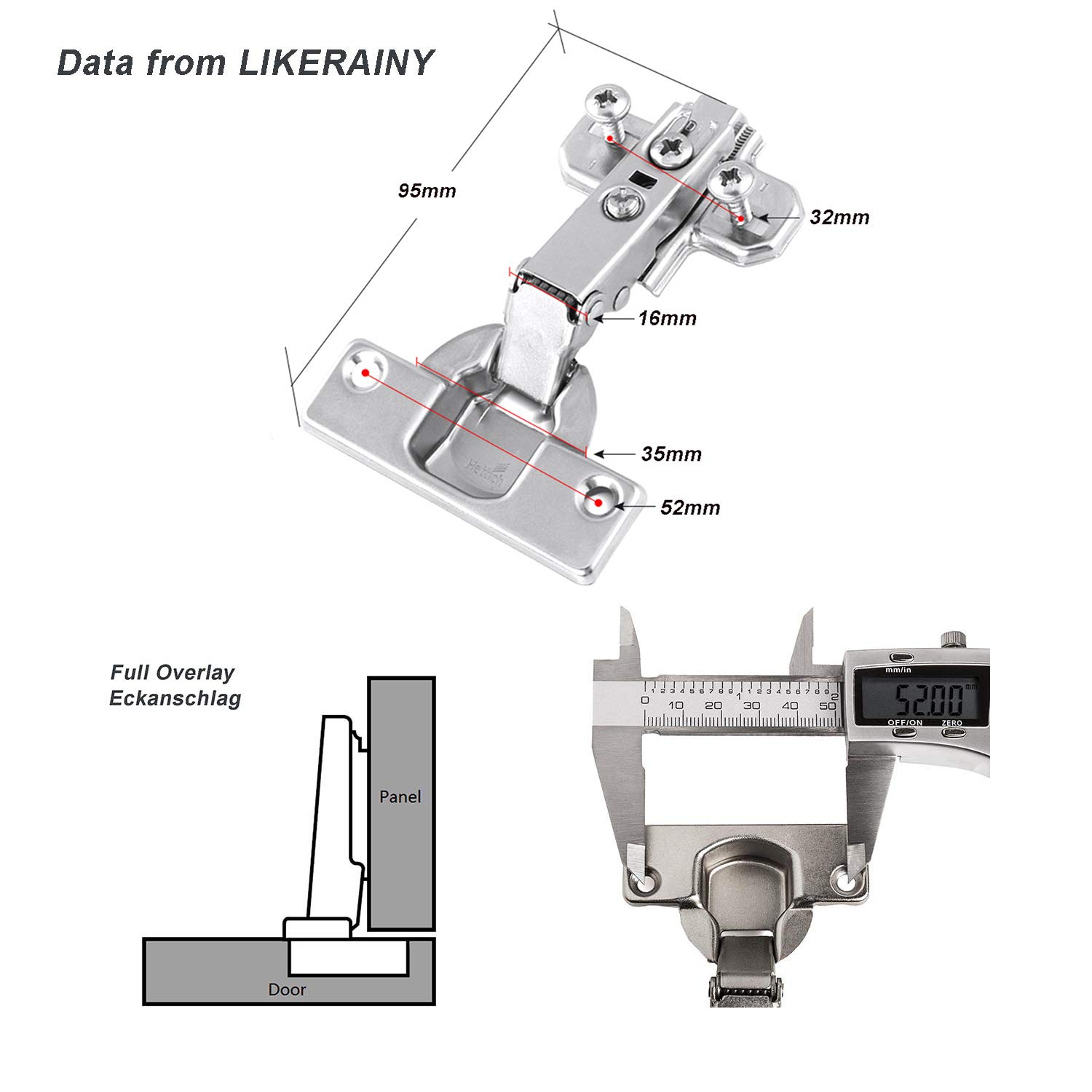

Please figure out the type of your hinge application (FULL OVERLAY, HALF OVERLAY, INSET) first before you purchase, which are very important. Product Demission -Article type: SlideOn 2333, Base 14.5 mm, TH 42, For screwing on -Material: Steel -Opening angle (°): 95 Degree -Cup version: TH 42 -Cup diameter: 35mm -Cup Depth: 11.1mm -DISTANCE between the two screw holes (next to the cup): 52mm -Mounting option: for screwing on -Door mounting option: Full Overlay Application (see pictures above) -Base: 14.5mm -For door thickness: 14mm (min) – 25mm (max) -Integrated overlay adjustment: +0.5 mm / -2.5 mm -Integrated depth adjustment: +2 mm/ -2 mm -Height adjustment at mounting plate -Hinge cup/arm finish: Steel nickel-plated -Cover cap for carcass: NO -Cover cap for hinge cup: NO -Stay closed function: Yes Standard Package -Hinges: 2 Pieces -Coming with fixing screws -No Mounting Instruction and Processing Information (See Pictures Above) Note -These hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary -These hinges are great suitable for cabinet cupboard doors. If you still need soft slow closing mechanism for these hinges, please search for Likerainy Hettich 60581 damper
