Hettich 110 Degree Standard Hinge Without Integrated Soft Close Mechanism for Kitchen Cabinet Cupboard Wardrobe Door Hinge Intermat 9943 Full Overlay Application Pack of 2

• Concealed hinge with clip-on installation
• Quality classification under EN 15570, Level 3

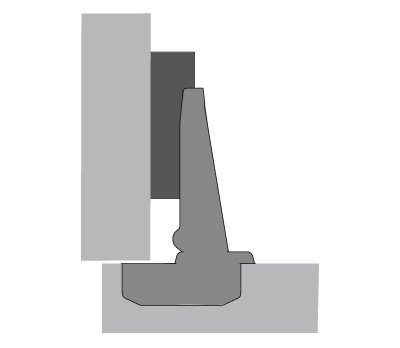

• Heavy, Strong, and Sturdy Steel Hinge; Door mounting option: Full Overlay Application
• For door thickness 15-25 mm; Cup diameter 35 mm; Cup depth 11.6 mm
• Height adjustment at mounting plate; Excellent Hinge Replacement Solution for Kitchen Worn Out Hinges

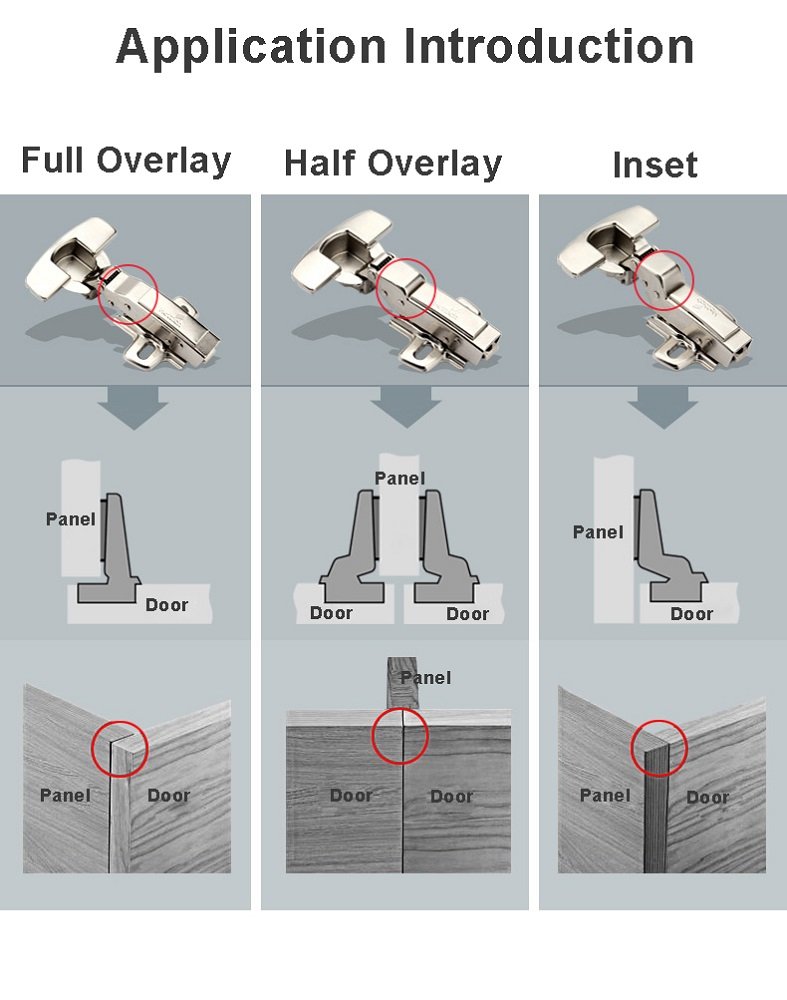

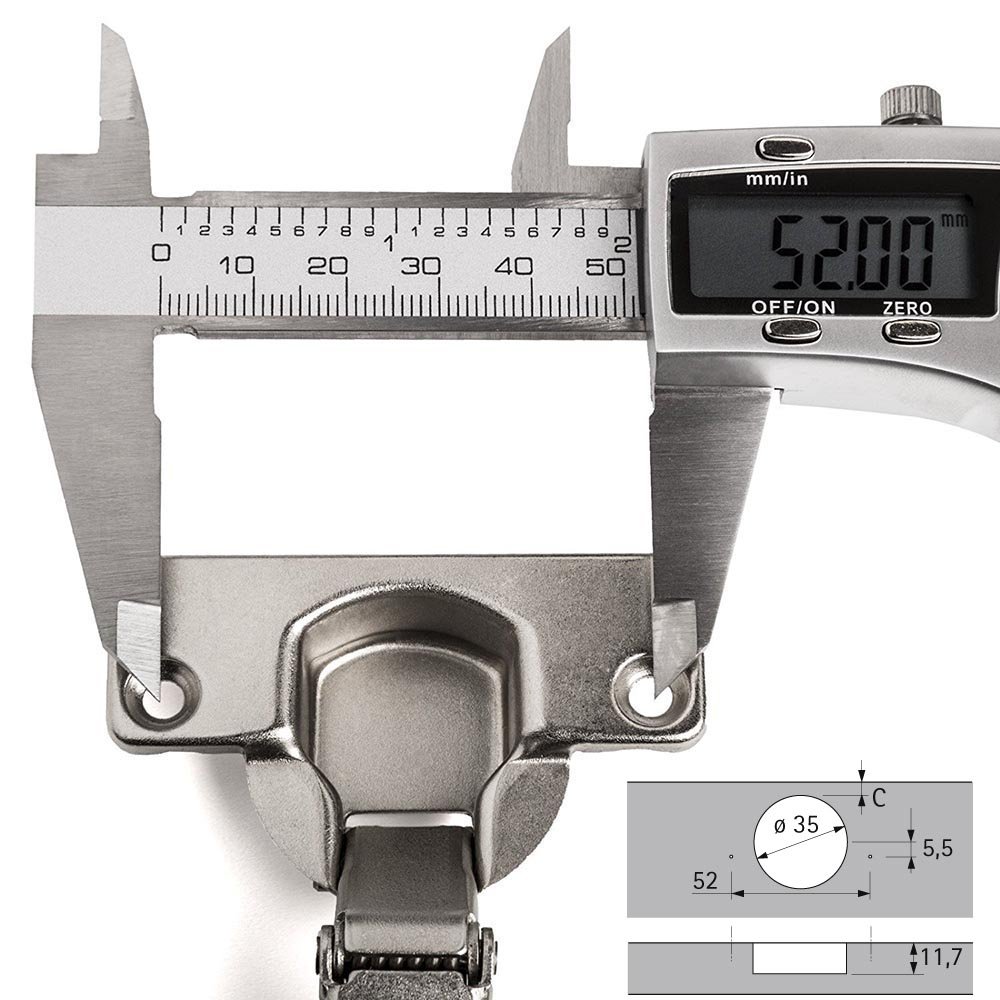

LIKERAINY WARNING: Please figure out the type of your hinge application (Full Overlay, Half Overlay, Inset) before you purchase, which are very important. Product Dimension -Article type: Intermat 9943, Base 12.5 mm, TH 42, For screwing on -Material: Steel -Opening angle (°): 110 Degree -Cup version: TH 42 -Cup diameter: 35mm -Cup Depth: 11.6mm -Distance between the two screw holes (next to the cup): 52mm -Mounting option: for screwing on -Door mounting option: Full Overlay Application (see photos above) -Base: 12.5mm -For door thickness: 15mm (min.) – 25mm (max.) -Integrated overlay adjustment: +2 mm / -2 mm -Integrated depth adjustment: +3 mm/ -2 mm -Height adjustment at mounting plate -Hinge cup/arm finish: Steel nickel-plated -Cover cap for carcass: NO -Cover cap for hinge cup: NO -Fast installation: Yes -Stay closed function: Yes Standard Package -Cabinet Hinges: 2 Pieces -with fixing screws -No Mounting Instruction and Processing Information (See Pictures Above) Note -These hinges are an essential when you are constructing cabinets or repairing the ones you have. They are quite easy to install and hold the doors as securely as necessary -These hinges are great suitable for kitchen cabinet cupboard door. If you still need cushioning mechanism for these hinges, please search for Likerainy Hettich 60581 damper
