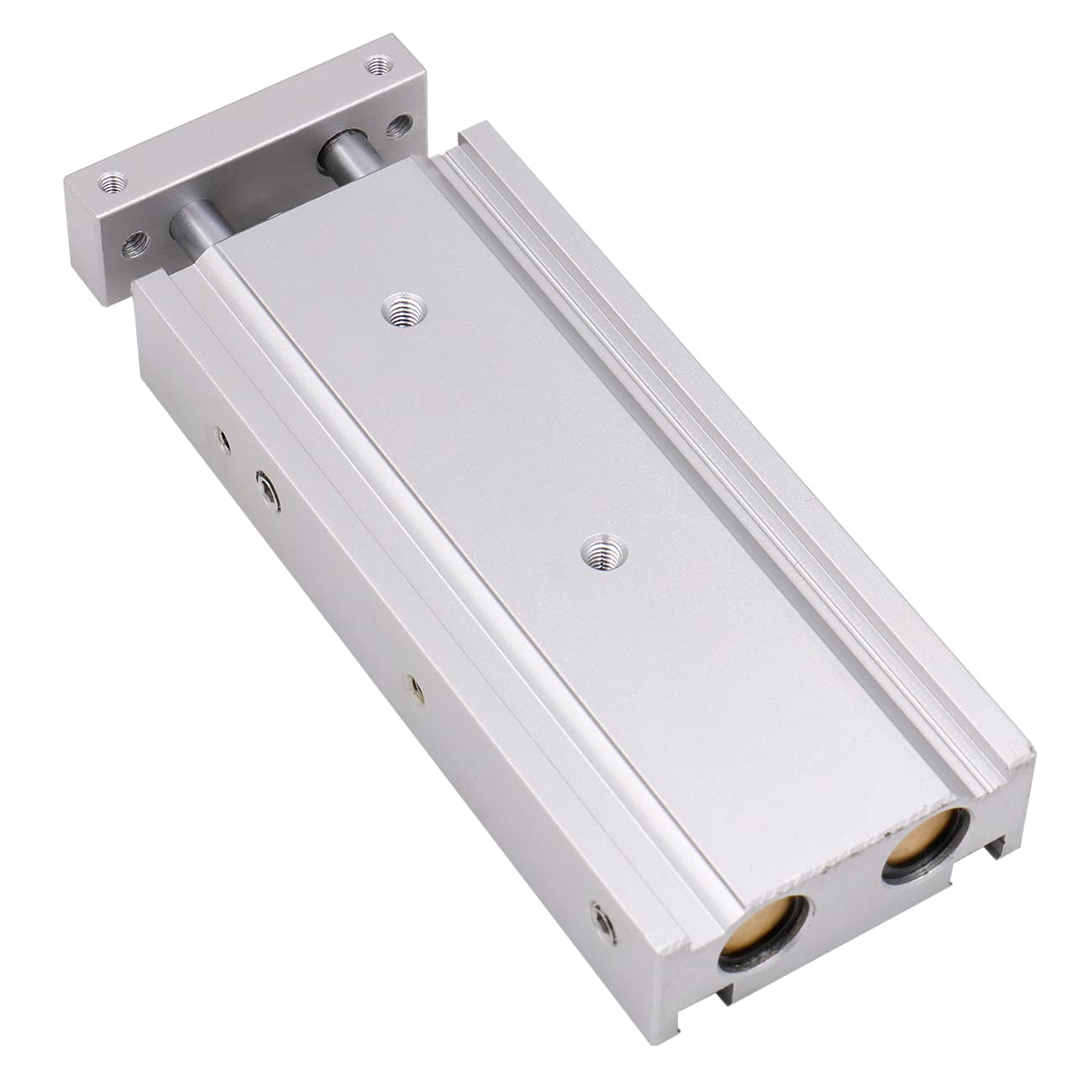

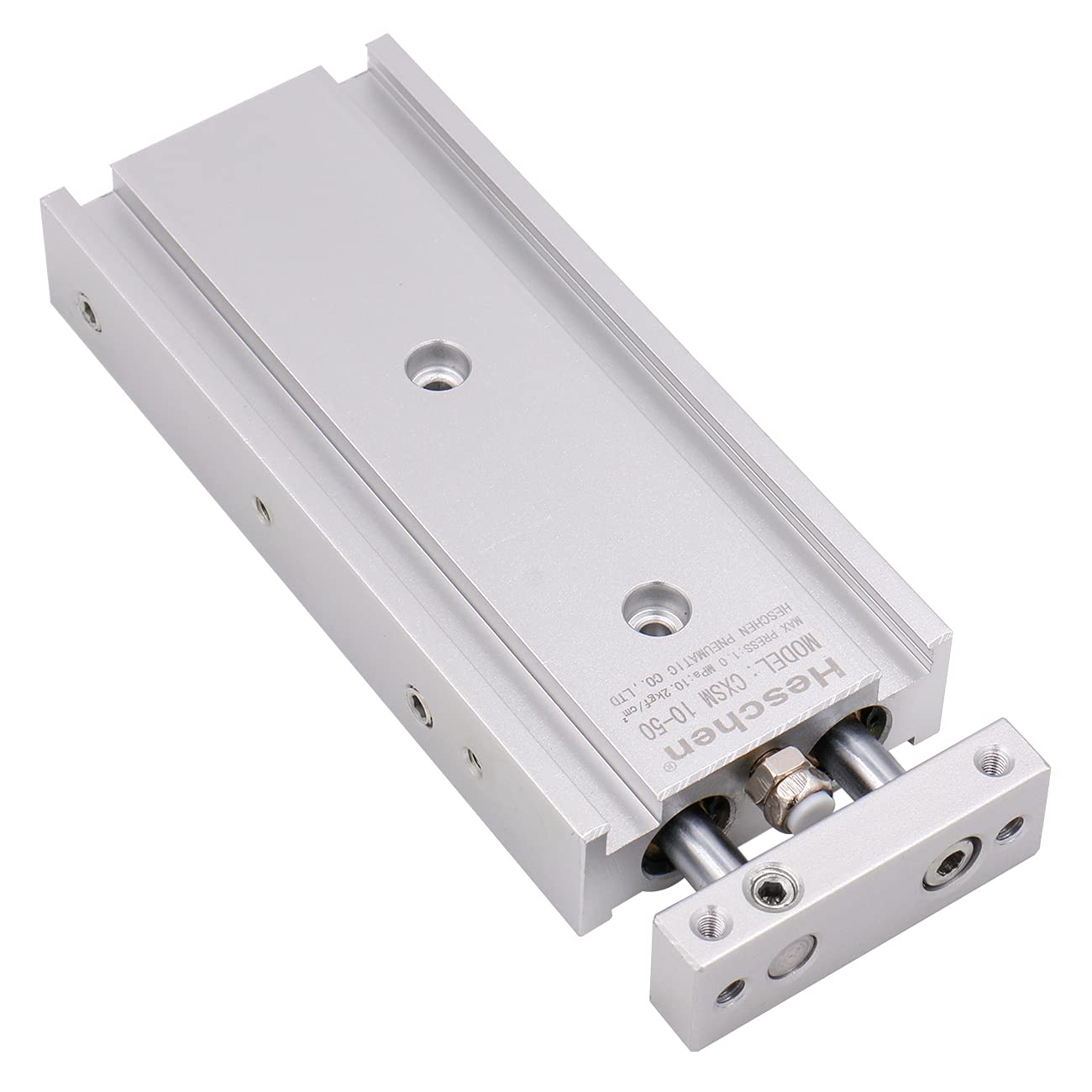

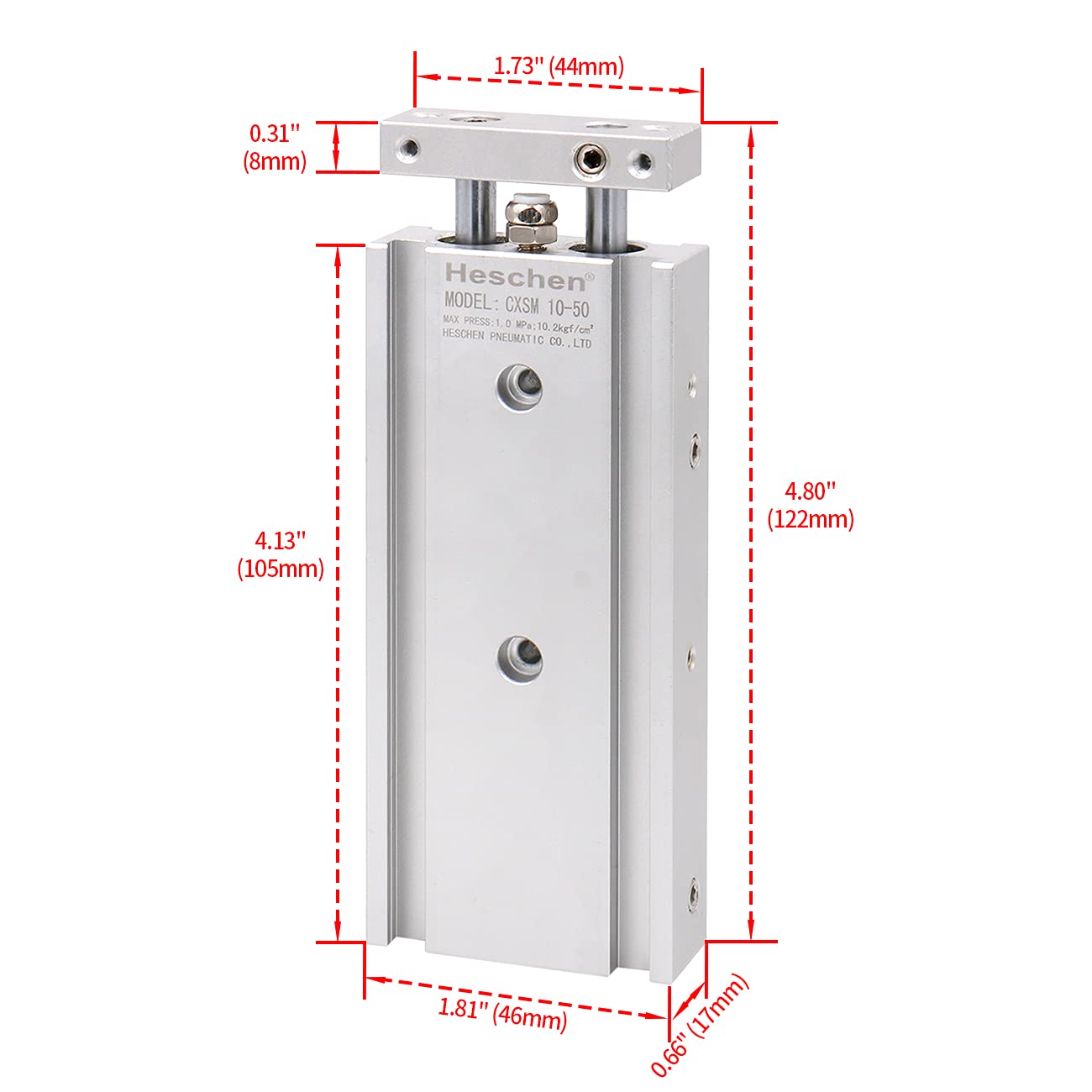

Heschen Dual Aluminum Air Cylinder CXSM 10-50 Guide Rod Plate Double Rod Guided Pneumatic Slide Bearing Cushioned 10mm Bore 50mm Stroke Double Acting (50mm Stroke)

• [Dual-Rod High Stability] The CXSM 10-50 features a twin-rod structure that provides double the output force and superior non-rotation accuracy. The dual-rod design effectively resists bending and torsion for stable, linear motion.
• [Precise 80mm Stroke] Specifications: 10mm Bore, 50mm Stroke, and 6mm Piston OD. This double-acting cylinder delivers smooth, consistent performance with a max operating pressure of 8 kgf/cm² (0.8 MPa).
• [Compact & Easy Mounting] Designed with an integrated guide rod plate and M4 mounting holes for quick, secure installation. The compact slide-table structure is ideal for space-limited automation and CNC projects.
• [Durable M5 Port Design] Equipped with standard M5×0.8 air ports for reliable pneumatic connections. The high-quality aluminum body ensures corrosion resistance and long-term durability in industrial environments.
• [Integrated Cushioning] Features built-in rubber bumpers (cushioned) to absorb end-of-stroke impact. This reduces noise, protects the cylinder from mechanical wear, and extends the service life of your equipment.

The Air cylinder is a mechanical devices which utilize the power of compressed gas to produce a force in a reciprocating linear motion. Compact Aluminum Air Cylinder CXSM 10-50 the Max.theoretical force is 4Kgf.
