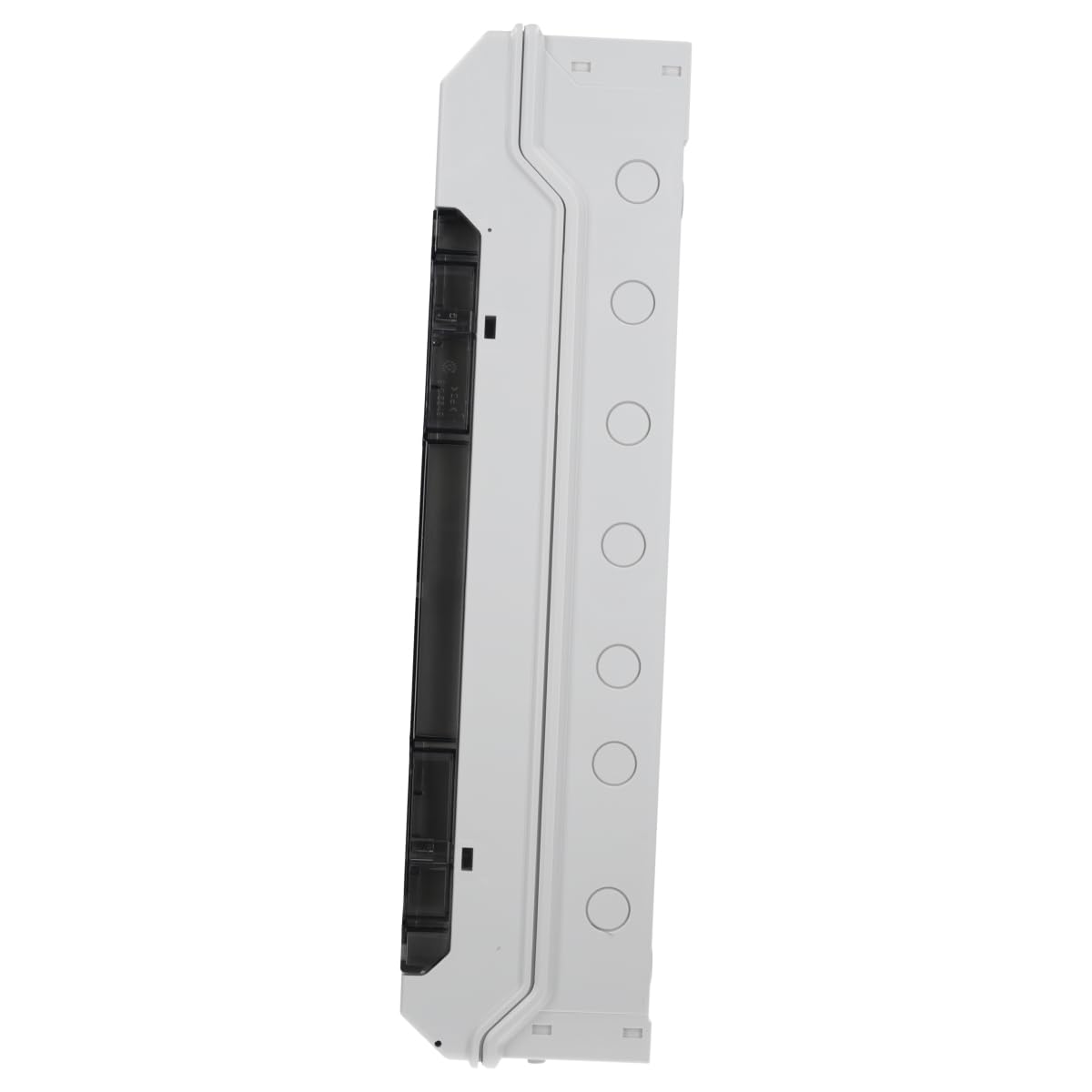

Hensel KV 9336 Waterproof Electric Enclosure Box IP 65

• integrated elastic membranes
• with transparent door
• FIXCONNECT-plug-in terminals
• Cable entry cover
• integrated elastic membranes
• with transparent door
• FIXCONNECT-plug-in terminals
• Cable entry cover

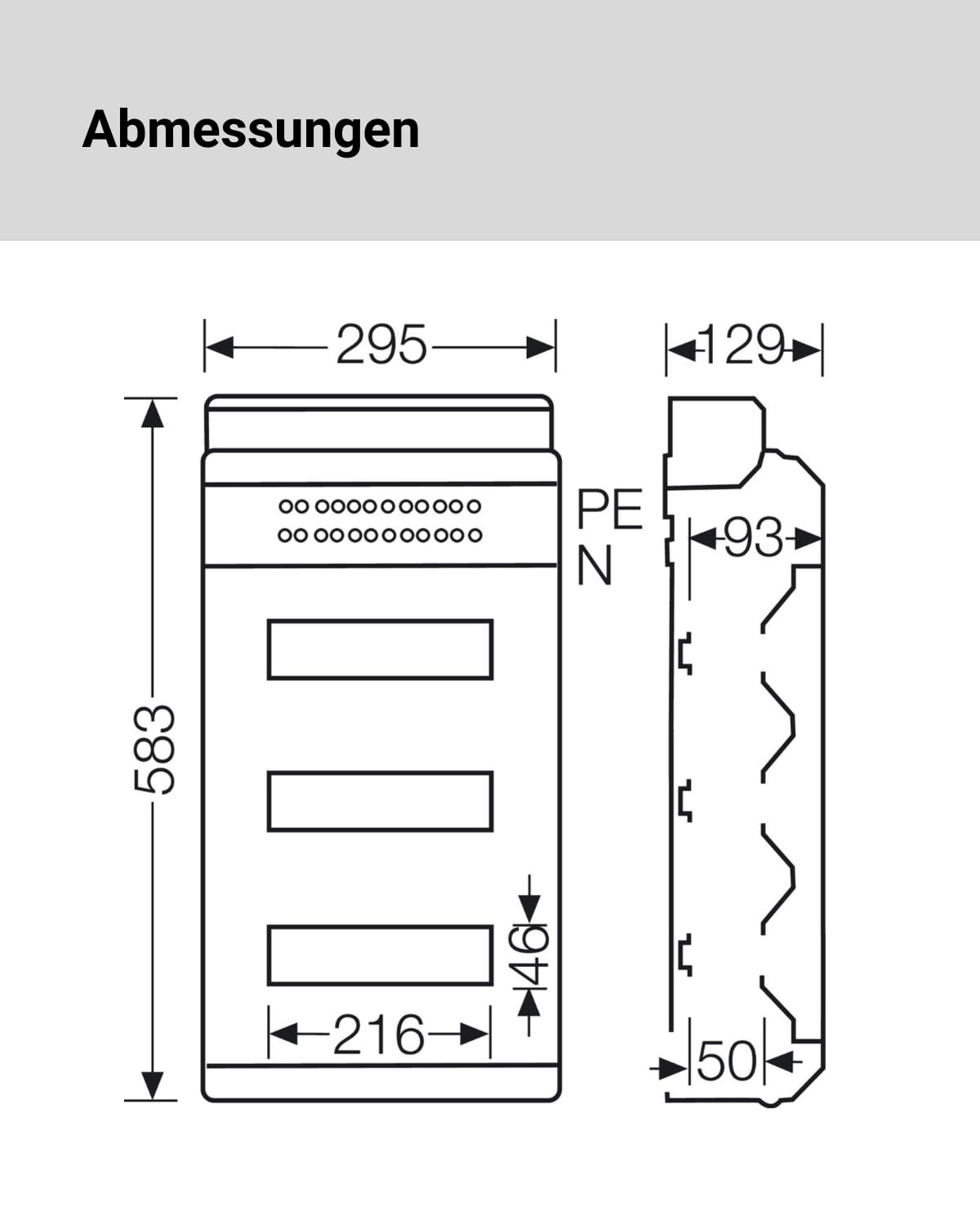

Hensel breaker boxes KV 9336, 36 division units (3 x 12 x 18 mm), IP 65 Consumer units in accordance with IEC 60439-3 and DIN 43871, for the installation of devices with clip-on mounting from 63 A to DIN 43880 double insulated (protection class II). PE and N terminals in FIXCONNECT-clamp technique with plug-in terminal from 1.5 mm ² to 4 mm ² for solid and flexible copper conductors as well as box terminal from 1.5 mm ² to 25 mm ² with wire protection and protection against self-loosening for solid, stranded and flexible copper conductors. Suitable for indoor and protected outdoor installation according to DIN VDE 0100, part 737 Ambient temperature up to a maximum of +40°C and a minimum of -5°C, relative humidity 50% at 40°C or 100% at 25°C. Material temperature range from - 25°C to 70°C burning behaviour according to VDE 0471, part 2 -glow-wire test 750°C, UL Subject 94 V-2. Rated voltage: AC 400 Volt. Rated current of N-rail: I = 80 A. Material: Thermoplastic, halogen and silicone free. Colour: grey, RAL 7035 with transparent door on all installation series. Make: HENSEL KV. Degree of protection: IP 65 with integrated elastic membranes. 36 division units at 18 mm Mounting structureTerminal number 6 x 25, 24 x 4Material housing PlasticDegree of protection (IP) IP65Width in number of modular spacings 12Number of rows 3Width 0.295 metresDIN-rail YesWith mounting plate NoColour grey.EMC version NoWith transparent cover YesMounting depth 93 mmDepth of 0.129 metresDegree of protection IP65Height of 0.583 metersVersion 3 rows IP65 with FixconnectExtension possible Yes Type of cover Closed
