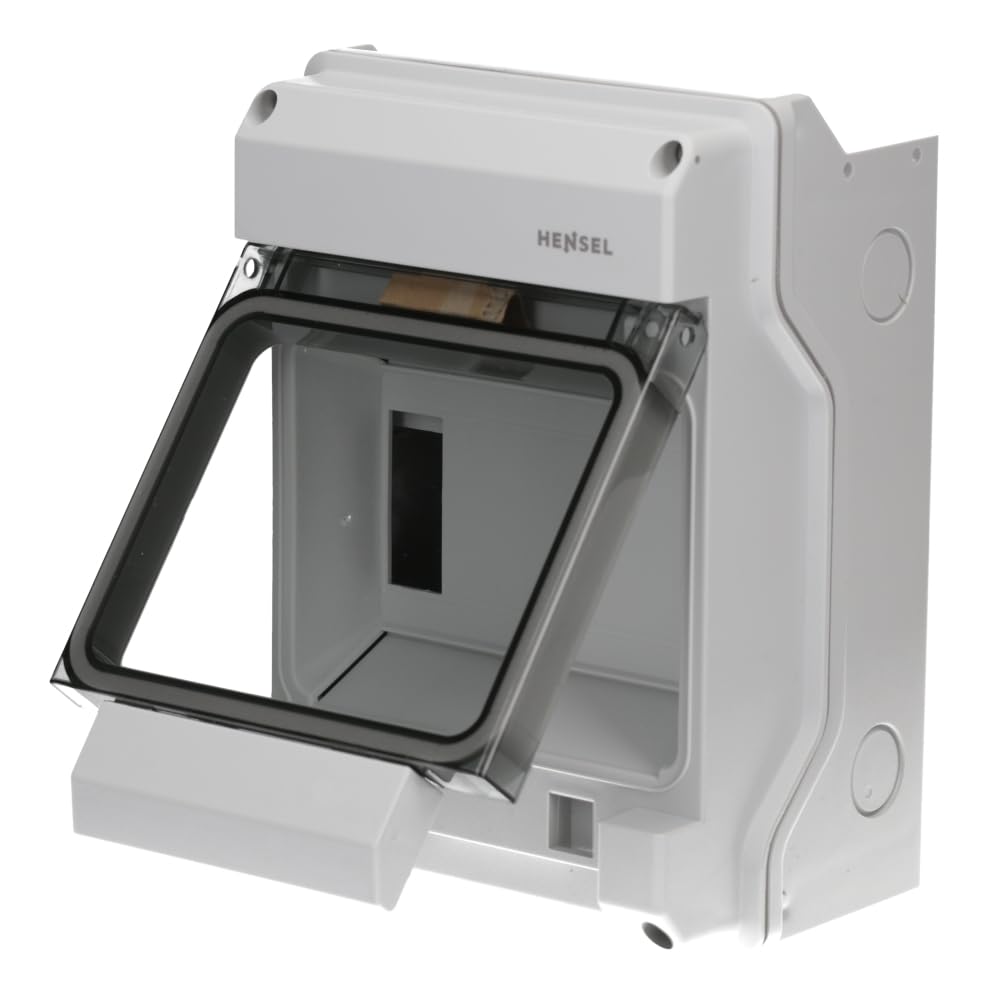

Hensel KV 9106 Housing IP 65, Electrical Terminal Box

• Removable elastic membrane seal
• Transparent door
• FIXCONNECT terminal system
• Plate ate the level of the cable entry

Hensel breaker box KV 9106, 6 modules (6x18 mm), IP 65Machines compact housing for mounting devices with snap fastening to 63 A per DIN 43 880, double insulated (class II). PE and N terminals in FIXCONNECT-clamp technique of 1.5 mm ² to 4 mm ² for solid and flexible copper conductor Box terminal and 1.5 mm ² up to 25 mm ² with wire protection and protection against self-loosening for solid, stranded and flexible copper conductors. Suitable for indoor and protected outdoor installation according to DIN VDE 0100, part of the 737th Ambient temperature for a maximum of + 40 ° C and a minimum of - 5 ° C, relative humidity 50% at 40 ° C or 100% at 25 ° C. Material temperature range from - 40 ° C to 70 ° C Flammability according to VDE 0471, part 2 - Glow wire test 750 ° C UL Subject 94 V-2. Rated voltage: AC 230/400 V rated current of the N-rail: I = 80 A. Material: Thermoplastic, halogen and silicone free. Colour: grey, RAL 7035 with transparent flap. Make: HENSEL KV. Degree of protection: IP 65 with integrated elastic membranes. 6 modules at 18 mm. Mounting structureMaterial housing PlasticDegree of protection (IP) IP65Width in number of modular spacings 6Number of rows 1Width of 0.146 metresWith mounting plate No.Colour greyEMC-version NoTransparent lid YesDIN rail YesDepth of 0.111 metresDegree of protection IP65Height 238 mmDepth 93 mmExtension possible YesClosed Type of cover
