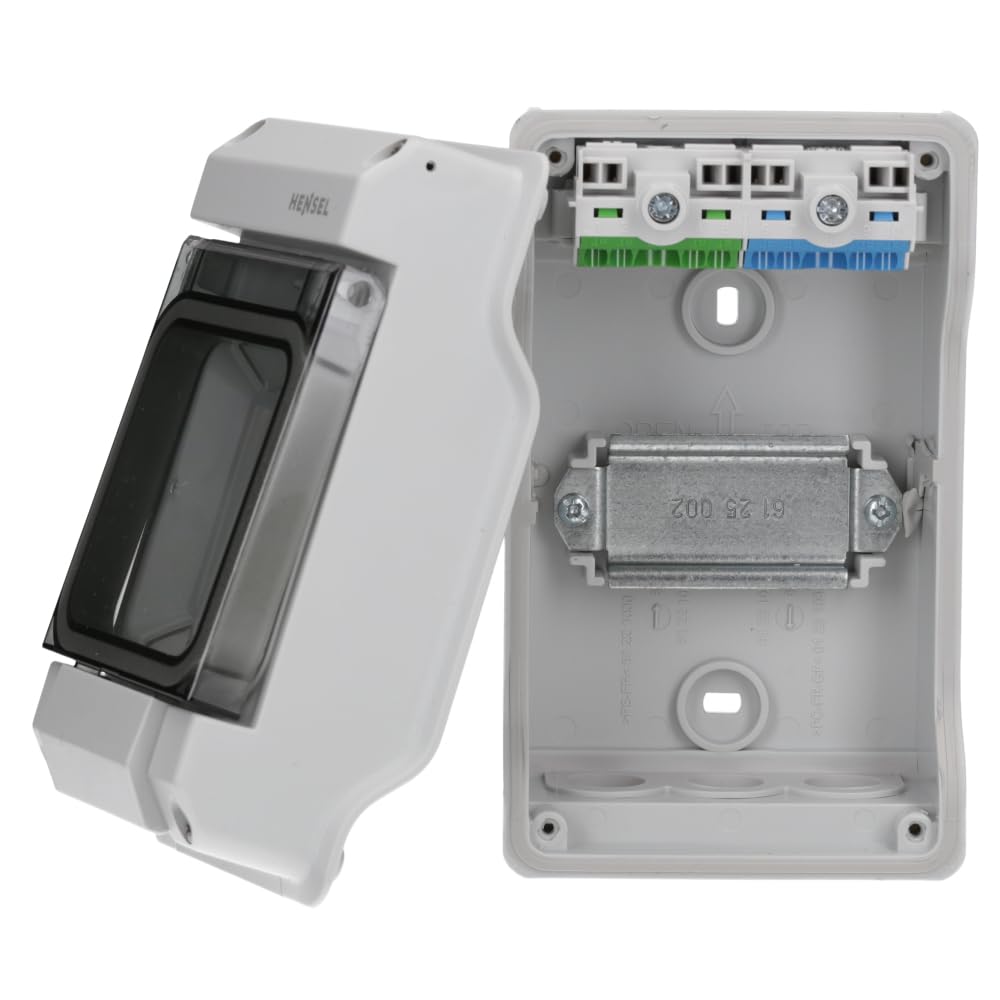

Hensel KV 9103 Machine Casing IP 65

• Integrated elastic membranes
• Comes with transparent door
• FIXCONNECT plug-in terminals
• Cable entry cover

Hensel Machine Casing KV 9103, 3 division units (3 x 18 mm), IP 65 Machine compact housing for mounting devices with snap fastening to 63 A per DIN 43 880, double insulated (class II). PE and N terminals in FIXCONNECT-clamp technique of 1.5 mm²to 4 mm²for solid and flexible copper conductor box terminal and 1.5 mm²up to 25 mm ² with wire protection and protection against self-loosening for solid, stranded and flexible copper conductors. Suitable for indoor and protected outdoor installation according to DIN VDE 0100, part 737 Ambient temperature for a maximum of +40°C and a minimum of -5°C, relative humidity 50% at 40°C or 100% at 25°C. Material temperature range from -40°C to 70°C Flammability according to VDE 0471, part 2 - Glow wire test 750°C UL Subject 94 V-2. Rated voltage: 230/400 Volts AC Rated current of the N-rail: I = 80 A. Material: Thermoplastic, halogen and silicone free. Colour: grey, RAL 7035 with transparent flap. Make: HENSEL KV. Degree of protection: IP 65 with integrated elastic membranes. 3 modular units a 18 mm. Mounting structureMaterial housing PlasticDegree of protection (IP) IP65Width in number of modular spacing 3Number of rows 1Width of 0.102 metreWith mounting plate No.Colour: grey. EMC Version NoRAL 7035Transparent lid YesDIN rail YesDepth of 0.091 metreHeight 197 mmDepth 72 mmExtension possible YesType of cover Closed
