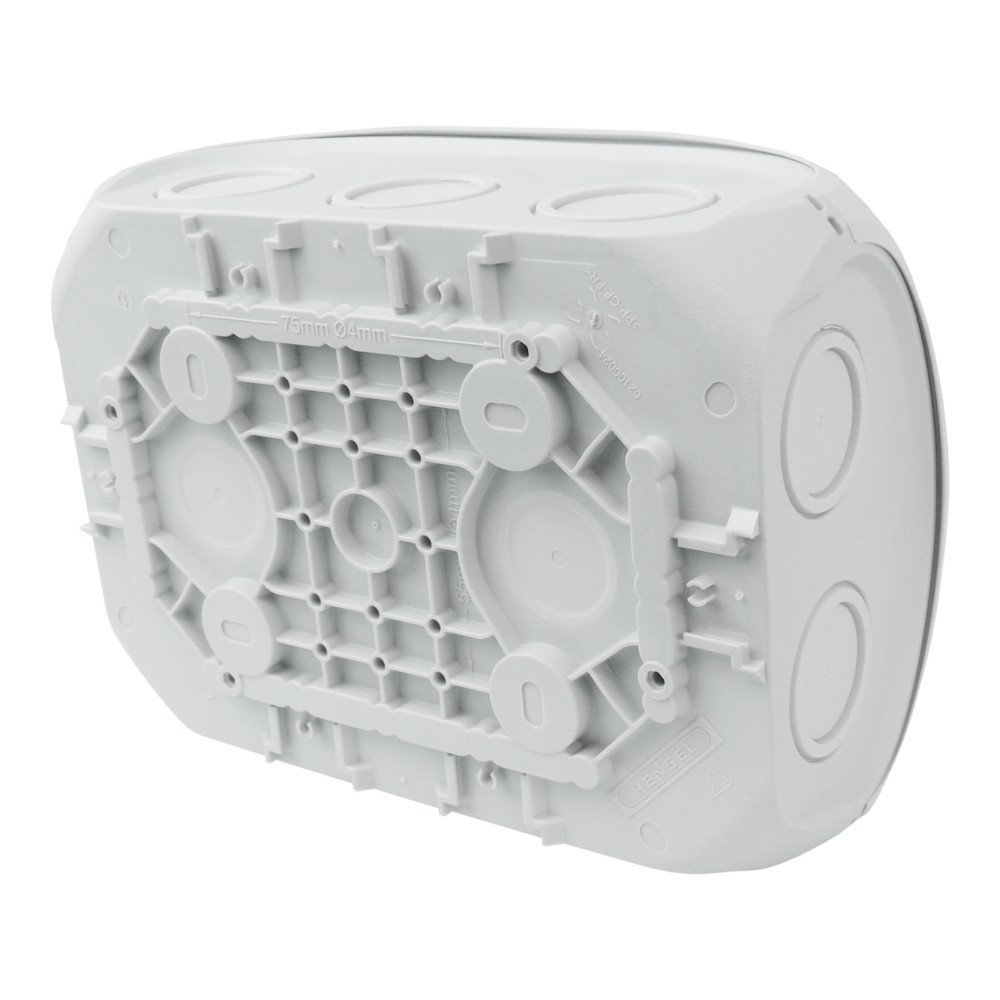

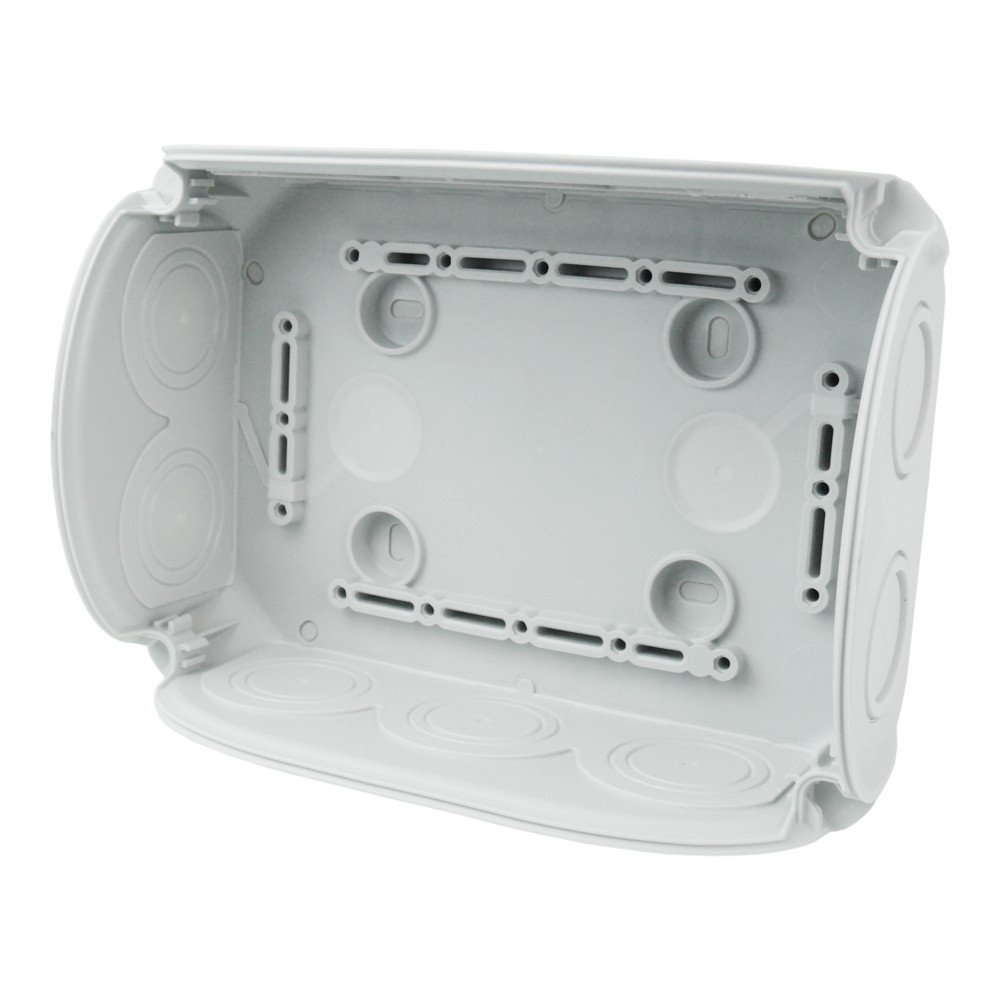

Hensel DK 1000 GZ Cable Junction Box without Clamp, IP66, Junction Box for Wet Room, Empty Housing, 5471 Grey

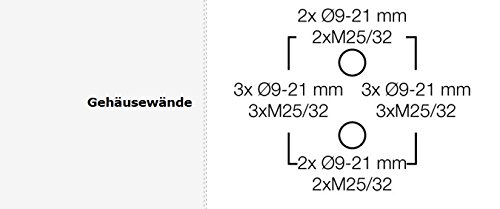

• Directions for use: Suitable for indoor and sheltered outdoor installation in accordance with standards: DIN VDE 0100 part 737. Mounting: surface-mounted. Type of opening in the housing: elastic sealing membranes. Number of elastic sealing membranes: 10. Sealing area elastic sealing membranes: Diameter 9-21 mm. Number of cable entries in the base: 1. Sealing area of a cable entry in the base: Diameter 9-20 mm.
• Colour: grey, RAL 7035. Material: PP (polypropylene). Protection type: IP66. Protection degree against mechanical stress: IK07 (2 Joules). Ambient temperature: -25 °C to +40 °C.
• Fire protection in case of internal error: Requirements for electrical devices from equipment standards and laws. Minimum requirements, glow wire testing according to IEC 60695-2-11, 650 °C for housing and cable entries, 850 °C for live parts. Burning behaviour: Glow wire test IEC 60695-2-11:750°C UL Subject 94: V-2, flame-retardant, self-extinguishing.

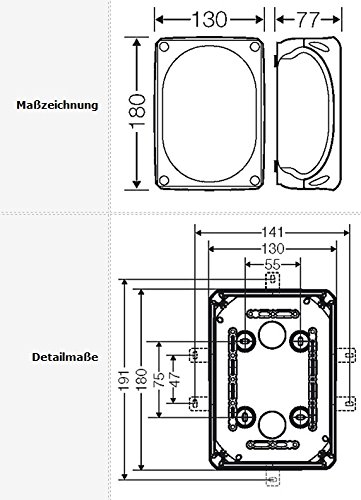

• Installation dimensions: Installation width: 150 mm, installation height: 97 mm, max. installation depth: 62 mm. Weight: 0.251 kg.

Hensel aims to offer customers high-quality products and satisfy the needs of all customers. To achieve this, Hensel spends more time on the development and design of the products. -
