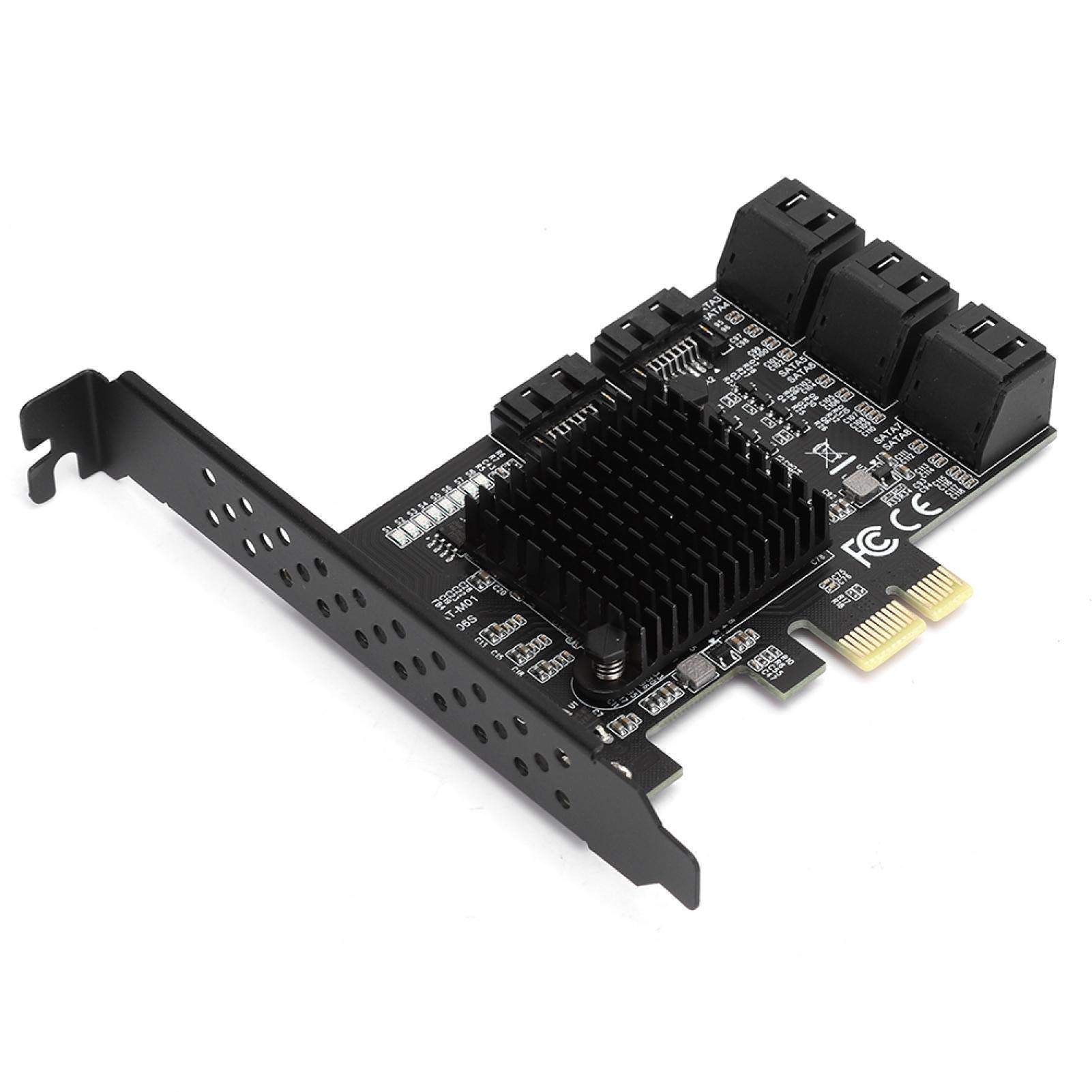

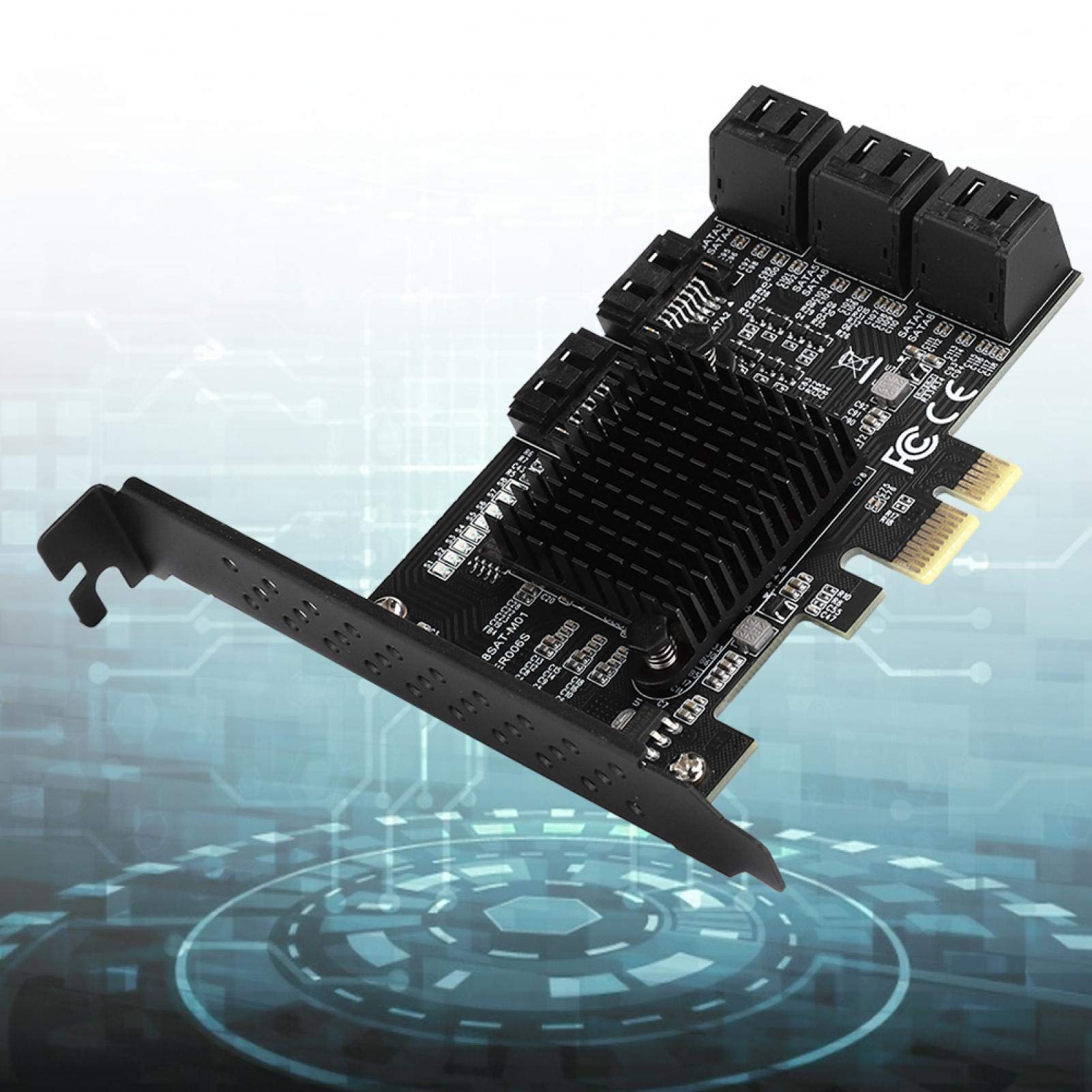

Heayzoki 8 Ports PCI-E to SATA 3.0 Card,PCI Express PCI-e Expansion Card,PCI-E to SATA3.0 Controller Expansion Board,for Windows 7/8/XP/10,with Driver Disc,Semi-High Baffle

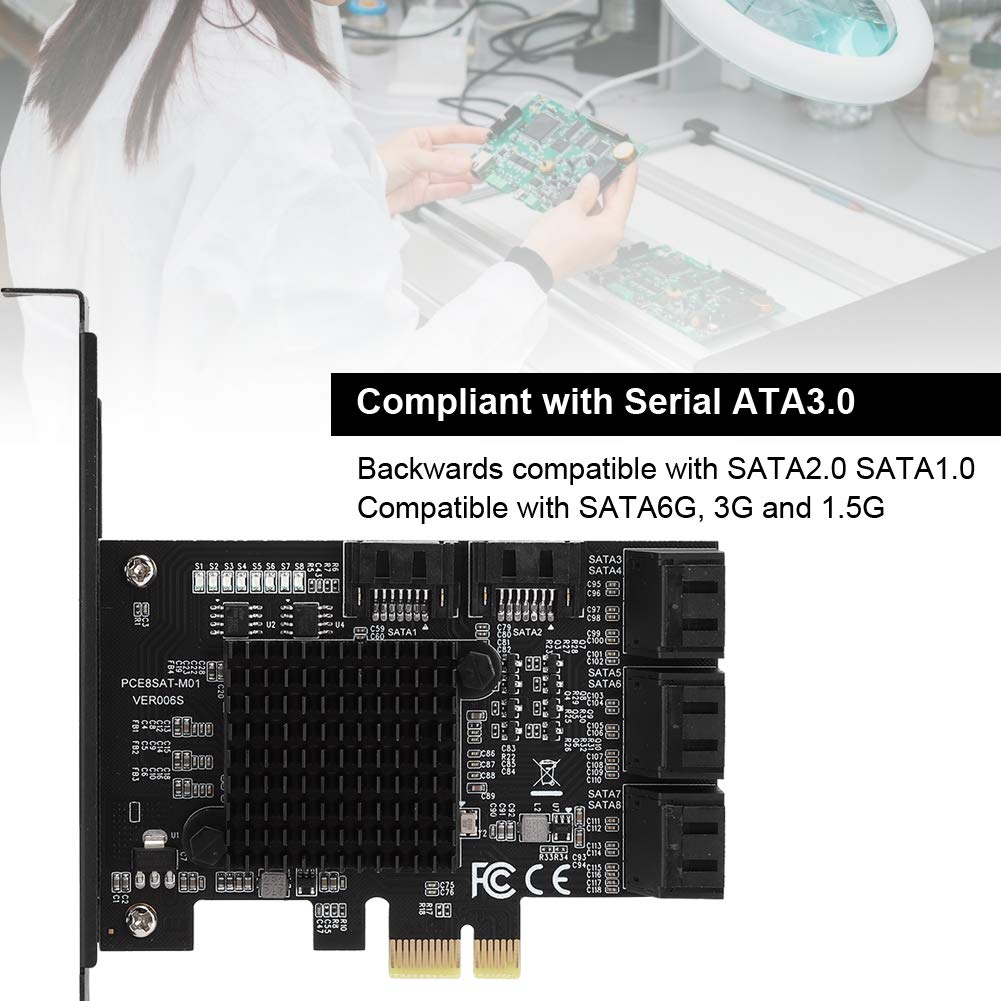

• 【Wide Compatibility】Compliant with Serial ATA 3.0 specification, backward compatible with SATA2.0 SATA1.0; PCI-Express v2.0 compliant, backward compatible with PCI-Express v1.0.Fit For Windows 7/8/XP/10,fit for Ubuntu system.
• 【Communication Speeds】Supports communication speeds of 6.0 Gbps, 3.0 Gbps and 1.5 Gbps; supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x, and Gen 3i.

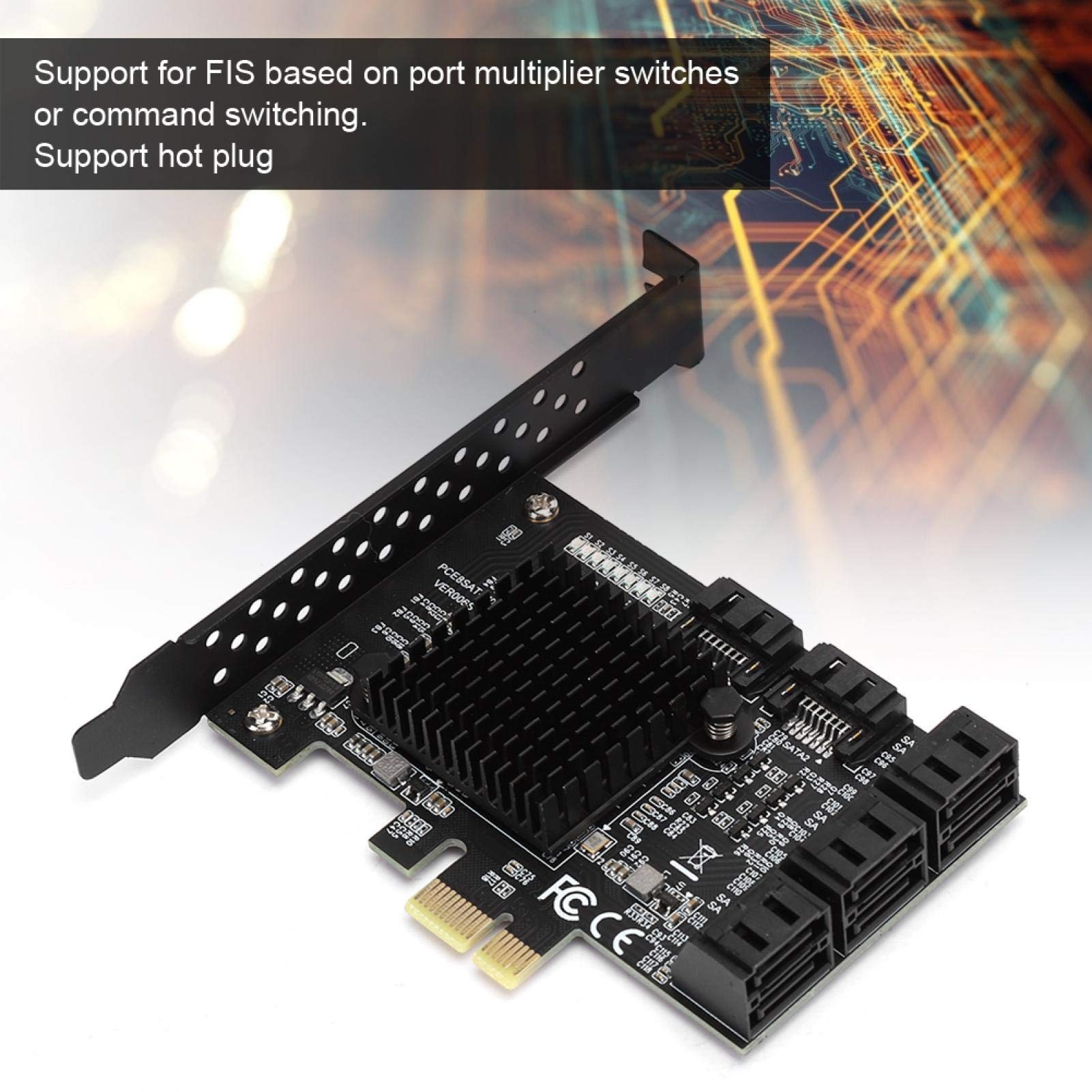

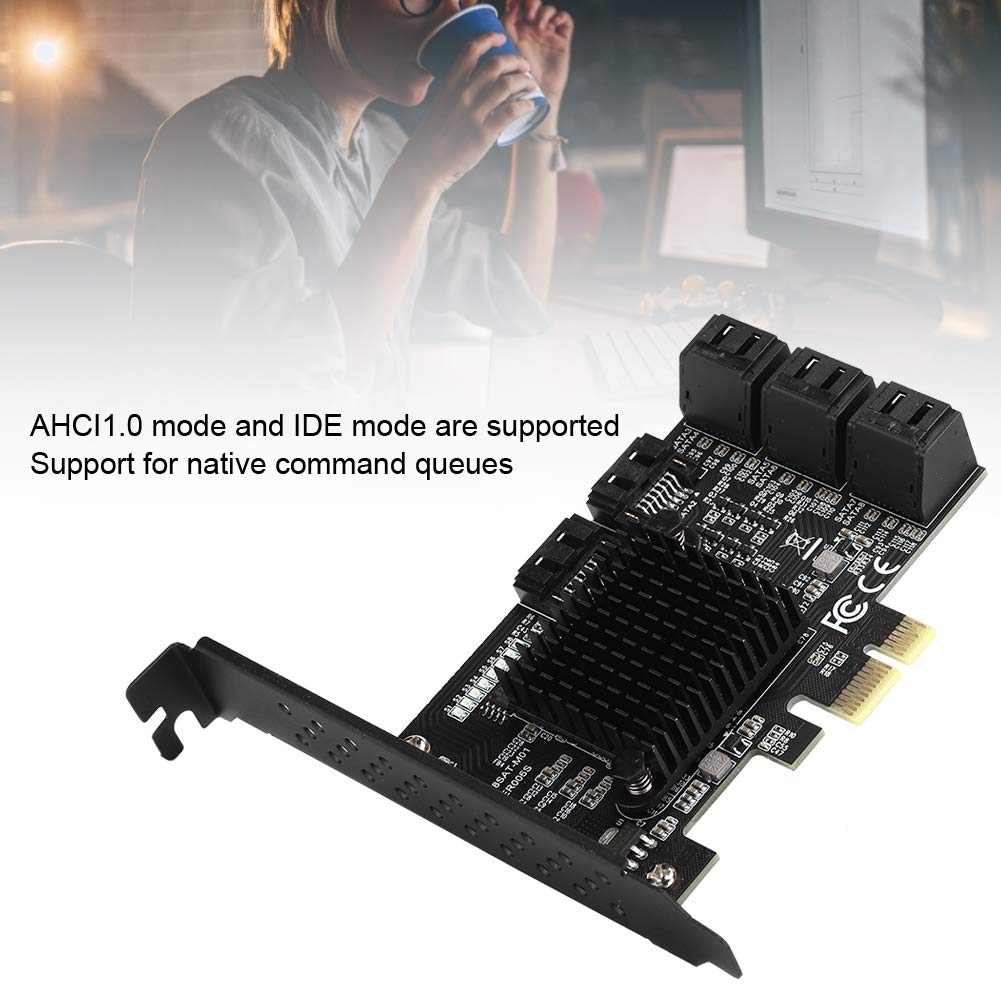

• 【Supports Mode】Supports AHCI1.0 mode and IDE mode, native command queue (NCQ), FIS based on port multiplier switch or command switching and hot plug.
• 【Compatible Hard Drives】Compatible with SATA6G, 3G and 1.5G hard drives.
• 【Warm Tips】User with SATA3.0 data cable for best results.

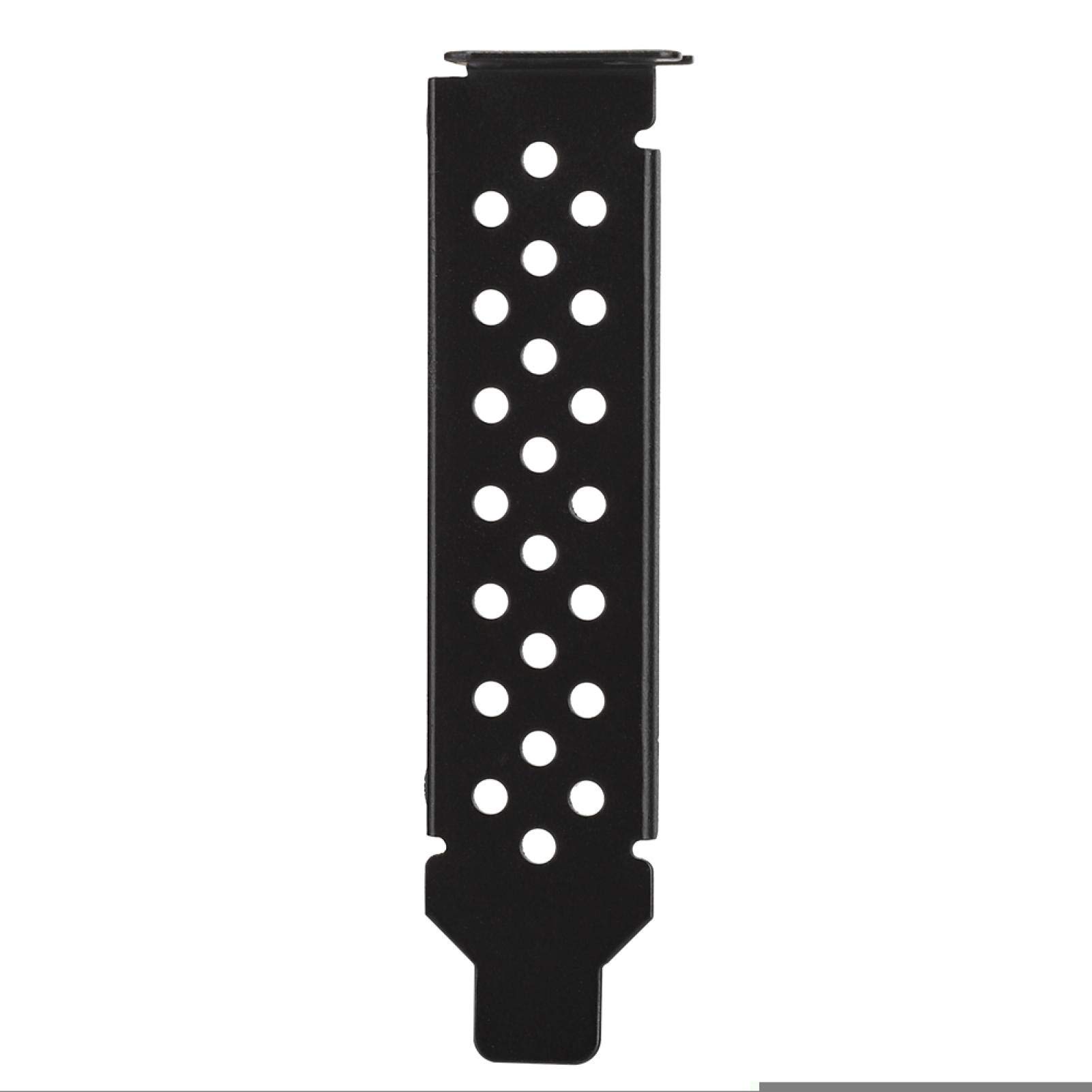

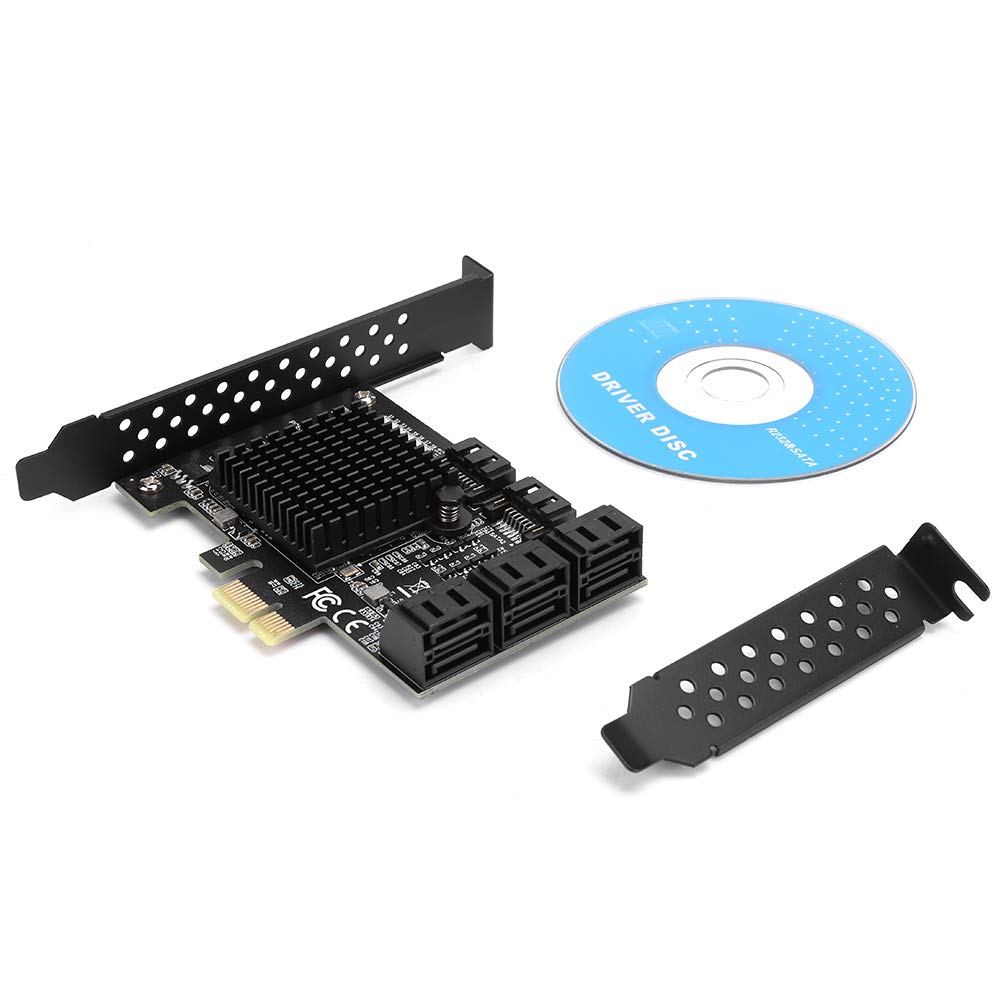

Note: PCI-E must have a slot above V2.0, V1.0 will not exceed 250M, PCI-E can be X1 or X16 as long as it is V2.0 version, there is spare X16 slot directly into X16 slot on. BOIS setting of the motherboard: SATA mode should be changed to AHCI, although some motherboard PCIE is version 2.0, but BOIS does not enable high-speed transmission mode by default (gen2 high speed mode) needs to be manually turned on. In PCI-E 1.0 mode, only 200- 250M, 2.0 mode is below 350-400M. If you don't accept it, change the motherboard. When the SATA port is used at the same time, it will slow down. It is not suitable for users who are pursuing speed. It is only used for the extended hard disk interface. Specification: Item Type:PCI-E to SATA 3.0 Card Model:PCE8SAT-M01 Master: Fit for Marvell 88SE92xx+JMB5XX Interface: PCI-E 1X 2X 4X 8X 16X Support System:Fit For Windows 7/8/XP/10 Fit For Ubuntu Expansion Interface: 8 x SATA3.0 Interfaces Package List: 1 x Expansion Card 1 x Semi-High Baffle 1 x Driver Disc
