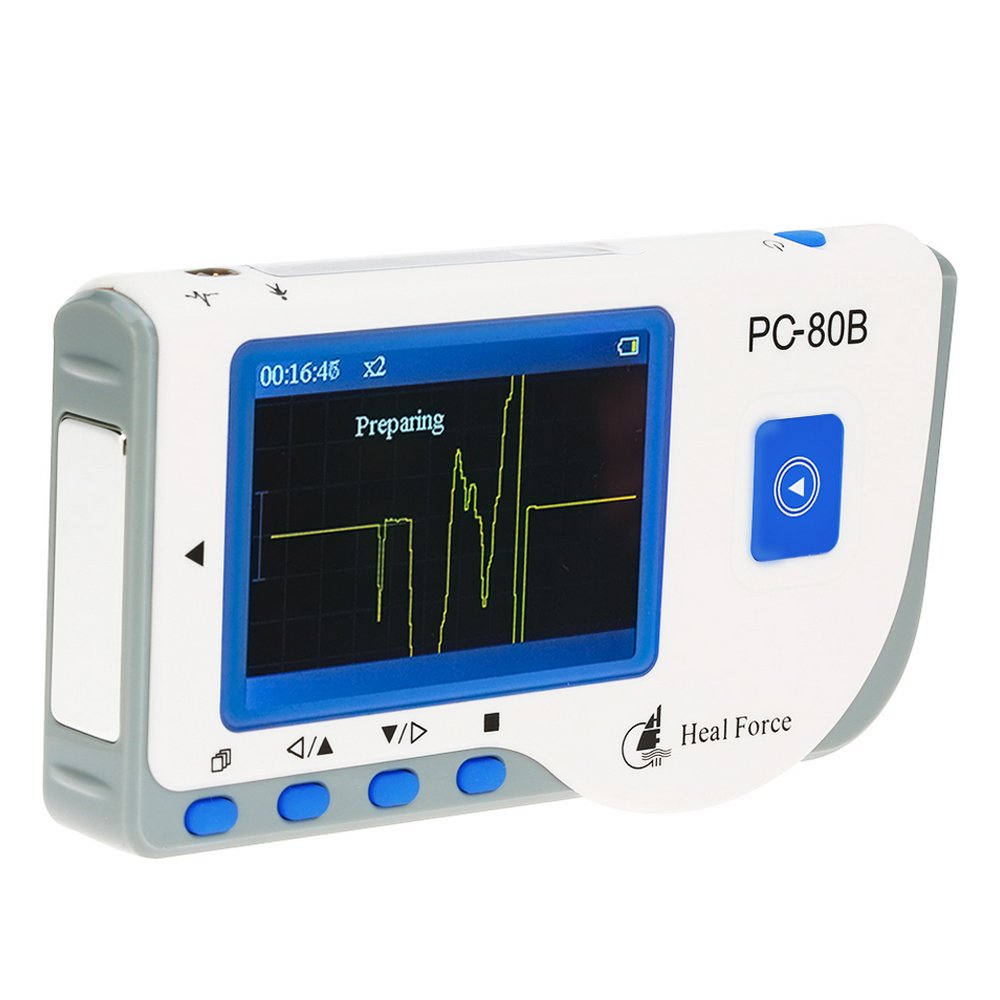

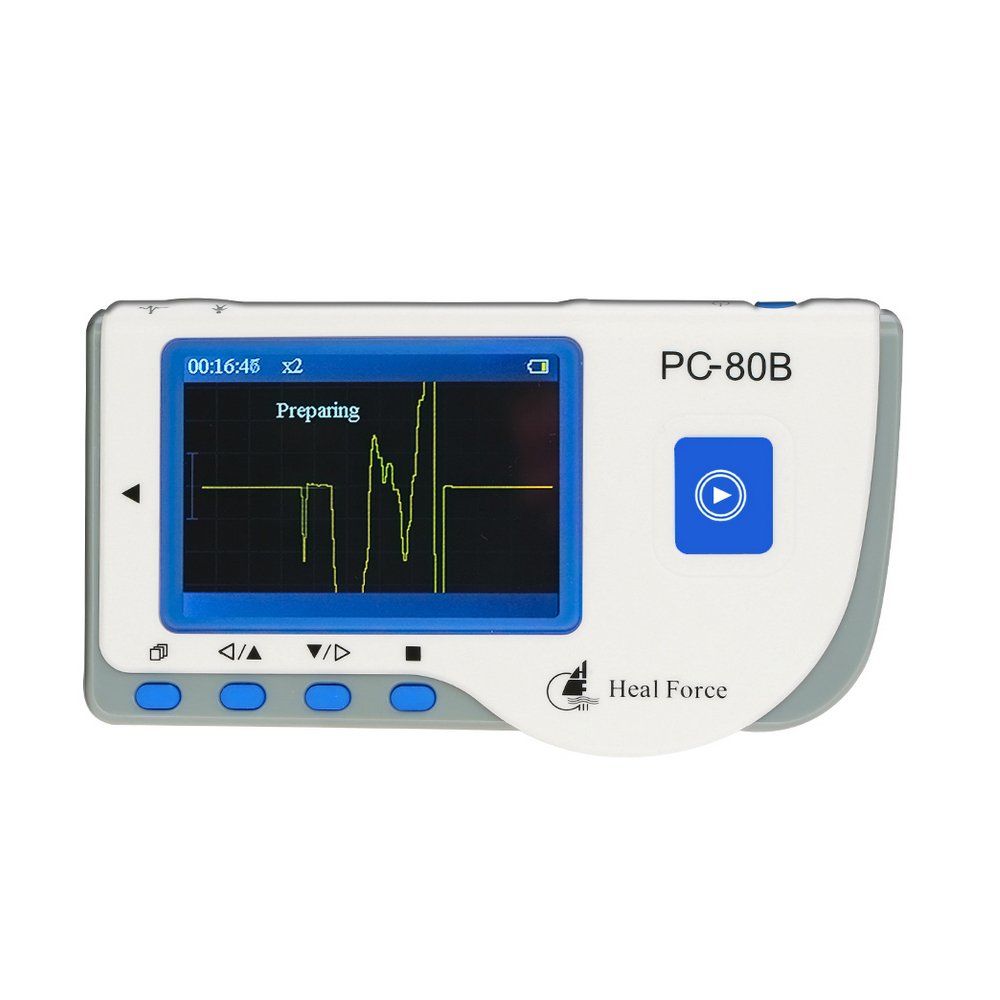

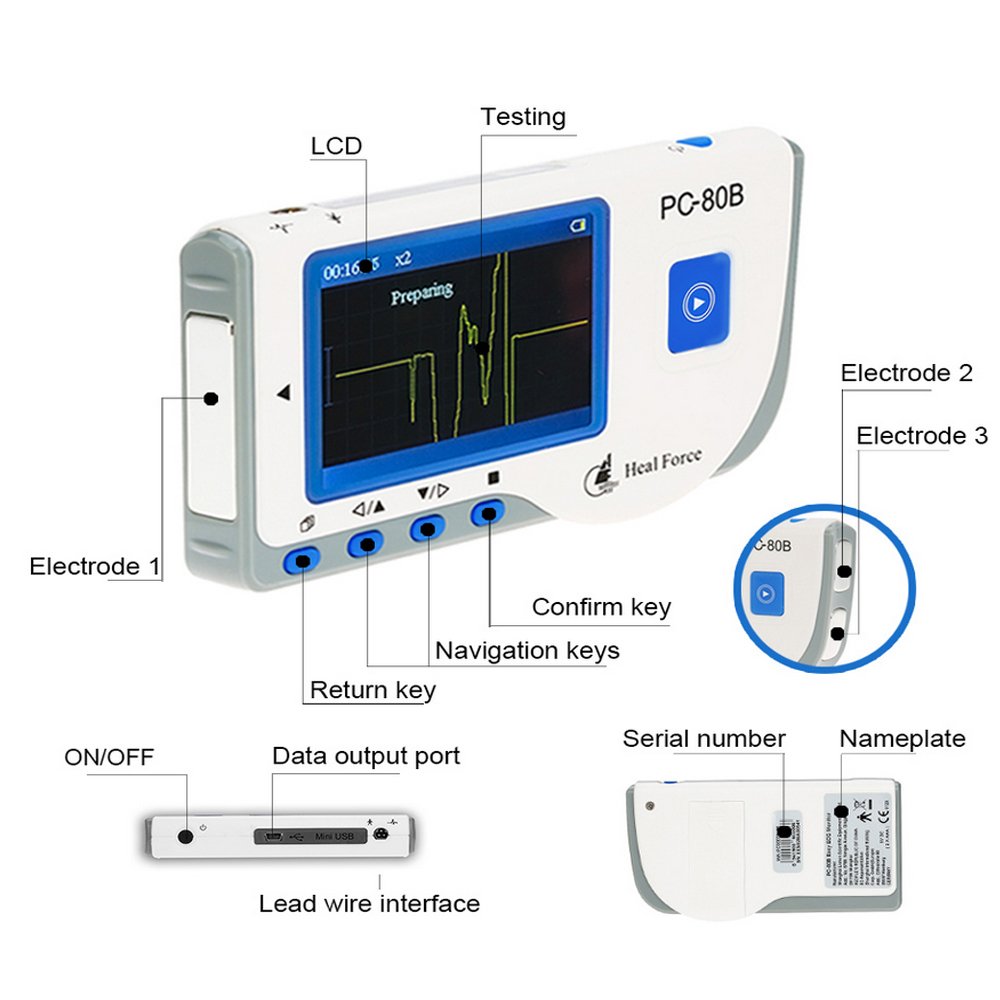

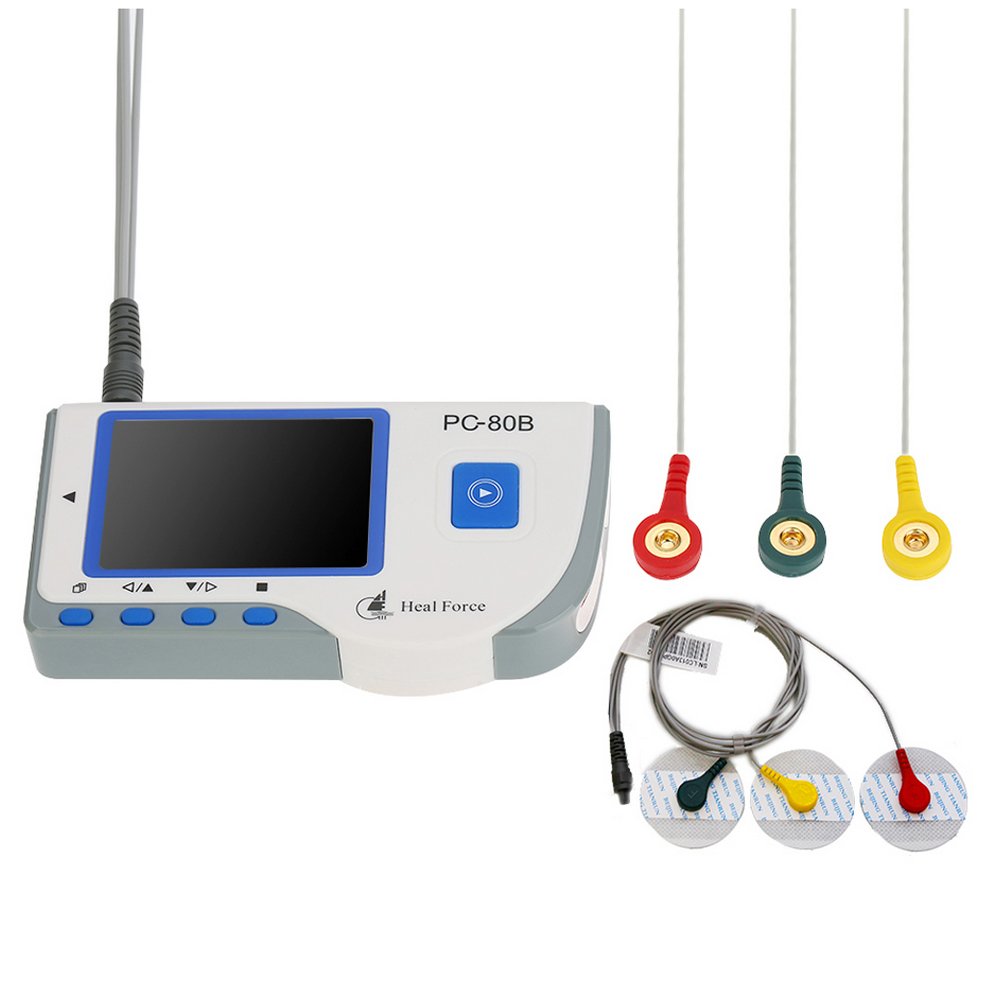

HEALFORCE PC-80B Heart ECG Monitor Data Recorder W/Software

• PC data management software is used for data transmission and analysis
• The portable ECG monitor will automatically power off in 35 seconds if no signal is detected
• It performs rapid ECG and HR measurement by recording a 30 second ECG waveform
• The ECG monitor has analysis function and it report 17 types of suggestive results
• It offers memory storage capacity of up to 1200 records or 10hours ECG

Features: - It adopts 2xAAA alkaline batteries power supply with low voltage indication - The portable ECG monitor uses a monochrome LCD display with switchable backlight - PC data management software is used for data transmission and analysis - The portable ECG monitor will automatically power off in 35 seconds if no signal is detected - It performs rapid ECG and HR measurement by recording a 30 second ECG waveform - The ECG monitor has analysis function and it report 17 types of suggestive results - It offers memory storage capacity of up to 1200 records or 10hours ECG - Gain mode is available for signal amplification Specifications: - ECG measurement Measurement mode: Lead I/II/Chest switchable (1 channel) ECG bandwidth: 0.5-40Hz Internal Noise Level: <=30uVp-p Heart Rate Range: 30-240bpm Heart Rage Accuracy: +/-2bpm or 2%, whichever is greater Display Scale: 5mm/mV+/-10% CMRR: >=60dB Wave Form Sweeping Speed: 20mm/s+/-10% Explanation: 17types of waveform - Display Mode: Color LCD Resolution: 240x160 Screen Size: 57.6x40mm General: Dimensions: 125mmx70mmx21.5 Net Weight (without batteries): 106g Power Supply: 2xAAA batteries Voltage: 2.7-3.3V DC Max. Average Working Current: <=50mA (backlight off)
