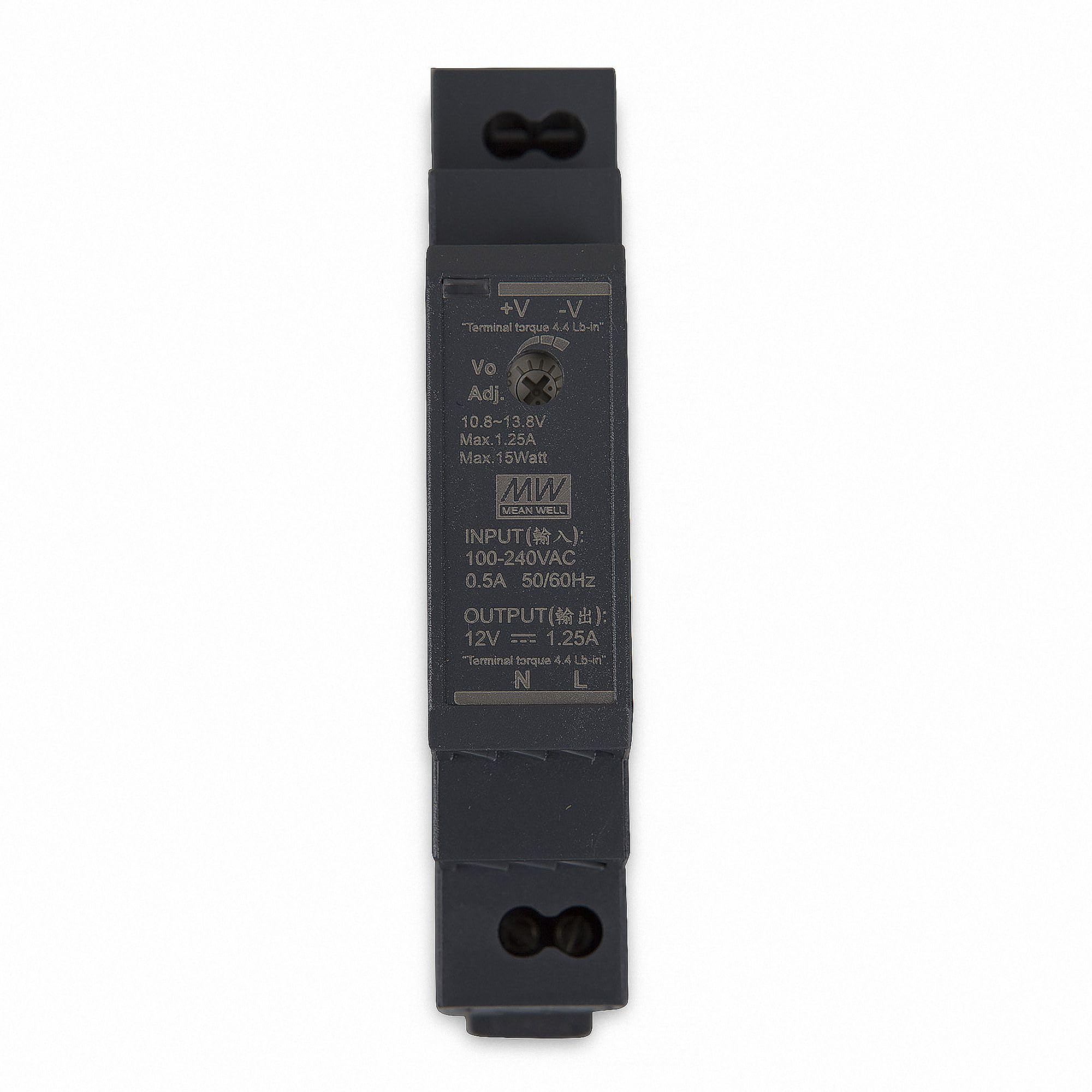

MEAN WELL HDR-15-12 Power Supply Transformer DIN Rail Power Supply (DIN-Rail) 12 V/DC 15 W LED Transformer for Lighting, Black, 90 x 17.5 x 54.5 mm

• HDR 15-12 mean well output voltage max. 13.8 V/DC output voltage max. 1.25 A

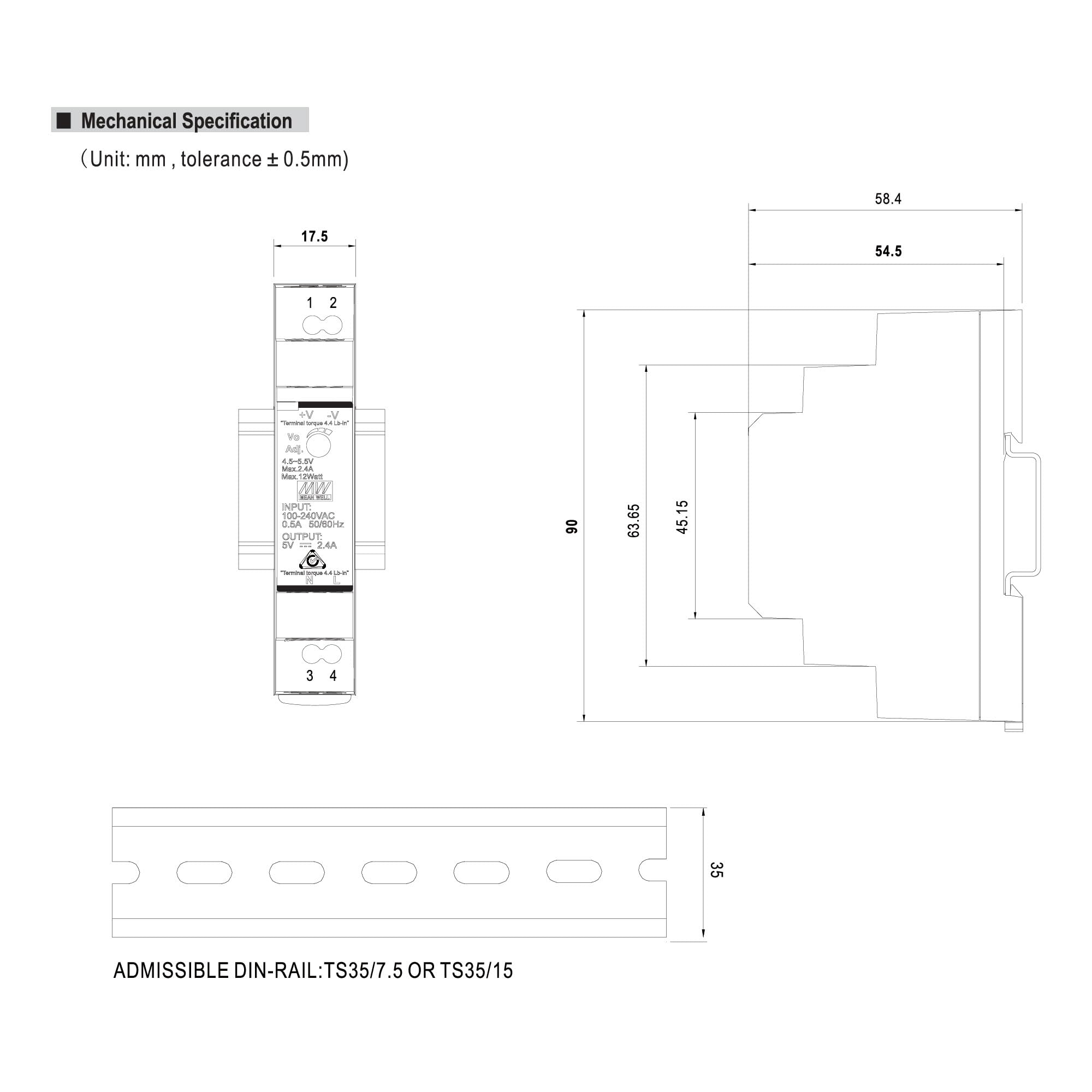

• Dimensions (L x W x H): 17.5 mm x 54.5 mm x 90 mm
• Can be mounted directly on the DIN rail. Closed design, contact-protected screw connections. Universal input. Overload protection thanks to current limitation, auto recovery. Protected against short circuit, overload, overvoltage. Low idle power. LED indicator for power-on. Insulation class II
• HDR 15-12 DIN rail mounting single output 1-phase power: 15 W can be mounted directly on the DIN rail · closed design, contact-protected screw connections · universal input · overload protection by current limitation, auto recovery · protected against short circuit, overload, overvoltage · low idle power · LED display for power-on · insulation class. ii ii
• Sale and shipping by ledtech shop in Germany within 24 hours
• What components are included in the scope of the product: 1x HDR-15-12

Types: DIN Rail Mount Single Output 1-Phase Power: 15W Description: Even smaller and more powerful than the first generation (DR series) of DIN rail power supplies (DIN-Rail) in plastic housing is the new HDR series from Mean Well. Especially in building automation and home control, the power supplies with 15 W are used, which correspond to protection class II. The Mean Well HDR family features a stepped plastic housing, has an input voltage range of 85 to 264VAC (also 277VAC available) and offers models with 5V, 12V, 15V, 24V and 48V. Thanks to the slim design, the height measures only 90 mm, the width 1SU (17.5 mm). They can be mounted on the standardised DIN rails TS-35/7.5 and TS-35/15. Its features also include a low idle consumption of
