VSDISPLAY USB LVDs Controller Board for 15.6" 17.3" 40 pin 1920x1080 LTN156HT01 LP156WF1 N156HGE-L11 LP173WF1 N173HGE B173HW01 CLAA173UA01A WLED LCD Screen

• Work for 1920x1080 WLED 40Pin LVDs LCD Screen ,Please use in insulated environment.
• 【Compatible Screen model】15.6" B156HW01 V.0 B156HW01 V.4 B156HW01 V.7 B156HW02 LP156WF1 N156HGE-L11. 17.3" N173HGE-L21 N173HGE-L11 LP173WF1 HSD173UHW1 B173HW01 CLAA173UA01A 18.4" N184H6-L01 N184H6-L02 N184H6-L04

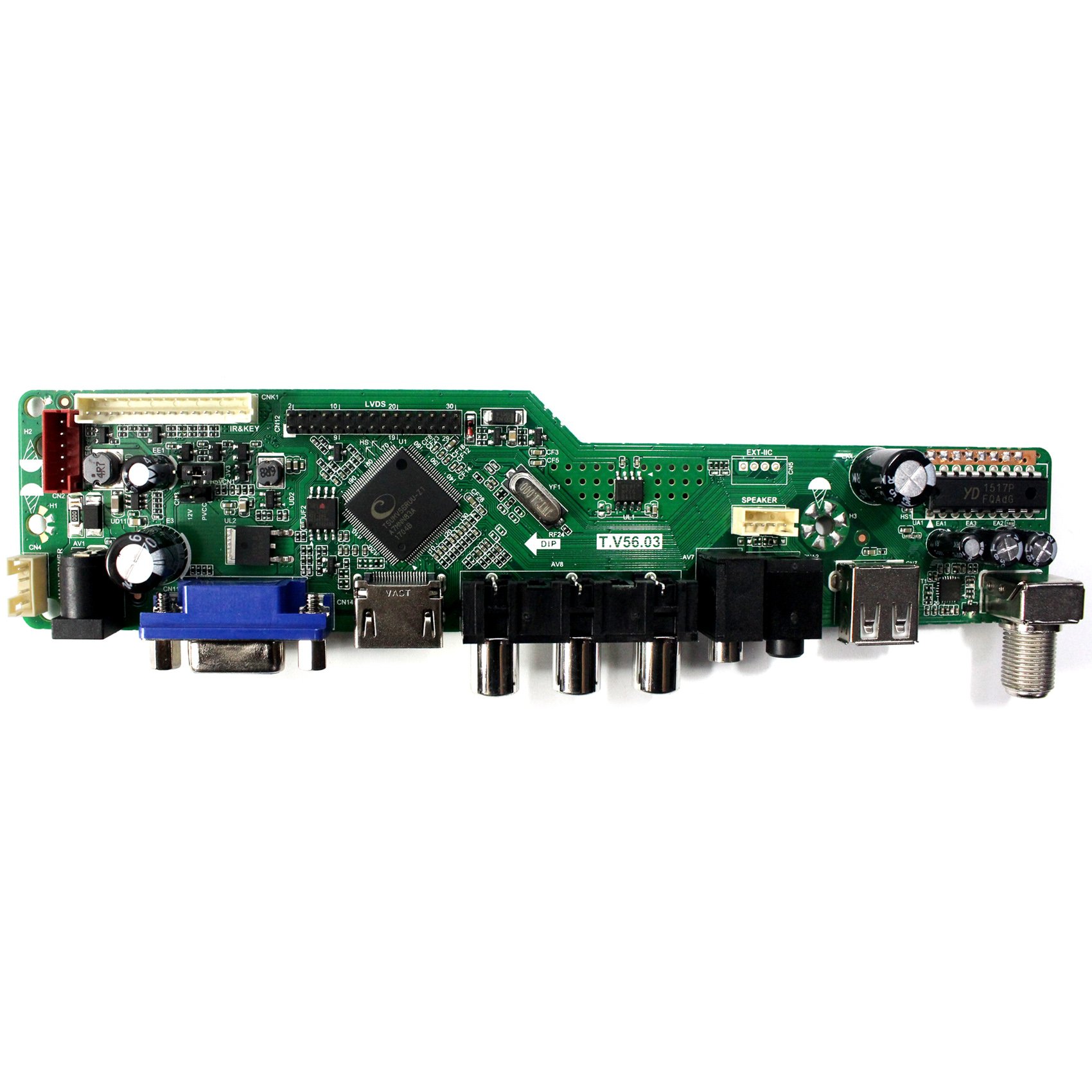

• 【LCD Controller Board 】 Video input:VGA USB ,Audio Output: Speaker Connector (8ohm 2W 70x33x15mm 4Pin PH2.0 connection).
• 【Input Power Supply】12V DC more than 3A (power adapter not included in package ,should be prepared by yourself) .
• 【Important】Please send us a message if the display is incorrect or your LCD screen's resolution is not 1920x1080. It can be solved by upgrading or changing the LVDS card in the facotry menu.Also ,This board can't recognize the automatically ,Pls switch the input into mode via the remote control.

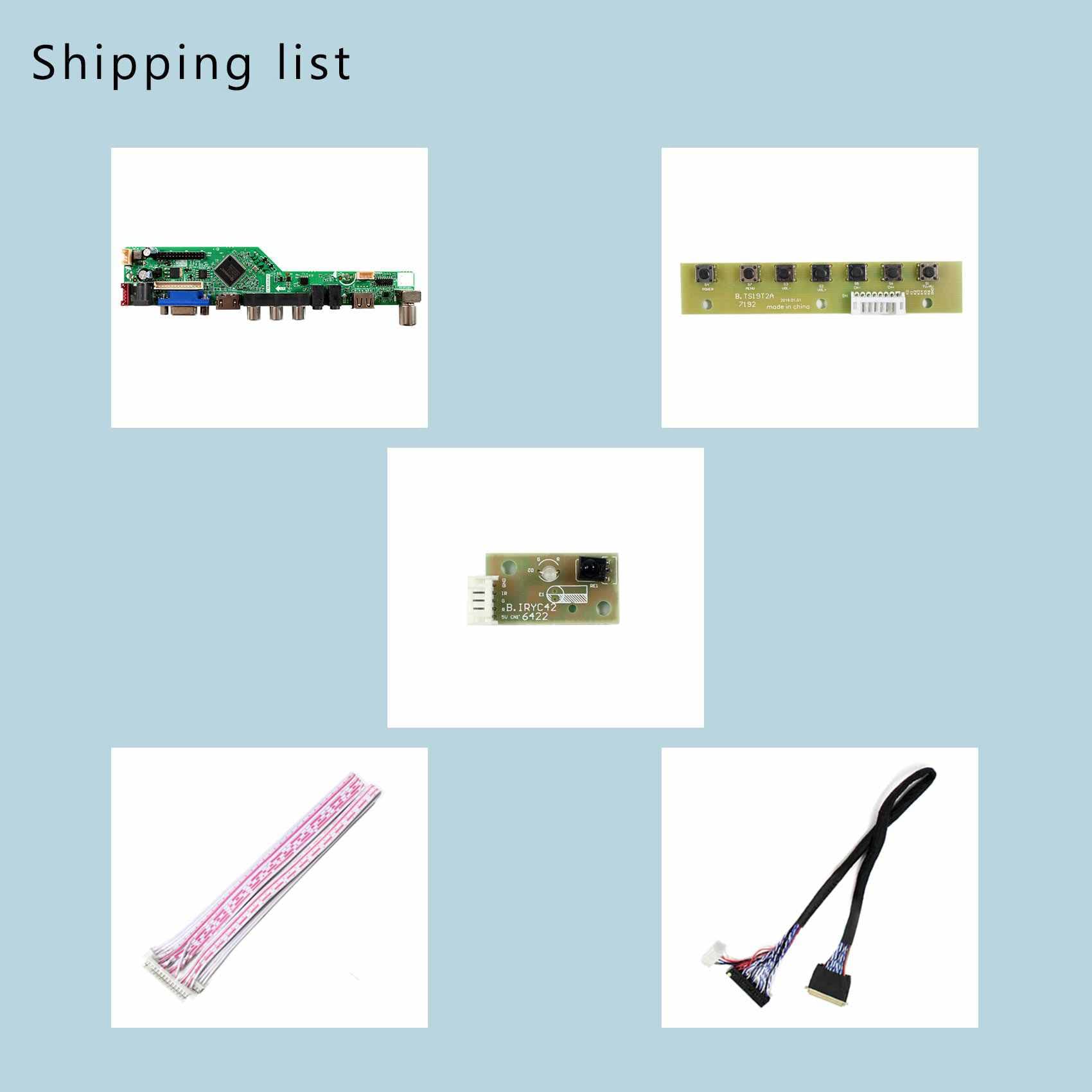

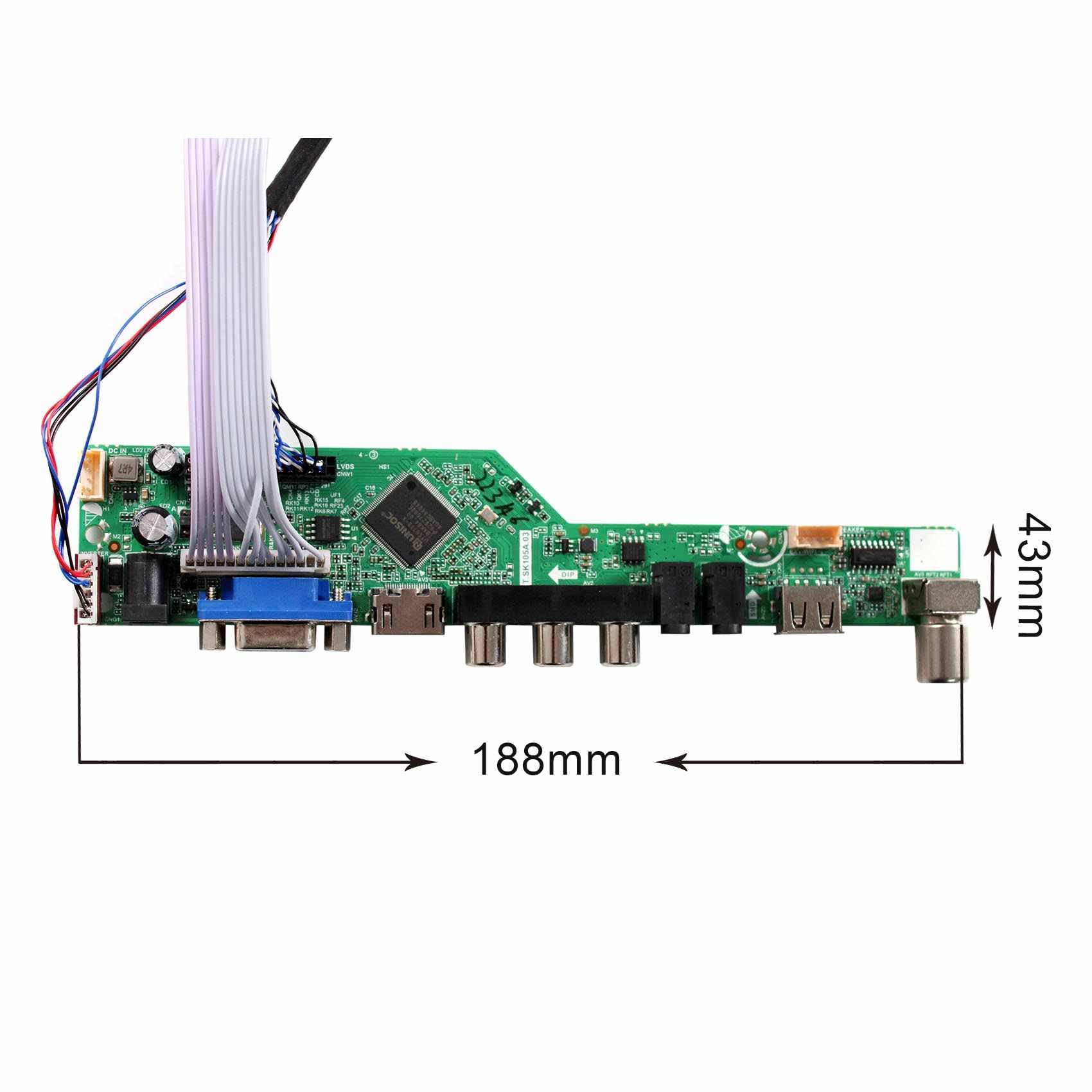

LCD Controller Board: VGA USB LCD Board Work for LVDS Interface LCD Screen Input Power Adapter:12Vdc More than 2A,Port size :5.5x2.1mm Come In Standby Model When Not Input Signal Standby Model <1W Port Support Transform Audio Compatible With 1.3/1.4， USB Support Video Video Input: VGA AV USB Audio Input: PC-Audio Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:188mm x 43mm x 17mm Compatible Work With: 15.6inch1920x1080 B156HW01 V.0 B156HW01 V.4 B156HW01 V.7 B156HW02 LP156WF1 N156HGE-L11 17.3inch1920x1080 LP173WF1 N173HGE-L21 N173HGE-L11 LP173WF1 HSD173UHW1 B173HW01 CLAA173UA01A Packing list : 1× VGA USB LCD Controller Board 1× 40Pin Cable 1× Keyboard With Cable
